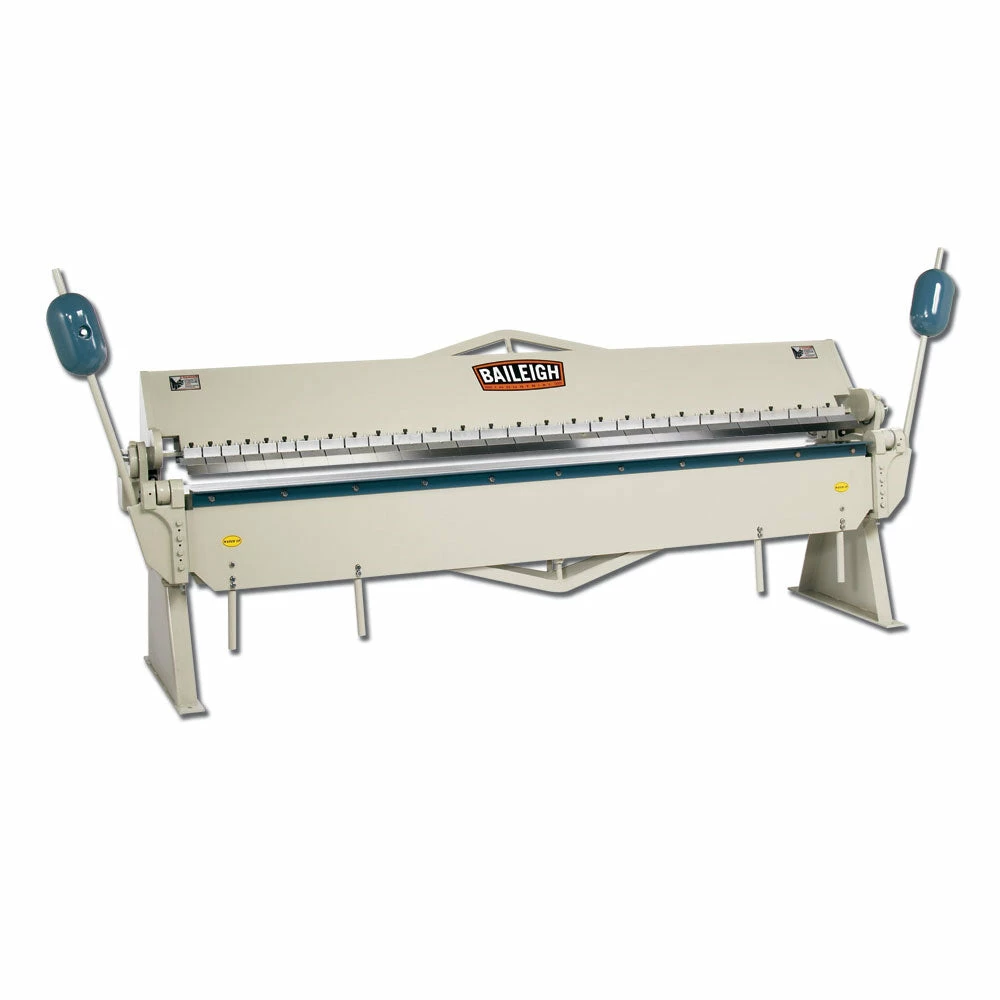

Baileigh 1000361 BB-12014 Sheet Metal Brake W/ 10′ X 14 Ga Capacity Tools & Equipment

Features

• Maximum capacity of 14 gauge mild steel and 18 gauge stainless steel.
• 10-foot (120”) length enables your shop to take on a wide range of projects.
• Bends up to 135°.
• 26 fingers of varying sizes (6 fingers of 3″, 4 of 4″, 10 of 5″, 6 of 6″) allow you to bend boxes and pans up to 6” deep.
• You can set up the individual hardened fingers for straight bending or box and pan configurations.
• Apron shafts ride in precise oilable bearings, maintaining tight bend tolerances and minimizing operator fatigue.
• 2 massive counterweights make it easy to bend at maximum capacity and reduce physical strain.
• Heavy-duty truss rods support the apron to reduce flex on maximum capacity bends.
• Electro-welded all-steel framework keeps this metal brake accurate over decades of daily use at full capacity.
• Massively-built sheet metal finger brake weighs in at almost 3500 lbs.
• Baileigh backs this metal brake with a 1-year parts warranty.

What’s in The Box

• BB-12014 -Sheet Metal Brake
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BB-12014
Power	Manual
Min Reverse Bend	.625″
Thickness (SS)	14 ga. (18 ga.)
Box Depth	6″
Beam Adjustment	1″
Bend Angle	0 – 135°
Finger Sizes	3″ – 4″ – 5″ – 6″
Length	120”
Shipping Dimensions (Inches)	145x33x45
Weight	3950 lbs
