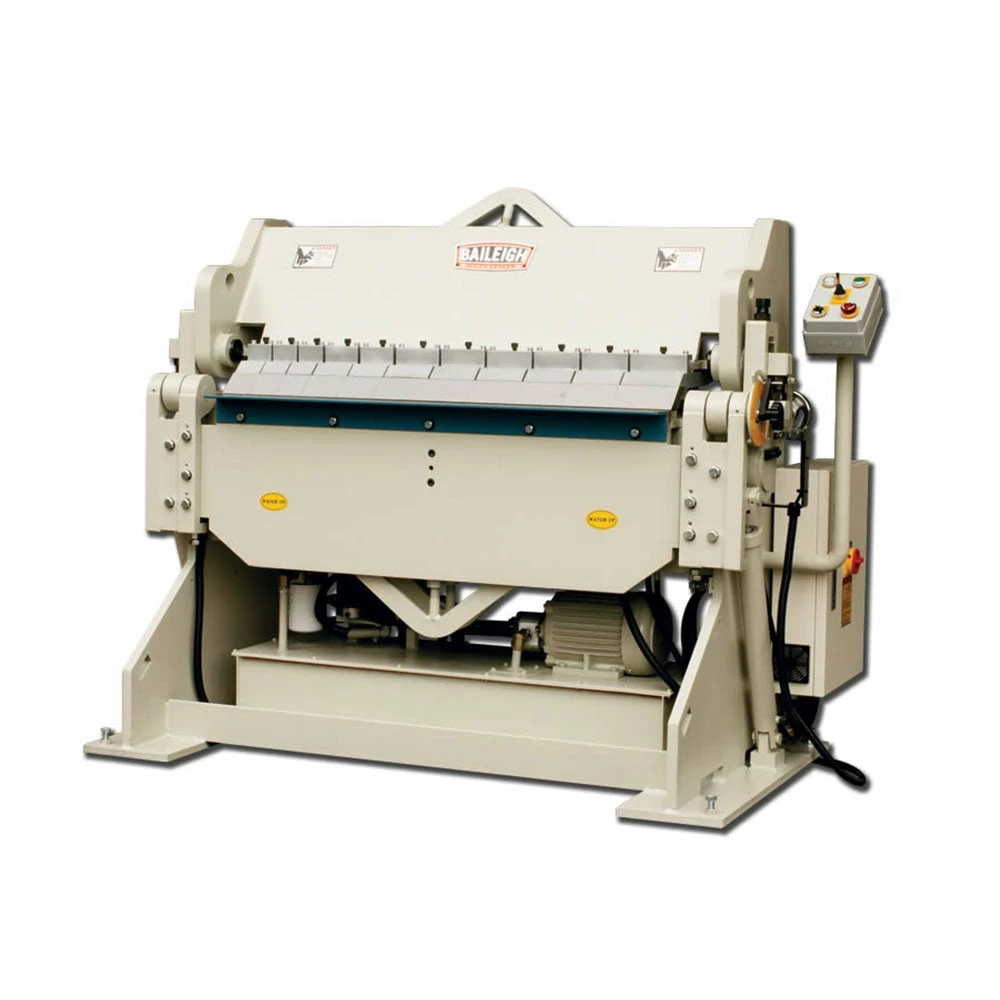

Baileigh 1000403 BB-4810H 220V 3PH Hydraulic Box / Pan Finger Brake

Features

• Runs on 220-volt 3-phase power.
• Powerful 3 hp motor controls all the hydraulic functions.
• 1” beam adjustment.
• Maximum bend angle of 135°.
• Includes 11 fingers (3 fingers of 3”, 2 of 4”, 5 of 5”, 1 of 6”), allowing you to adjust for different size boxes and pans you want to make.
• Industrial-grade hydraulics lift the leaf for clean, precise motion.
• You can operate this hydraulic brake in manual or semi-automatic mode.
• Hydraulic motor turns a cam to lift and clamp the beam when bending 10 gauge mild steel.
• Adjustable bend auto-stop makes it easy to produce repeatable bends.
• Removable bending support lets you get closer between bends.
• Fully-welded beam and bending leaf, stabilized with truss rods, minimizes any deflection when bending at full capacity.
• Baileigh backs this hydraulic box and pan brake with a 1-year parts warranty.

What’s in The Box

• BB-4810H – Hydraulic Box and Pan (Finger) Brake
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BB-4810H
Power	220V / 3-phase
Motor	3 hp
Min Reverse Bend	.984″
Thickness (SS)	10 ga. (12 ga.)
Box Depth	6″
Beam Adjustment	1″
Bend Angle	0 – 135°
Finger Sizes	3″ – 4″ – 5″ – 6″
Length	48”
Shipping Dimensions (Inches)	86x50x69
Weight	3850 lbs
