Baileigh 1000796 BP-3142NC 220V 42 Ton 31″ Hydraulic Press Brake Tools & Equipment

Features

• 31” width is perfect for smaller projects.
• Bends a maximum capacity of .25” mild steel.
• 2 hp motor produces 42 tons of pressure.
• Runs on 220-volt single phase power, so it will work in any shop, even when power is limited.
• Foot pedal controls hydraulic system, leaving your hands free to guide the material.
• Easy to use. You can train someone to handle this press brake in 5 minutes.

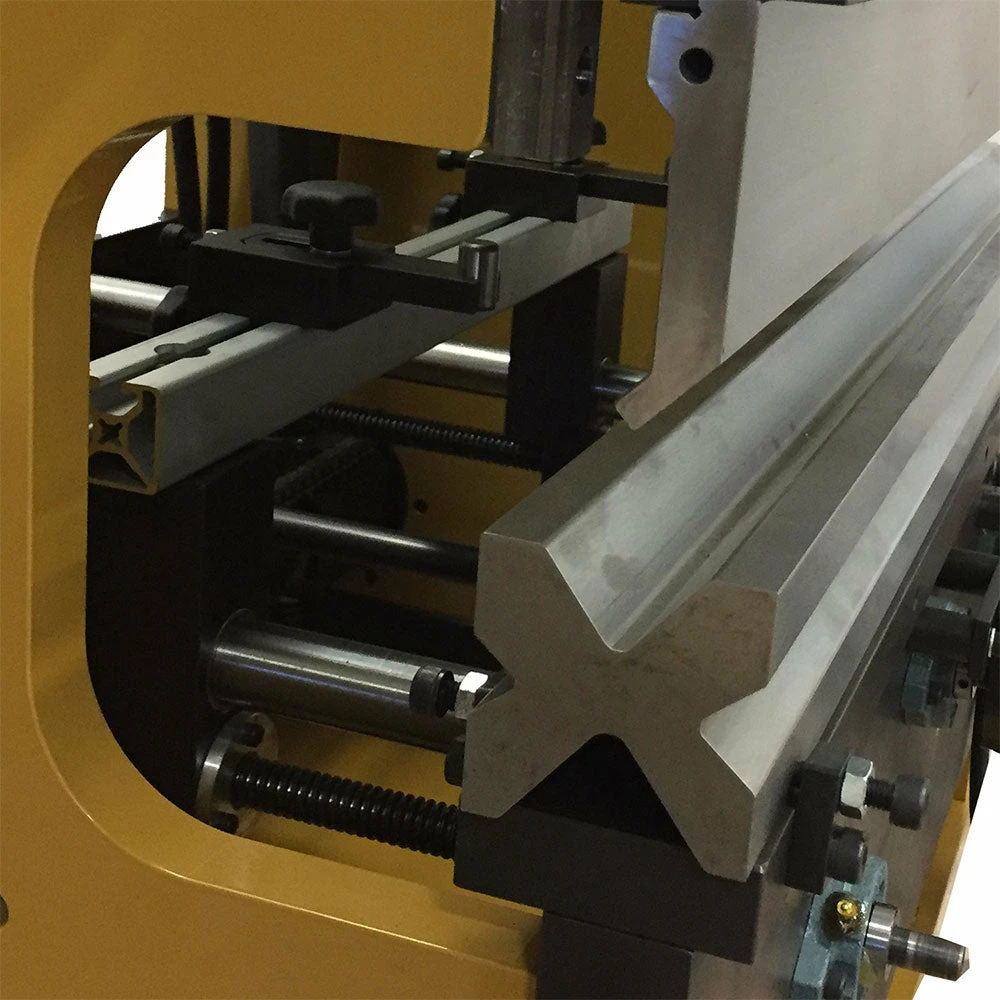

• Sturdy 19.5”-long manual back gauge makes it simple to create repeat parts.
• Digital readout (DRO) for back gauge and down position helps you get precise results.

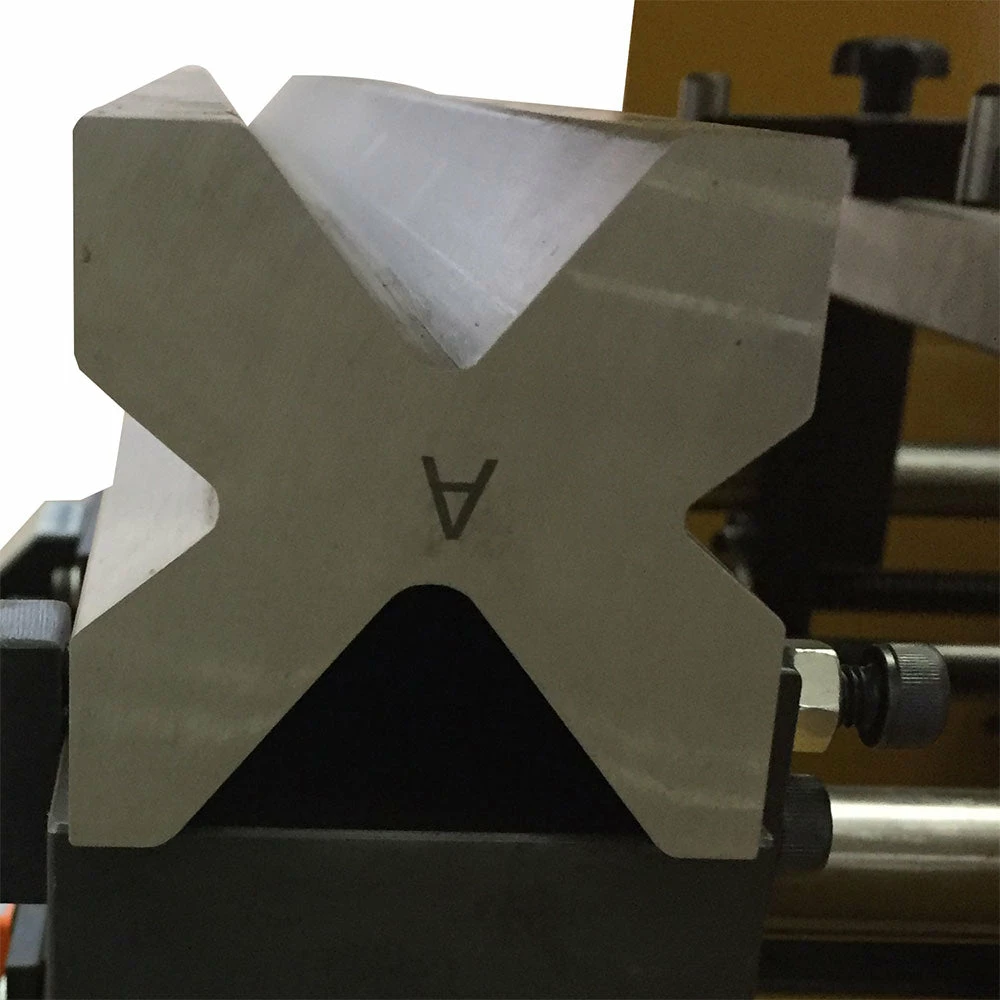

• Includes a hardened multi-Vee bottom die, unlike some competing machines which don’t come with tooling.
• Universal tooling holder gives you a wide variety of options to fit your applications.
• Heavy steel plate construction, weighing 2,000 lbs., doesn’t flinch under pressure and maintains accuracy over many years of use.
• Requires little maintenance. Hydraulics are located in the upper back of the machine for convenient fluid changes every 6 to 8 months.
• Ships fully assembled. Just unpack it, plug it in, and get to work.

What’s in The Box

• BP-3142NC – Hydraulic Press Brake
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BP-3142NC
Power	220V Single Phase
Country of Manufacture	United States
Motor Hp	2
Table Length	31″
Back Gauge Length	19.5″
Return Speed	1.1″ / sec
Stroke Distance	2″
Approach Speed	0.9″ / sec.
Bending Speed	0.4″ / sec
Distance Between Housings	28″
Distance From Table To Ram	8.5″
Dimensions (Inches)	60 x 48 x 94
Weight	2000 lbs
