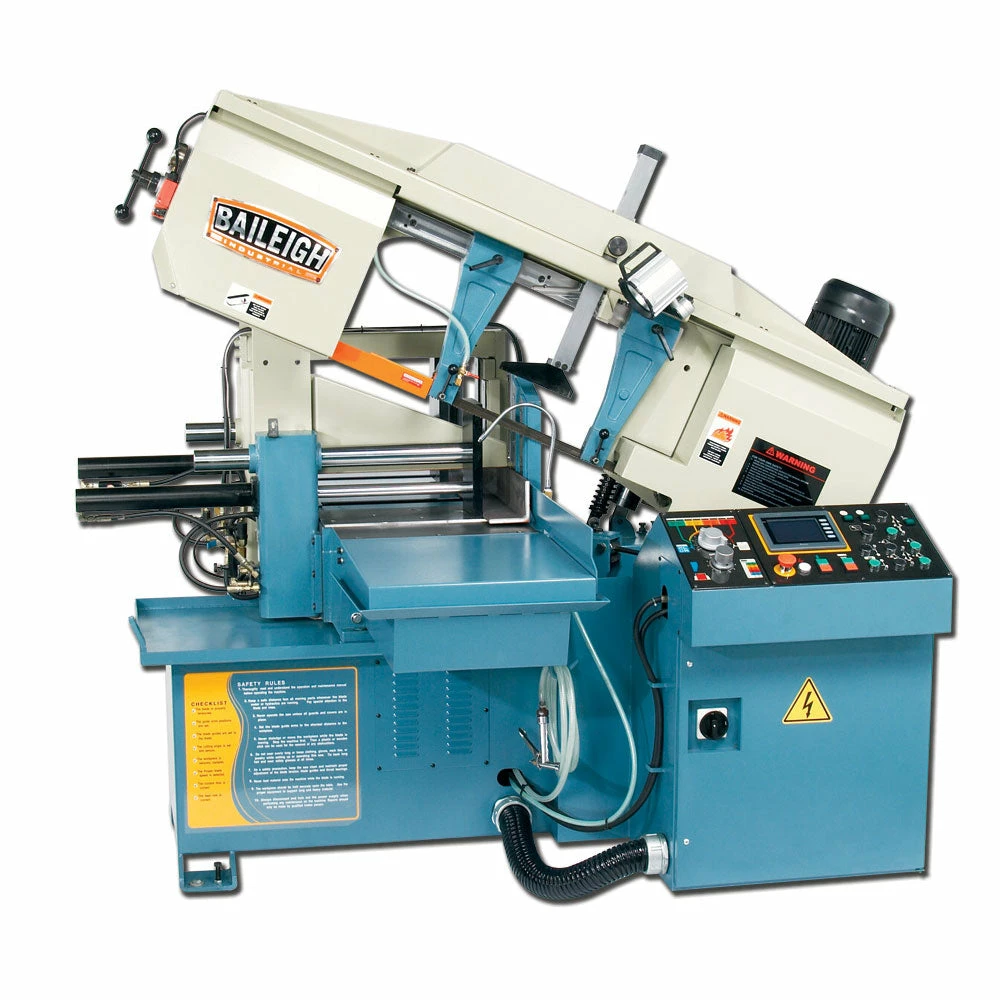

Baileigh 1001260 BS-20A 220V 3PH Automatic Metal Band Saw

Features

• Cuts up to 13” round and 13” x 18” rectangle at 90°.
• 89 to 256 fpm variable speed, so you can fine-tune for your material.
• Accepts a standard 1” blade (included) for speed and precision.
• Available in 220-volt or 440-volt 3-phase models (440-volt is a special order).
• Miters up to 45° with a degree indicator to show your angle.
• Powerful 5 hp motor runs the low-pressure industrial-grade hydraulic system.
• Automatic system, with a hydraulic vise and automatic return, saves time and smoothly manages the whole cutting process, including transitions.
• Digital encoders feed the material between cuts for repeatability.
• Hydraulic large-capacity bundling system clamps the material tight to ensure a consistent cut across all of the pieces.
• 2-speed blade descent allows for faster cycle times.
• Delta® touchscreen programmer is easy to use, so you can get to work right away.
• Programmer can run in manual or automatic mode.
• Infeed and outfeed table can handle 5,000 lbs. of material.
• Patented blade tension device makes it simple to set the correct tension. You can just line up the arrow within the green gauge.
• Electro-welded steel framework reduces vibrations and gives this automatic horizontal band saw the structural strength to tackle large capacities accurately.
• In case a blade breaks, automatic blade shut-off protects your safety.
• Variable-speed metal chip auger and coolant system keep the saw clean and make blades last longer.
• Bright halogen work light lets you clearly see what the machine’s doing.
• Most parts are in stock, so you don’t have to wait long to get replacements.
• Covered by a 1-year parts warranty.

What’s in The Box

• BS-20A – Automatic Band Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BS-20A
Power	220V / 3-phase
Return	Hydraulic
Miter Adjustment	Swivel Head
Miter Angle	0 – 45°
Included Accesories	Included Accesories
Capacity Rectangular 90 x 45 x 45L	13″ x 18″ x 13″ x 11″
Capacity Round 90° x 45°	13″ x 11″
Chip Removal	Hydraulic Auger
Capacity Square 90° x 45°	13″ x 11″
Table Height	32.3″
Blade Guide	Carbide x Roller
Blade Motor	5 hp
Blade Size	1″ x .035″ x 162.59″
Blade Speed (fpm)	89 – 256 (Variable Speed)
Material Clamping Bundling	Hydraulic
Material Feed	Hydraulic
Descent Control	Pressure Assist Hydraulic
Shipping Dimensions (Inches)	91x87x73
Weight	3500 lbs
