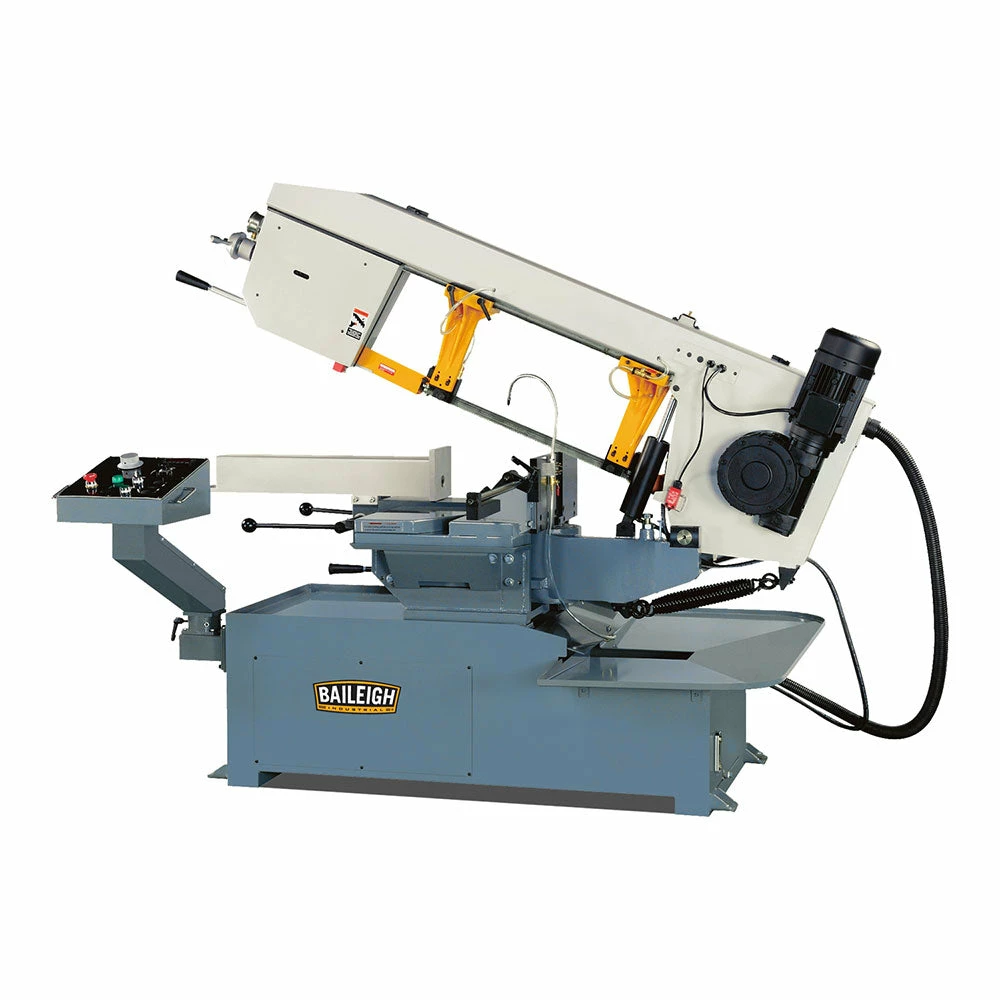

Baileigh 1001292 BS-20M-DM 13″ Manual Dual Mitering Band Saw Tools & Equipment

Features

• Inverter drive lets you adjust blade speed: 69 to 306 fpm.
• Accepts large 1.25” blade (included) for speed and accuracy. The larger the blade, the straighter the cut.
• Available in 220-volt triple-phase or 440-volt triple-phase (special order) models.

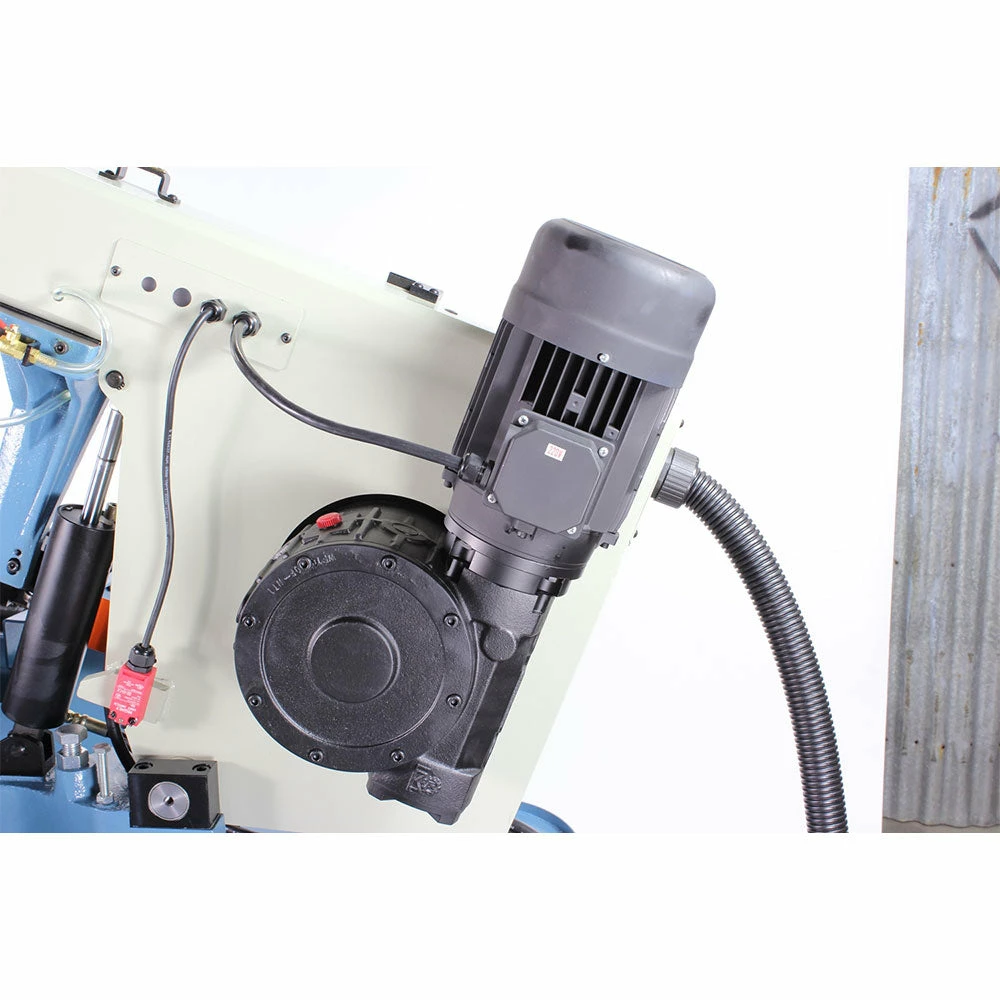

• Industrial reduction gearbox transmission makes the saw more reliable than one with a belt and pulley system.
• Miters 45° left and 60° right. Just push or pull the head to the angle you need.
• Rigid cast iron bow adds to the structural strength of the machine and reduces vibrations.

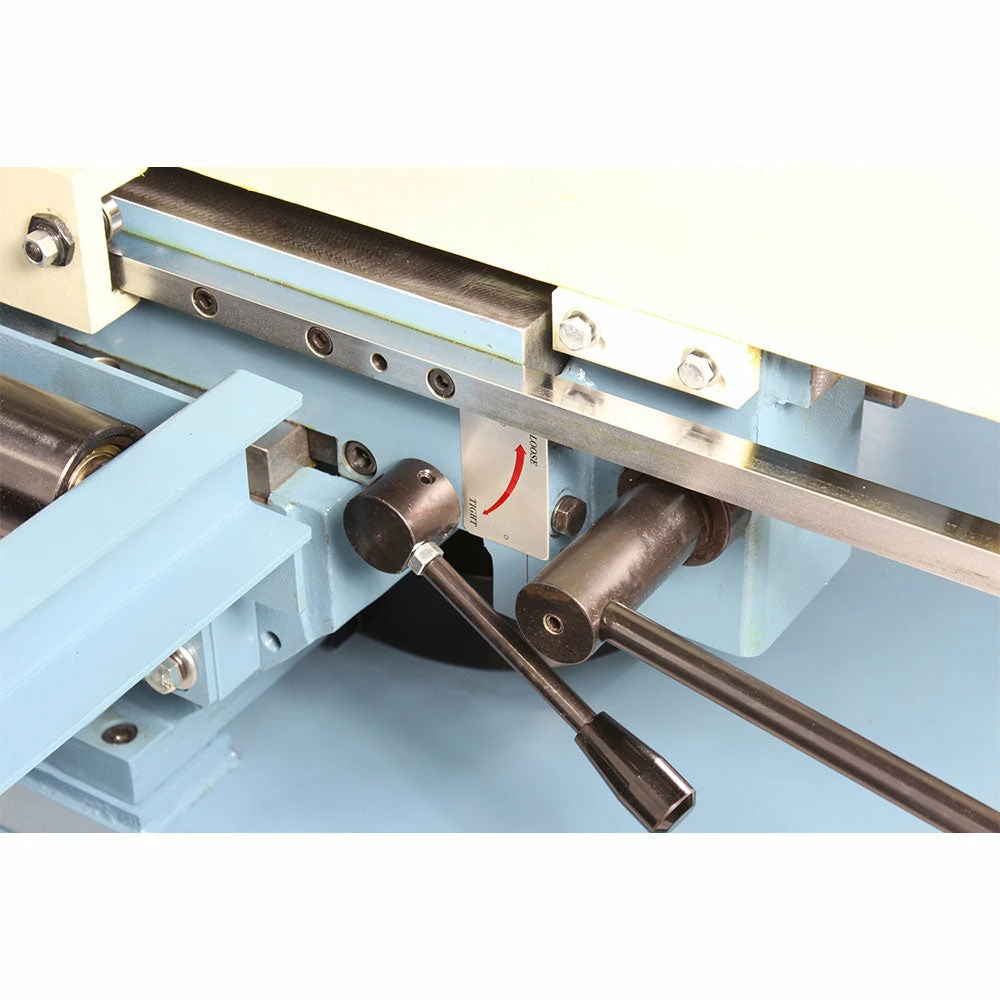

• Quick-lock vise has serrated jaws that grip onto round material, preventing it from spinning and ruining a blade.

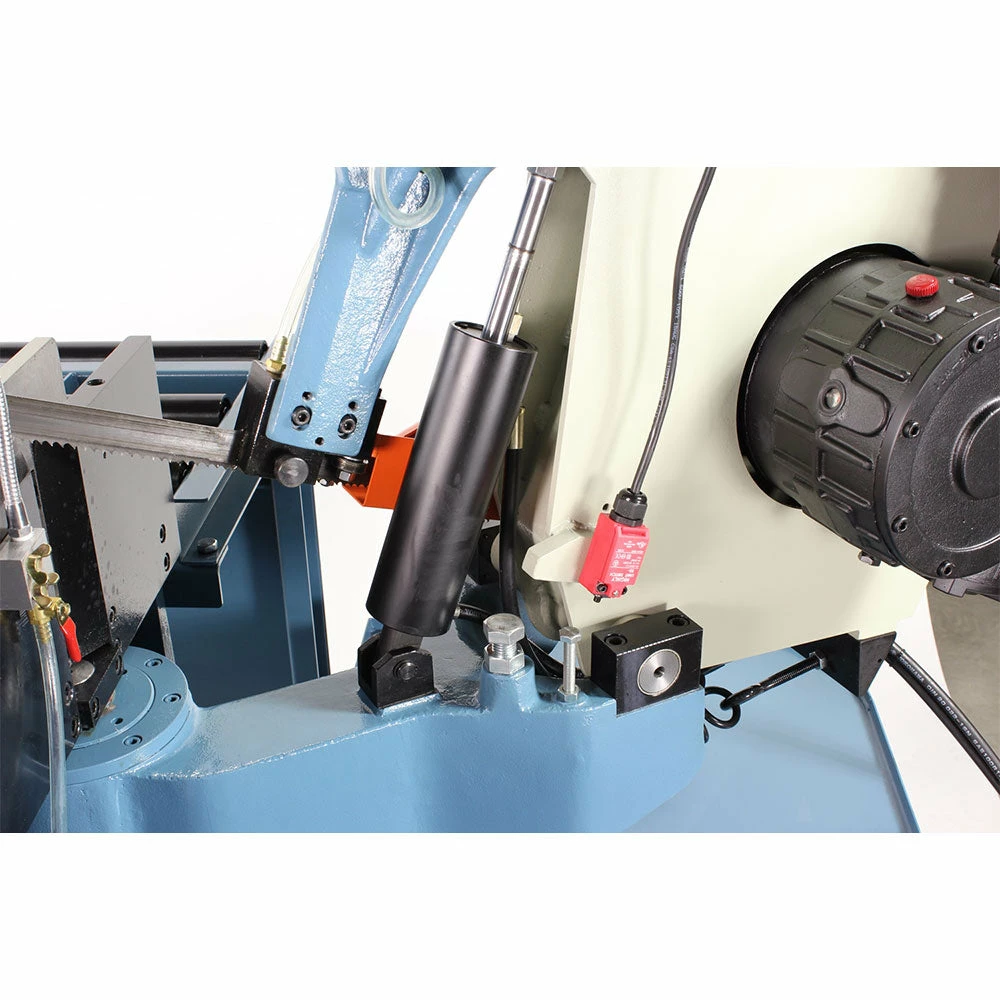

• Hydraulic descent allows you to select the proper speed, increasing cut quality and blade life.
• Roller infeed and outfeed table enables you to slide the material to and from the blade, saving strain.

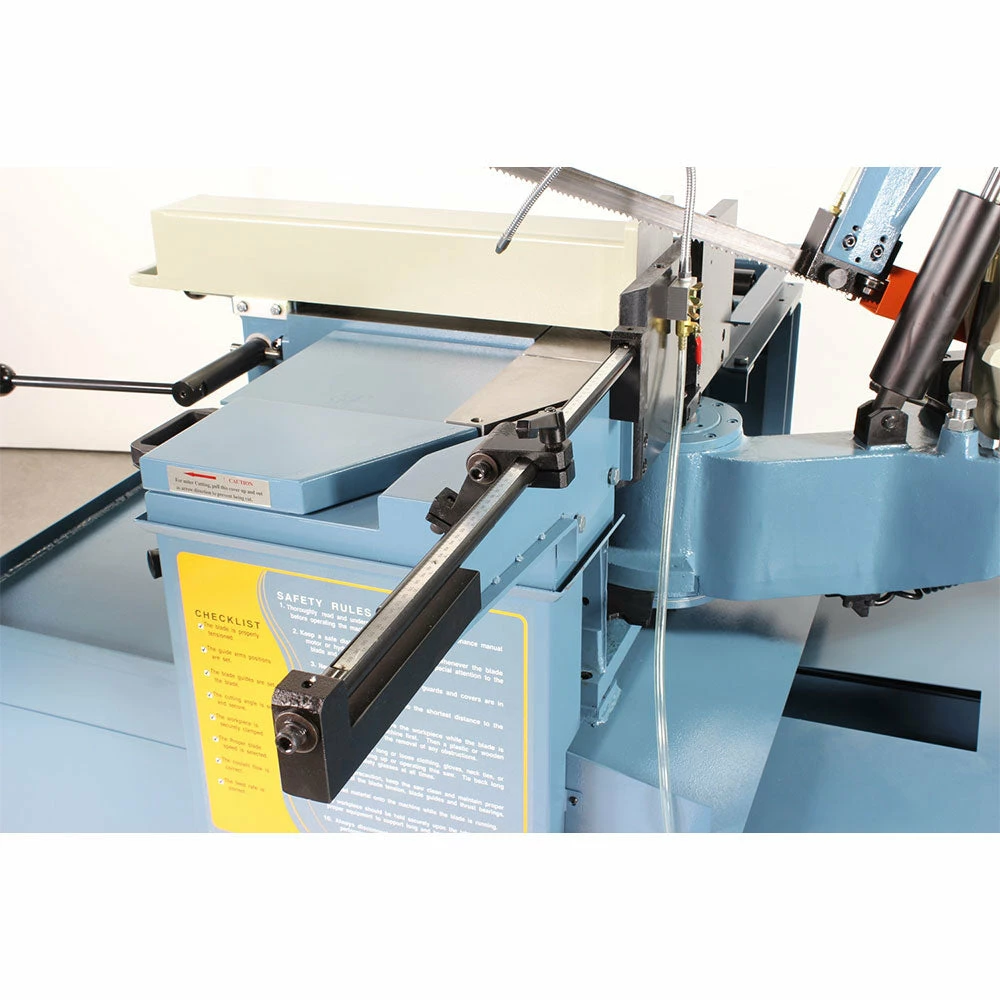

• Includes a material stop for conveniently making repeat cuts.

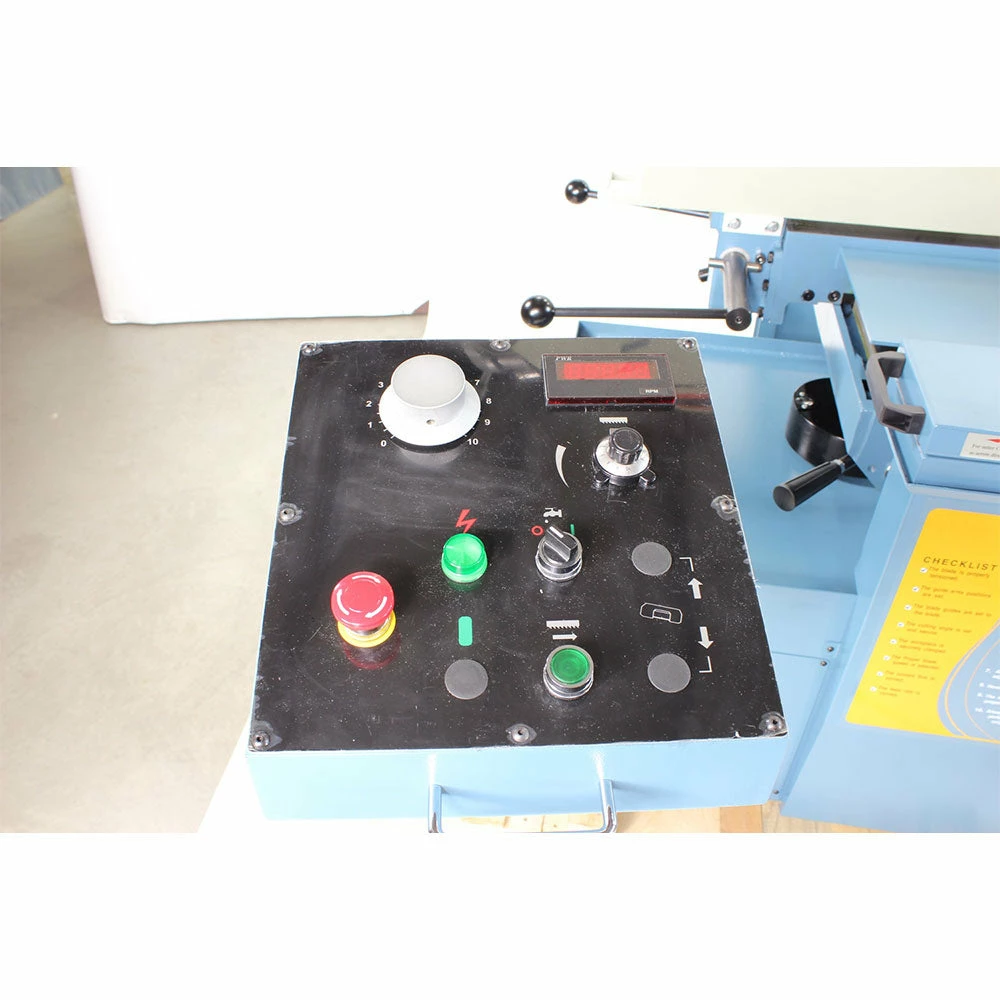

• Digital readout shows the blade speed. Adjust the dial to use the same settings for multiples of a part.
• Electro-welded steel frame keeps vibrations down to a minimum, so your cuts stay straight and accurate.

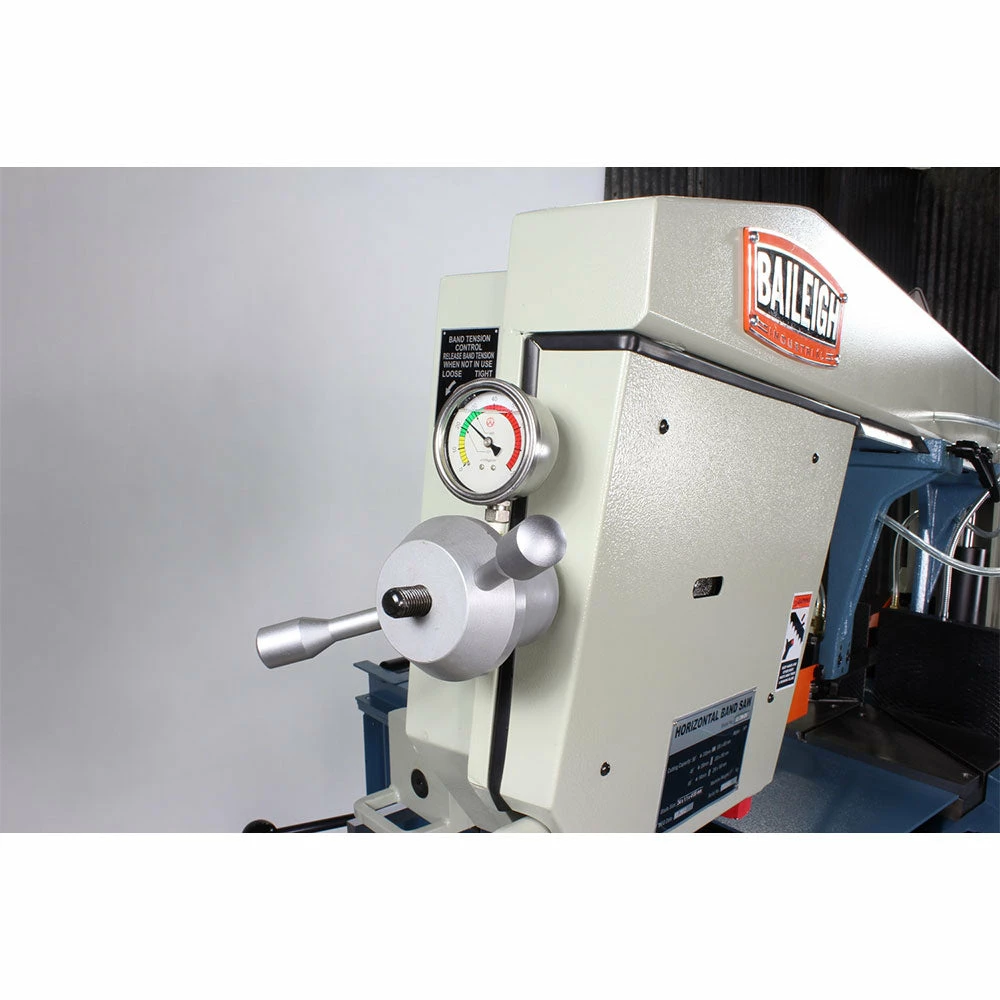

• Our patented blade tensioning gauge simplifies the process of checking the tension and adjusting it. Just line the black arrow up with the green area.

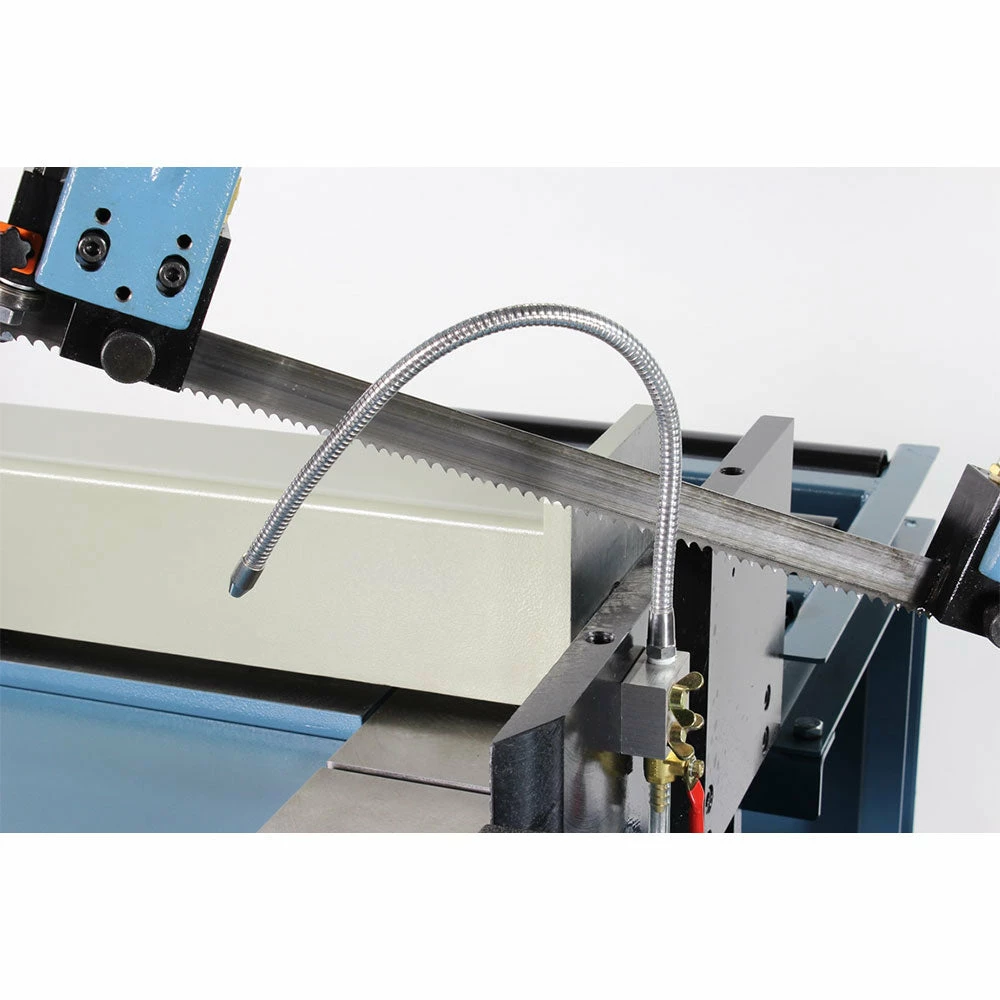

• High-pressure flood coolant system washes away chips and helps the blade last longer.
• Huge chip tray at the bottom collects debris and keeps your shop clean.
• Automatic shut-off system stops the machine once it’s done cutting, for your safety.
• We typically keep this saw and its parts in stock for fast deliveries.
• Covered by a 1-year parts warranty.

What’s in The Box

• BS-20M-DM – Dual Mitering Band Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BS-20M-DM
Power	220V, 60Hz, 3-Phase
Return	Manual
Miter Adjustment	Dual Miter Swivel Head
Miter Angle	0 – 60°, 45°L
Motor	3 hp
Included Accesories	Included Accesories
Capacity Round 90°/ 45° / 60°	13″ x 12″ x 8.5″
Capacity Square 90°/ 45° / 60°	13″ x 12″ x 8.5″
Table Height	30.5″

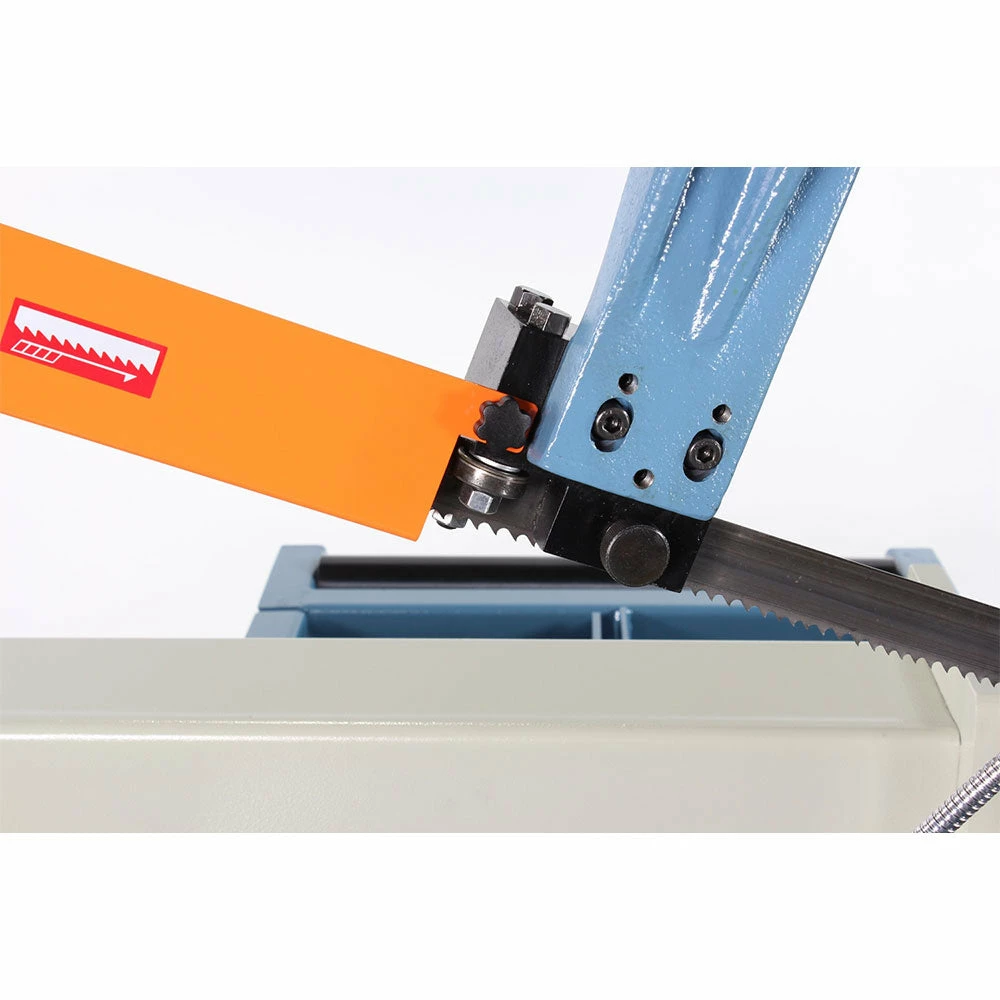

Blade Guide	Carbide / Roller
Blade Size	1.3″ x .042″ x 162.6″
Blade Speed (fpm)	60 – 306 Inverter Driven
Descent Control	Hydraulic
Drive	Inverter Direct
Shipping Dimensions (Inches)	90x36x67
Weight	2180 lbs
