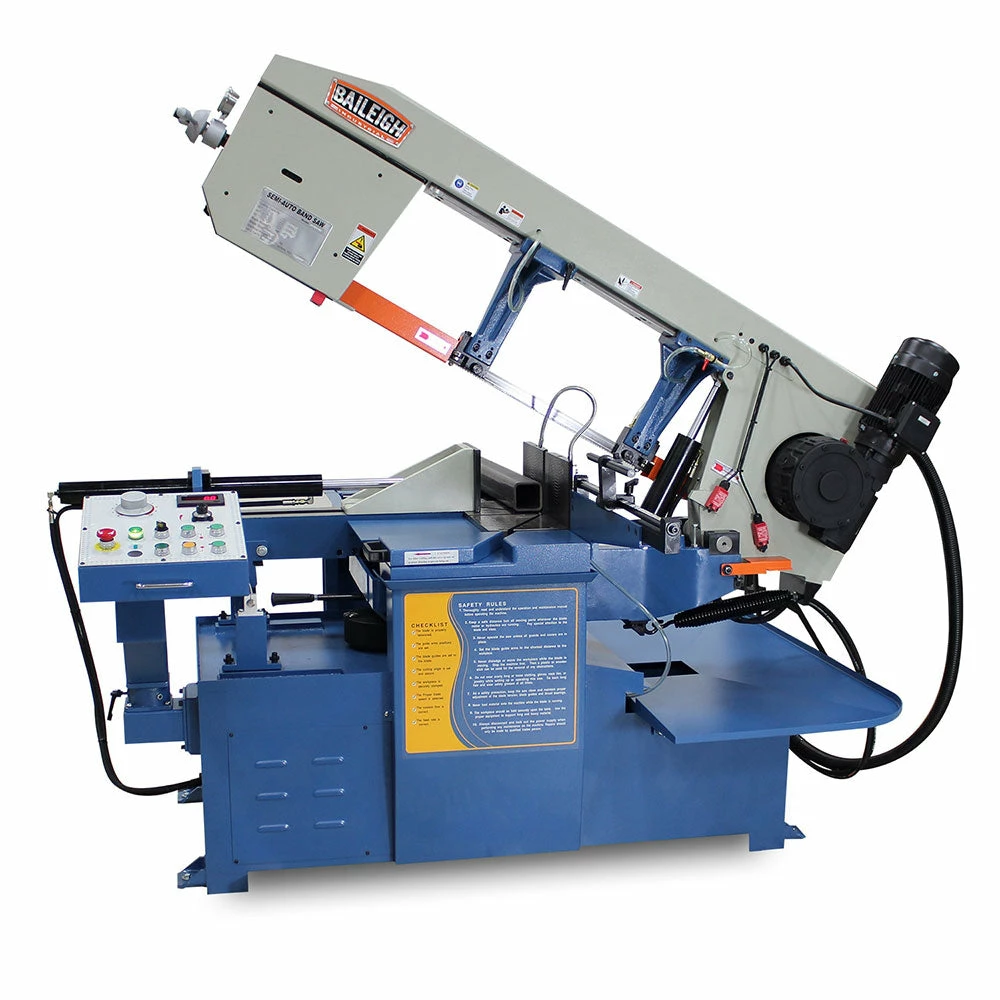

Baileigh 1001298 BS-20SA-DM 13″ Dual Miter Band Saw W/ Cast Iron Bow

Features

• Maximum capacity of 13” OD round at 90°.
• Accepts a 1.25” blade (included). The large size makes faster and more accurate cuts.
• Dual-mitering band saw can move 45° left and 60° right. Just push or pull the head to the right angle.

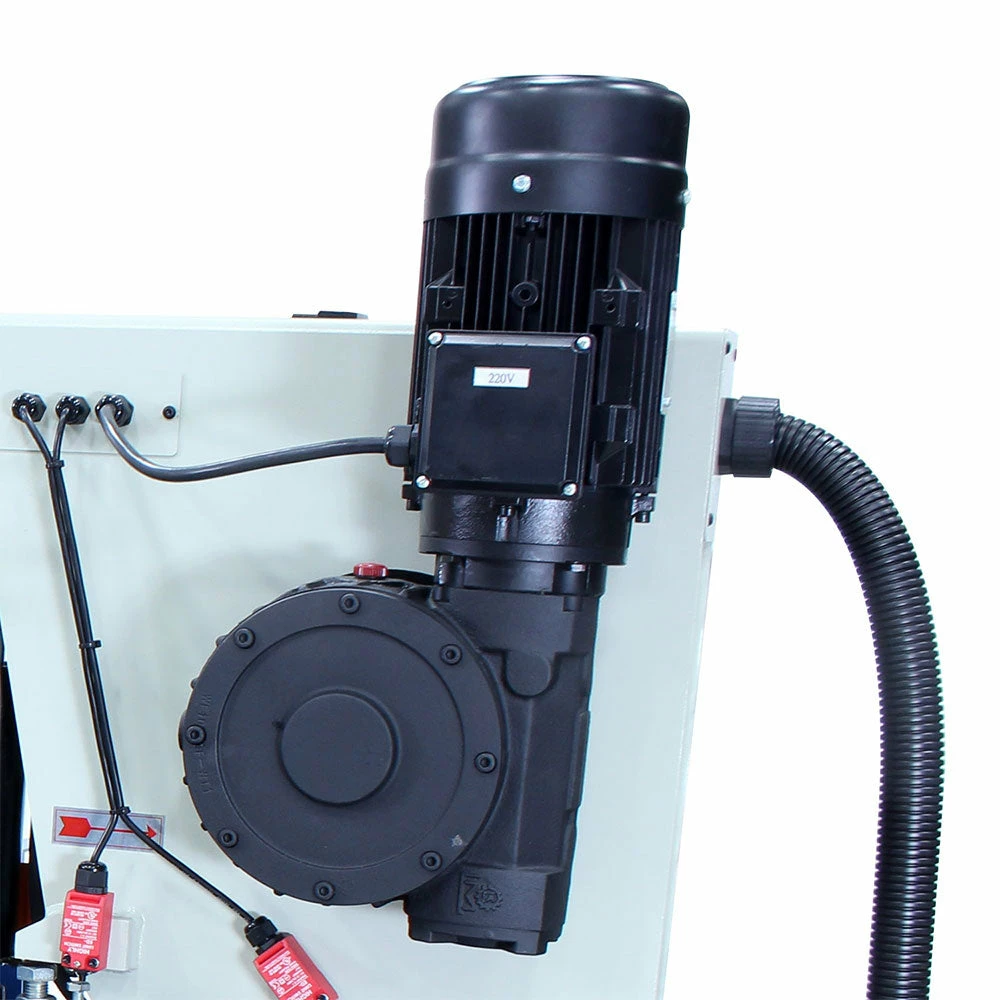

• Inverter drive allows for infinite blade speed adjustments from 69 to 306 fpm.
• You can fine-tune the speed for materials like mild steel, bronze, or aluminum.
• Digital readout (DRO) allows you to reproduce settings with ease.
• Available in 220-volt or 440-volttriple-phase models (440-volt is a special order).
• Cast iron bow resists vibrations and helps to ensure a high-quality cut.

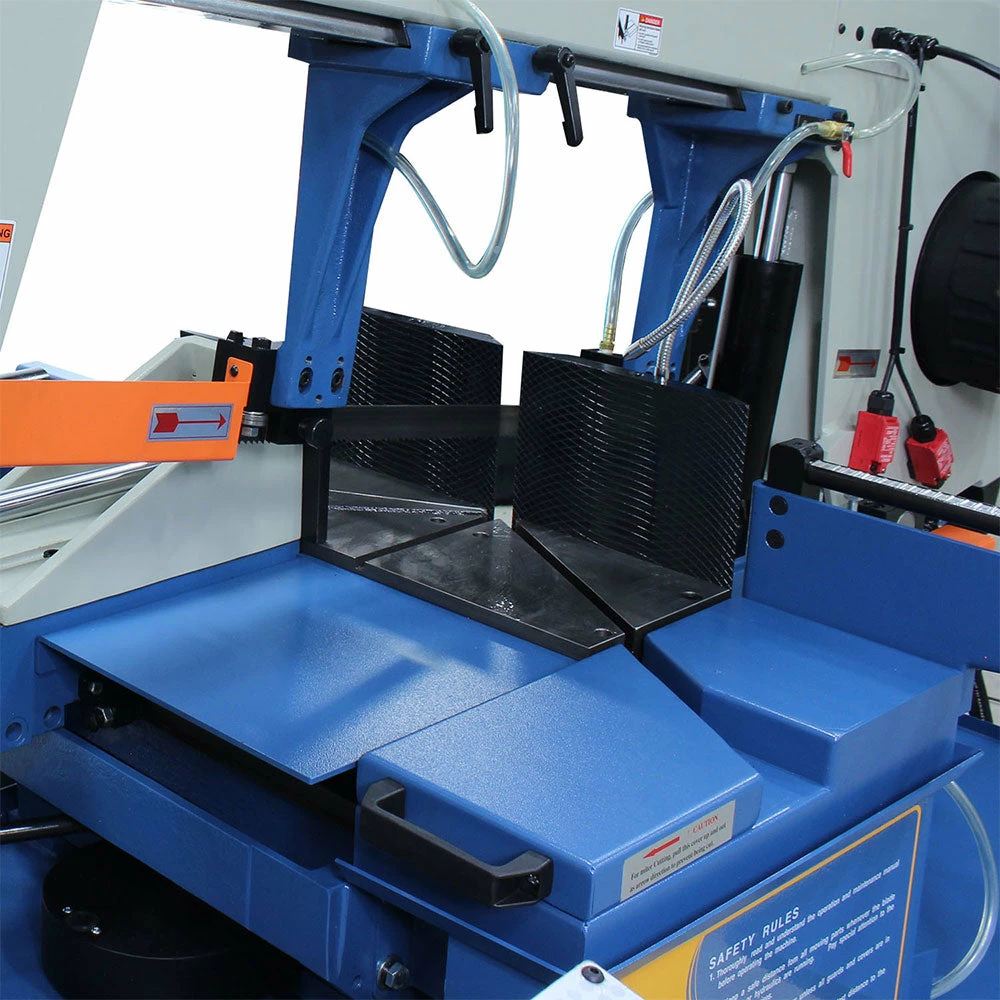

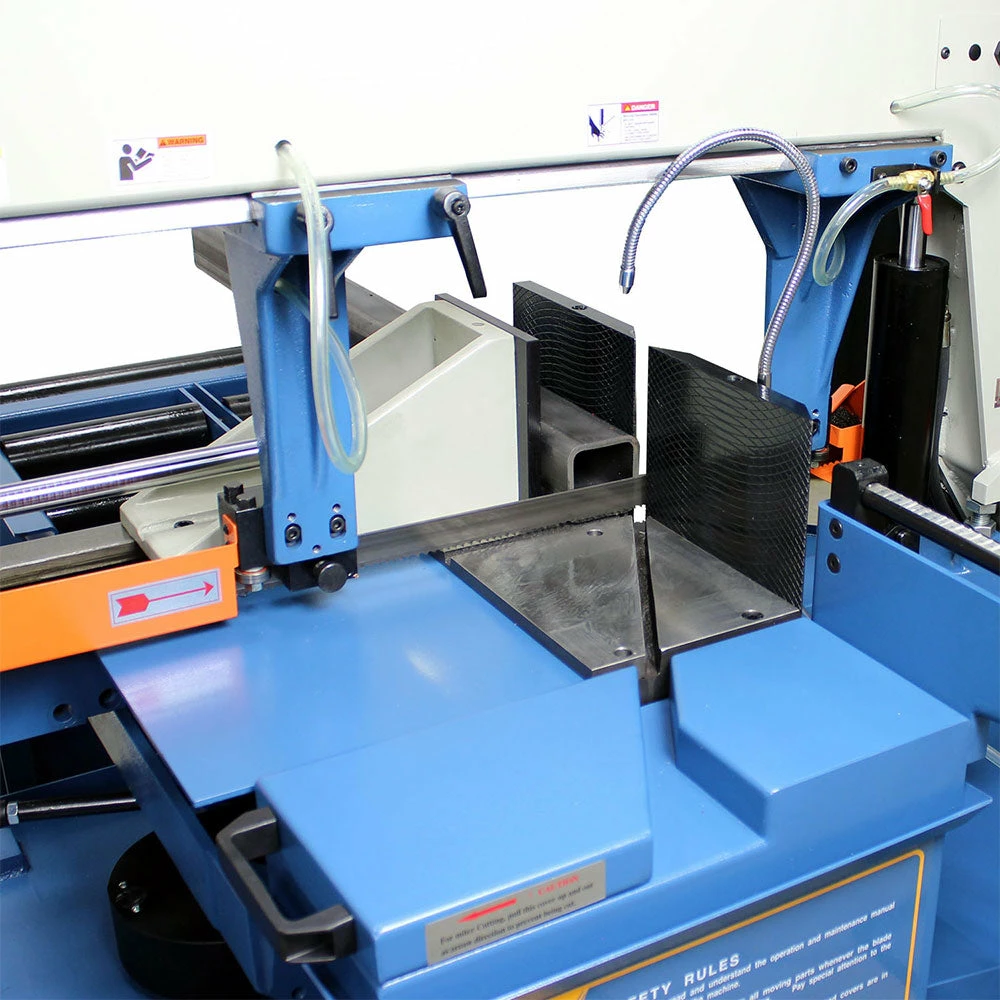

• Hydraulic vise, downfeed, and bow return make production runs more efficient. Set down the material, press start, and the saw will automatically handle the rest.
• You can adjust the hydraulic descent pressure (depending on the material) to achieve faster cut times and longer blade life.
• Cutting head return position can be altered for faster cycle times between cuts on smaller pieces.
• Comes with heavy-duty infeed and outfeed tables for easier material handling.

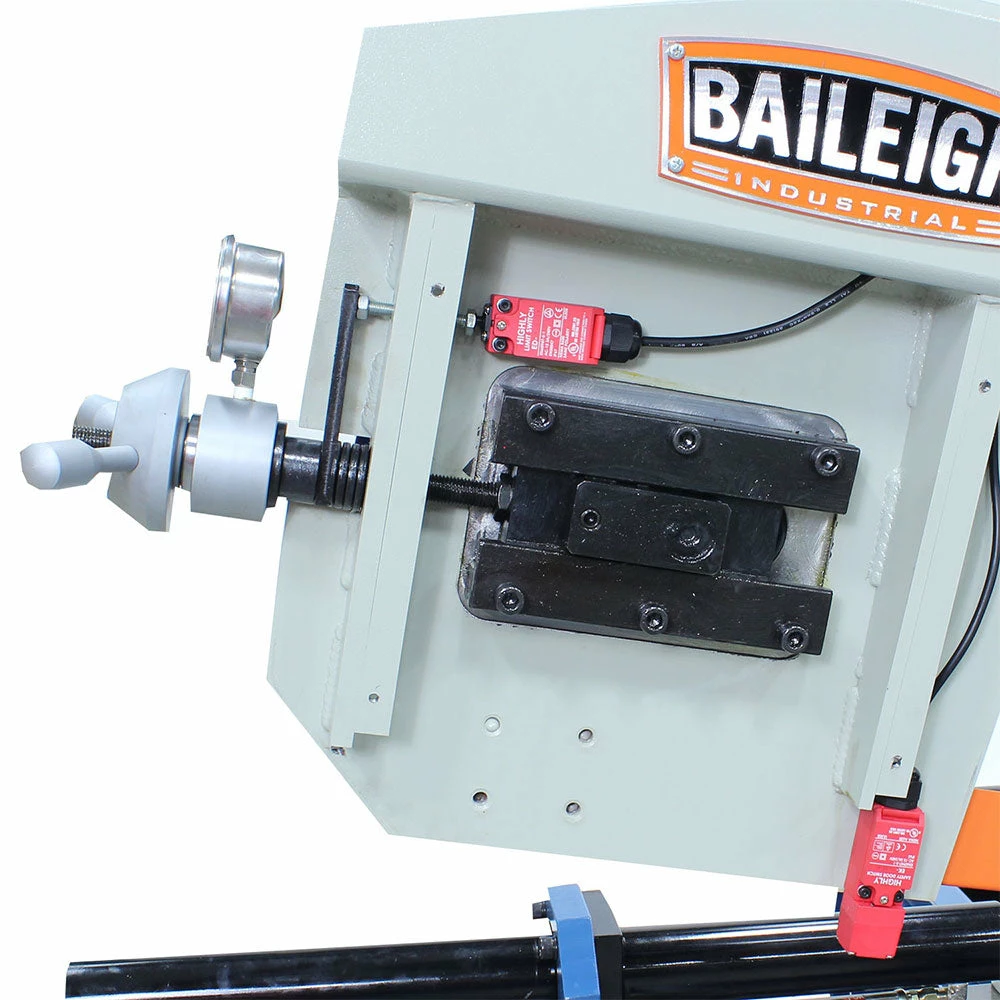

• Our patented blade tension device lets you easily set the right tension. Adjust until the black arrow lines up with the green liquid-filled gauge.
• Electro-welded steel framegives the machine structural strength to maintain accuracy.
• Compact floor plan conserves space in your shop.

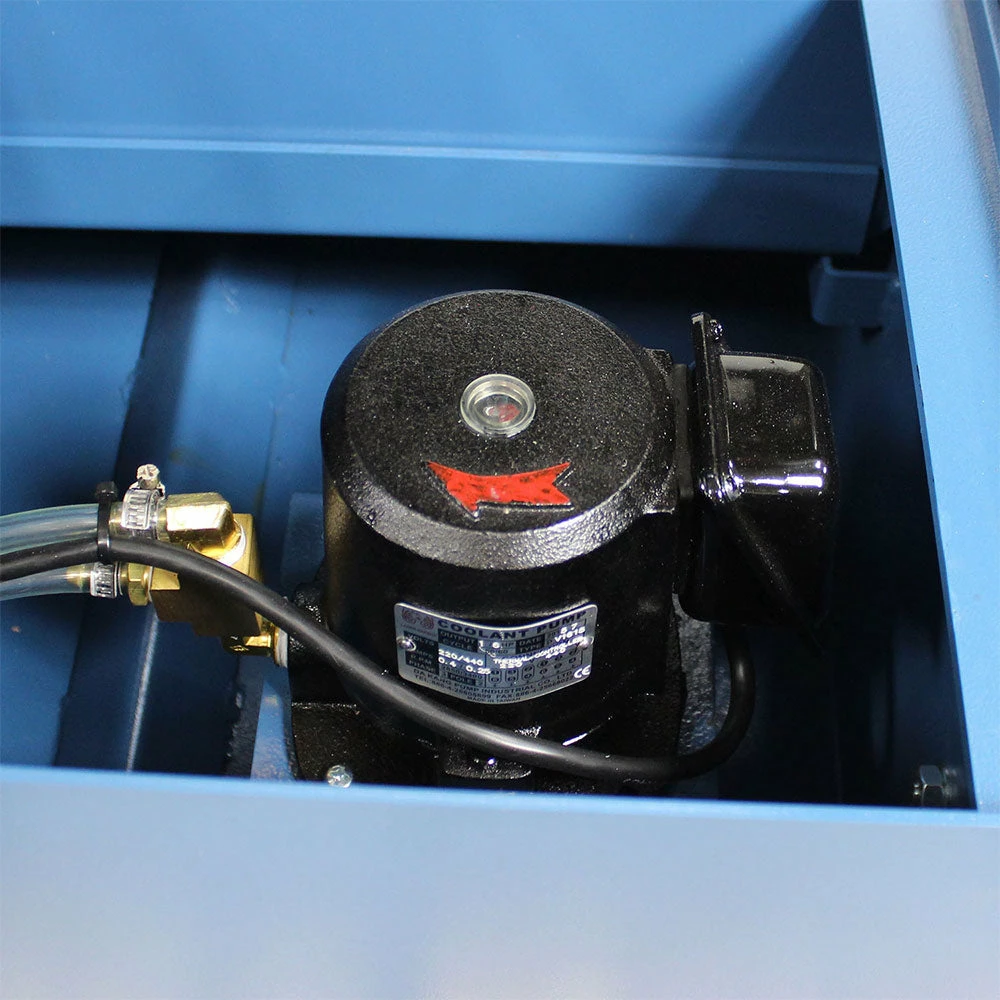

• High-pressure flood coolant system washes away metal chips and helps blades last longer.
• We typically keep this horizontal band saw and its parts in stockfor fast deliveries.
• This dual miter band saw is covered by a 1-year parts warranty.

What’s in The Box

• BS-20SA-DM – Band Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BS-20SA-DM
Power	220V or 440V 3-Phase (440V special order)
Return	Hydraulic
Miter Adjustment	Dual Miter Swivel Head
Miter Angle	0 – 60°, 45°L
Motor	3 hp
Capacity Rectangle 90°	13″ x 18″ / 13″ x 10.6″ / 12.4″ x 7.7″
Capacity Round 90°/ 45° / 60°	13″ x 12″ x 8.5″
Capacity Square 90°/ 45° / 60°	13″ x 12″ x 8.5″
Blade Guide	Carbide / Roller
Blade Size	1.25″ x .042″ x 162.6″
Blade Speed (fpm)	60 – 306 Inverter Driven
Descent Control	Pressure Assist Hydraulic
Drive	Inverter Direct
Shipping Dimensions (Inches)	90x36x66
Weight	2370 lbs
