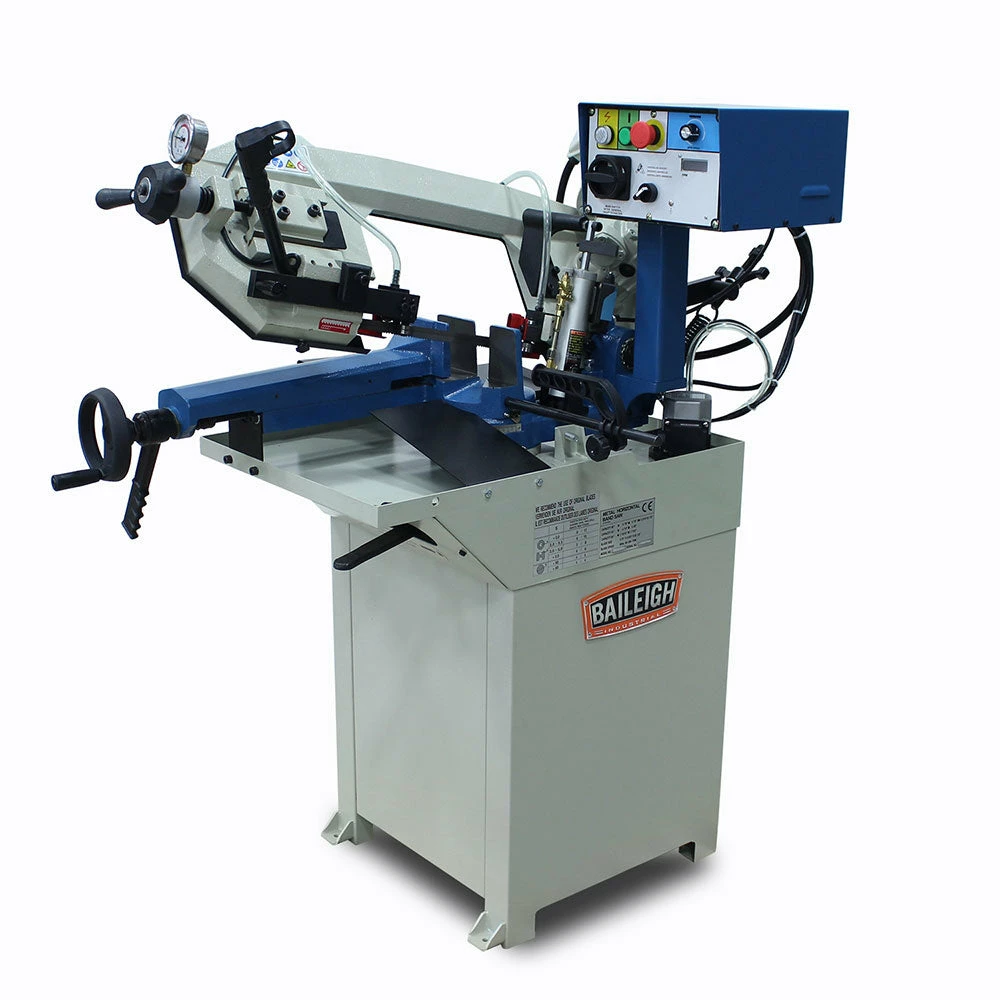

Baileigh 1001309 BS-210M 6.5″ X 8″ Horizontal Metal Cutting Band Saw Tools & Equipment

Features

• With a good mix of features at an economical price, this horizontal metal bandsaw is ideal for small-to-medium machine shops or even garage or home shops.
• 1 hp motor requires only 110 volts to run, so you can use it anywhere.
• 6.692” round maximum capacity at 90°.

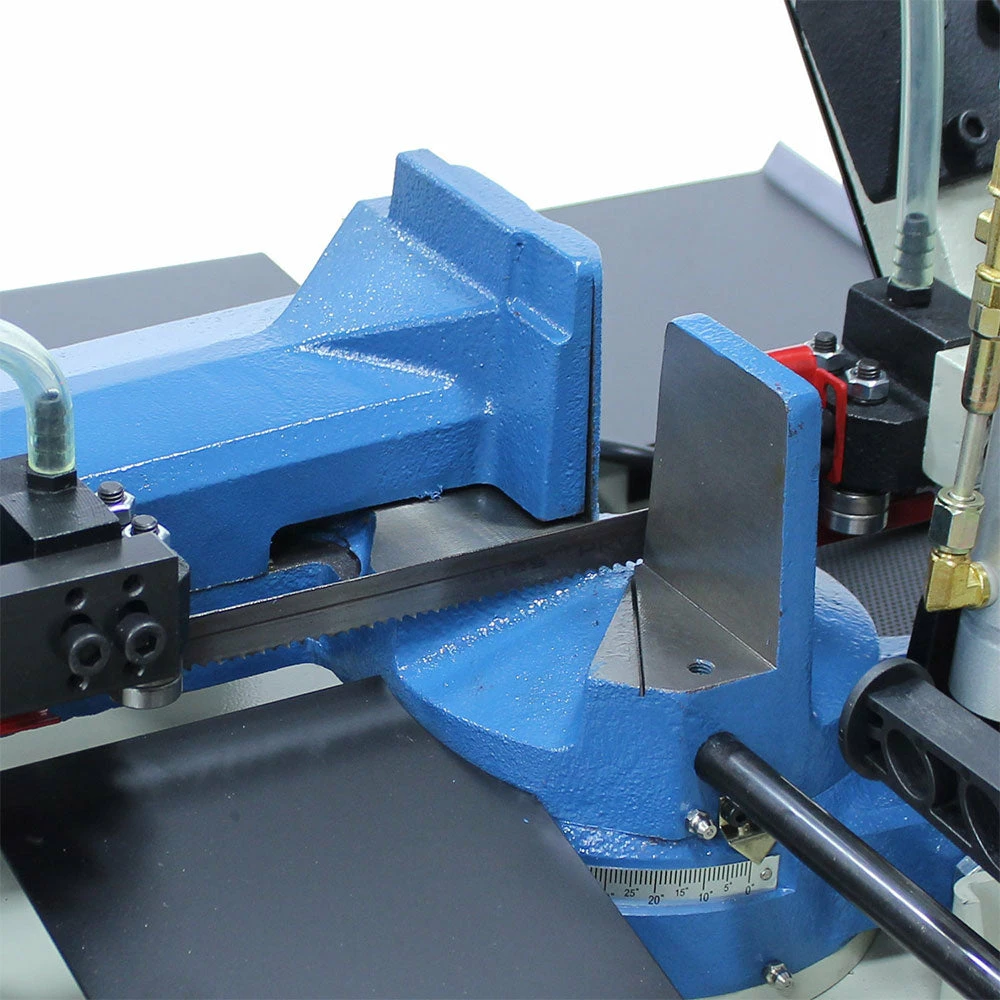

• Swivel head miters up to 60° and doesn’t compromise the holding power of the vise.
• Cast iron saw head and bow reduce vibrations and help to produce clean, accurate cuts.
• Accepts standard .75″ blades.

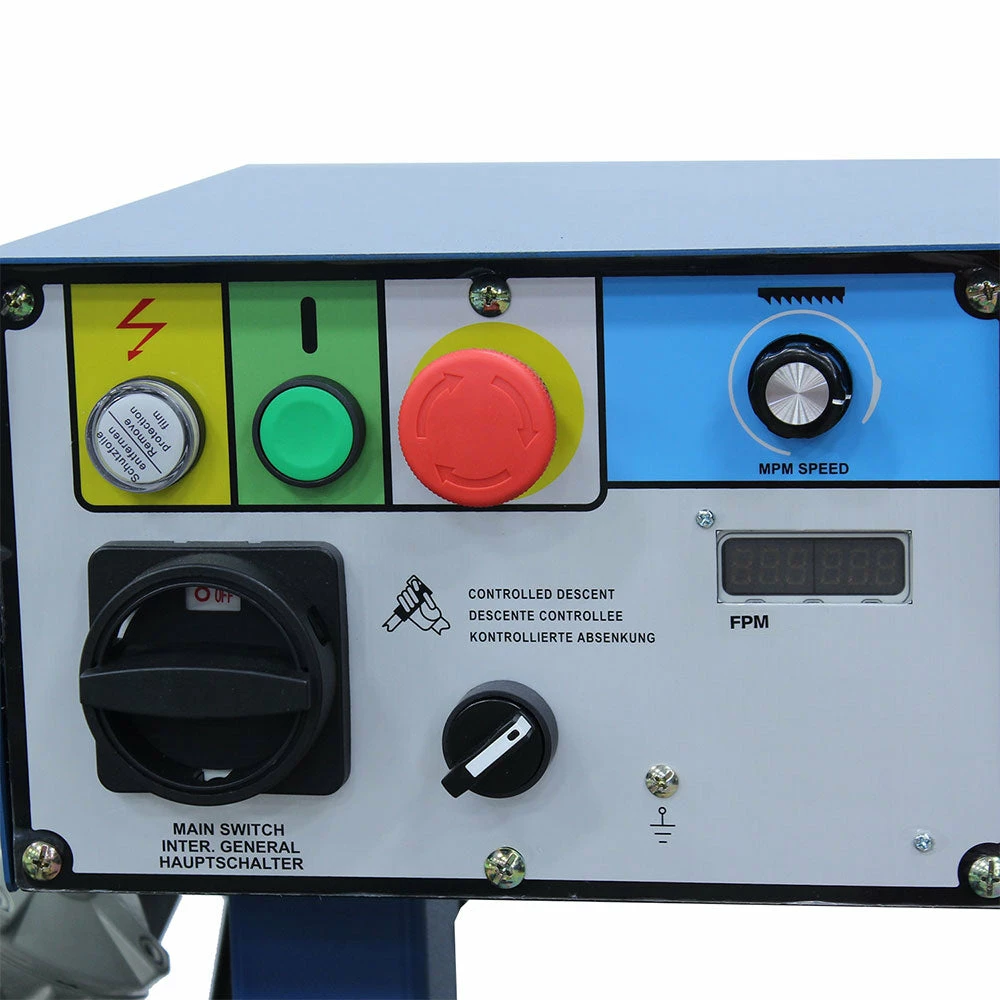

• You can adjust the infinitely variable blade speed from 66 to 280 fpm, controlled by an inverter, to produce quality cuts and prolong blade life.

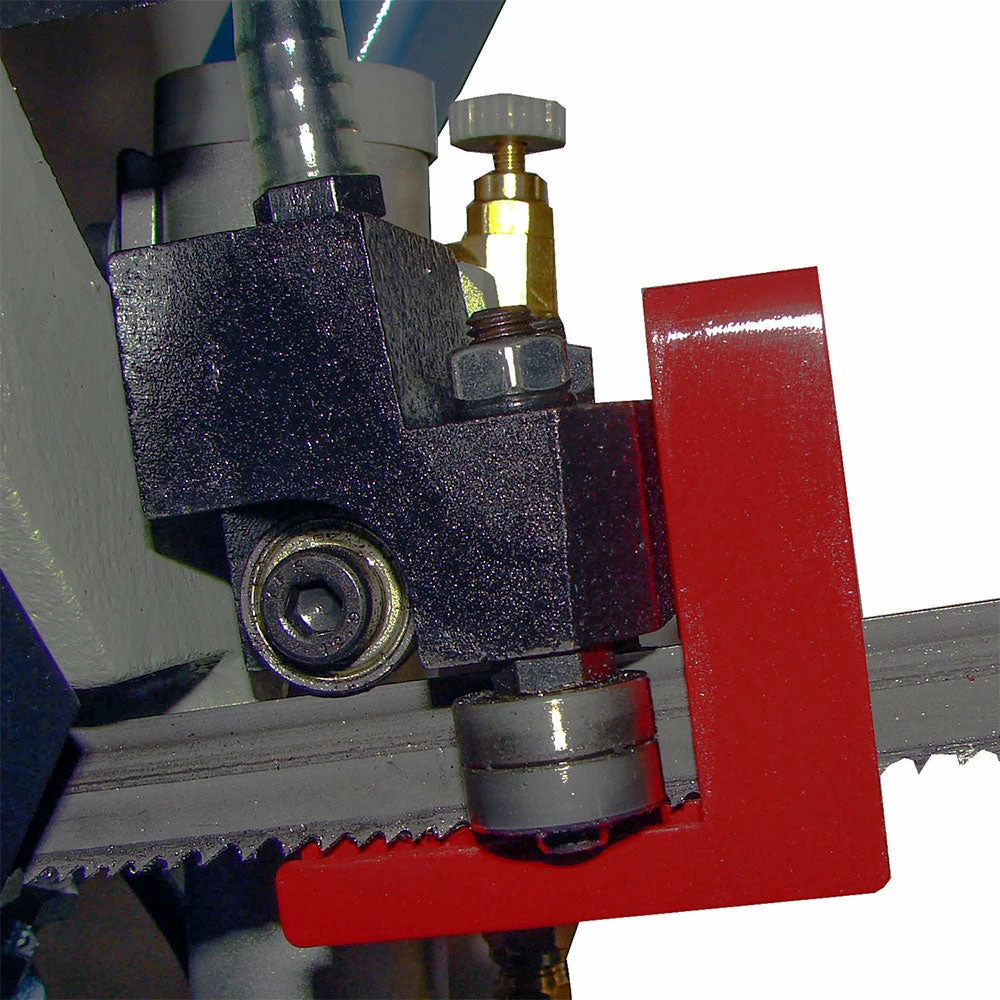

• Adjustable blade guides, attached to sealed ball bearings, get as close to the material as possible to keep alignment straight and prolong blade life.

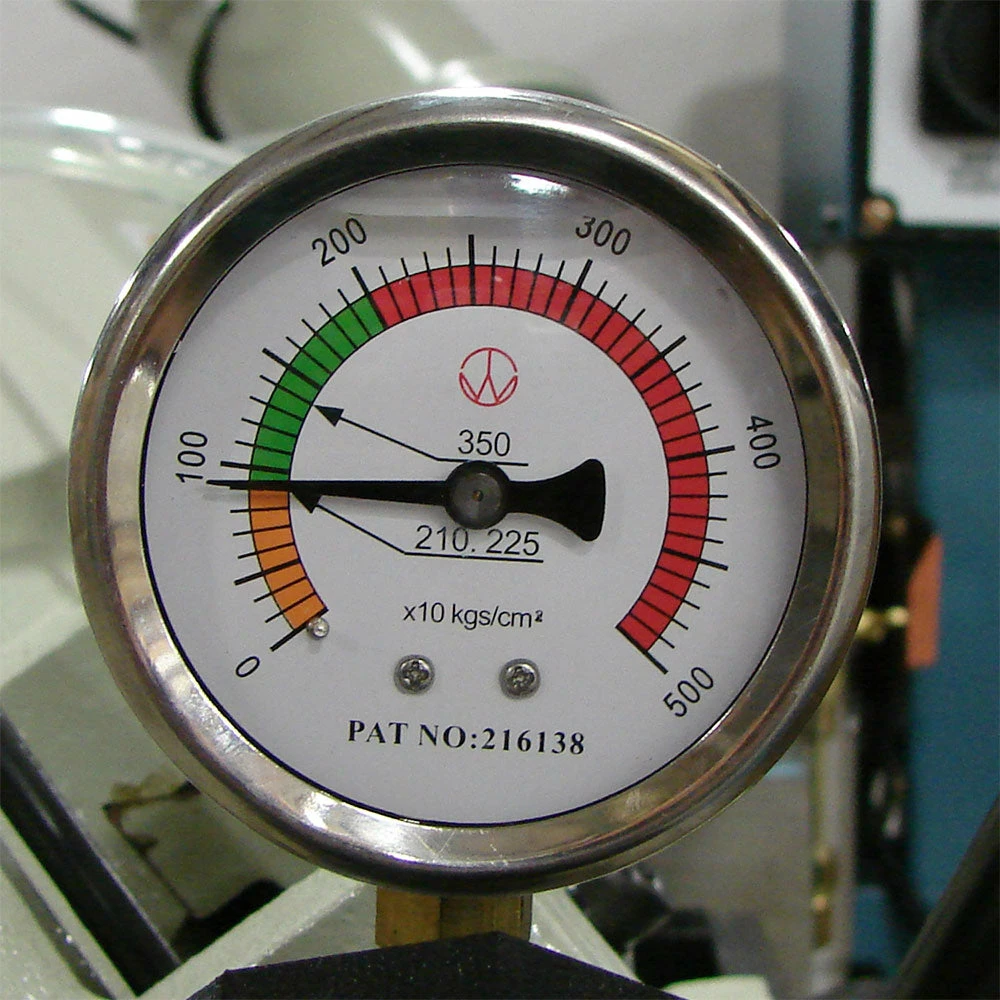

• Control the hydraulic descent pressure and choose the right speed to make a perfect cut for a given application.
• No need to monitor the machine! You can walk away; the blade will automatically stop once it’s done cutting the metal.
• Fully-welded steel plate frame stabilizes the machine and gives it the structural strength to cut at maximum capacity without straining.
• Baileigh covers this metal band saw with a 1-year parts warranty.

What’s in The Box

• BS-210M – Horizontal Band Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BS-210M
Power	110V
Motor Hp	1
Return	Manual
Miter Adjustment	Swivel Head
Miter Angle	0 – 60°
Motor	High Torque .75Kw (AC)
Included Accesories	Included Accesories
Capacity Rectangular	8.26″ x 6.69″
Capacity Round 90°/ 45° / 60°	6.692″ / 4.724″ / 2.755″
Capacity Square 90°/ 45° / 60°	6.692″ / 4.375″ / 2.44″
Table Height	35.1″
Blade Guide	Carbide x Roller
Blade Size	.75″ x .035″ x 83″
Blade Speed (fpm)	66–280 Variable
Descent Control	Hydraulic
Drive	Gear
Dimensions (Inches)	60 x 44 x 40
Weight	545 lbs
