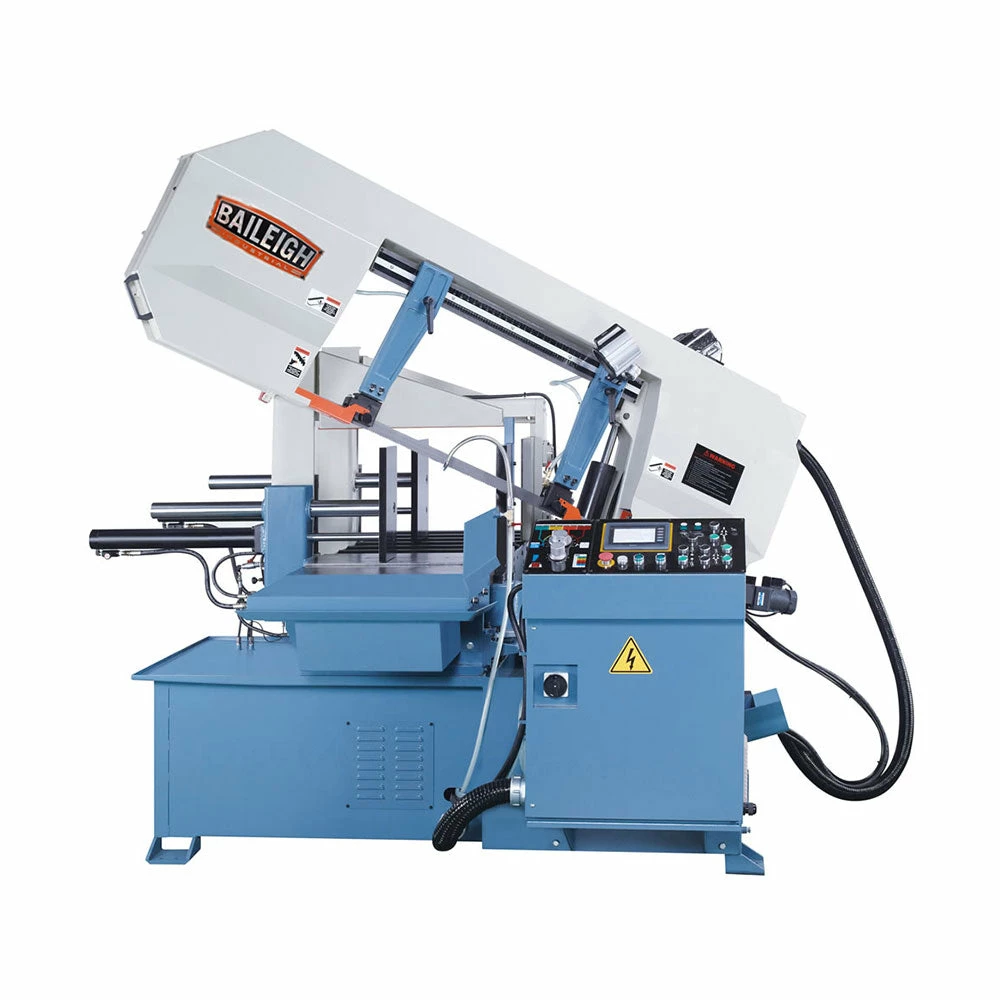

Baileigh 1001374 BS-24A 220V Automatic Band Saw W/ Hydraulic Clamp And Feed Tools & Equipment

Features

• 18” round capacity at 90°.
• Accepts a massive 1.5” blade (included). This width helps ensure fast, straight cuts.
• 65 to 279 fpm variable speed that you can fine-tune to fit your material.
• Adjustable speed prolongs blade life and increases the quality your cuts.
• Swivel head miters up to 45°.
• Runs on 220-volt 3-phase power.
• Delta inverter drives a powerful 5 hp motor.
• Fully automatic feed and cutting functions manage the transitions between cuts, increasing production rates.
• Hydraulic dual-clamp bundling allows you to cut multiple pieces of material at once.
• Feed system uses digital encoders for precise material placement.
• User-friendly touchscreen programmer lets you input cut lengths, number of cuts, and different settings for each program.
• You change the bow height, descent, and blade speed with the standard control panel buttons and dials.
• Operate the machine in automatic or manual mode.
• Automatic broken blade shut-off protects your shop’s safety.
• Patented blade tension device allows you to set the right tension in seconds. Just line up the easy-to-use liquid-filled gauge.
• Electro-welded steel framework reduces vibrations to produce accurate, high-quality cuts.
• Hydraulic chip auger removes debris after cutting.
• Bright halogen work light makes it easier to see what you’re cutting.
• Most replacement parts are typically in stock for quick shipping.
• We cover this horizontal band saw with a 1-year parts warranty.

What’s in The Box

• BS-24A – Band Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BS-24A
Power	Manual
Return	Hydraulic
Miter Adjustment	Swivel Head
Miter Angle	0 – 45°
Included Accesories	Included Accesories
Capacity Rectangular 90° x 45°	15″ x 24″
Capacity Round 90° x 45°	18″ x 15″
Chip Removal	Hydraulic Auger
Capacity Square 90° x 45°	18″ x 15″
Table Height	32.3″
Blade Guide	Carbide x Roller
Blade Motor	5 hp
Blade Size	1.5″ x .051″ x 209.84″
Blade Speed (fpm)	65 – 279 (Variable Speed)
Material Clamping Bundling	Hydraulic
Material Feed	Hydraulic
Hydraulic Motor	1 hp
Descent Control	Pressure Assist Hydraulic
Dimensions (Inches)	107 x 92 x 76
Weight	3900 lbs
