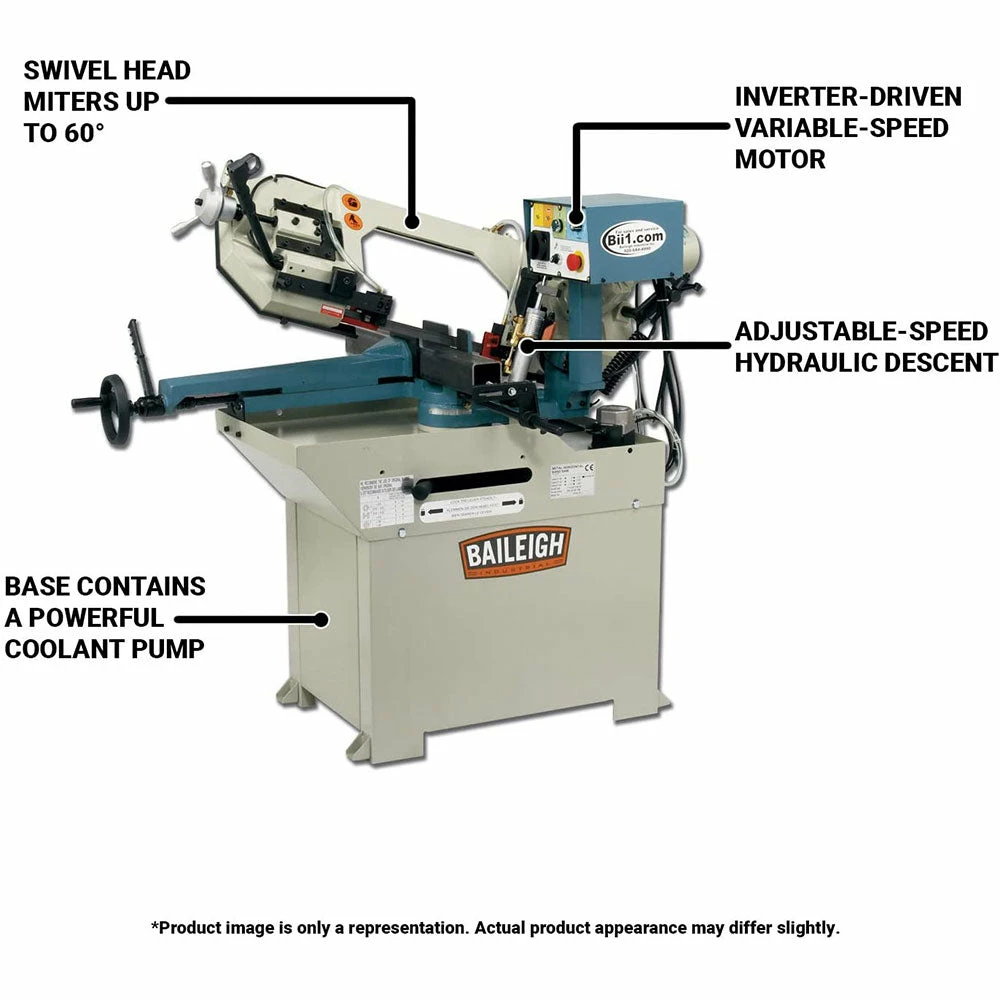

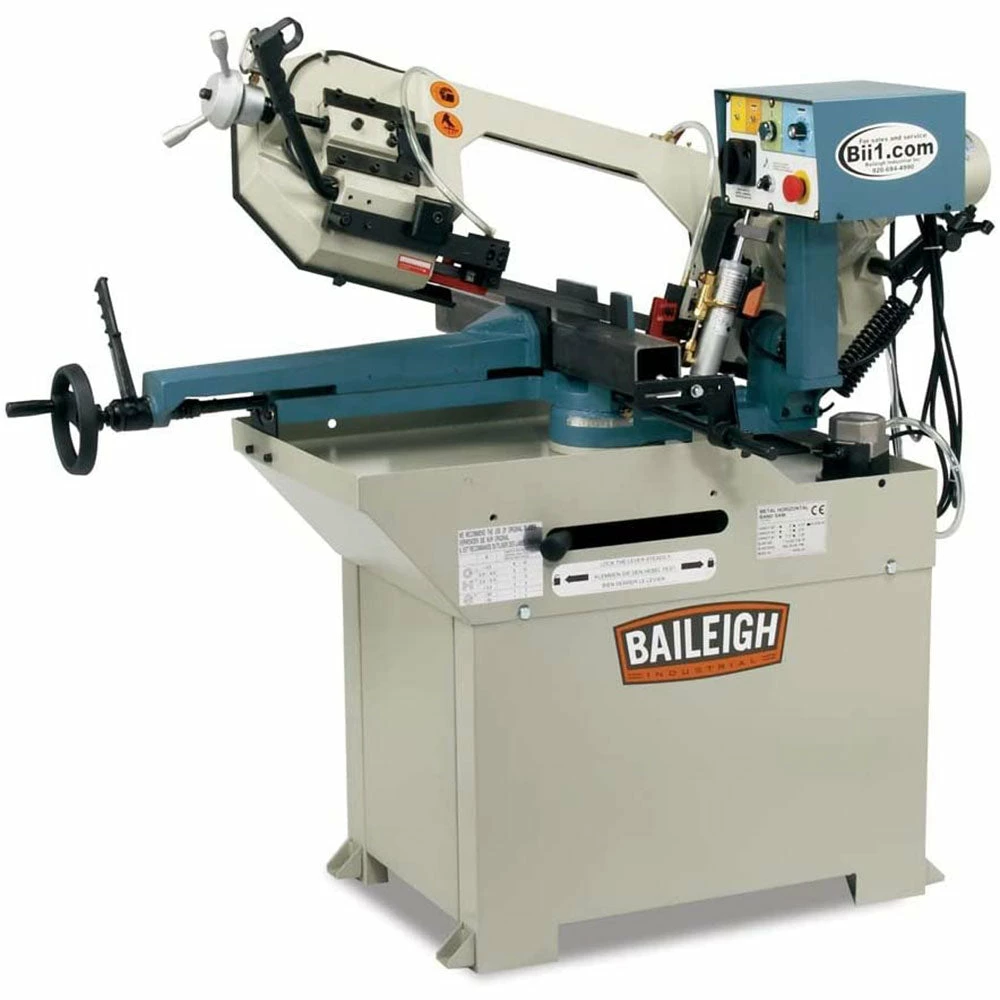

Baileigh 1001396 BS-250M 110V 8″ Horizontal Metal Mitering Head Band Saw Tools & Equipment

Features

• Runs on 110-volt single-phase power, so you can use it practically anywhere.
• Cuts up to 8.93” round metal stock at 90°.

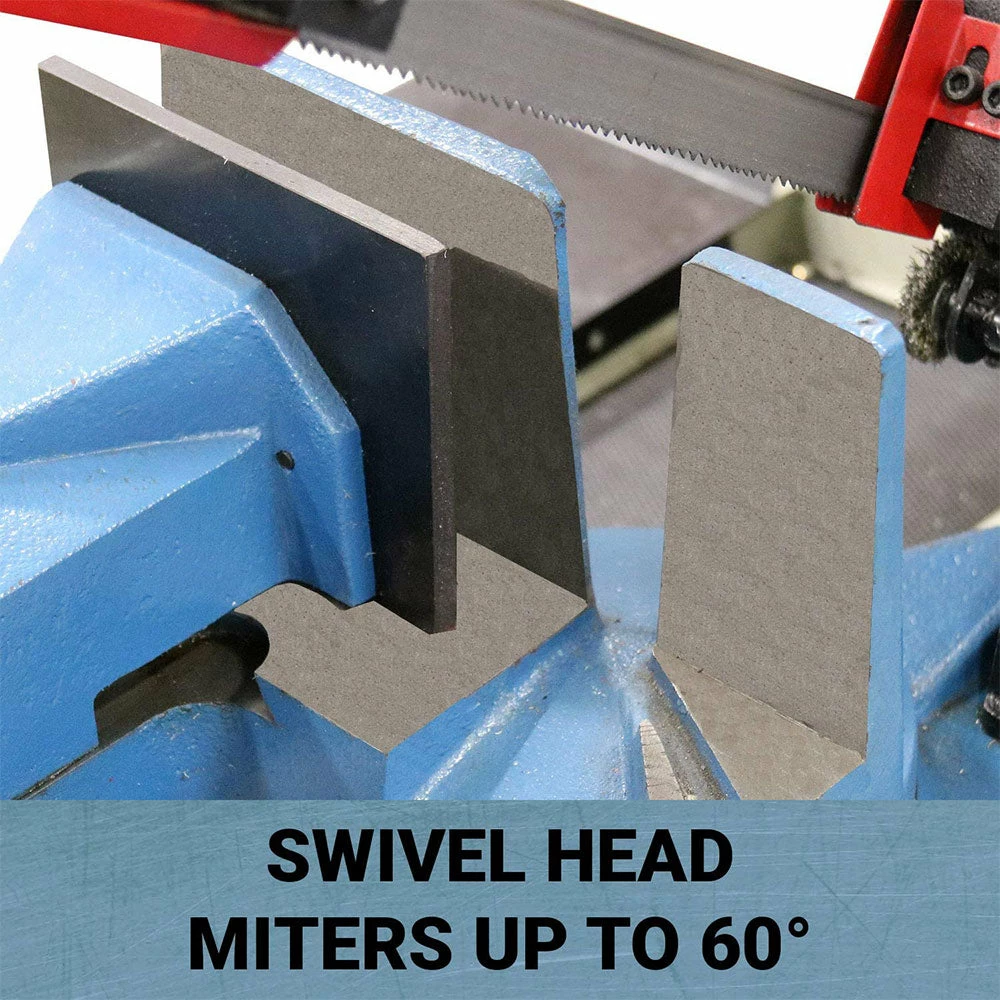

• Swivel head miters up to 60°.
• Angle changes takes seconds—and the vise stays in place.
• Cast iron saw head and bow reduce vibrations and keep the saw accurate.
• Accepts a standard 1” blade.

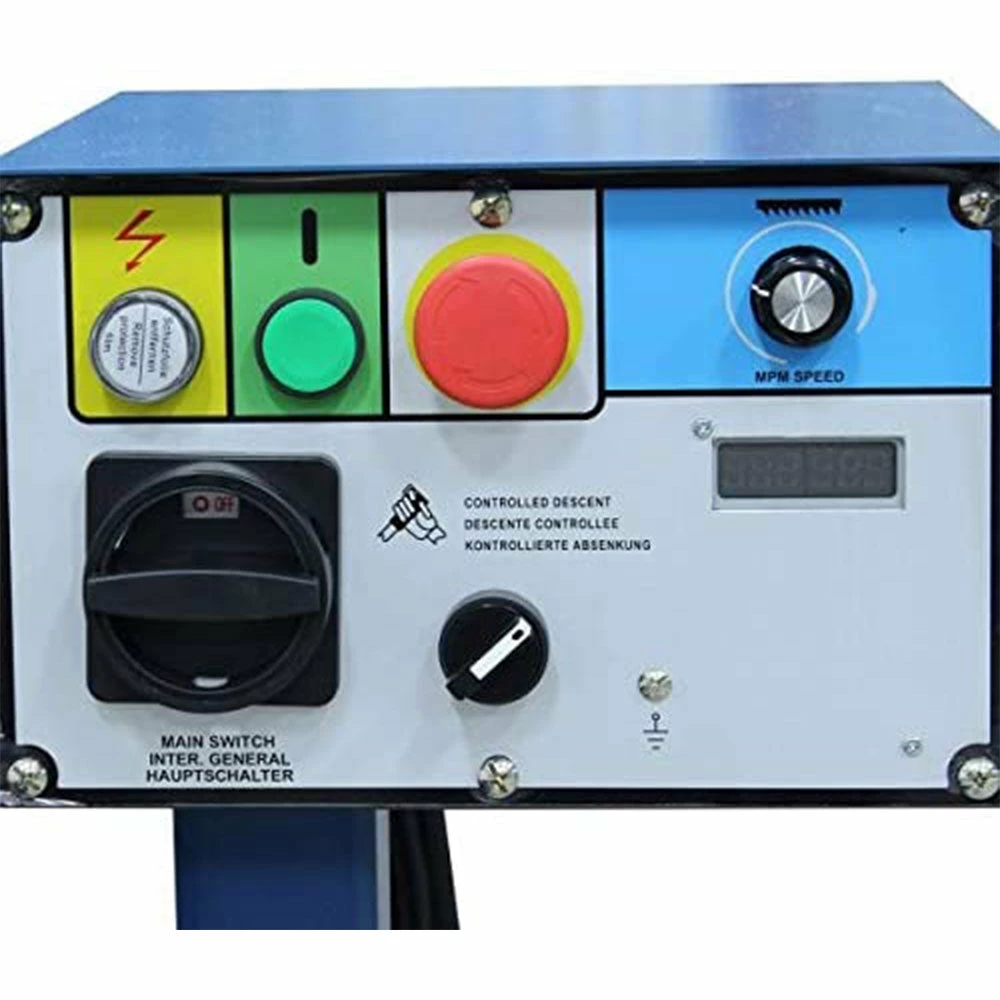

• Adjustable speed from 66 to 280 fpm for the blade and the material, increasing the blade life and decreasing costs.
• Patented blade tension device (a liquid-filled gauge) makes it easy to check the tension and correct it.

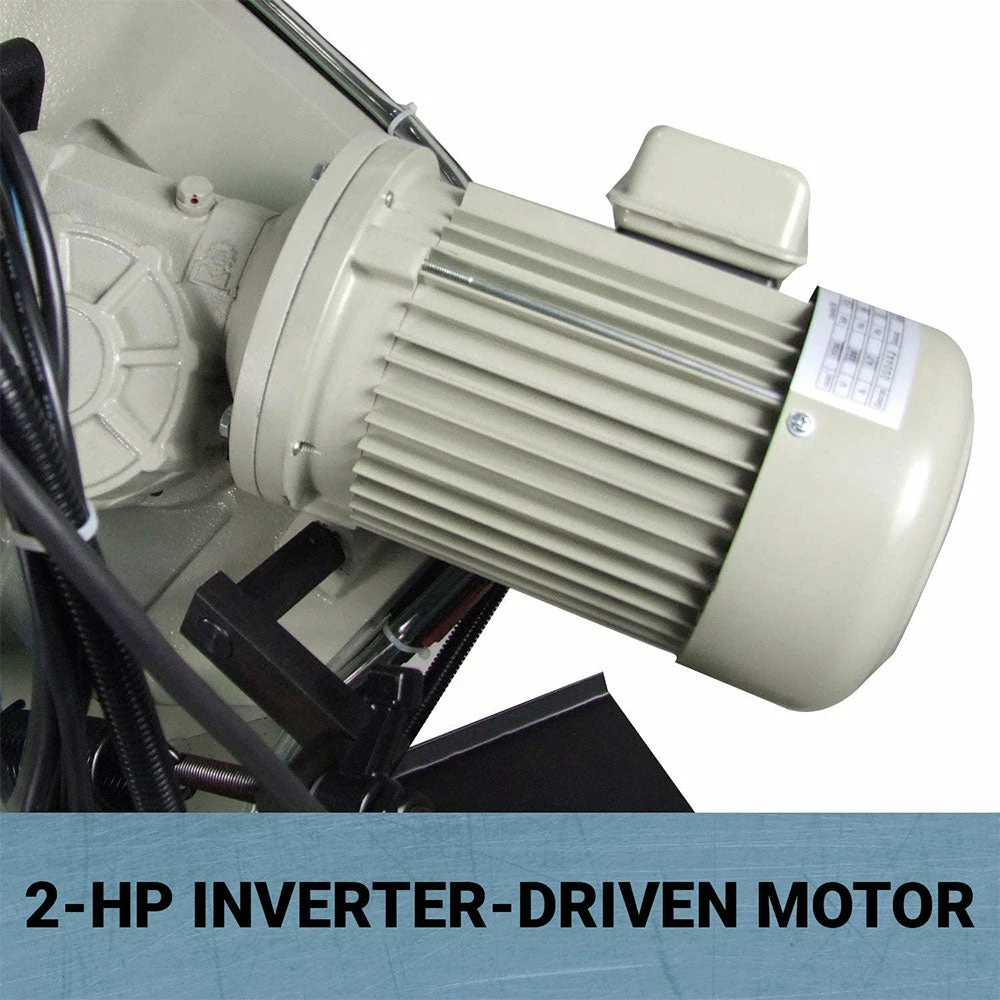

• An inverter drives the 2 hp motor through a gearbox, so there are no pulleys to adjust or belts to break!
• 2 ways to operate this metal band saw:

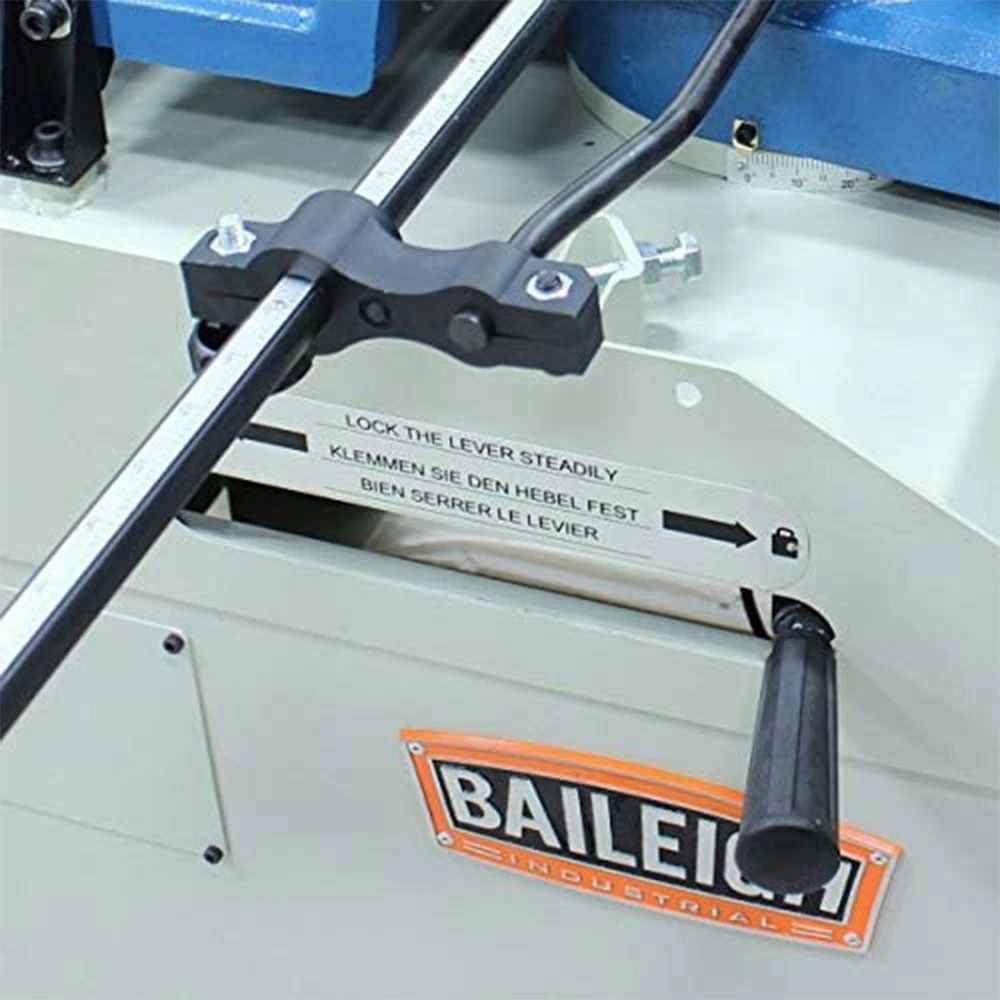

• Manual descent: Using the pull-down arm and trigger switch to activate the blade and coolant.

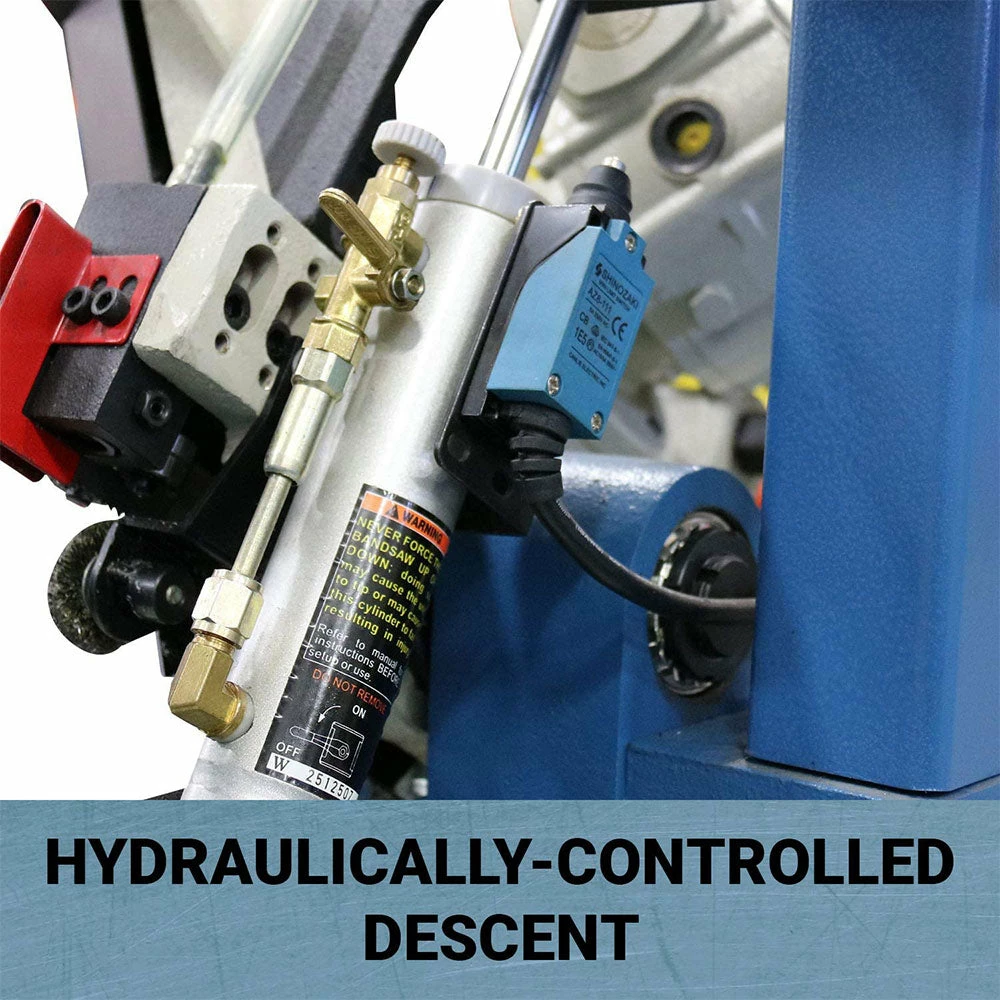

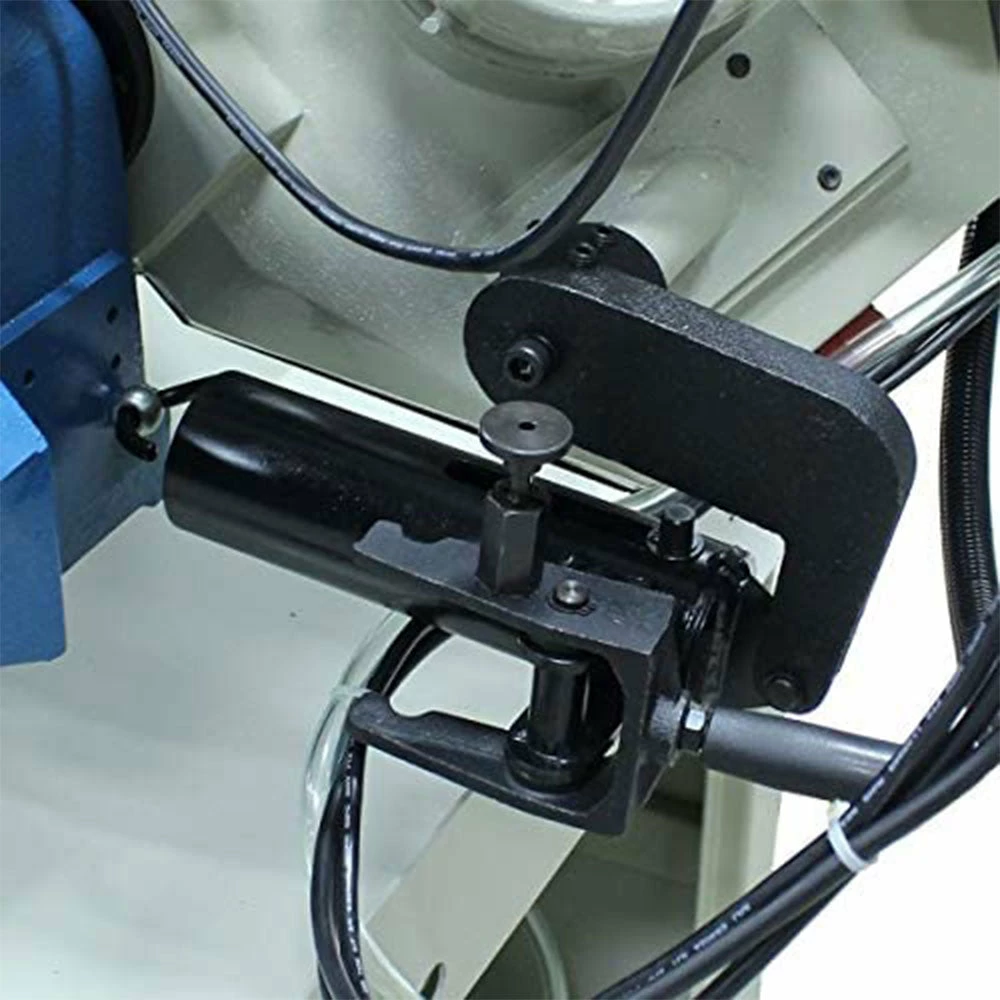

• Hydraulic descent: For production runs, you can switch the machine over to cut using the pressure you input. It will automatically shut down the blade and coola

nt system when the cut is completed.

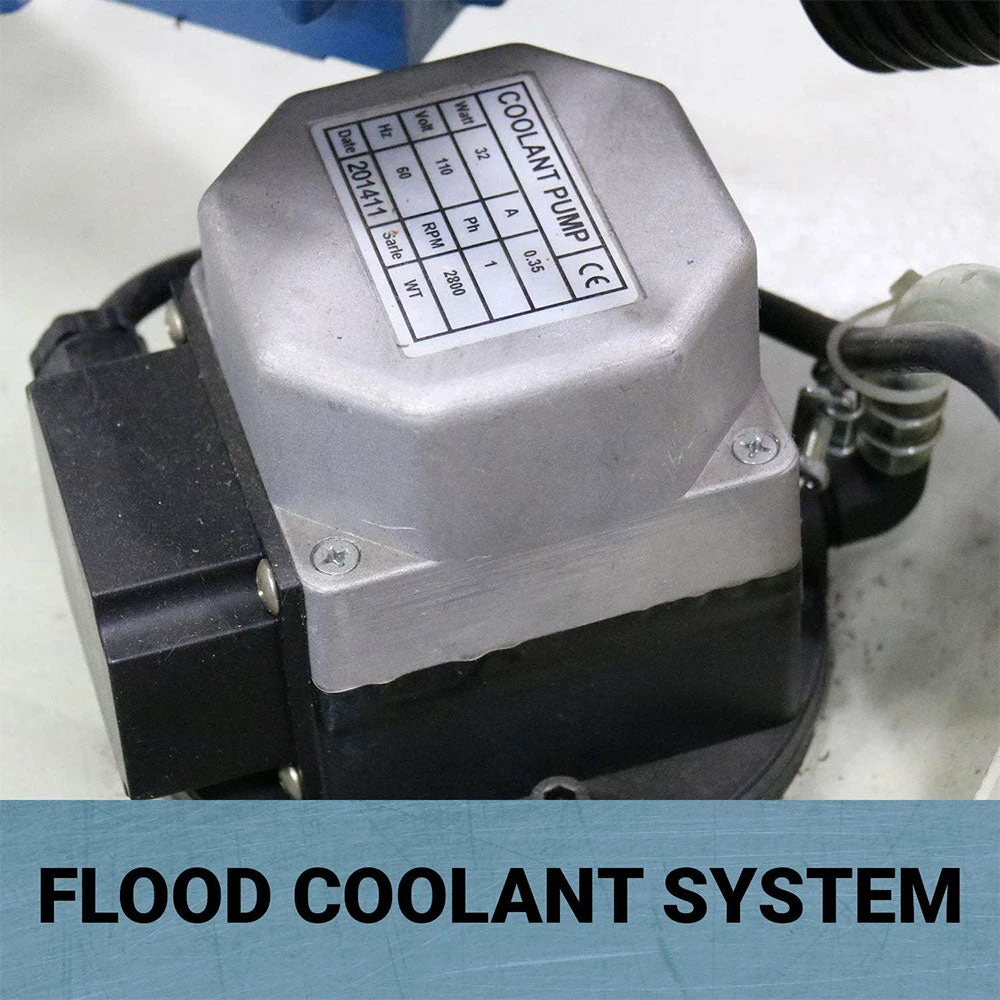

• Includes a powerful coolant pump that washes away metal chips, cools the blade teeth, and lubricates the blade, helping it last longer.
• Baileigh covers this horizontal mitering band saw with a 1-year parts warranty.
• We typically keep all replacement parts in stock for fast deliveries.

What’s in The Box

• BS-250M – Mitering Band Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BS-250M
Motor Hp	2
Power	110V
Return	Manual
Miter Adjustment	Swivel Head
Miter Angle	0 – 60°
Motor	High Torque 1.1Kw (AC)
Included Accesories	Included Accesories
Capacity Rectangular 90° x 45°	10.23″ x 4.33″
Capacity Round 90°/ 45° / 60°	8.66″ / 6″ / 3.5″
Capacity Square 90°/ 45° / 60°	8.46” / 5.875″ / 3.375″
Table Height	33.07″

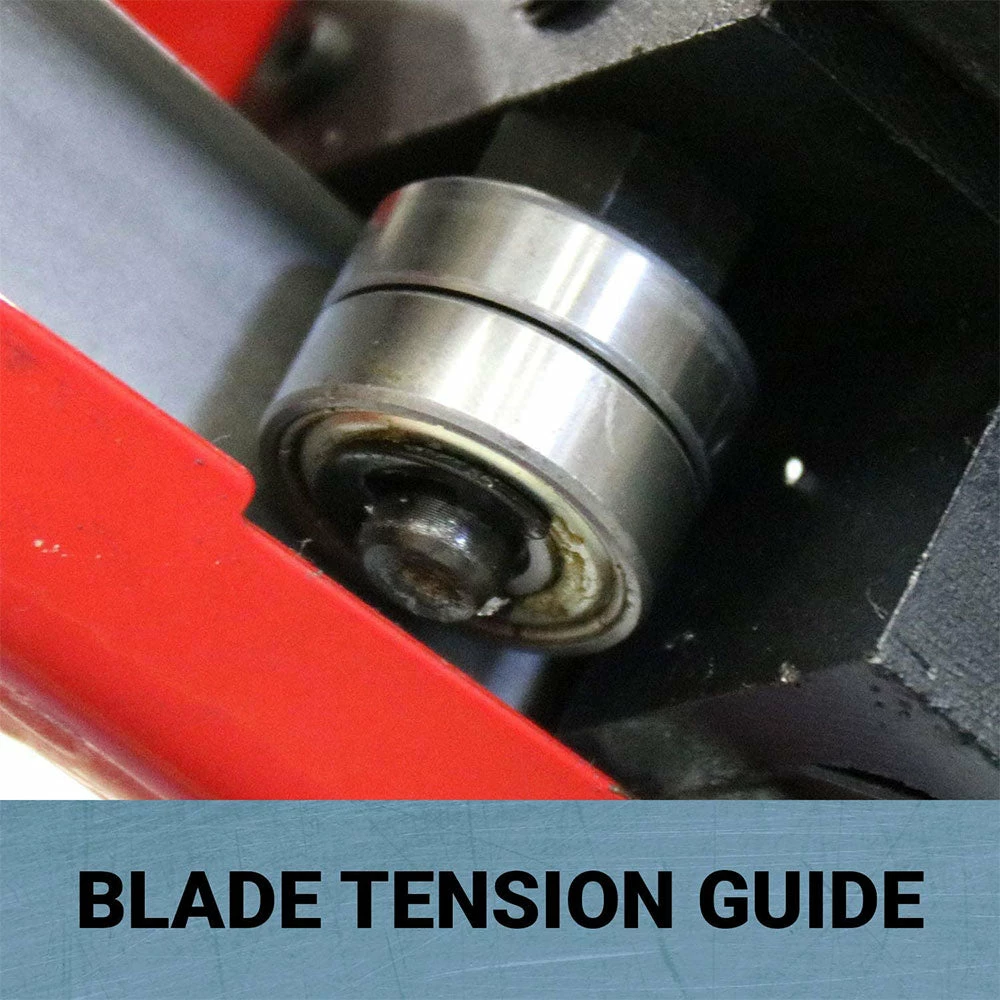

Blade Guide	Carbide x Roller
Blade Size	1″ x .035″ x 96.85″
Blade Speed (fpm)	66–280 Variable
Descent Control	Hydraulic
Drive	Gear
Dimensions (Inches)	69 x 44 x 42
Weight	650 lbs
