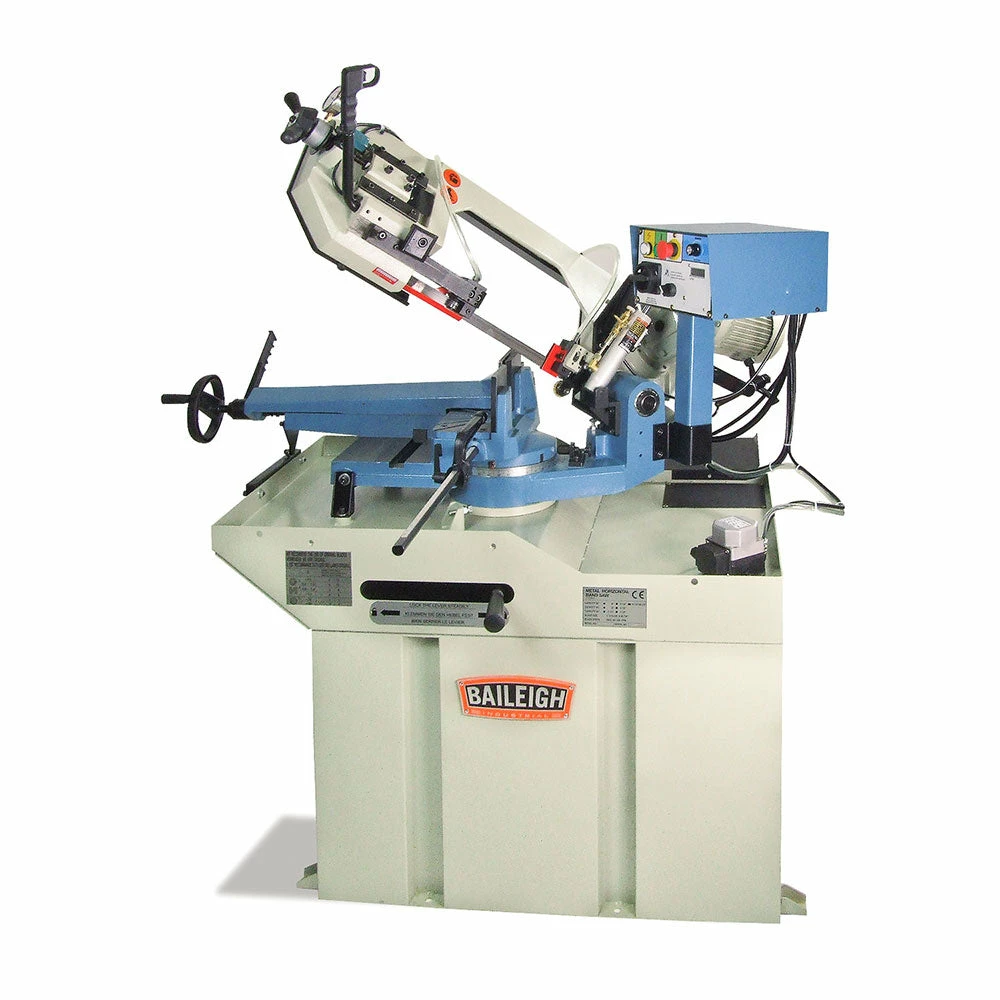

Baileigh 1001432 BS-260M 220V Gear Driven Band Saw W/ Welded Steel Base Tools & Equipment

Features

• Capacity of 8.66” round at 90°.

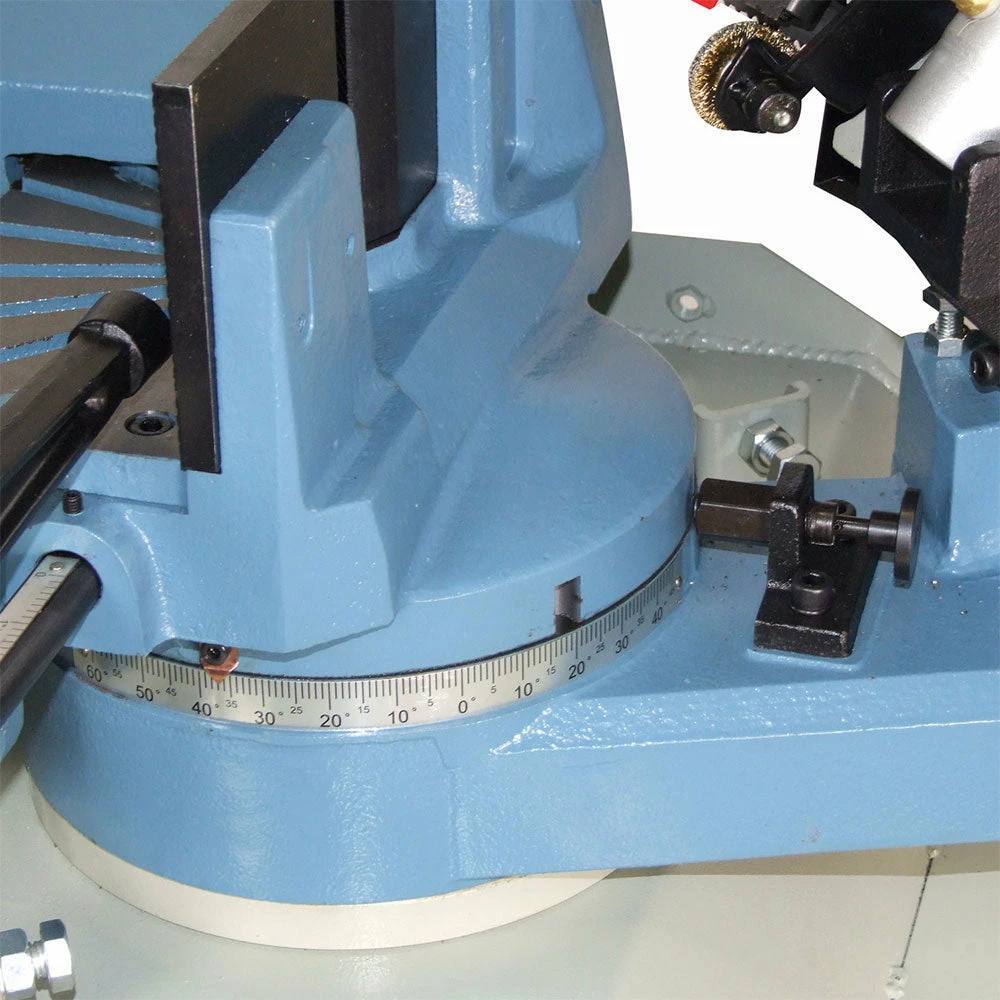

• Dual-mitering head swivels up to 60° to the right and up to 45° to the left.

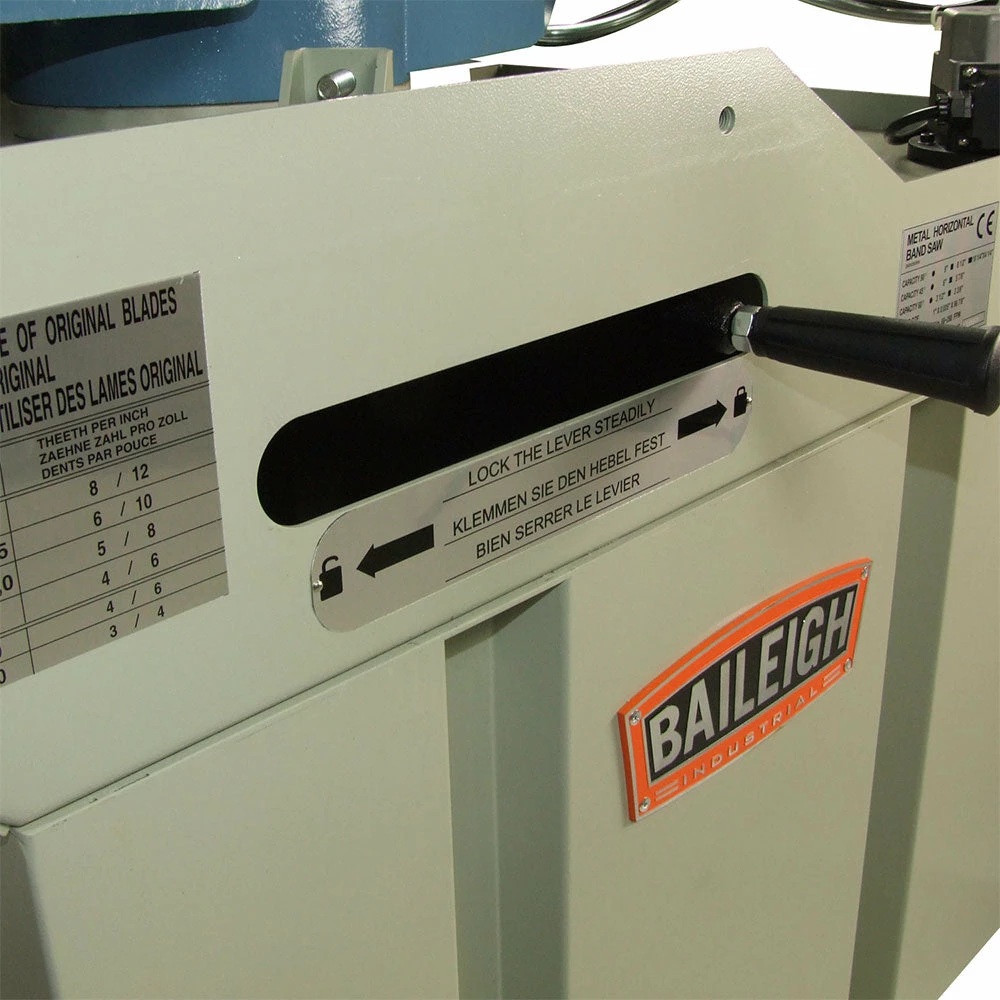

• Change the miter angle in seconds with the quick-release head lock.
• Solid cast iron saw bow and pivot ensure the straightest cuts with little to no vibration.
• Accepts standard 1” blades.
• 8 precision ball bearings keep the blade in line.

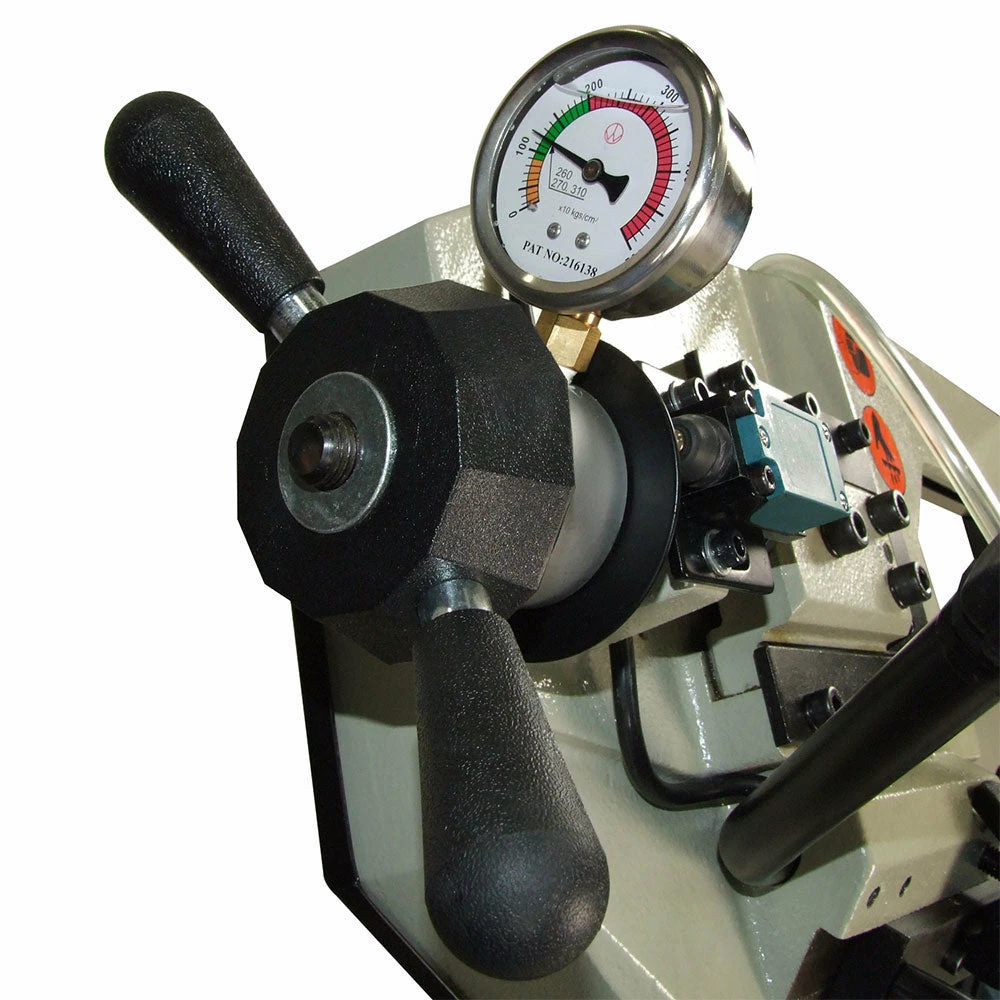

• Patented blade tensioning device helps you check the tension and safely shuts down the machine if the blade breaks.

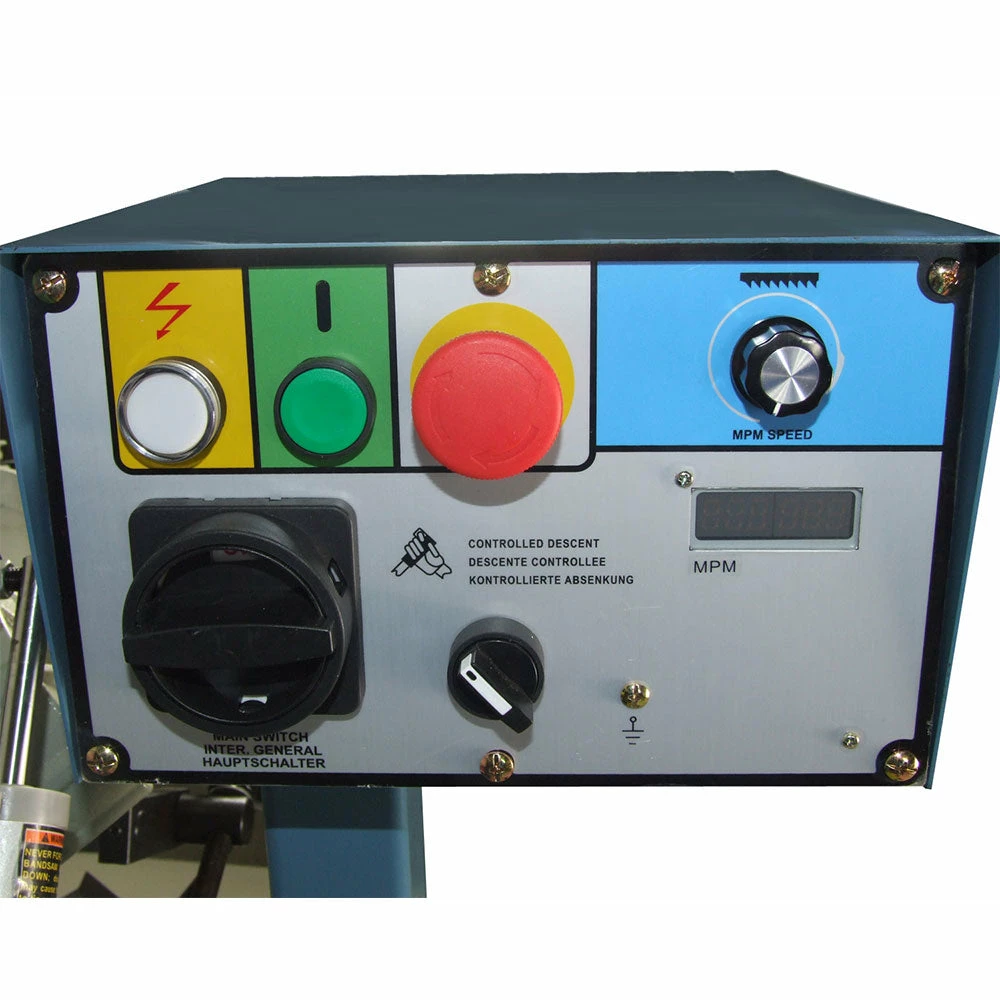

• You can adjust the cutting speed from 66 to 280 fpm to make high-quality cuts in a specific material.

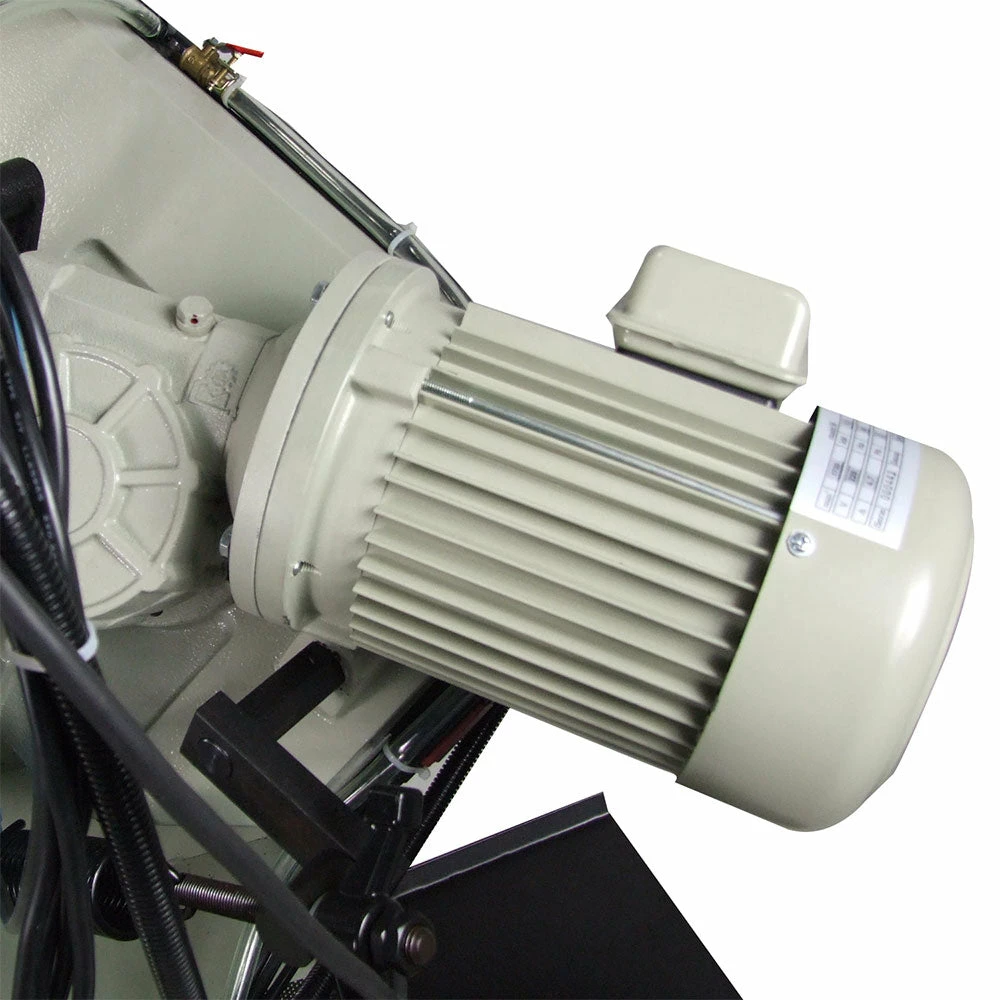

• Direct-drive gearbox design saves you time in the long run—no pulleys to adjust or belts to break!
• 2 operating modes:
• Manual descent mode for small production runs: Turn on the machine via the trigger switch, then manually guide the material. Perfect for small-to-medium-sized shops.

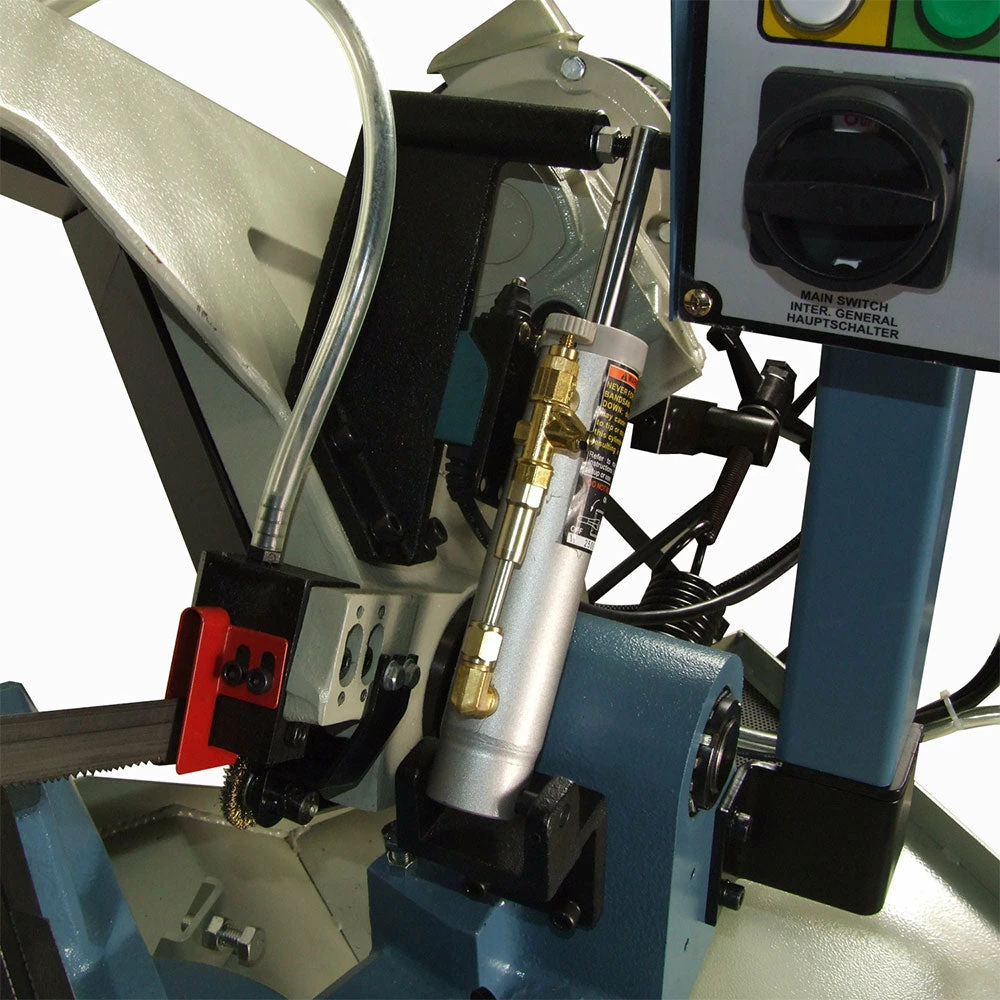

• Hydraulic descent for larger production runs: Increases blade life and reduces operator fatigue. The hydraulic descent has a downfeed adjustment for feed pressure.
• Comes standard with a powerful flood coolant system that washes away metal chips, cools and lubricates the blade, and helps prolong blade life.
• Fully-welded steel base stabilizes the saw, reduces vibrations, and helps to maintain accuracy for decades.
• Baileigh covers this small horizontal band saw with a 1-year parts warranty.

What’s in The Box

• BS-260M – Gear Driven Band Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BS-260M
Power	220V 1-Phase
Motor Hp	1.5
Return	Manual
Miter Adjustment	Dual Swivel Head
Miter Angle	0 – 60°, 45°L
Motor	High Torque 1.1Kw (AC)
Capacity Round 90 x 45 x 60 x 45L	8.66″ / 5.9″ / 3.5″ / 5.31”
Capacity Rectangular 90 X 45 X 45L	10.25″ x 4.13″ / 6.1″ x 2.75″ / 6.3″ x 1.77″
Capacity Square 90 X 45 X 60 X 45L	8.46″ / 5.7″ / 3.34″ / 4.33”
Table Height	35″
Blade Guide	Carbide x Roller
Blade Size	1″ x .035″ x 96.85″
Blade Speed (fpm)	66–280 Variable
Descent Control	Hydraulic
Drive	Gear
Shipping Dimensions (Inches)	69 x 44 x 45
Weight	745 lbs
