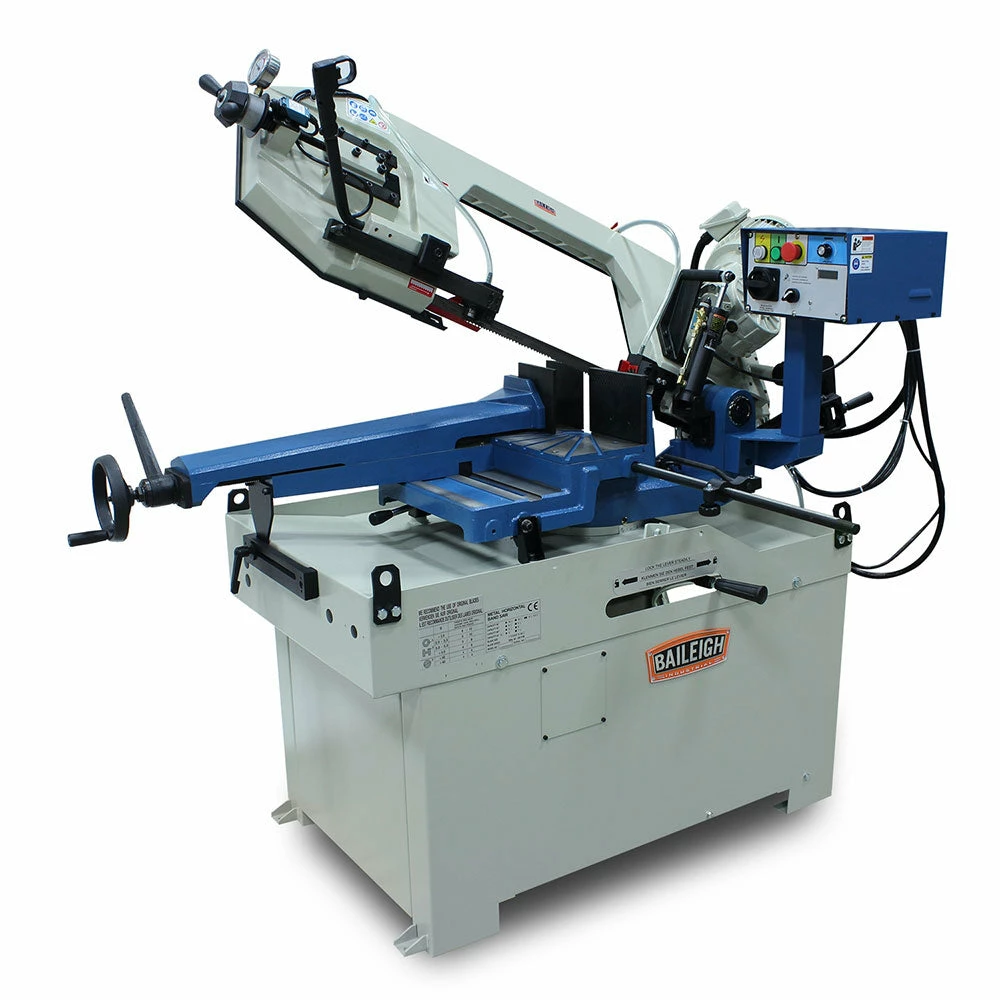

Baileigh 1001557 BS-350M 220V 10″ Variable Speed Dual Miter Band Saw Tools & Equipment

Features

• 10.5” round capacity at 90°.
• Runs on 220-volt single-phase power. You can use the dual miter band saw just about anywhere.
• 2 hp motor, driven by an AC inverter, makes the machine reliable.
• Direct-drive gearbox saves you the trouble of adjusting pulleys or replacing broken belts!
• Cast iron head and bow, machined to exacting tolerances, reduce vibration and deliver the straightest, highest quality cuts on the market.
• 1” blade width.
• Variable speed control, from 66- 280 fpm, lets you select the speed to suit your material and application.
• Ball bearing blade guides help you get the blade as close to the material as possible to make accurate cuts, ensuring long blade life.
• Patented blade tension device, a liquid-filled gauge, makes it easy to check and adjust the tension.
• Comes standard with a flood coolant system to wash away metal chips and help blades last longer.

What’s in The Box

• BS-350M – Dual Miter Band Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BS-350M
Power	220V / 1-phase
Motor Hp	2
Return	Manual

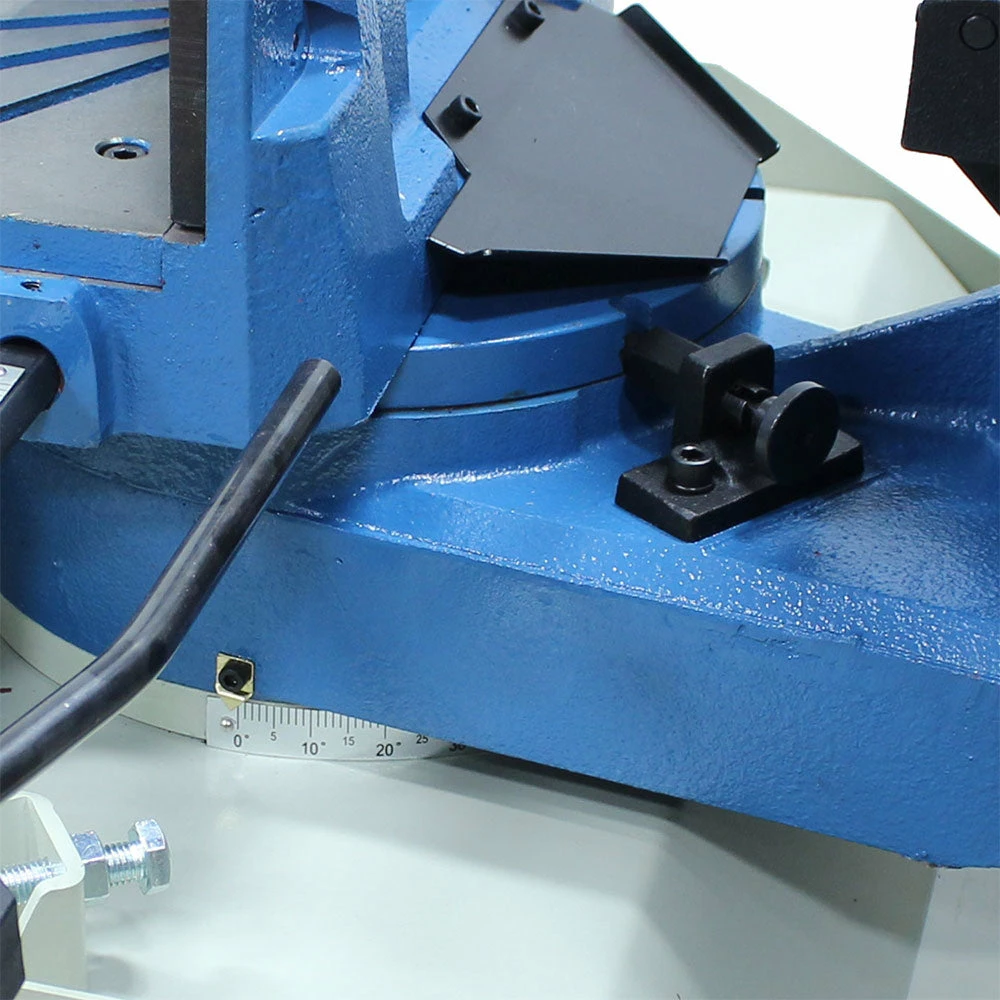

Miter Adjustment	Dual Swivel Head
Miter Angle	0 – 60°, 45°L
Motor	High Torque 1.5Kw (AC)
Capacity Round 90 x 45 x 60 x 45L	10.63″ x 9.45″ x 6.3″ x 8.28″
Capacity Rectangular 90 X 45 X 45L	13.77″ x 8.66″ x 9.45″ x 6.3″ 7.3″ x 4.33″
Capacity Square 90 x 45 x 60 x 45L	10.24″ x 8.66″ x 5.9″ x 7.09″
Table Height	35″
Blade Guide	Carbide x Roller
Blade Size	1″ x .035″ x 124.5″
Blade Speed (fpm)	66–280 Variable

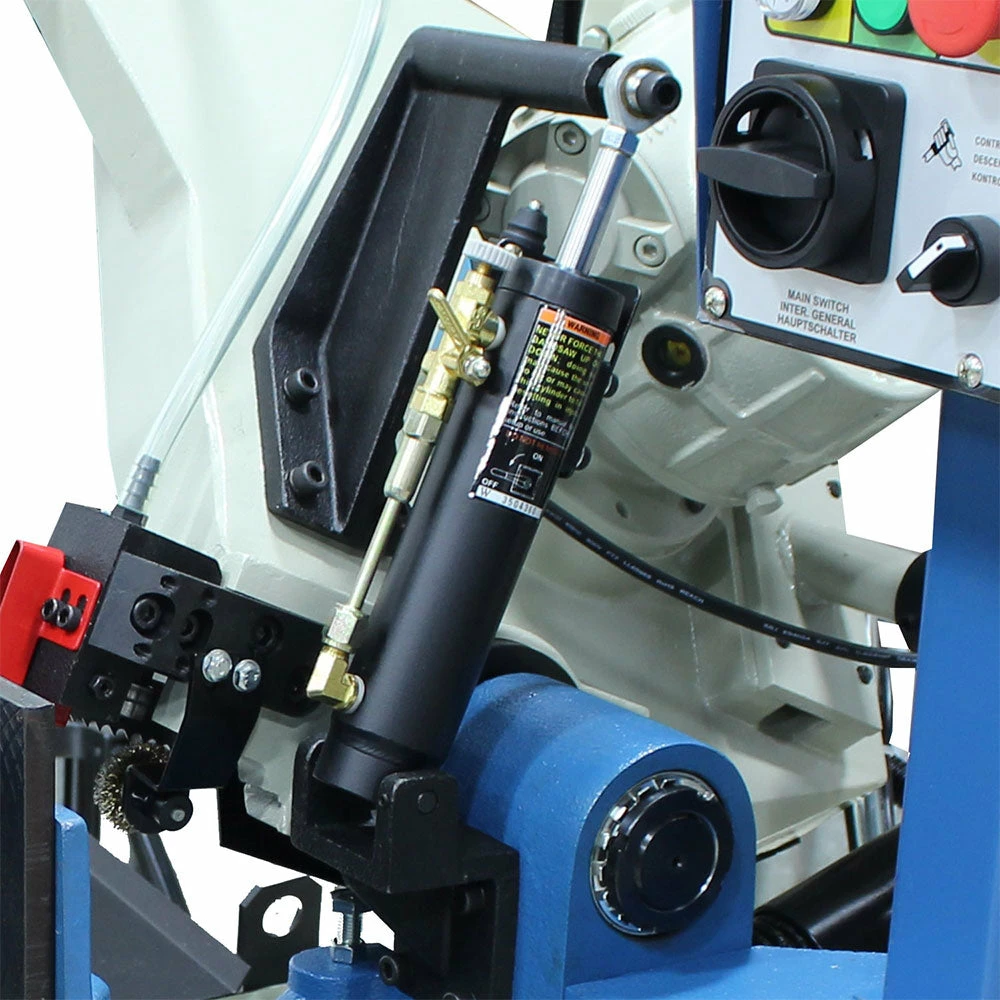

Descent Control	Hydraulic
Drive	Gear
Dimensions (Inches)	69 x 44 x 49
Weight	865 lbs
