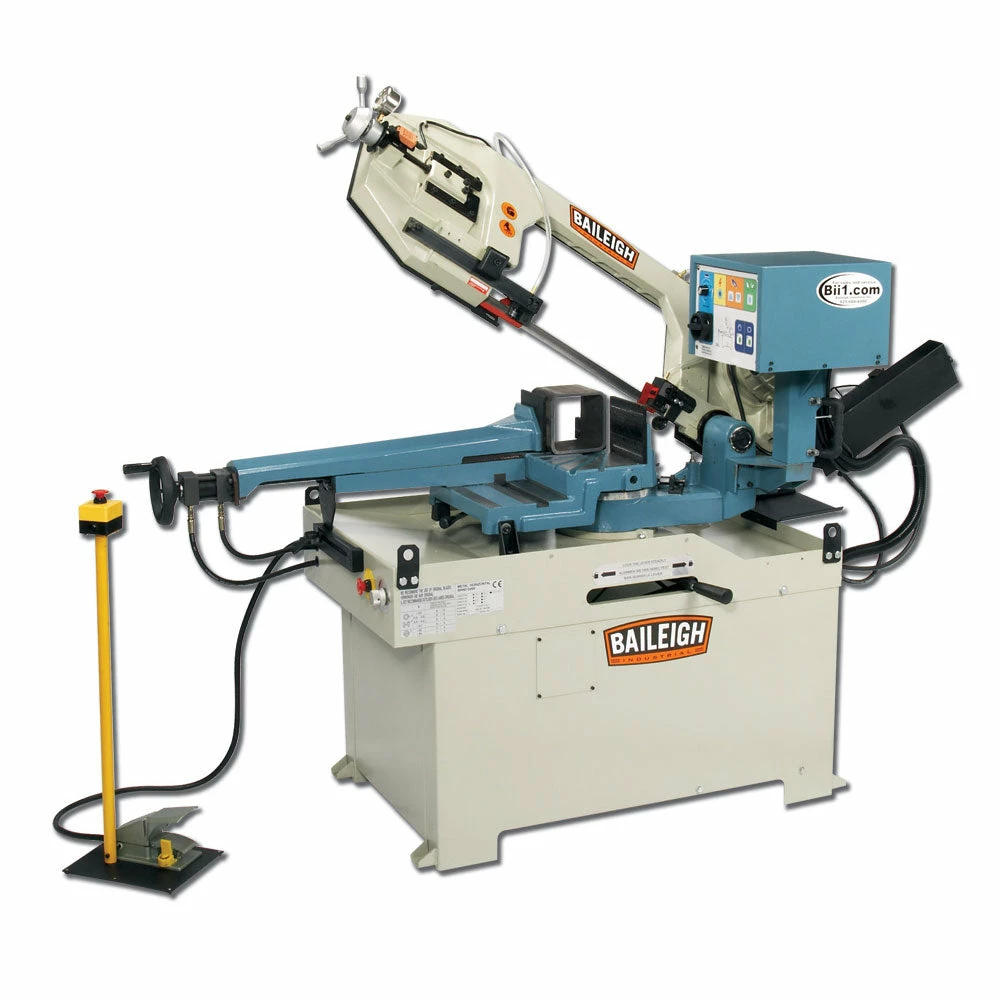

Baileigh 1001570 BS-350SA 220V Gear Driven Dual Miter Band Saw Tools & Equipment

Features

• 10.5” OD round capacity at 90°.
• Accepts a standard 1” blade (included).
• motor runs on 220-volt single-phase power.
• Adjust the variable speed control from 66 to 280 fpm to deliver the best possible cut for a given material and make blades last longer.
• Driven by an AC inverter to maintain a high standard of reliability.
• Head miters 60° right and 45° left.
• Cast iron head and bow, machined to exacting tolerances, keep vibrations to a minimum and produce accurate cuts.
• Industrial grade hydraulic system raises and lowers the head. It also clamps and releases the vise.
• Patented blade tension device lets you easily check the blade tension by looking at the liquid-filled gauge.
• Precision ball bearing guides move the blade as close to the material as possible to make clean, accurate cuts.
• Direct-drive gearbox saves you the trouble of adjusting pulleys and replacing broken belts.
• Start and stop the machine with the convenient foot pedal and change settings on the control panel.
• Electro-welded steel plate framework maintains accuracy and prevents the machine from wobbling.
• Comes standard with a large-capacity flood coolant system that washes away metal shavings and prolongs blade life.
• Covered by a 1-year parts warranty.

What’s in The Box

• BS-350SA – Gear Driven Dual Miter Band Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BS-350SA
Power	220V / 1-phase
Motor Hp	2
Return	Hydraulic
Miter Adjustment	Dual Swivel Head
Miter Angle	0 – 60°, 45°L
Motor	High Torque 1.5Kw (AC)
Included Accesories	Included Accesories
Capacity Round 90 x 45 x 60 x 45L	10.63″ x 9.45″ x 6.3″ x 8.28″
Capacity Rectangular 90 X 45 X 45L	13.77″ x 8.66″ x 9.45″ x 6.3″ 7.3″ x 4.33″
Capacity Square 90°/ 45° / 60°	10.24″ x 8.66″ x 5.9″ x 7.09″
Table Height	35″
Blade Guide	Carbide x Roller
Blade Size	1″ x .035″ x 124.5″
Blade Speed (fpm)	66–280 Variable
Descent Control	Pressure Assist Hydraulic
Drive	Gear
Shipping Weight	1220lbs
Shipping Dimensions (Inches)	73x30x67
Dimensions L x W x H	72″ x 30″ x 66″
