Baileigh 1001684 BS-712MS 120V Horizontal / Vertical Band Saw Tools & Equipment

Features

• The BS-712MS horizontal vertical metal bandsaw is recommended for any shop, home or work, where space is at a premium.
• Powered by 120-volt single-phase power, so you can run it just about anywhere.
• Capacity of 7” OD round and 7” x 10-1/4” rectangle in horizontal position (for traditional cutoffs) at 90°.
• Accepts standard .75″-wide blades.
• Choose from 3 cutting speeds: 125, 215, and 270 fpm.
• Cast iron head and bow, machined to exacting tolerances, ensure proper alignment during the cutting process and help the saw last for years.

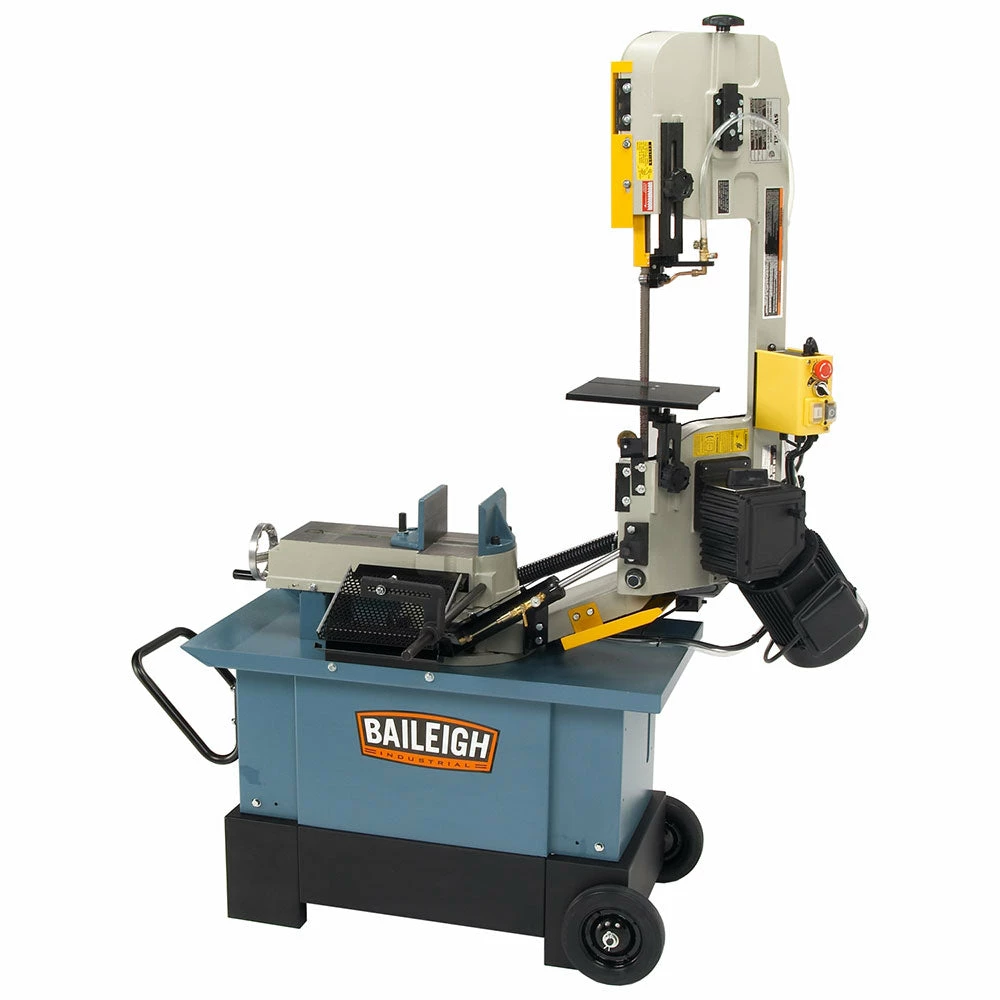

• Operate the machine in vertical position (for precise shape cutting) just by lifting the bow and locking it in place.
• Swivel head for mitering allows for faster production times and less waste than you’d get with a moving vise.
• Pair of adjustable blade guides, attached to the saw head along with 8 sealed ball bearings, maintain alignment and increase the life of the blade.
• Fully-welded steel plate framework keeps the machine stable and gives it the structural strength to tackle its maximum capacity.
• Wheels on the base make this saw easy to move and store.

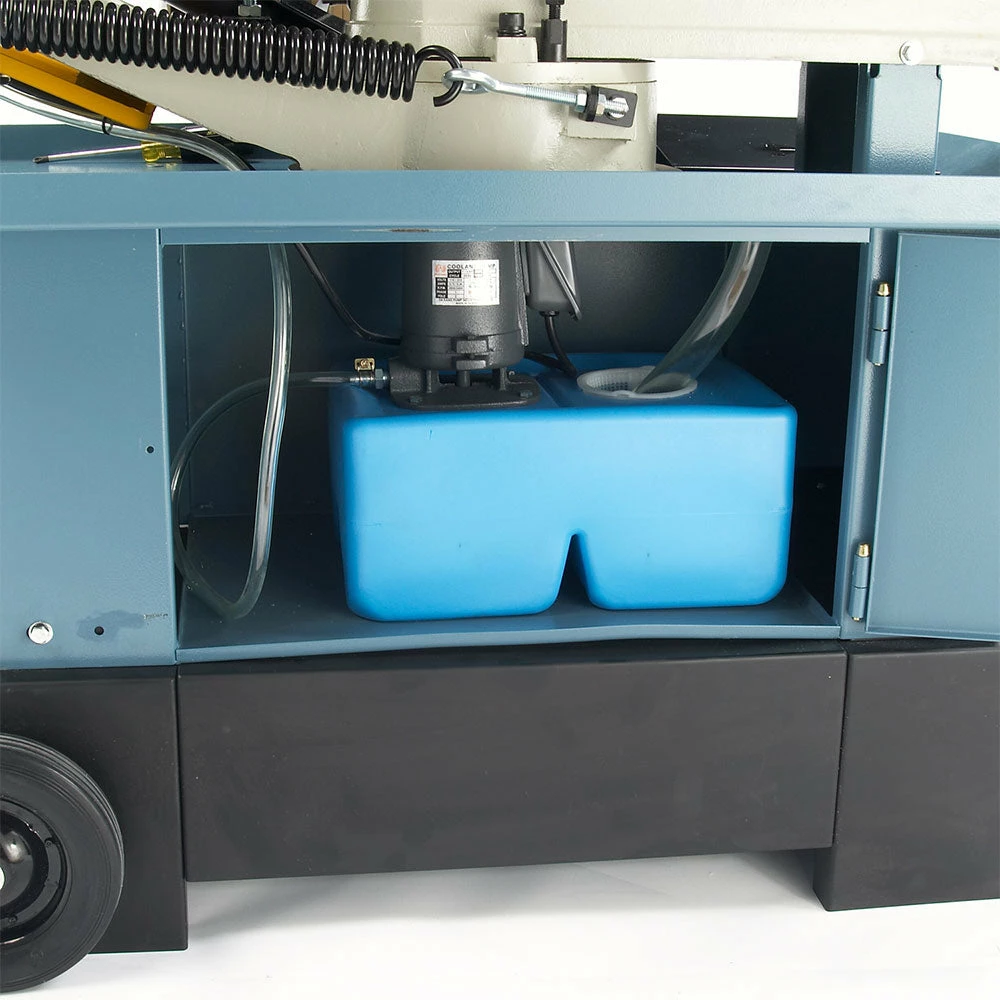

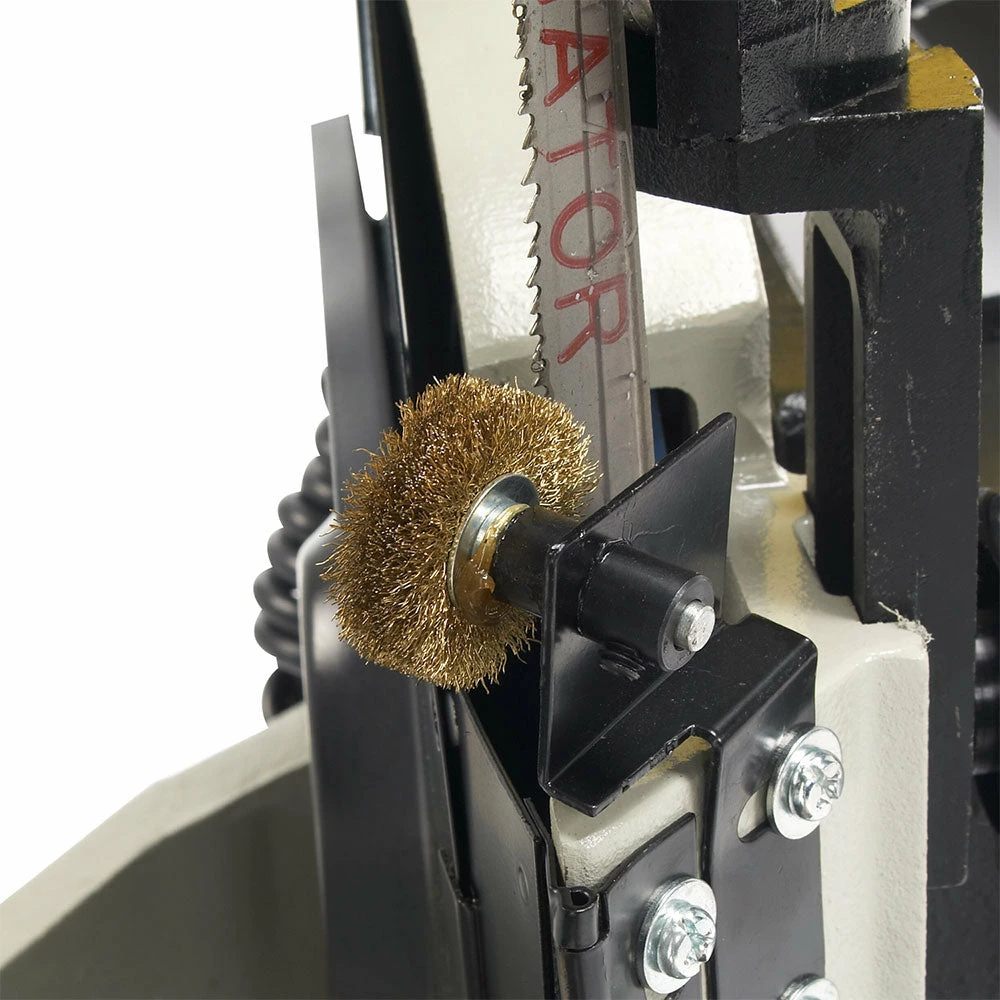

• Comes standard a flood coolant system, often considered an upgrade by other brands, and a chip removal brush.
• We cover this metal-cutting band saw with a 1-year parts warranty.

What’s in The Box

• BS-712MS – Horizontal / Vertical Band Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BS-712MS
Power	120V, 1-phase
Motor	1 hp
Return	Manual
Miter Adjustment	Swivel Head
Miter Angle	0 – 45°
Capacity Rectangular 90 x 45 x 45L	7″ x 10.23″ x 4.72″ x 4.13″
Capacity Round 90° x 45°	7″ x 4.33″
Table Height	23″
Blade Guide	Roller
Blade Size	.75″ x .035″ x 92.91″
Blade Speed (fpm)	125 x 215 x 270

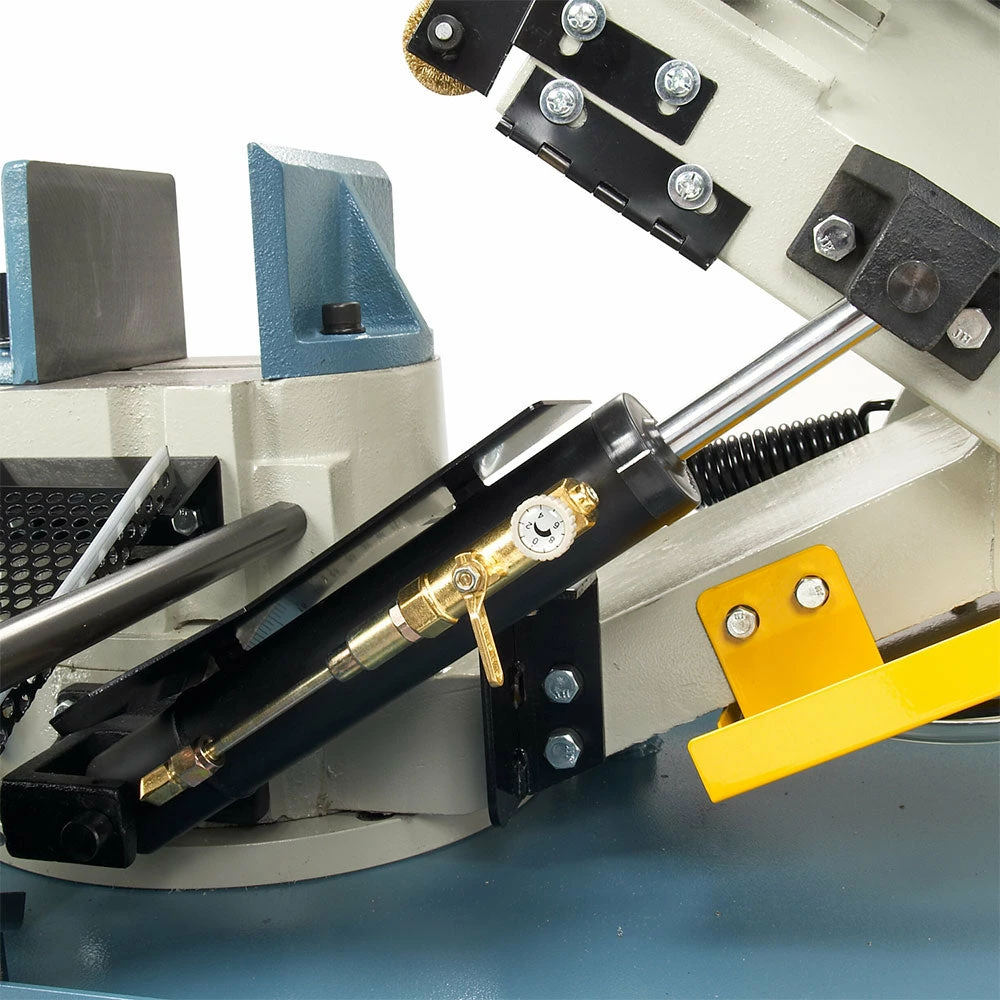

Descent Control	Hydraulic
Drive	Gear
Dimensions (Inches)	60 x 44 x 48
Weight	530 lbs
