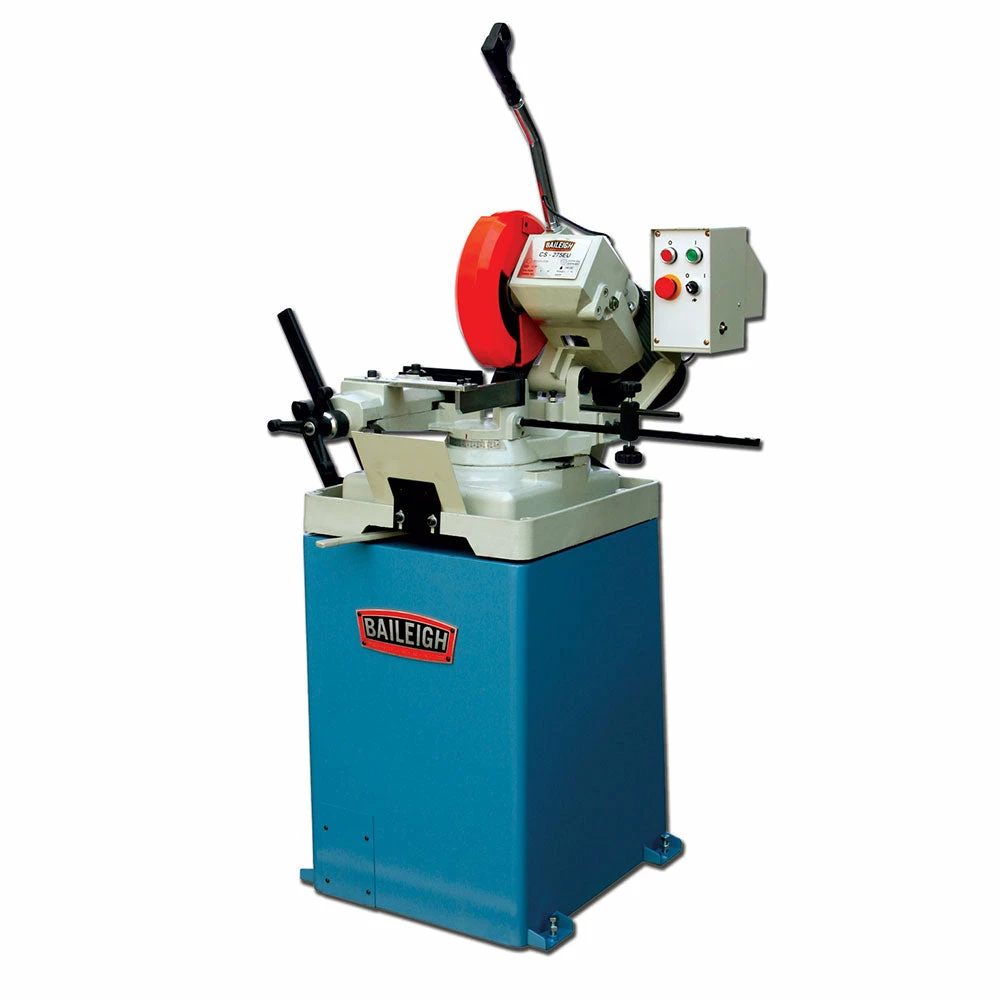

Baileigh 1002434 CS-275EU 110V 1HP 11″ Manual Cold Saw W/ Cast Iron Base

Features

• Accepts an 11” blade (included).
• 3.25” round tube capacity at 90°, big enough for just about any chassis project.
• Miters up to 45° left and right.
• Dual-mitering head lets you tackle various shapes and materials like pipe, angle iron, and solid bar.
• Blade turns at 54 rpm.
• Robust 1.5 hp motor runs on 110-volt power, so you can use it anywhere.
• Fully cast iron head will deliver clean cuts for many years.

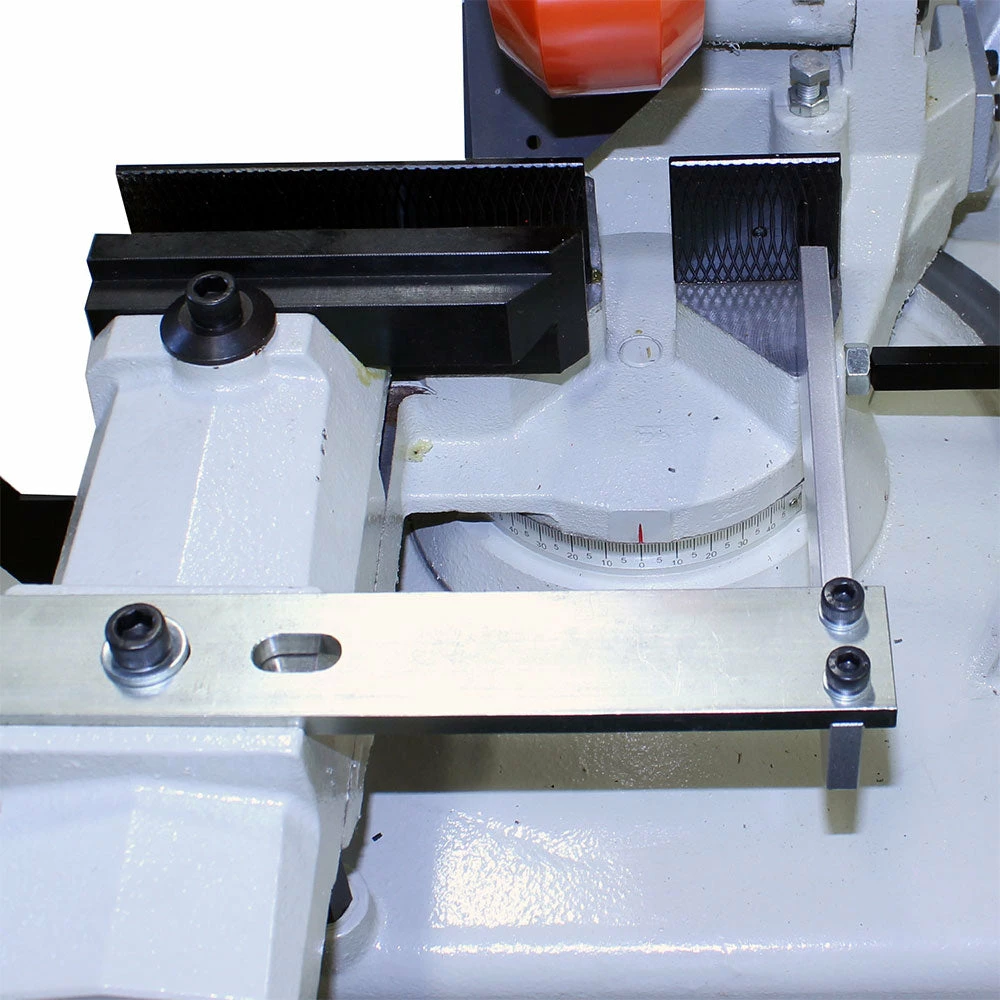

• European-style vise with a cam lock allows for fast material loading and unloading.
• Vise supports the material on opposite sides of the blade to maintain high cut quality.
• Material stop rod lets you conveniently set up repeatable cuts for production runs.
• Solid cast iron saw base keeps the machine stable, so that the blade cuts accurately.
• Saw sits on top of a sturdy steel stand that puts the machine at a comfortable cutting height.
• Flood coolant system helps the operator cut material more easily and prolongs blade and machine life.

What’s in The Box

• CS-275EU – Manual ColdSaw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	CS-275EU
Power	110V
Max. Blade Diameter	11″
Operation	Manual
Head Miter	45° Left / 45° Right
Round Solid at 45°	3.25″
Square Tube at 45°	2.2″ x 2.2″
Round Tube at 45°	3.25″
Rectangle Tube at 45°	2.2″ x 2″
Round Solid at 90°	3.25″
Rectangle Tube at 90°	3.1″ x 2″
Square Tube at 90°	2.5″ x 2.5″
Round Tube at 90°	3.25″
Coolant System	Yes
Slotting Capable	Yes
Vice Style	Single Action with Cam Lock
Max. Vice Opening	4″
Head Style	Pivot
Arbor Size	1.26″
Included Accesories	Included Accesories
Working Height	38″
Blade Size	11″
Blade Speed	54 (rpm)
Shipping Dimensions (Inches)	48x31x43
Weight	460 lbs
