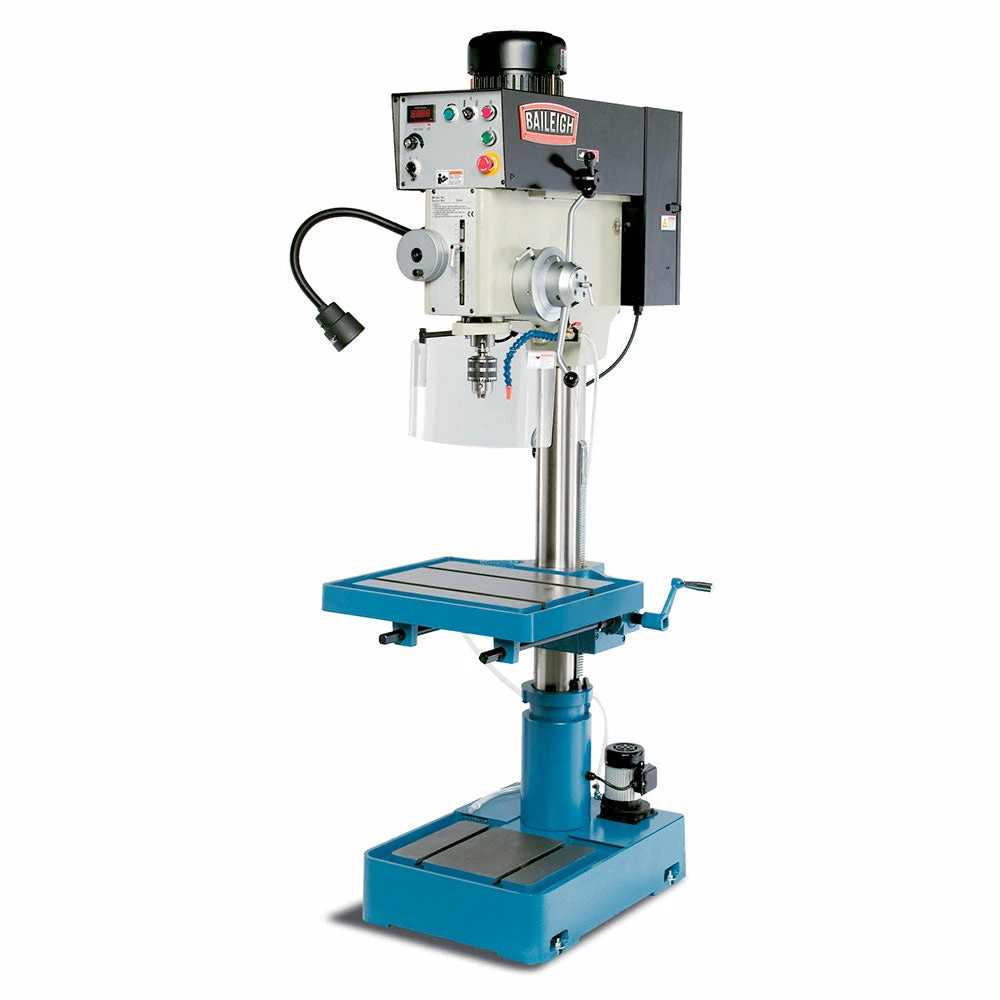

Baileigh 1002923 DP-1500VS 220V 1PH Variable Speed Drill Press Tools & Equipment

Features

• 2 hp motor runs on 220-volt single-phase power and will work practically anywhere.
• Handles a maximum drilling capacity of 1.5” steel and 1.75” cast iron.
• Auto-reversing tapping feature has a capacity of .937”.
• Speed range from 65 to 2000 rpm lets you pick the right setting for your project.
• Potentiometer dial controls the drill speed.
• Digital readout on the front displays the speed in rpm for easy checking.
• Sophisticated Delta® inverter drives #4 Morse taper spindle.
• Chuck with automatic tool ejector simplifies tooling changes.
• Large, machined 22” x 18.5” drill table offers plenty of room for material.
• Oversized .625” T-slots allow for secure clamping of a vise or fixture.
• Sturdy 4.52” column eliminates flex and boosts drilling accuracy.
• Cast base supports rigidity at maximum capacity.
• Power-down feed helps to prolong the machine’s lifetime of use.
• Safety guard around the spindle with a limit switch protects you and your shop.
• Powerful coolant system, housed in the base, keeps the drill from overheating and helps the drill last longer.
• Includes a bright halogen light that bends to enable you to see the material better as you work.
• Baileigh covers this drill with a 1-year parts warranty and lifetime technical support.

What’s in The Box

• DP-1500VS – Variable Speed Drill Press
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	DP-1500VS
Power	220V Single Phase
Table Size	22″ x 18.5″
Quill Diameter	2.95″
Quill Feed	.0078″, .004″, .002″ per rev.
Spindle Nose to Table	22.75″
Spindle Nose to Base	40.75″
Spindle Speed High	245 – 2000 rpm
Spindle Speed Low	65 – 540 rpm
Spindle Taper	MT 4
Table Slot	.625″
Tapping Capacity	.937″
Main Motor	2 hp
Drill Capacity Cast Iron	1.75″
Drill Capacity Steel	1.5″
Spindle Travel	5.9″
Column Diameter	4.52″
Base Dimensions L x W	27″ x 19″
Dimensions (Inches)	60 x 44 x 88
Weight	990 lbs
