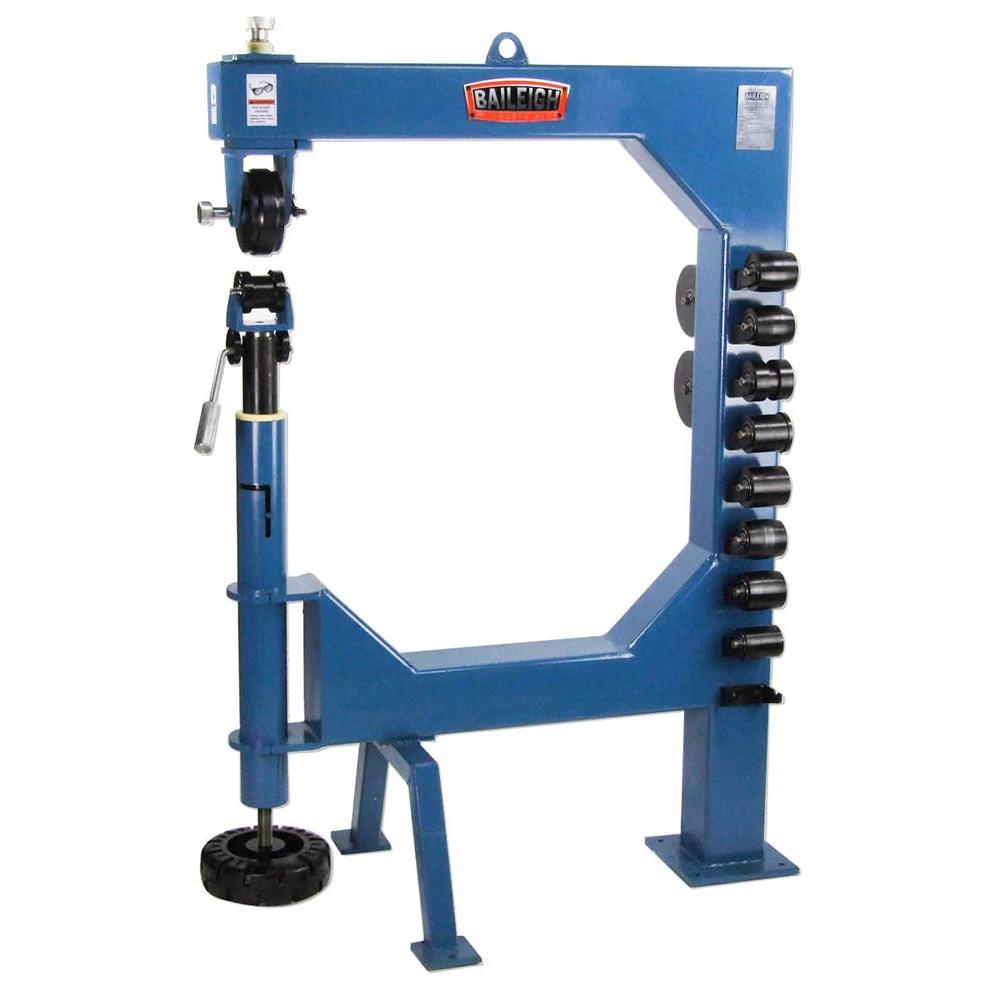

Baileigh 1004189 EW-40 English Wheel W/ 16 Gauge Mild Steel Capacity

Features

• 16 gauge mild steel capacity.
• 37 ¾” throat depth can handle almost any project.

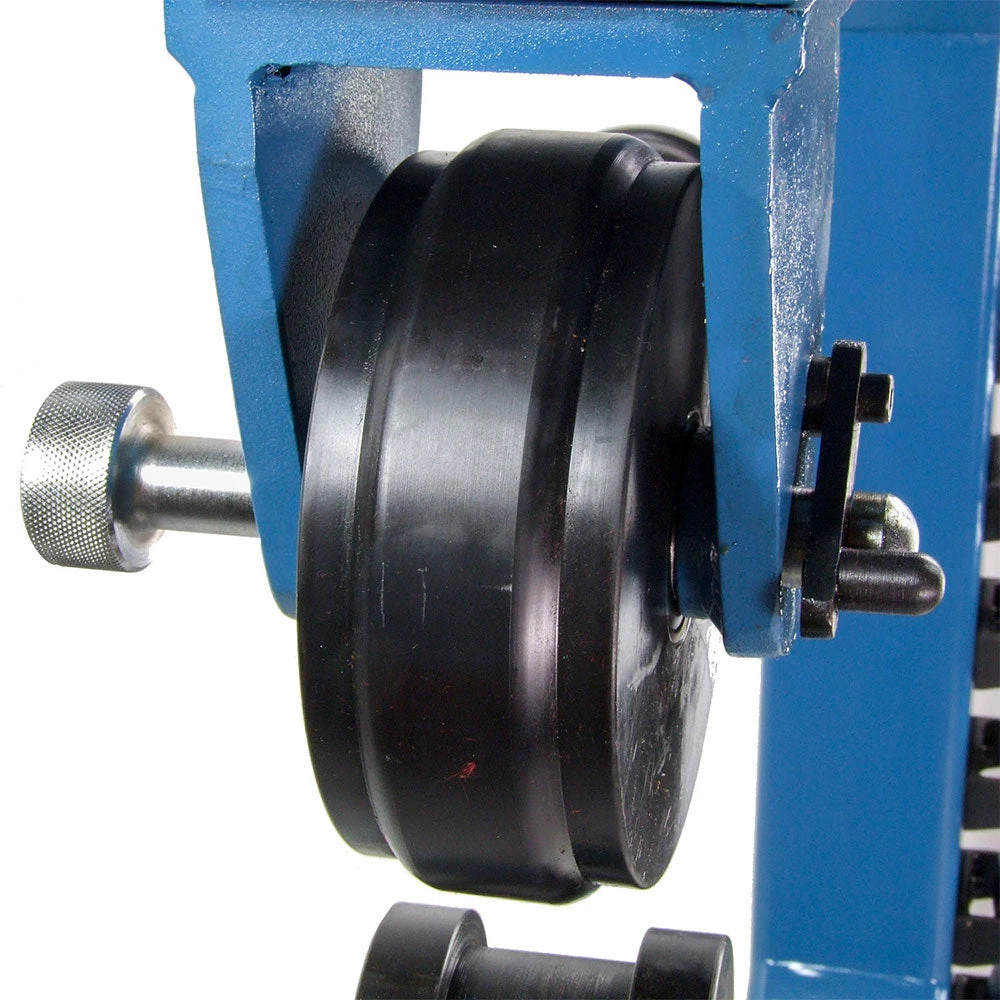

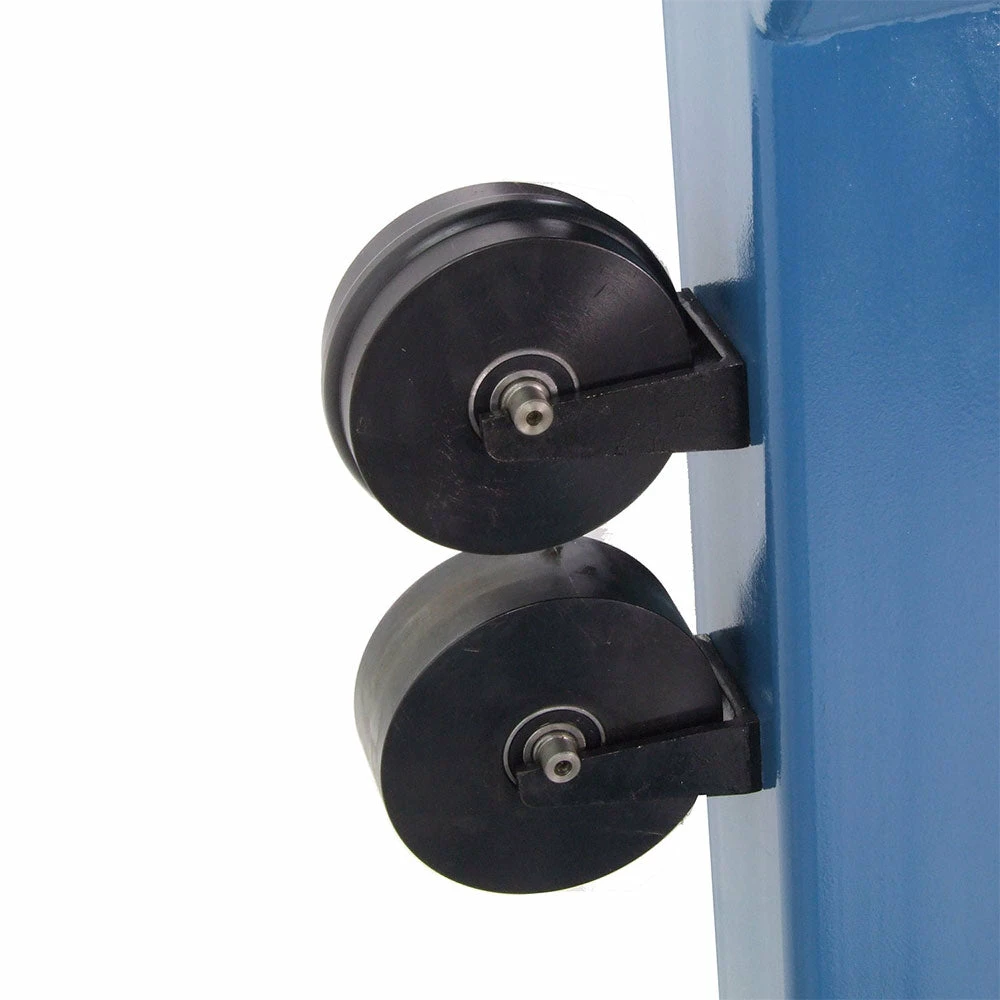

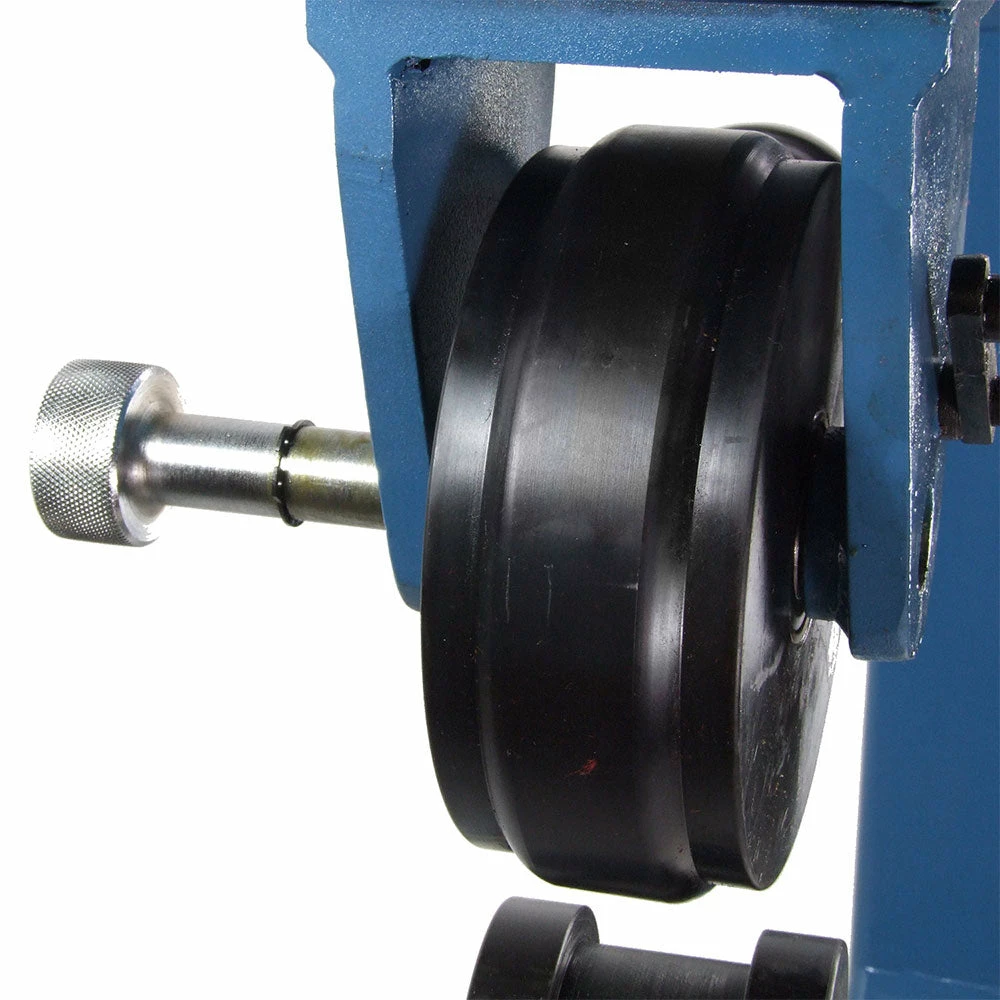

• Comes with 3 upper wheels (6” x 2.75”).
• 9 hardened bottom anvils:
• ?”, ½”, and ¾” edge radii.
• 6” crown radius.
• 2 flat rolls.
• 5/16” x ¼” step roll.
• 1½ ” and ?” round bead rolls.
• You can roll beads as well as form metal on this English wheel.
• All upper wheels and lower anvils use sealed bearings.

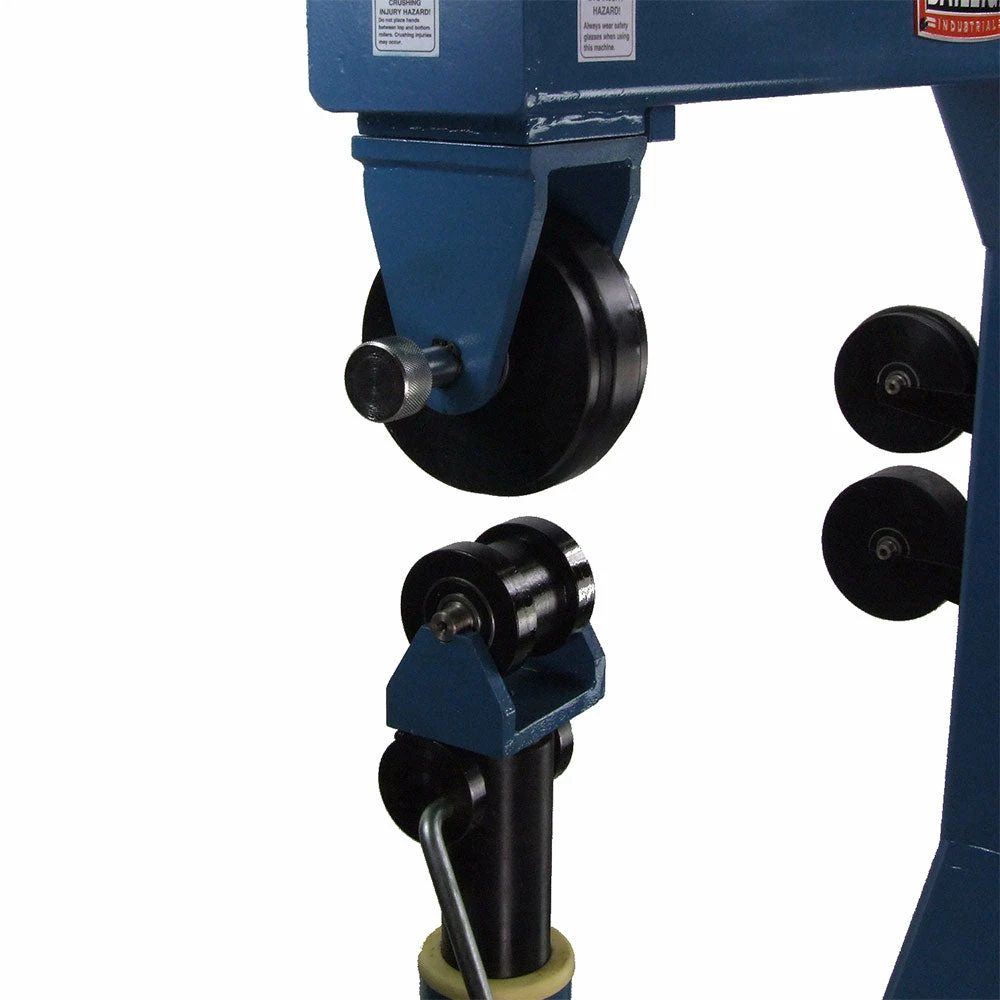

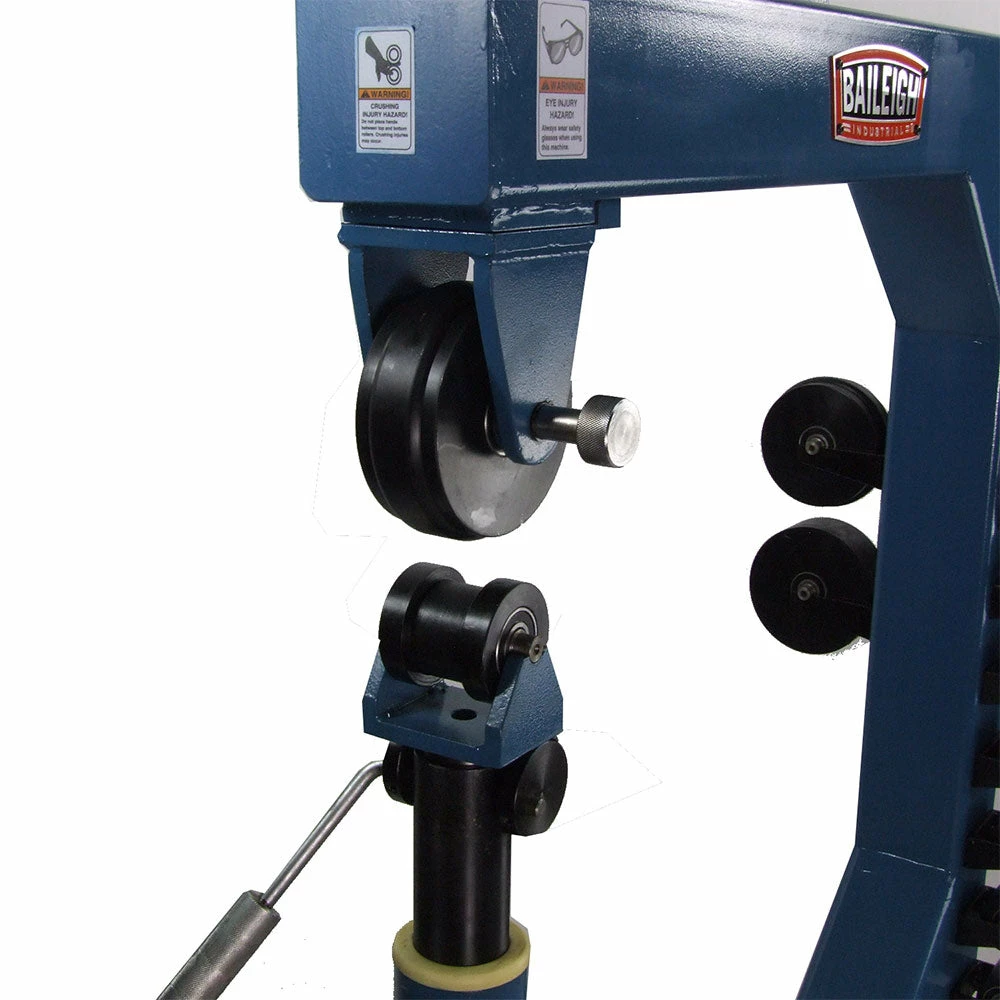

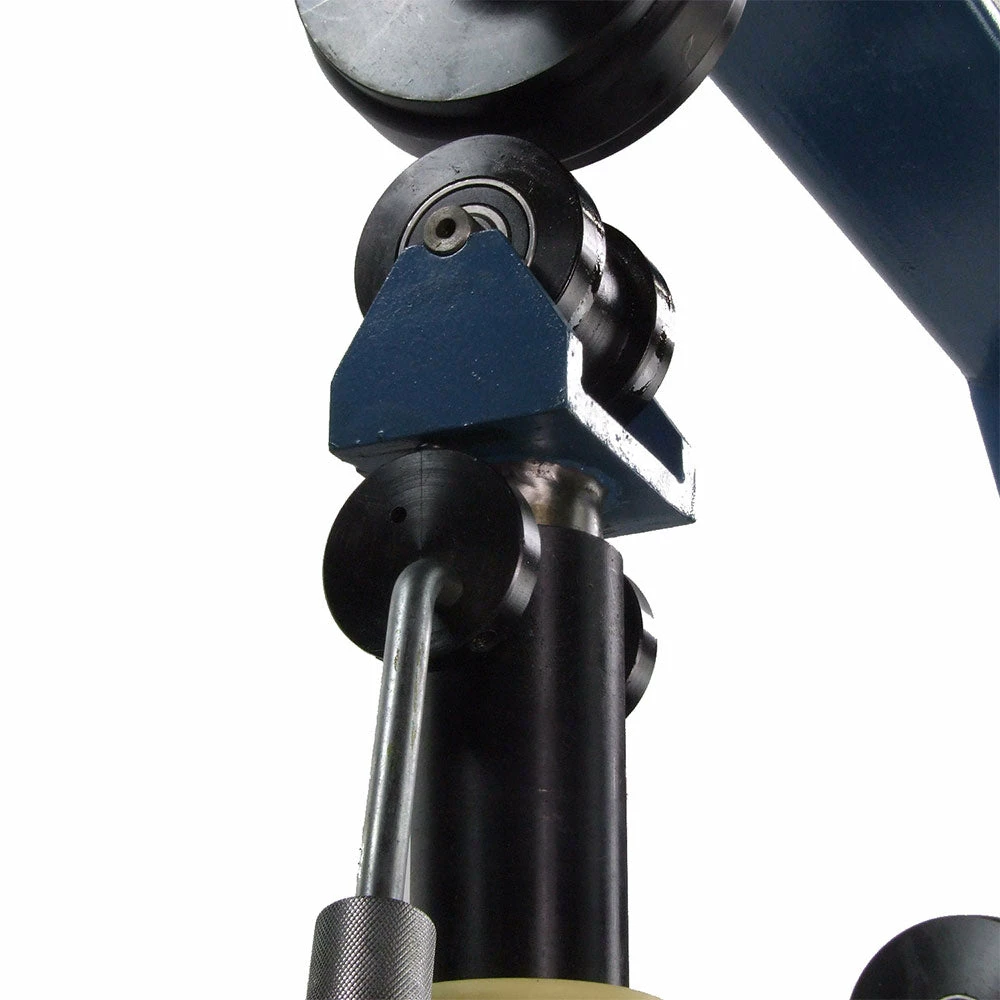

• Swivel head lets you either push material directly into the throat or at a 90° to it.

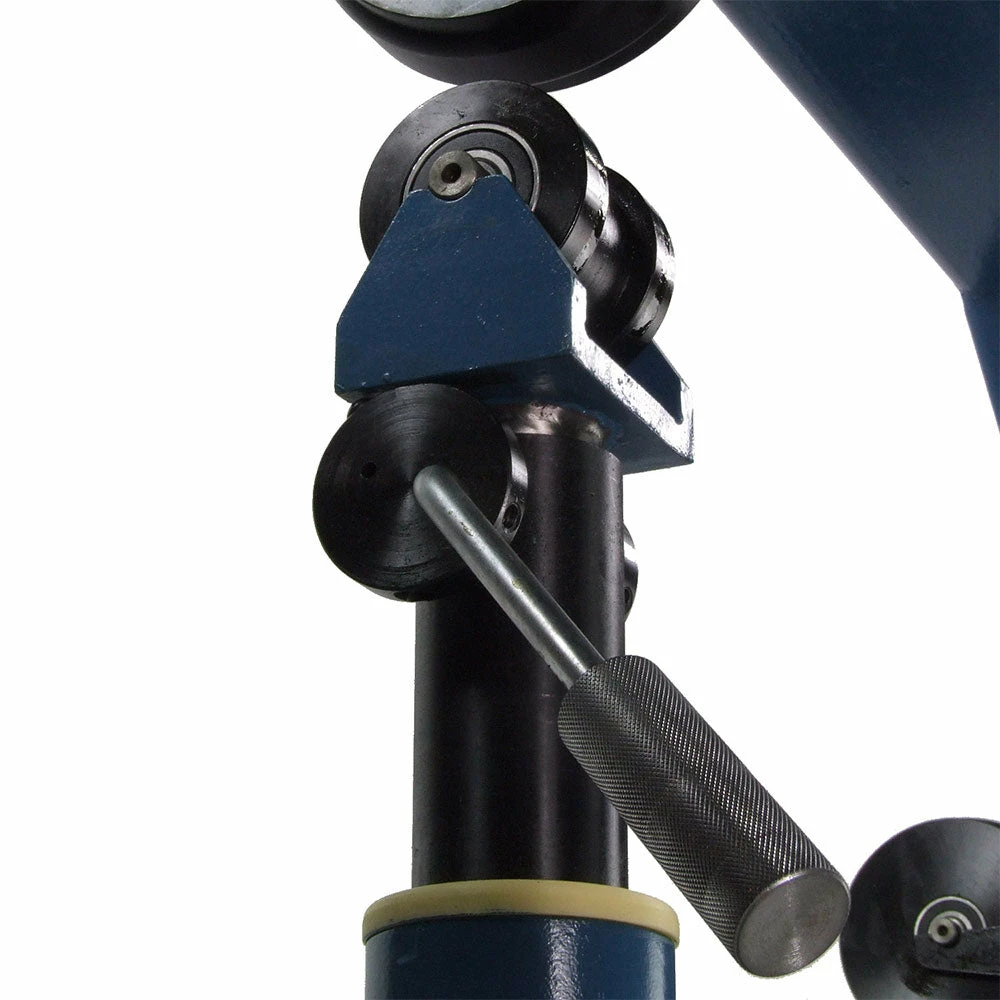

• Quick-release cam allows you to release the panel without changing tension.

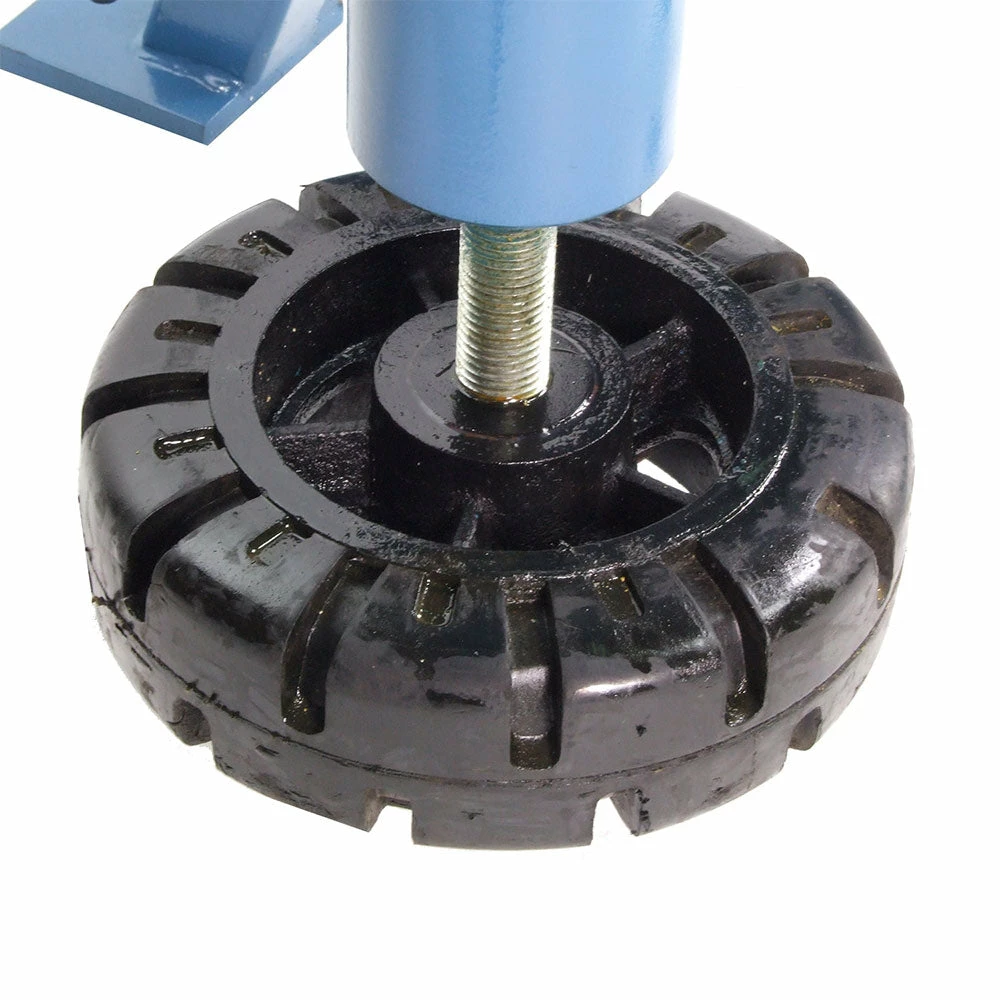

• Adjust the tension via the kick tensioner, made of real rubber.
• Fully welded 5” x 5” x .250” box tubing framework prevents flex when rolling at full capacity.

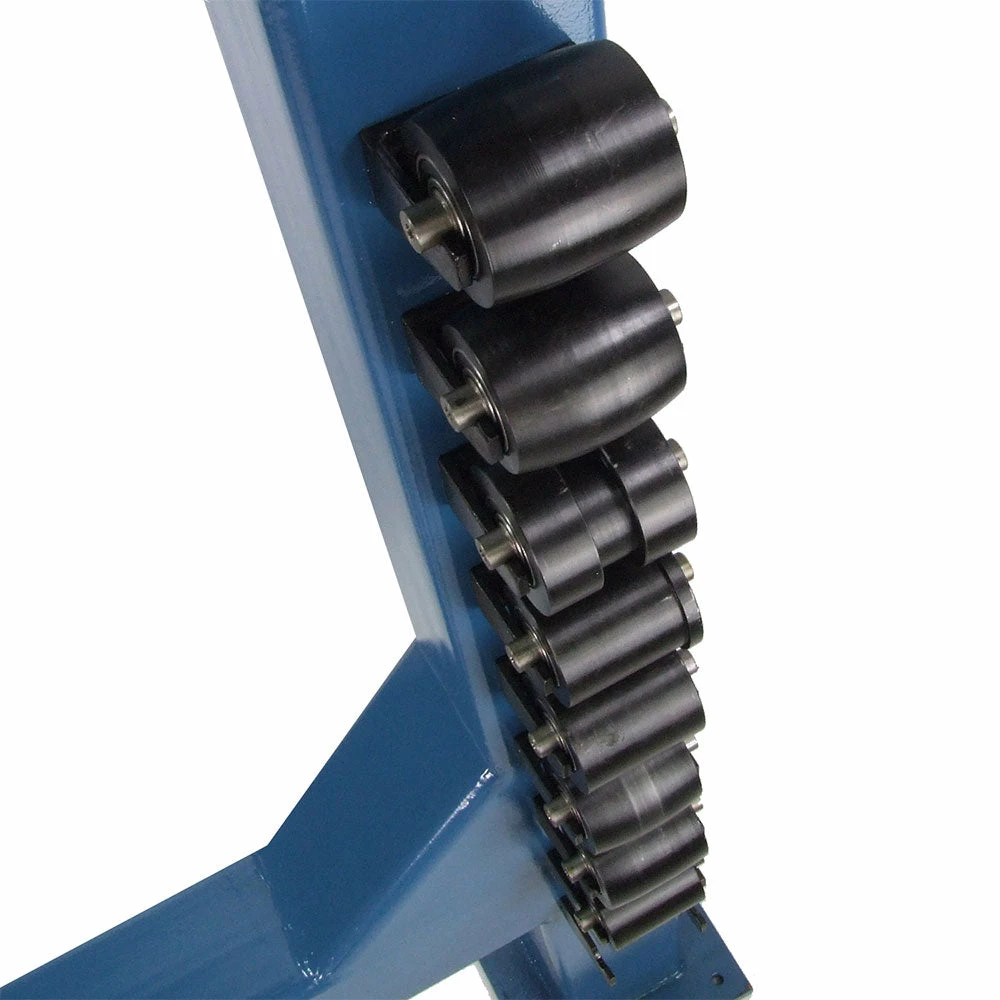

• Tooling holder on the side of the machine gives you a convenient place to put your rolls.
• Covered by a 1-year parts warranty.

What’s in The Box

• EW-40 – English Wheel
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	EW-40
Power	Manual
Mild Steel Capacity	16 ga.
Throat Depth	37-3/4″
Aluminum Capacity	14 ga.
Lower Die Radius	1.85″, 2.165″, 4.85,40″
Shipping Dimensions (Inches)	67x48x14
Top Wheel Dimensions	6” x 2 ¼”
Shipping Weight	510 lbs
