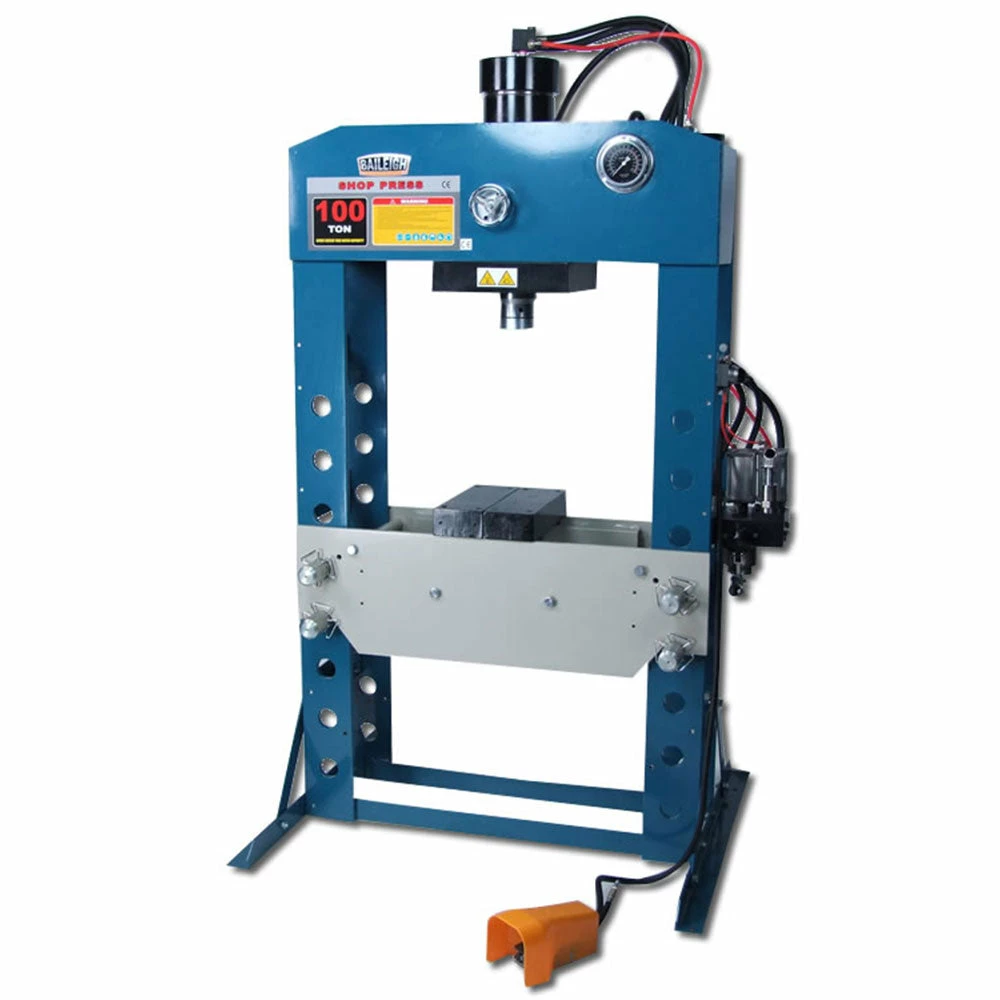

Baileigh 1004759 HSP-100A 100 Ton Air Operated H-Frame Shop Press Tools & Equipment

Features

• 31” working width.
• 11.8″ stroke length controlled using foot pedal.

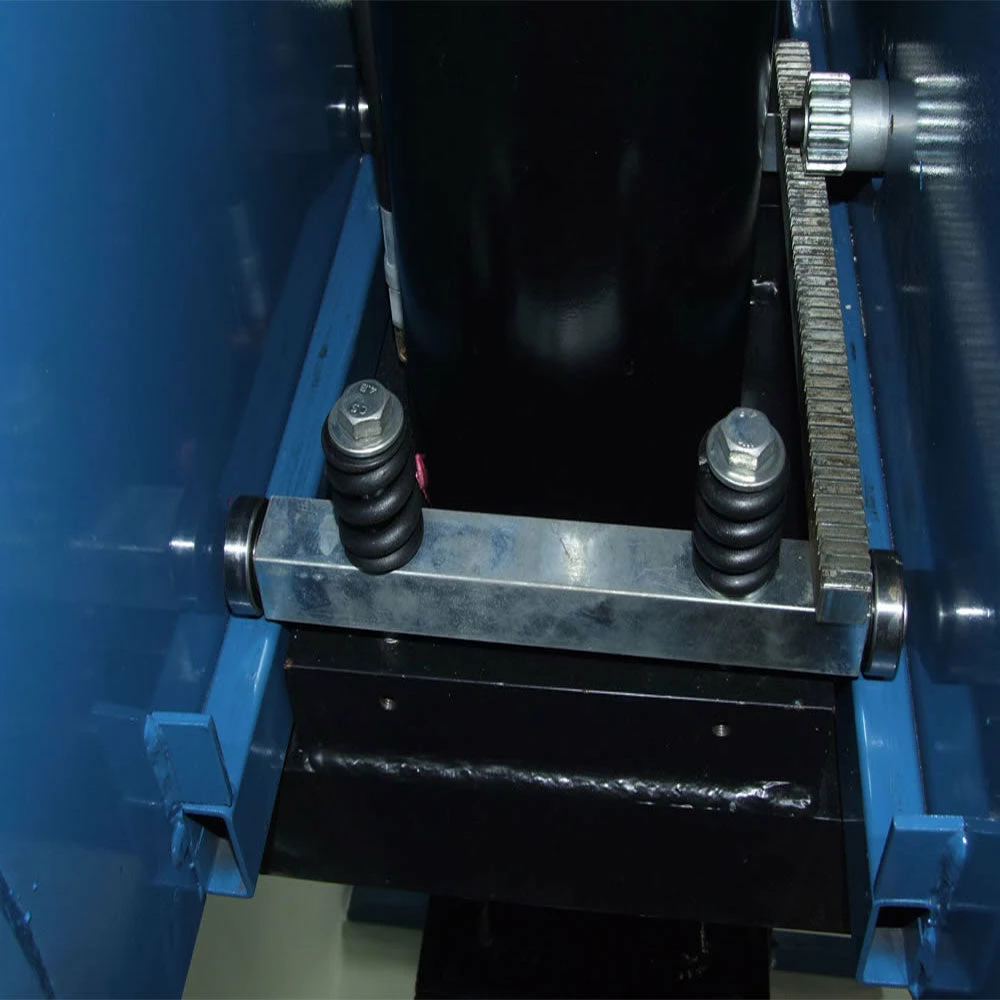

• 6.5” hydraulic cylinder moves left and right, helpful when you’re making off-center parts.

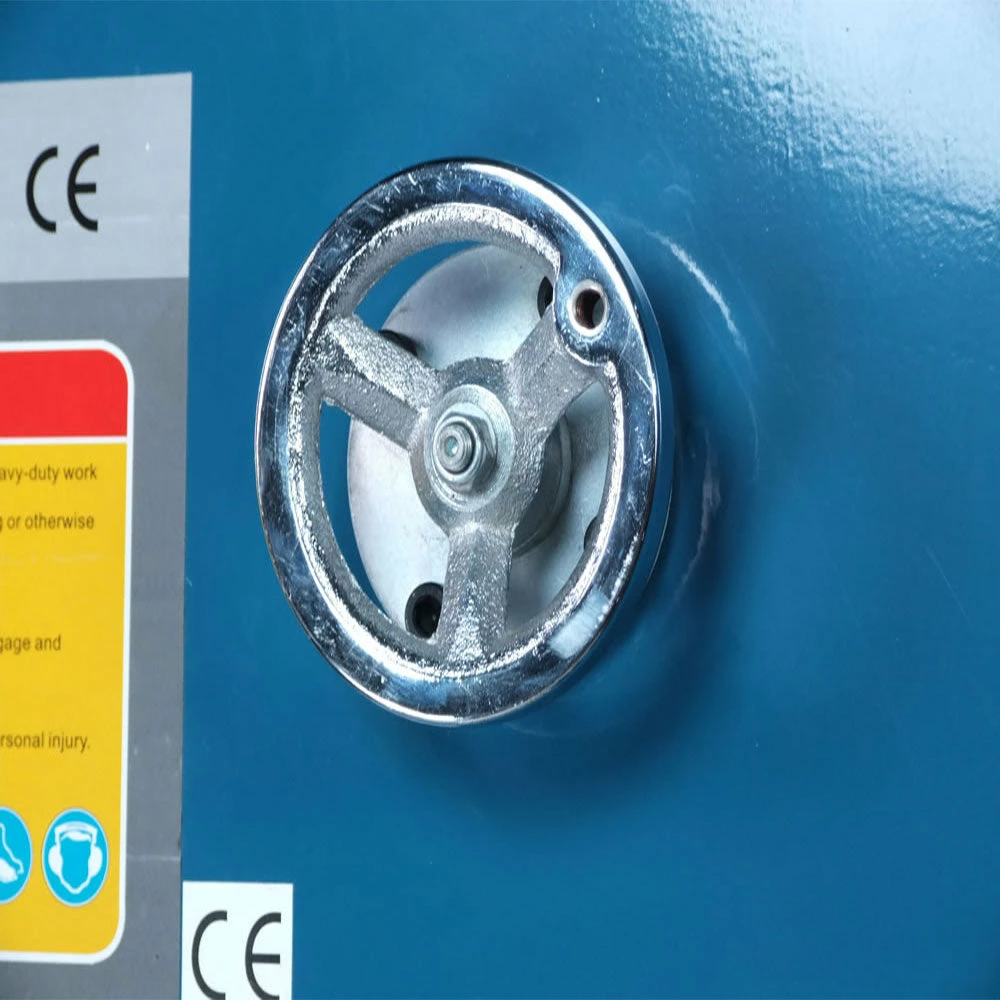

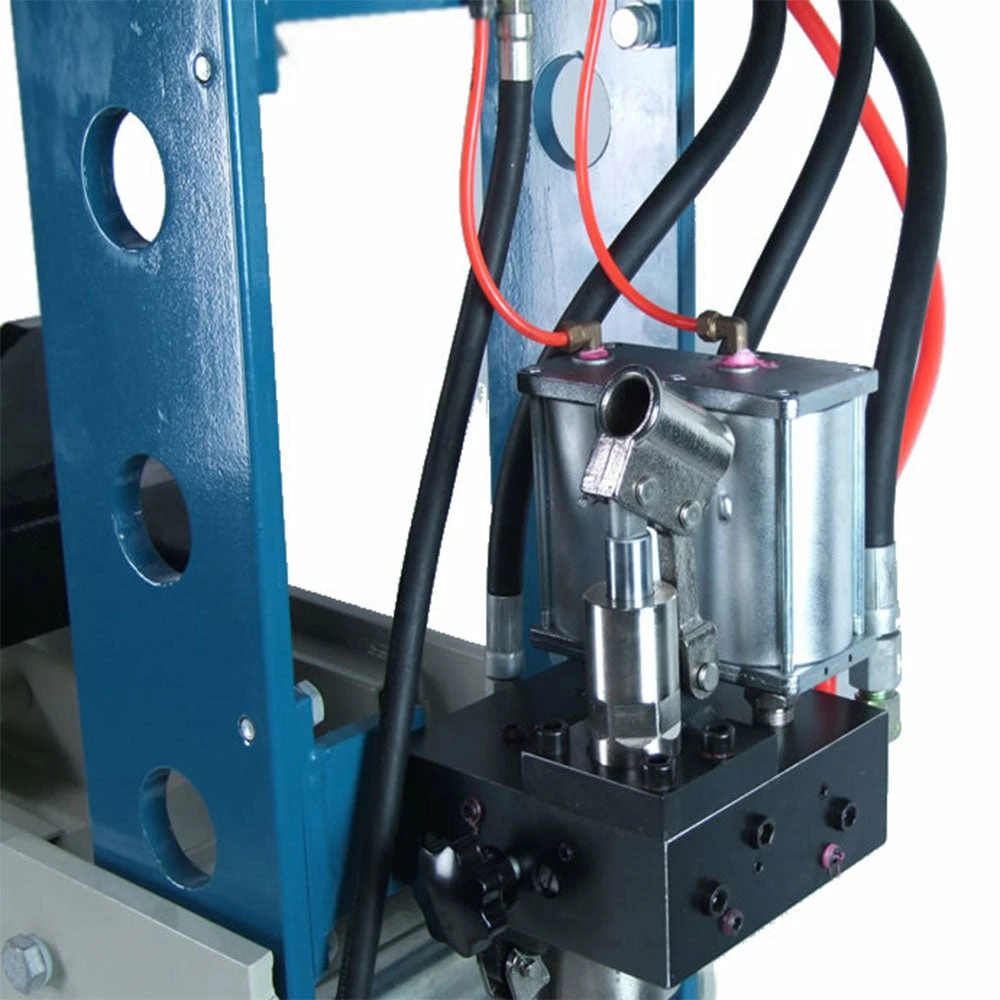

• Hand-operated lever gives you the option for more delicate manual control over the machine.
• Industrial-grade hydraulic components cleanly deliver force to the project, providing years of trouble free use.

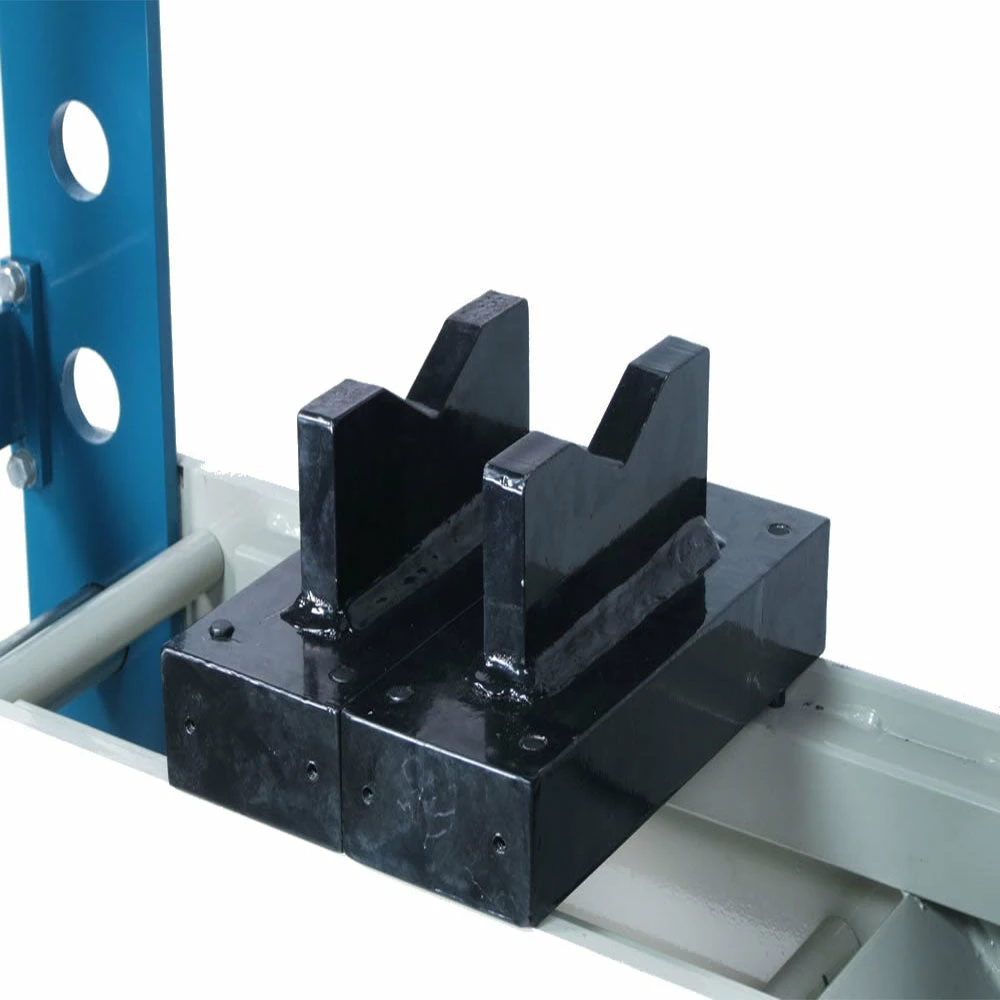

• Includes a set of V-blocks.

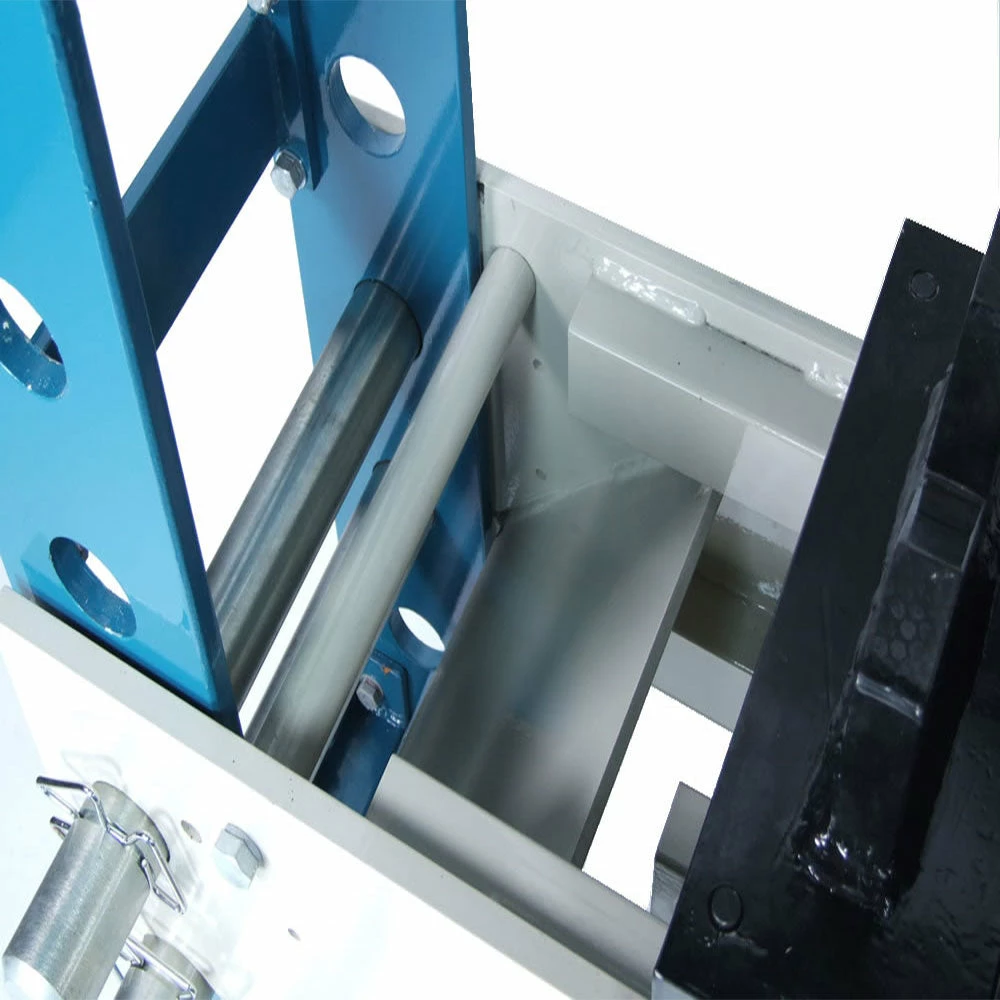

• Fully-welded plate steel frame maintains rigidity for less flex and more accurate pressing.
• Baileigh covers this 100 ton hydraulic press with a 1-year warranty as well as lifetime technical support by phone from our team of experienced customer service reps.
• Typically in stock for fast shipments.

What’s in The Box

• HSP-100A – Shop Press
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	HSP-100A
Power	Pneumatic / Manual

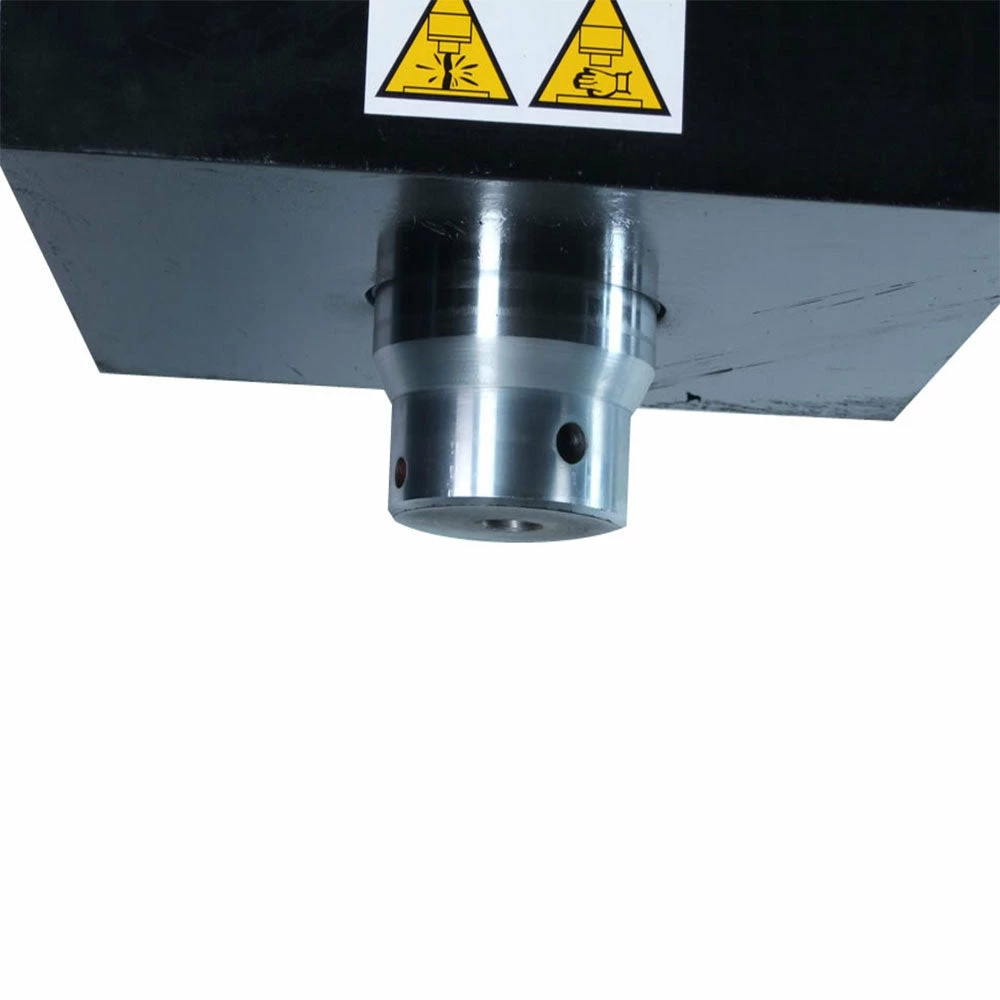

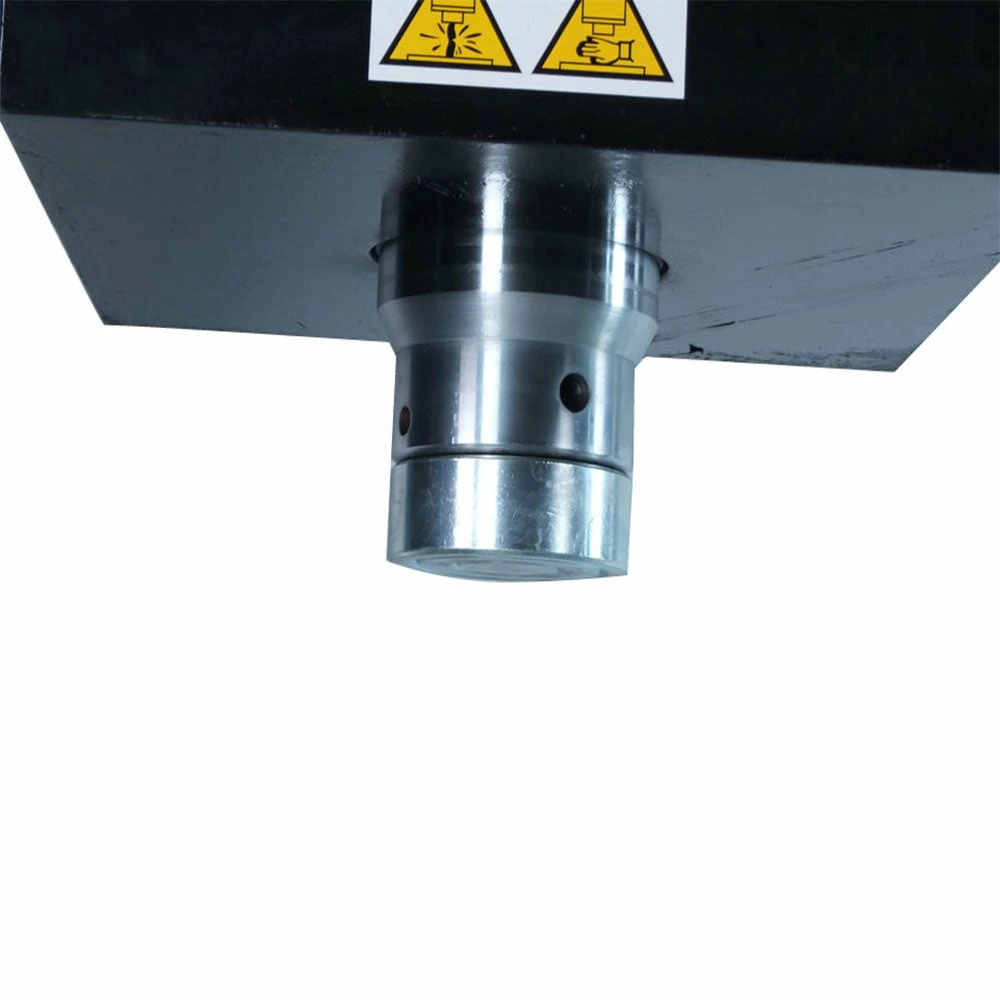

Piston Head Diameter	3.5″
Movable Cylinder	Yes
Working Width	31″
Maximum Capacity	100 tons
Cylinder Stroke	11.8″
Cylinder Diameter	6.5″
Distance From Table To Ram	Min. 4.45″ – Max. 32.01″
Shipping Dimensions (Inches)	81 x 46 x 20
Dimensions L x W x H	81″ x 45″ x 21″
Weight	1700 lbs
