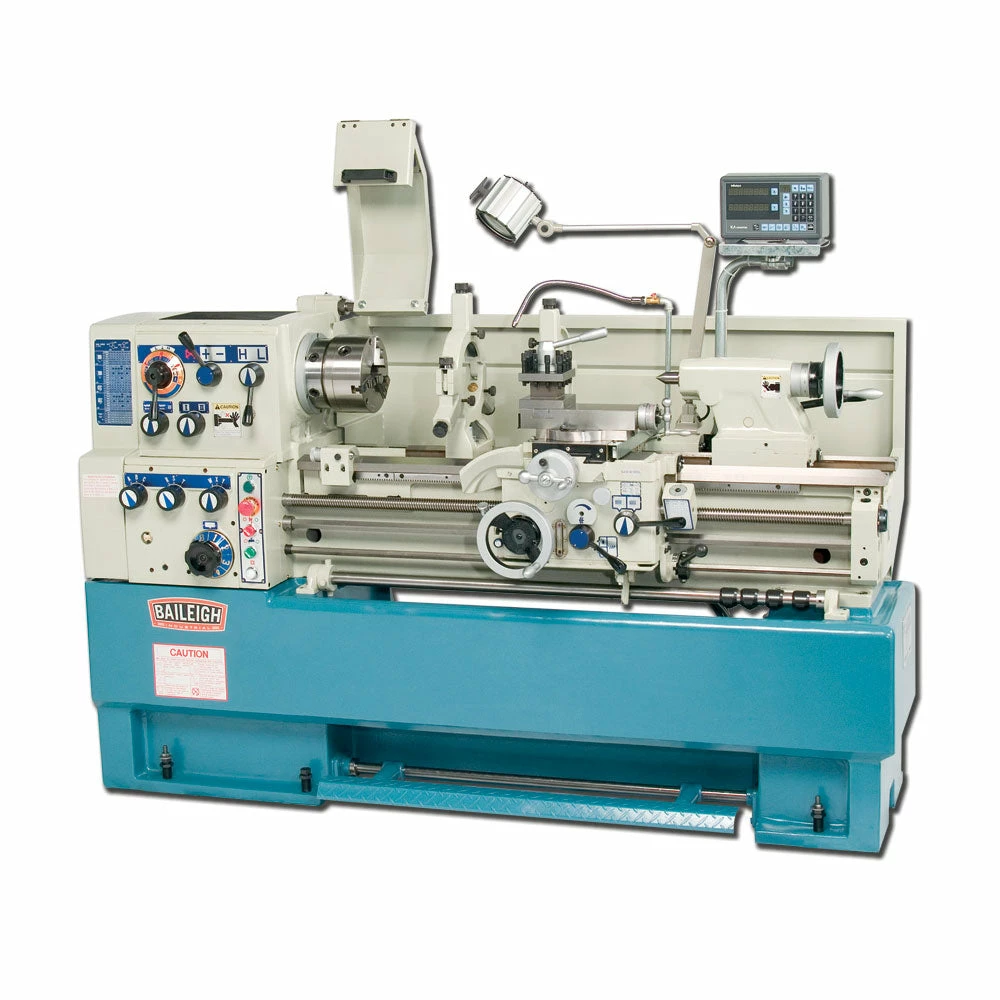

Baileigh 1006140 PL-1640 220V 7.5HP Precision Lathe W/ Cast Iron Base

Features

• 12 speeds from 30 to 2,000 rpm.
• 7.5 hp motor runs on 220-volt 3-phase power.
• No assembly required.
• Factory-installed Mitutoyo DRO (digital readout) helps you make precise cuts.
• Precision ground and hardened ways will withstand years of use in any metalworking shop.
• ?” square indexing tool post.
• Collar system lets you set stops for repeat parts.
• This is a gap lathe, so you can remove a section of the slide to fit a slightly larger diameter.
• Full cast iron base, integrated into the mainframe, makes this one of the most rigid lathes on the market.
• Comes standard with:
• 3-jaw chuck.
• Headstock chuck guard with automatic safety switch.
• Steady rest and follow rest.
• Emergency foot brake.
• Flood coolant system (with backsplash guard) to prolong machine life.
• Halogen work light.
• Covered by a 1-year parts warranty.

What’s in The Box

• PL-1640 – Precision Lathe
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	PL-1640
Power	220V / 3-phase
Speed	30 – 2000 rpm
Spindle Bore	2.0625″
Threads Diametrical Qty Speed	32 / 4–32 D.P.
Threads Imperial Qty Speed	40 / 2–56 T.P.I.
Threads Metric Qty Speed	53 / .4–14 mm pitch
Threads Module Qty Speed	44 / .4–7 M.P.
Spindle Taper Sleeve	Morse #4
Spindle Taper Nose	Morse #6
Tailstock Quill Dia	2.125″
Tailstock Quill Taper	Morse #4
Tailstock Quill Travel	4.75″
Compound Rest Width	4.33″
Center Height	7.086″
Compound Travel	4.75″
Bed Height	12.20″
Bed Length	17157
Bed Width	11.81″
Longitudinal Feeds Metric Qty Speed	40 / .032 – .640 mm / rev.
Main Motor	7.5 hp
Longitudinal Feeds Imperial Qty Speed	40 / .0012″ – .0252″ / rev.
Lead Screw Diameter	1.25″
Lead Screw Thread Pitch	4 T.P.I.
Max. Swing In Gap Length	6.125″
Max. Swing Over Bed	16″
Max. Swing Over Cross Slide	9.45″
Max. Swing In Gap Dia	23.42″
Cross Feeds Imperial Qty Speed	40 / .0006″ – .0126″ / rev.
Cross Feeds Metric Qty Speed	40 / .015 – .320 mm / rev.
Cross Slide Travel	9″
Cross Slide Width	7.08″
Cutting Tool Max Section	.625″ x .625″
Distance Between Centers	40″
Feed Rod	.708 dia.
Shipping Dimensions (Inches)	90x37x81
Weight	3940 lbs
