Features
- Rolls up to 1/4” mild steel in 6-foot lengths.
- Robust 4 hp motor runs on 220-volt 3-phase power.
- Planetary gearbox, connected to main motor, drives the top and bottom rolls at a solid 16 feet per minute.
- Direct linear piston movement for the lateral and forming rolls delivers even more power.
- Industrial 1.5 hp hydraulic motor moves the lateral rolls.
- 3 digital readouts give accurate roll locations for easy repeatability.
- Operator control pedestal lets you conveniently manage all movements of the machine.
- Welded steel plate frame keeps the machine rigid and helps prevent flex.
- Covered by a 1-year parts warranty.
What’s in The Box

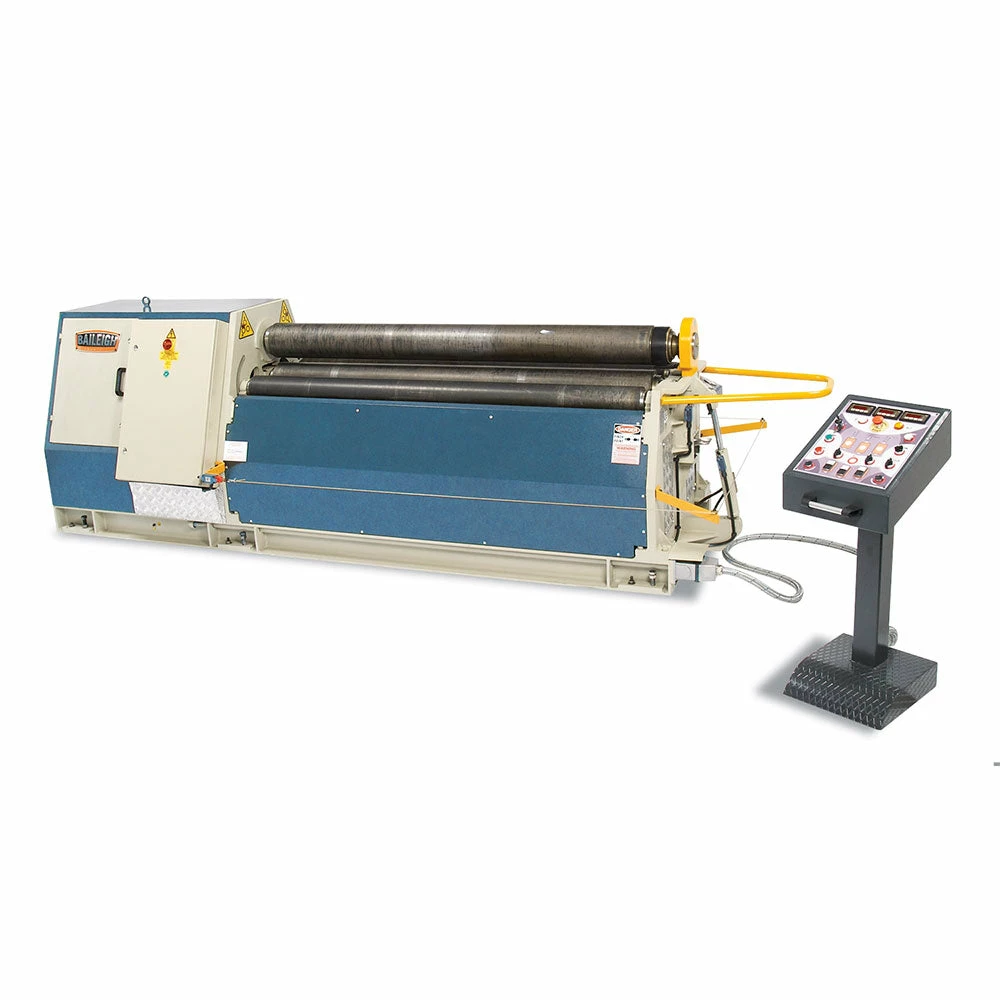

- PR-603-4 – Four Roll Plate Roll
- Owner’s Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | PR-603-4 |
| Power | 220V / 3-phase |
| Motor | 4 hp |
| Working Length | 78.74″ |
| Forming Width | 80″ |
| Driven Rolls | 2 |
| Roll Speed | 16 fpm. (5 mpm) |
| Upper Roll Dia. | 7″ |
| Roll Adjustment Back | Hydraulic |
| Roll Diameter | 7.4″ |
| Side Roll Dia | 5.9″ |
| Roll Length | 80.70″ |
| Minimum Forming Dia | 10.6″ |
| Included Accesories | Included Accesories |
| Dimensions (Inches) | 138 x 44 x 52 |
| Weight | 7700 lbs |
