Baileigh 1006768 RDB-050 Manual Tube Bender W/ 2-1/2″ Mild Steel Capacity

Features

• Tackles up to 2.5” OD mild steel with a wall thickness of .120″ and 2” OD Chrome Moly with a wall thickness of .120”.
• Choose from 3 bending speeds, depending on material type, OD, and wall thickness, to proper speed for each application.
• Speed 1 produces 4° per pull. This speed has the most torque, suitable for bending 2” OD Chrome Moly or 2.5” OD mild steel.
• Speed 2 produces 8° per pull for intermediate materials.
• Speed 3 produces 12° per pull for lighter gauge materials.
• Bends up to 200° in one shot without you needing to stop and reset the machine.

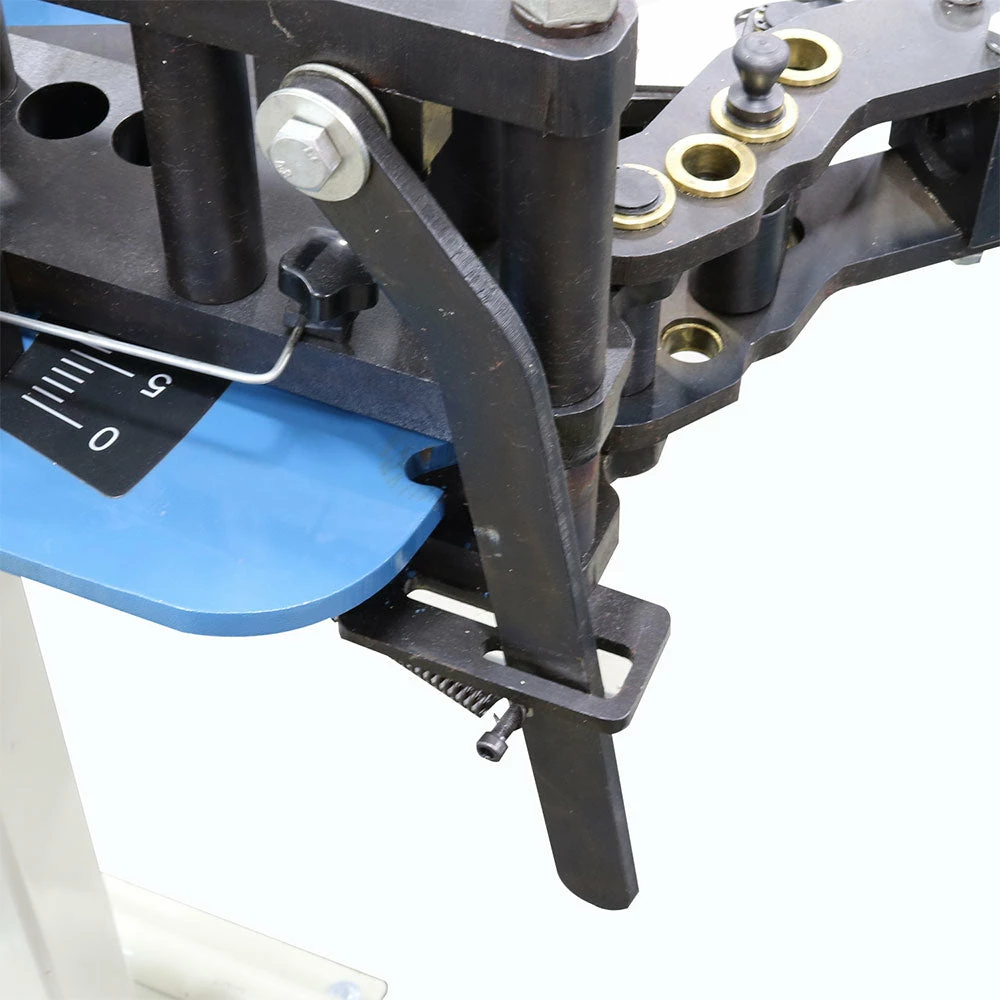

• Anti-springback mechanism holds each bend in place as the operator ratchets forward.
• No assembly or disassembly needed to produce a bend.

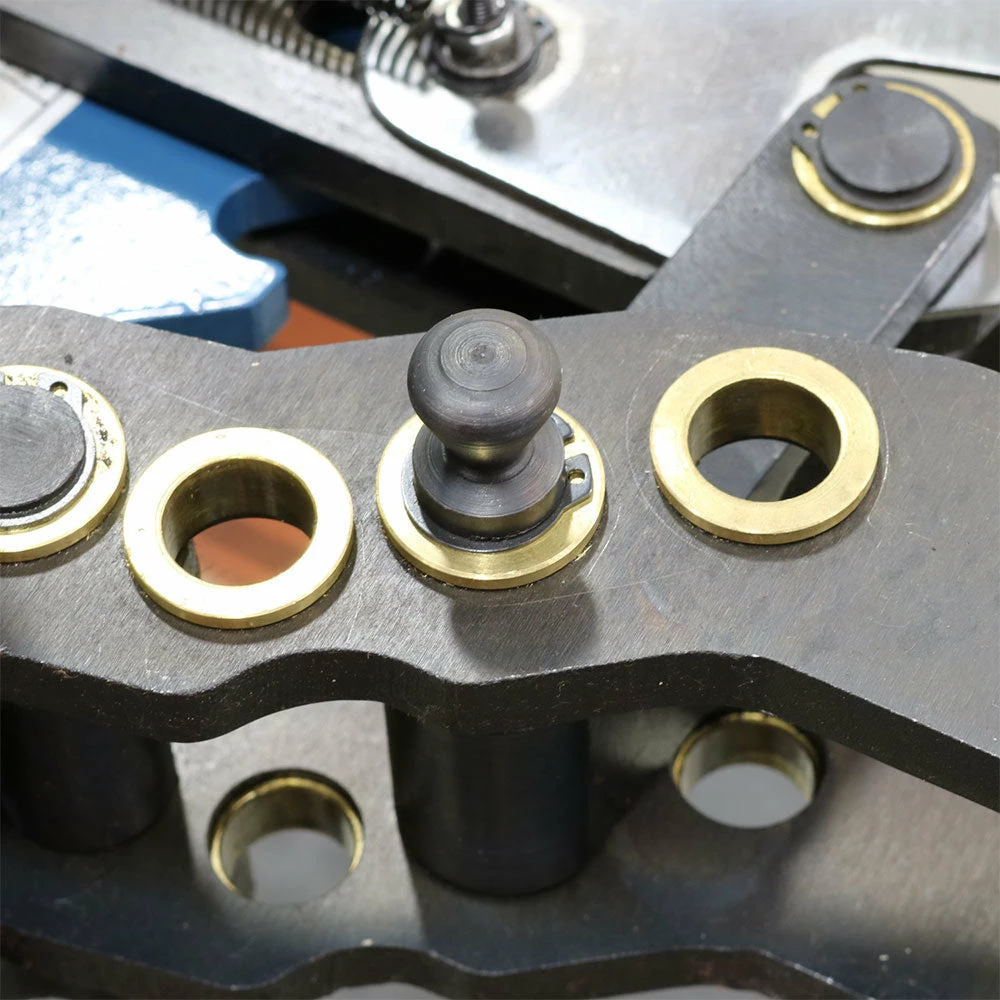

• All pivot points use aluminum bronze bushings and thrust washers for long machine life.

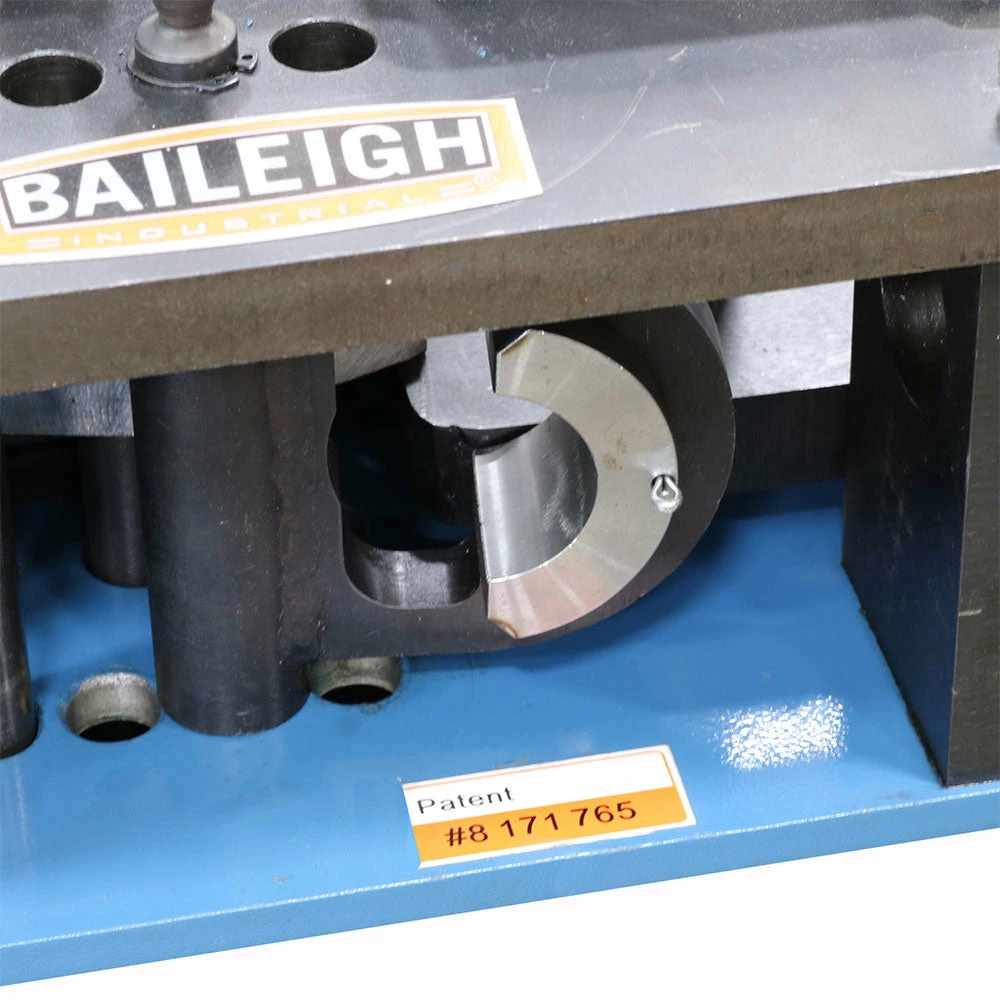

• Quick-release hook arm inserts assist when you’re changing over the machine to a different size of tubing. You can do a complete changeover in 1 minute or less.
• Just walk up to the machine, put your tubing into the hook arm insert, and begin bending. When the bend is complete, return the machine to the home position, pull your bend out—and you’re all set.
• Comes complete with the stand, bend handle, and degree dial. Just add tooling and you’re ready to bend tube.

What’s in The Box

• RDB-050 – Manual Tube Bender
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	RDB-050
Power	Manual
Minimum CLR	3″
Minimum OD	.75″
Mild Steel Solid Rod	1″
Mild Steel Pipe Schedule 40	Call for Details
Mild Steel Round Tube Wall	2.5″ (.120)
Stainless Steel Pipe Schedule 40	Call for Details
Stainless Steel Round Tube Wall	2″ (.120)
Chromolly Round Tube Wall	2″ (.120)
Aluminum Pipe Sch. 40	Call for Details
Aluminum Round Tube Wall	2.5″ (.120)
Max. Clr	7″
Special Notes	tooling not included, contact Baileigh at 920-684-4990 for correct sizing.
Things to Know Before Purchase	All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications.
Shipping Dimensions (Inches)	36x36x18
Weight	290 lbs
