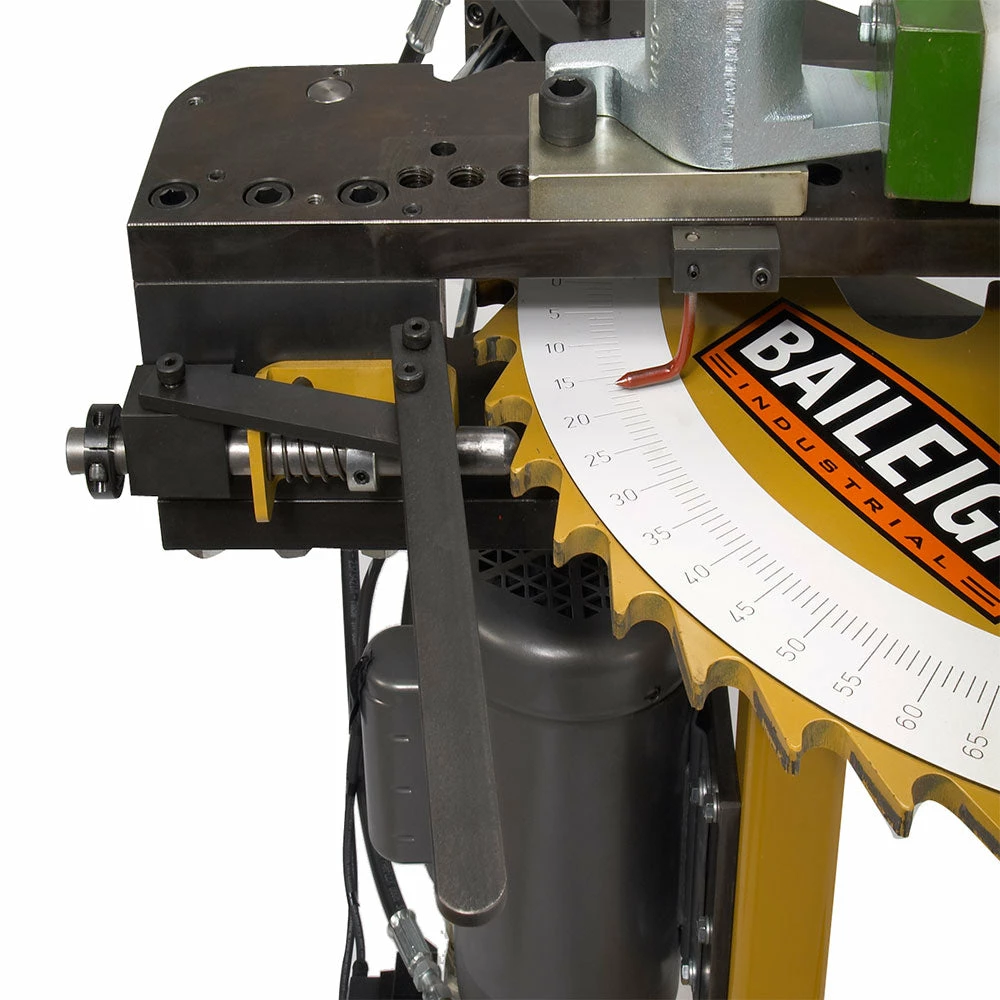

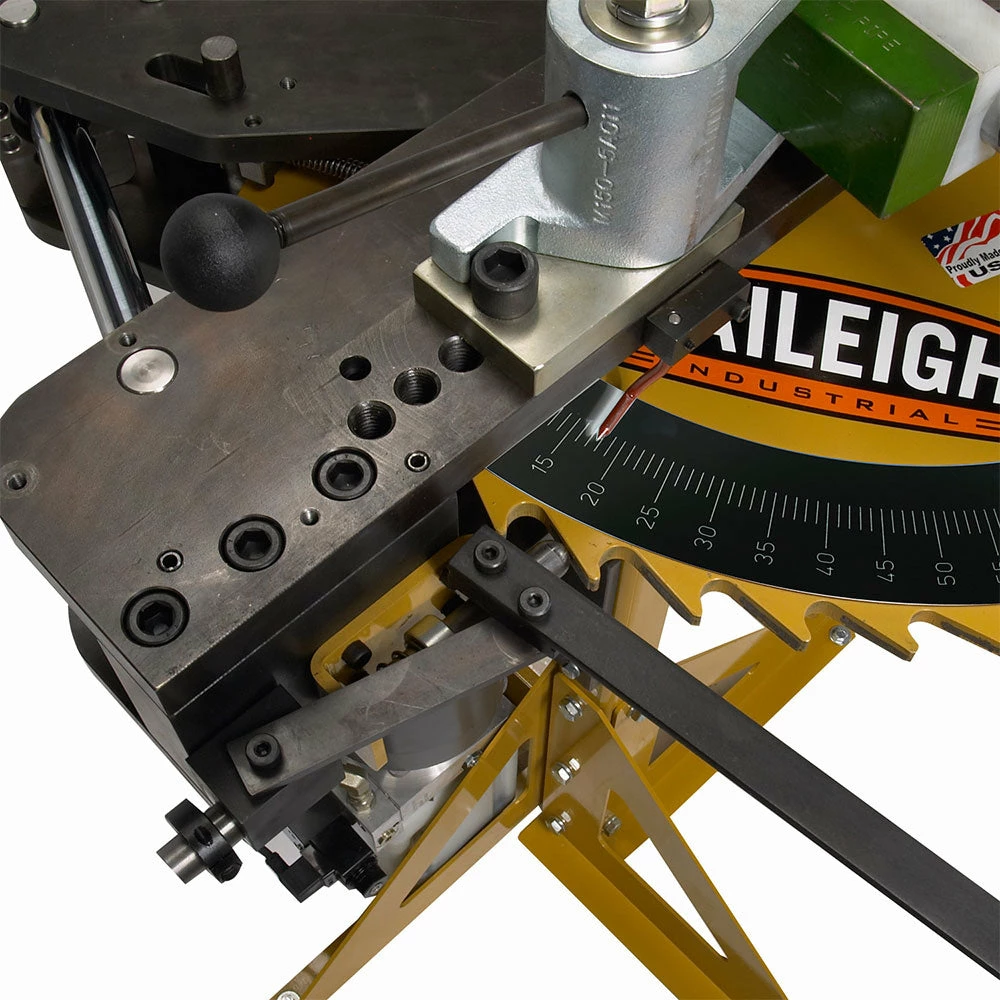

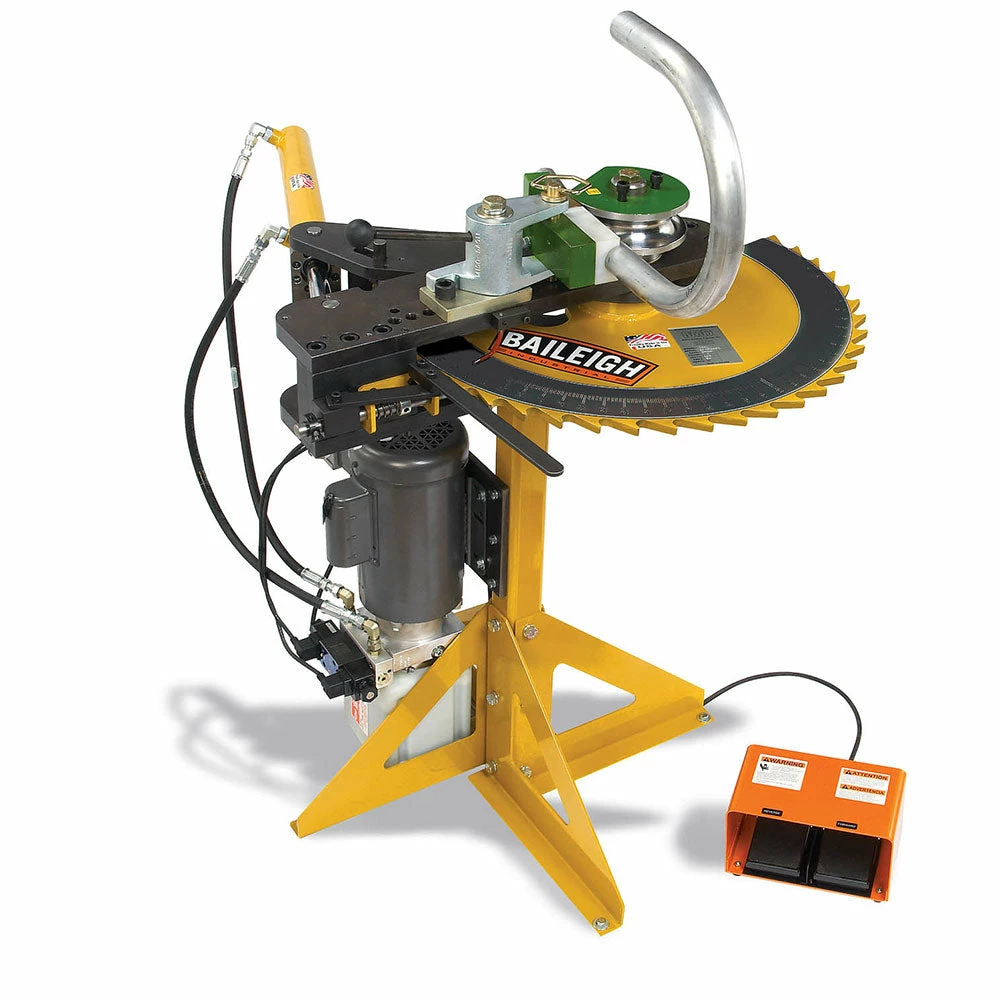

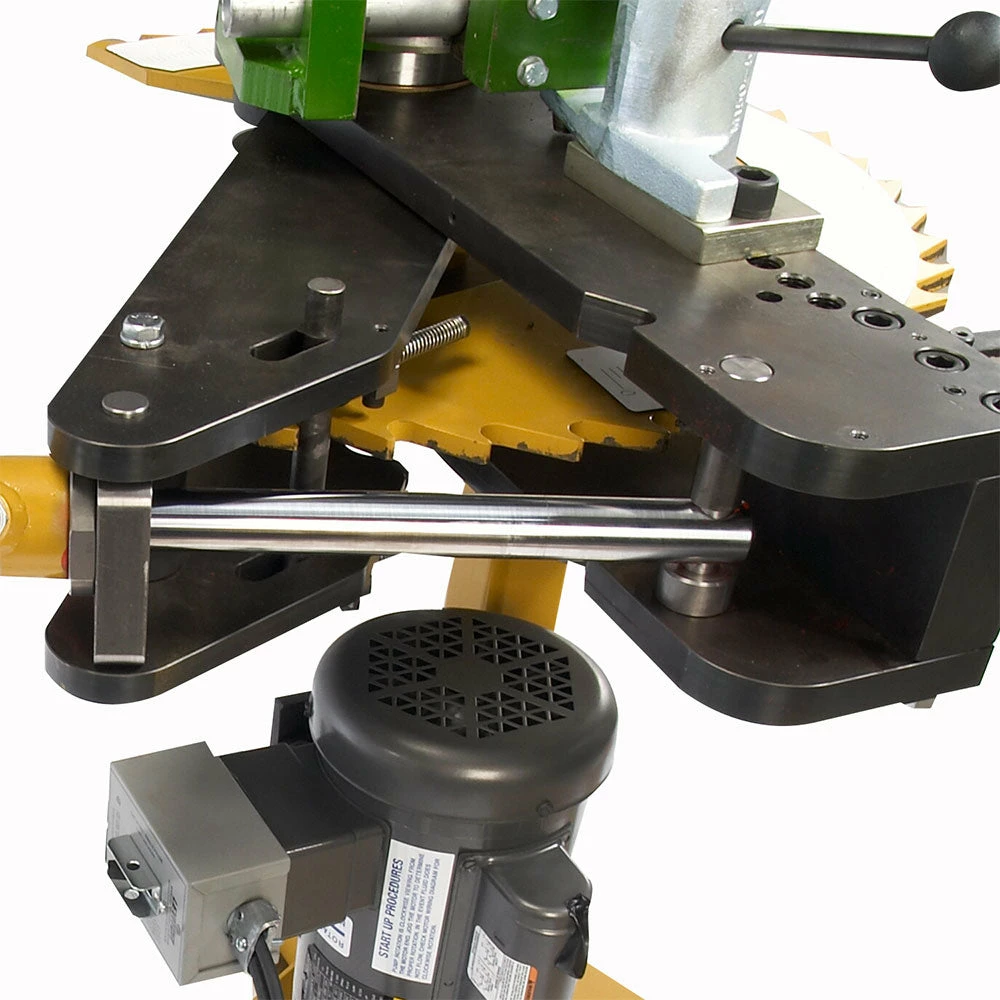

Baileigh 1006776 RDB-125 110V Hydraulic Industrial Rotary Draw Bender

Features

• Requires only 110-volt, single-phase power for easy plug-in almost anywhere.
• Handles a maximum capacity of 2.5” OD tubing, 2” OD Chromalloy, 2” square tubing, and 2” schedule 40 pipe.
• Maximum centerline of 8”, depending on material’s OD.
• Bends up to 200°, allowing for true 180° bendswithout having to re-pin the die set.
• Takes only 4 complete pushes to reach 180°.

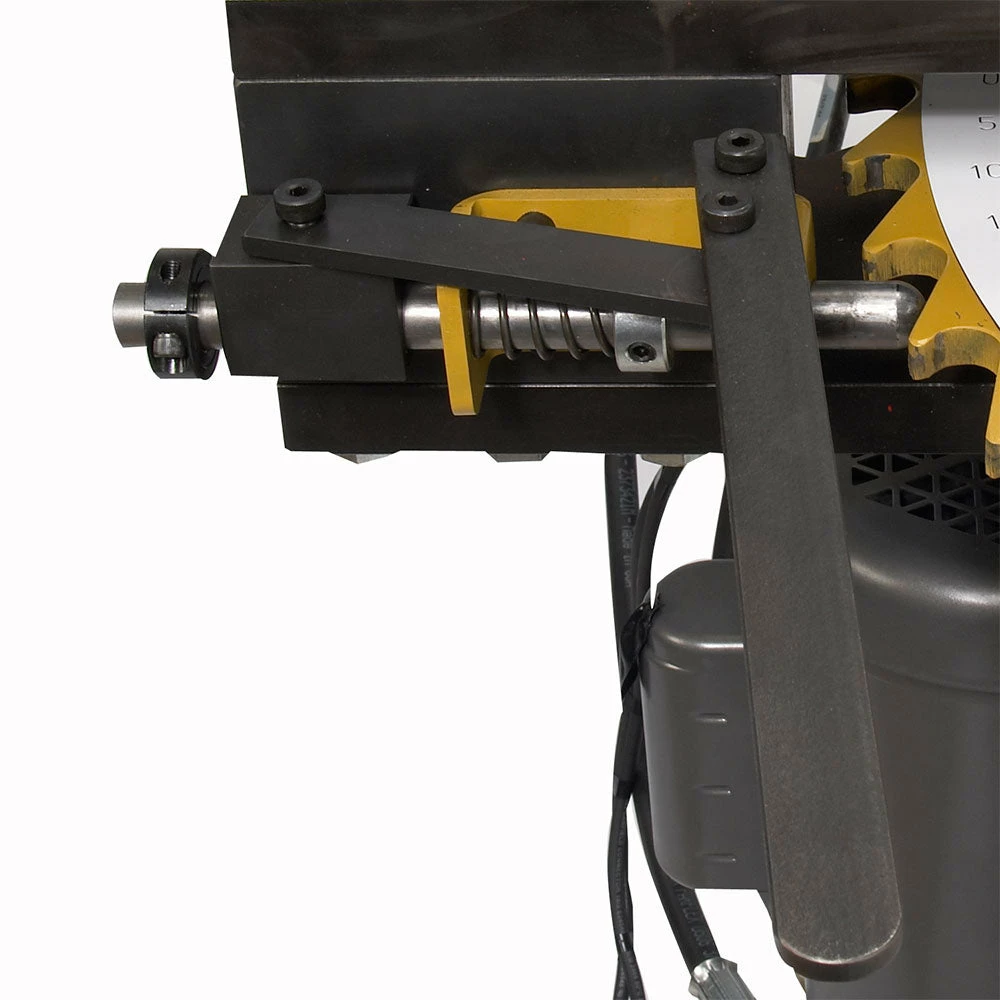

• Built-in anti-spring back mechanism lets hydraulic cylinder retract without losing its place in the bend.
• Covered by a 1-year parts warranty.

What’s in The Box

• RDB-125 – Industrial Rotary Draw Bender
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	RDB-125
Power	110V
Country of Manufacture	United States
Minimum CLR	.5″
Minimum OD	.25″
Mild Steel Solid Rod	1″
Mild Steel Pipe Schedule 40	2″
Mild Steel Round Tube Wall	2.5″ (.125)
Mild Steel Square Tube (Wall)	2″ (.125)
Stainless Steel Pipe Schedule 40	1.5″
Stainless Steel Round Tube Wall	2.375″ (.125)
Chromolly Round Tube Wall	2″ (.125)
Aluminum Round Tube Wall	2.5″ (.156)
Maximum Center Line Radius Clr	10.5″
Special Notes	Tooling not included, contact Baileigh at 920-684-4990 for correct sizing.
Things to Know Before Purchase	All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications.
Dimensions (Inches)	60 x 44 x 77
Weight	550 lbs
