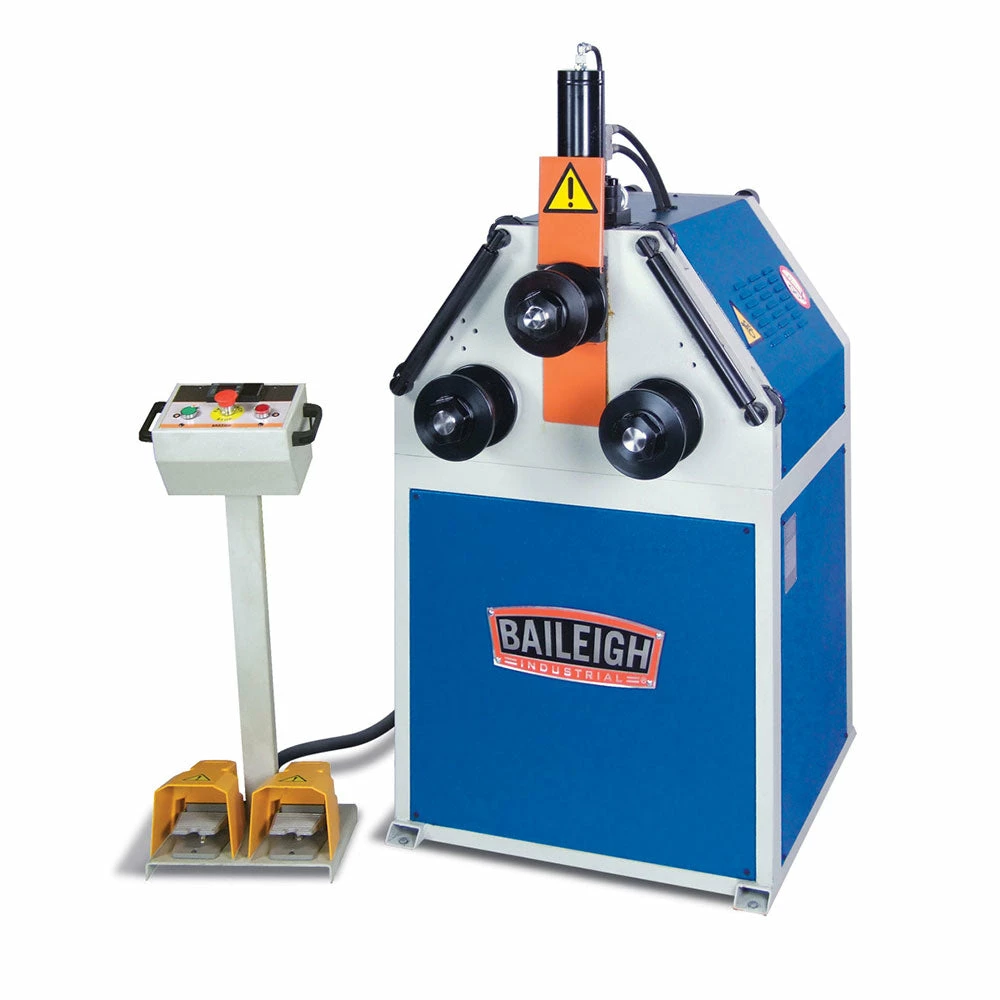

Baileigh 1006859 R-M55H 220V Hydraulic Heavy Duty Profile Bender

Original price was: $410.00.Current price is: $97.99.

SKU: specialty-metalworking-tools-6854769737864 Categories: Specialty Metalworking Tools, Specialty Power Tools, Specialty Tools, Tools & Equipment Tags: 220v, Corded, Dropship, LTL, New

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

This ring roller bender runs on 220-volt single-phase power.
Bends a maximum capacity of 2.75″ round tube and 2” schedule 40 pipe.

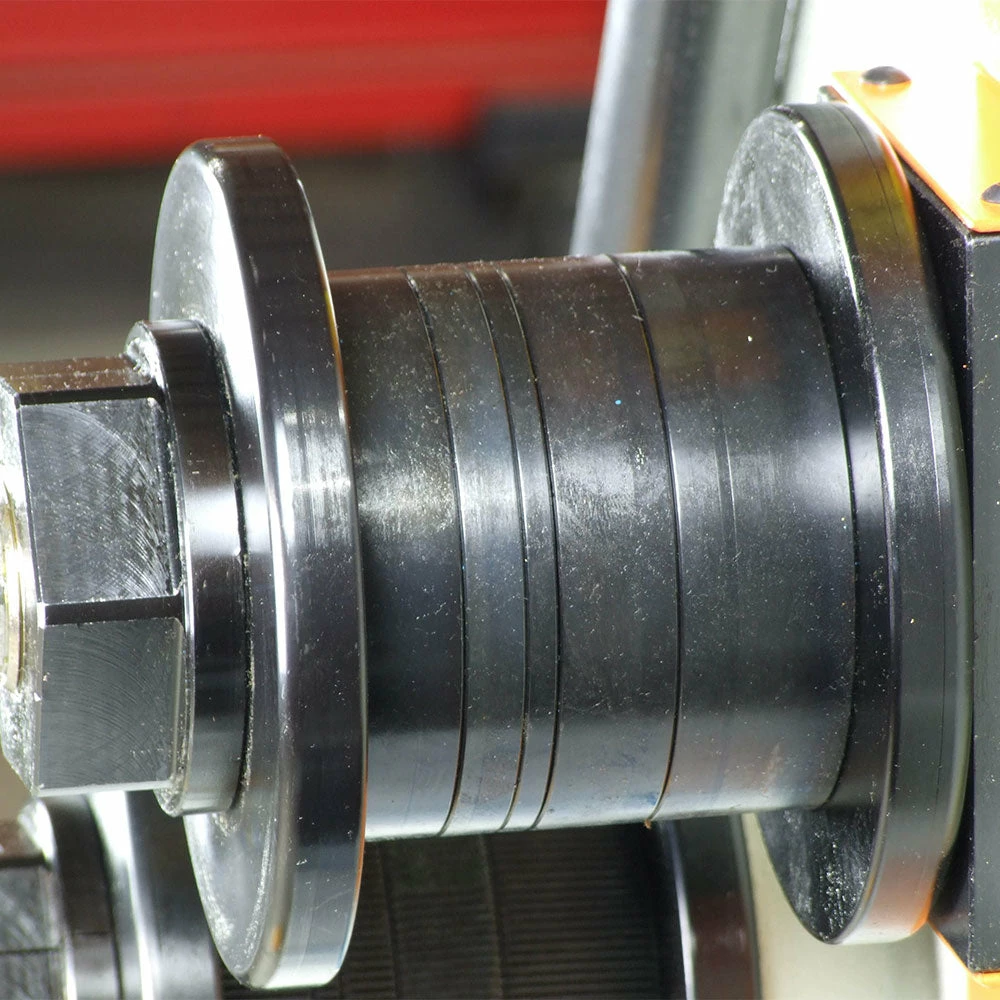

Works with 3 rolls: 1 top forming roll and 2 driven bottom rolls.
You can operate the R-M55H in 2 positions: vertical, for small rolling projects, and horizontal (on its back) for longer sections of material.

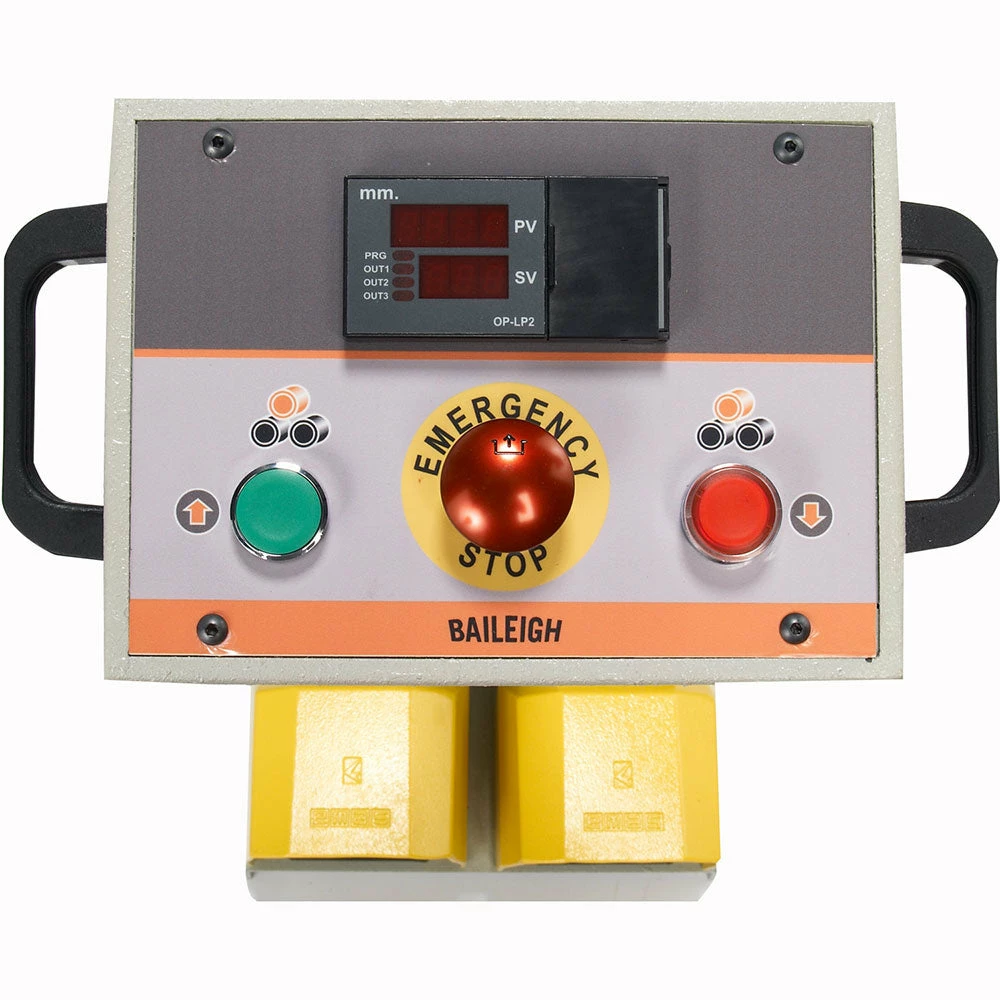

Independent, easily-movable control pedestal lets you adjust the top roll’s positioning and program stops.
Digital readout tells you the exact position of the top shaft to ensure simple repeatability for production runs.
Direct gearbox drive system delivers mighty full torque even when bending at full capacity.
Foot pedal control lets you conveniently switch between forward and reverse modes.

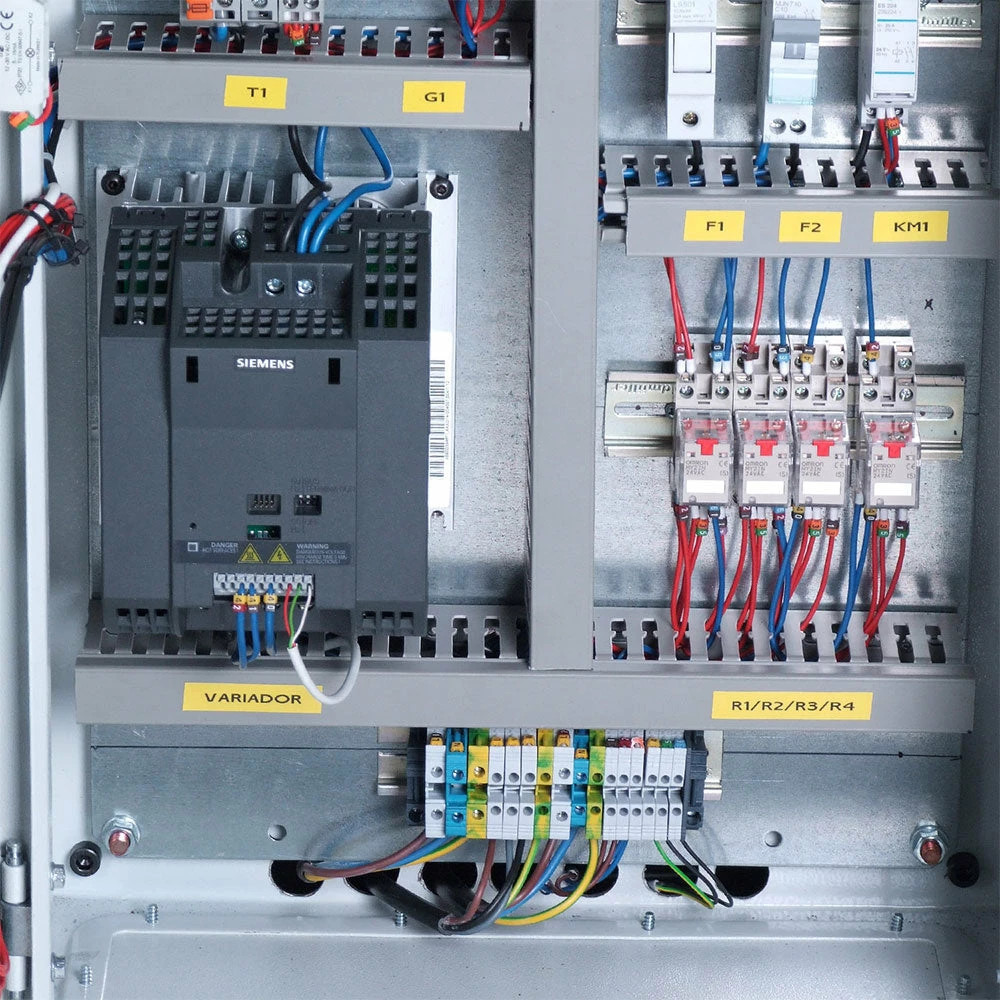

Variable-speed inverter allows you to adjust the rolling speed to suit you material and project.
Comes standard with roll sets that you can configure to suit many applications.
Constructed from heavy steel plate to maintain accuracy and minimize flex.

What’s in The Box

R-M55H – Profile Bender
Owner’s Manual

Warranty

1 Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

SKU	R-M55H
Power	220V Single Phase

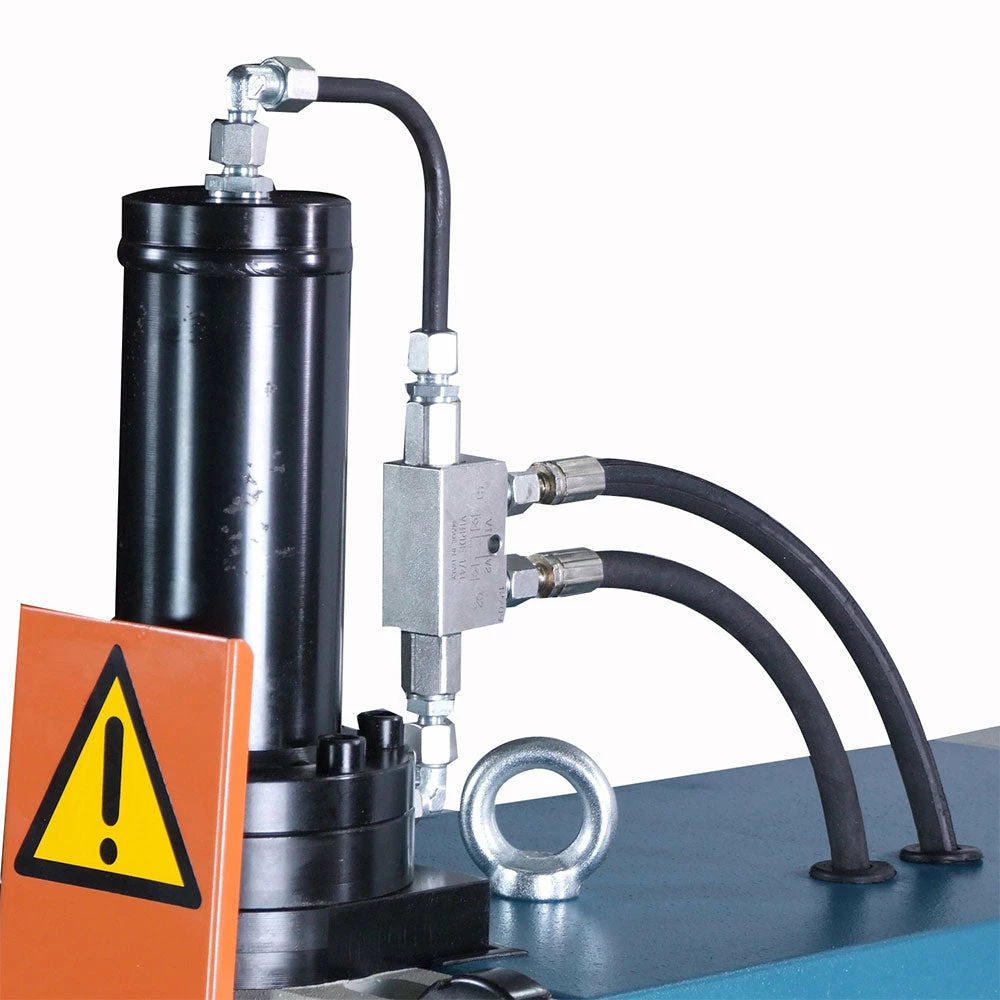

Roll Adjustment	Hydraulic
Pipe Capacity	Size: 2″ (sch. 40) / Min. Dia.: 40″
Round Tube Capacity	Size: 2.75″ (.083″) / Min. Dia.: 60″
Square Tube Capacity	Size: 2″ (.083″) / Min. Dia.: 48″
Solid Round Capacity	Size: 1.375″ / Min. Dia.: 20″
Flat Bar Easy Way	Size: 4″ (.5″) / Min. Dia.: 20″
Flat Bar Hard Way	Size: 2.25″ (.375″) / Min. Dia.: 20″
Angle Iron Capacity	Size: 2″ (.250″) / Min. Dia.: 28″
Shaft Diameter	1.968″
Shaft Center Distance	13.12″
Lower Roll Dia.	5.827″
Pinch	Single
Material Type	All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling	Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Dimensions (Inches)	60x44x77
Weight	965 lbs
