Baileigh 1008060 TN-800 110V Cast Iron Tube / Pipe Notcher Tools & Equipment

Features

• Made in the USA.
• 1 hp motor runs on 110-volt power. You can operate it almost anywhere, including in the field.
• Notches up to 60 degrees.

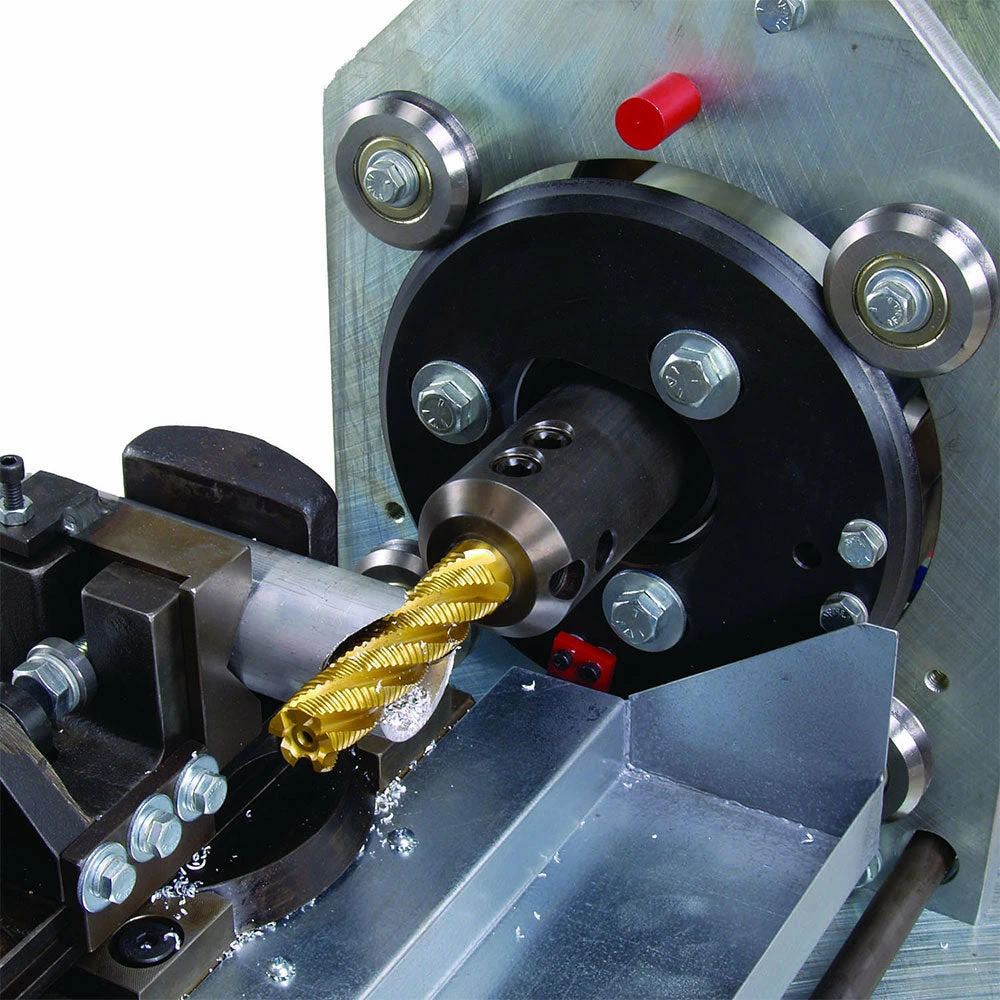

• Carefully-chosen milling speed of 350 rpm balances cutting power with long machine life and low wear and tear.

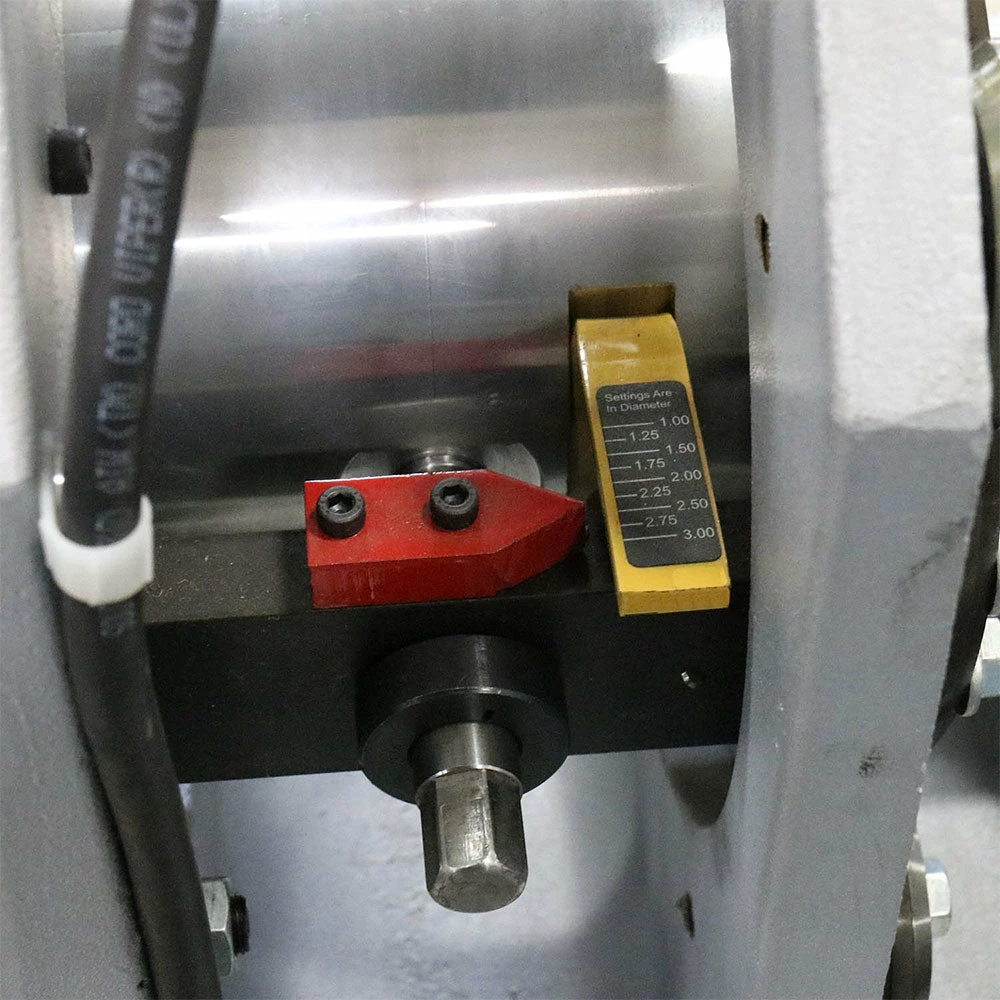

• Our tooling-free design lets you simply dial in the OD that you want to notch—and the tube notcher will change its eccentric path and produce a perfect notch.

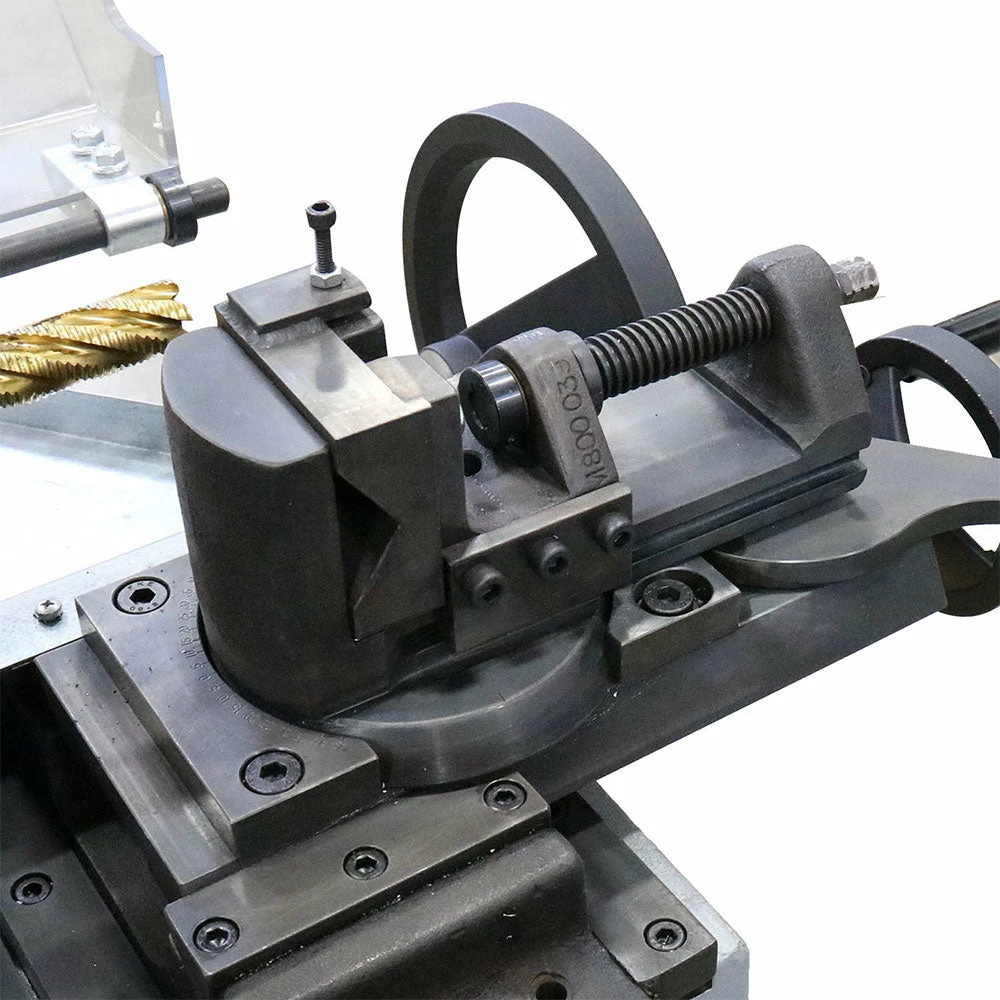

• Vise adjusts in just about every way possible, featuring X- and Y-axis control to ensure a good cutting position.

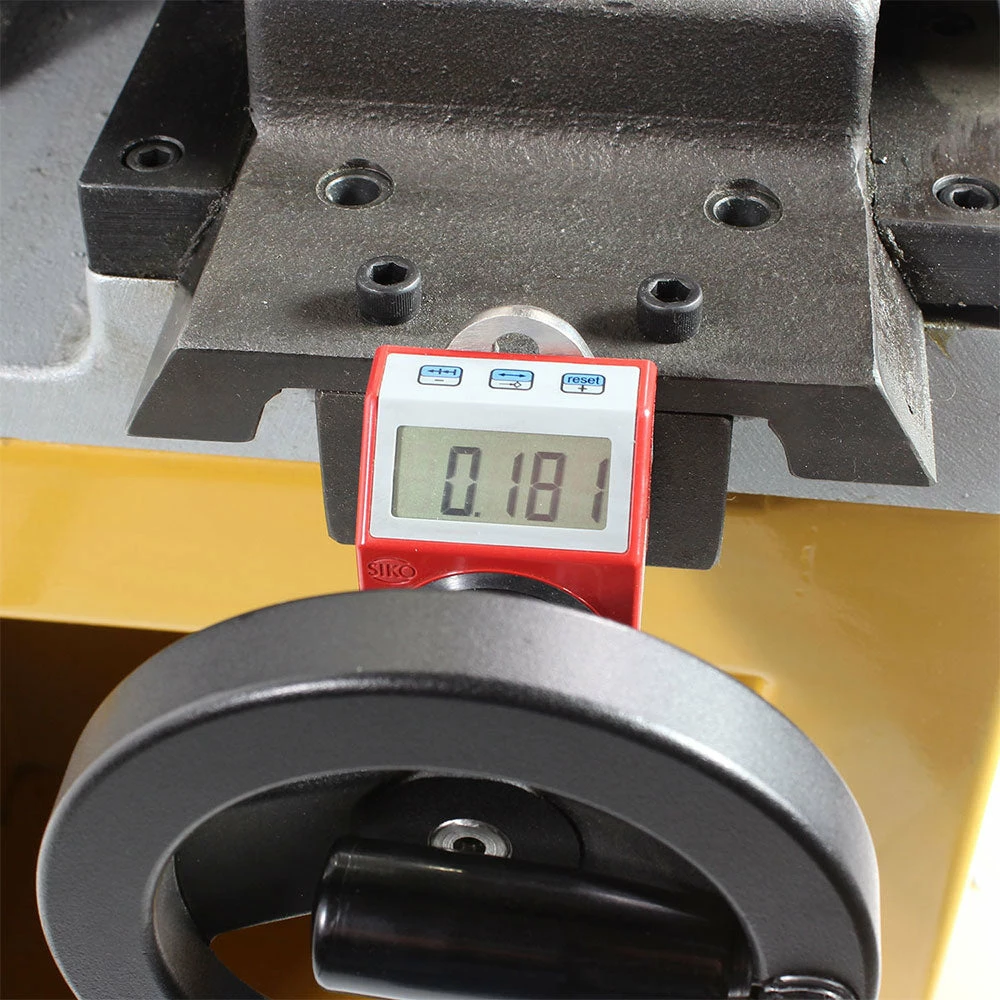

• Degree or angle-finder makes it simple to check the angle and ensure repeatability.
• If you want a more traditional notch, the cam lock enables you to set your degrees; just move it in either direction to angle the notch.
• Heavy-duty cast iron framework reduces vibration, prolongs machine life, and delivers more accurate results.
• Includes portable cart with wheels, so that when you’re not using the TN-800 you can roll it out of the way.

What’s in The Box

• TN-800 – Tube and Pipe Notcher
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	TN-800
Power	110V
Country of Manufacture	United States
Motor	1 hp
Mill Speed	350 rpm
Notching Capacity (OD)	.5″ (Optional) – 3″
Angle Adjustment	0 – 60°

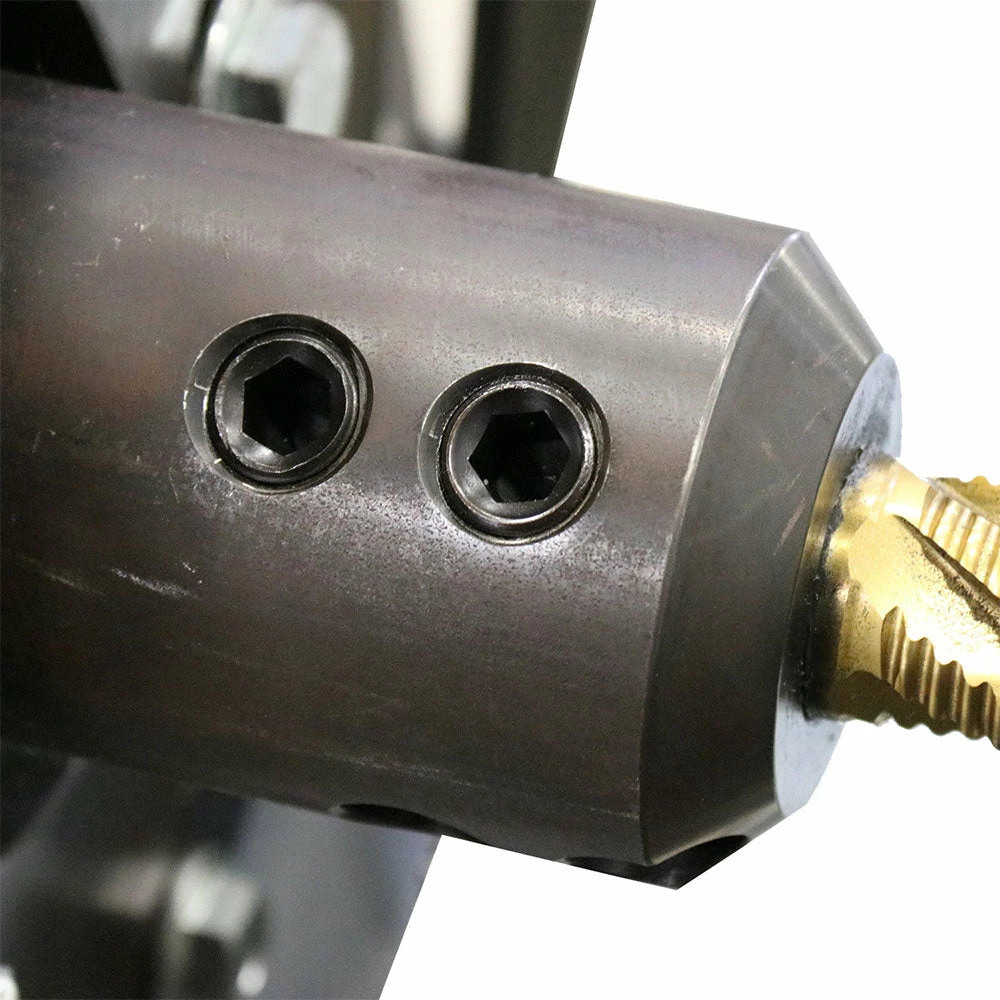

End Mill Size	1″ Standard / 1/2″ Optional
Dimensions (Inches)	60x44x77
Weight	540 lbs
