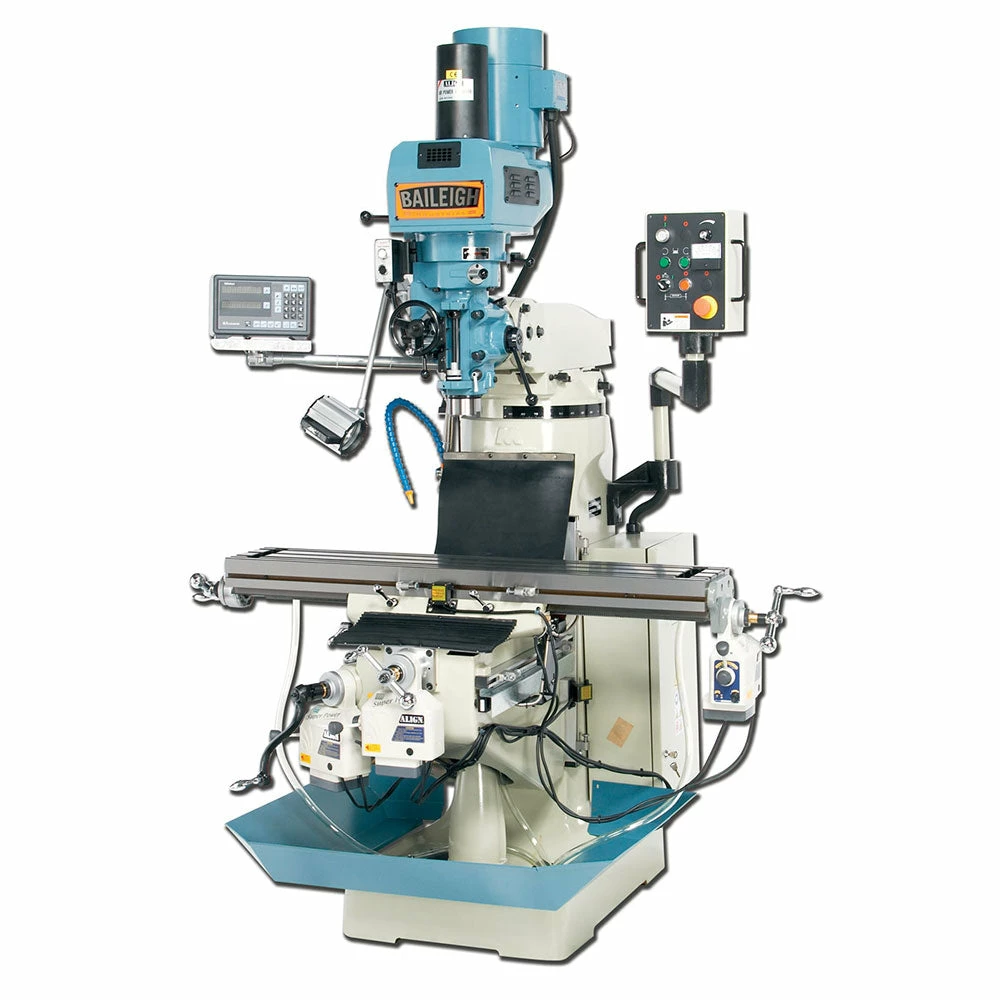

Baileigh 1008236 VM-949-3 220V 3PH 9″ X 49″ Vertical Milling Machine Tools & Equipment

Features

• The VM-949 is available in two different voltages, 220 volt single and three phase, these variances allow the VM-949 to be used in almost any shop.
• Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame work out of.
• The stronger you make the platform the better the cutting is.
• This is not the place to use an inferior process.
• To make the VM-949 milling machine even stronger, a NST 40 spindle is standard.
• This type spindle is stronger and give the operator a choice of larger tooling should the need arise.
• Operation of the VM-949 could not be easier as this milling machine has powered X, Y and Z axis.
• The X and Y axis utilizes a Mitutoyo DRO- digital read out for positioning down to 1/10 of a thousandth of an inch.

What’s in The Box

• VM-949-3 – Vertical Milling Machine
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	VM-949-3
Power	220V / 3-phase
Spindle Speeds	60 to 4200 RPM
Table Size	9″ x 49″
Spindle Center To Column Min Max	8.38″
Spindle Diameter	3.37″
Spindle Feed Per Rev	.0015″/.003″/.005″
Spindle Head Swivel	45
Motor Spindle	3 hp
Travel Auto X Axis	25.19″
Travel Auto Y Axis	12″
Travel Auto Z Axis	16″
Travel Manual X Axis	28.5″
Travel Manual Y Axis	12″
Travel Manual Z Axis	16″
Spindle Nose To Table Min Max	2.24″
Table Load Capacity	440 lbs.
T Slots	.625″
Cross Travel Of Ram	12.59″
Spindle Travel	5″
Shipping Dimensions (Inches)	72x72x78
Weight	2400 lbs
