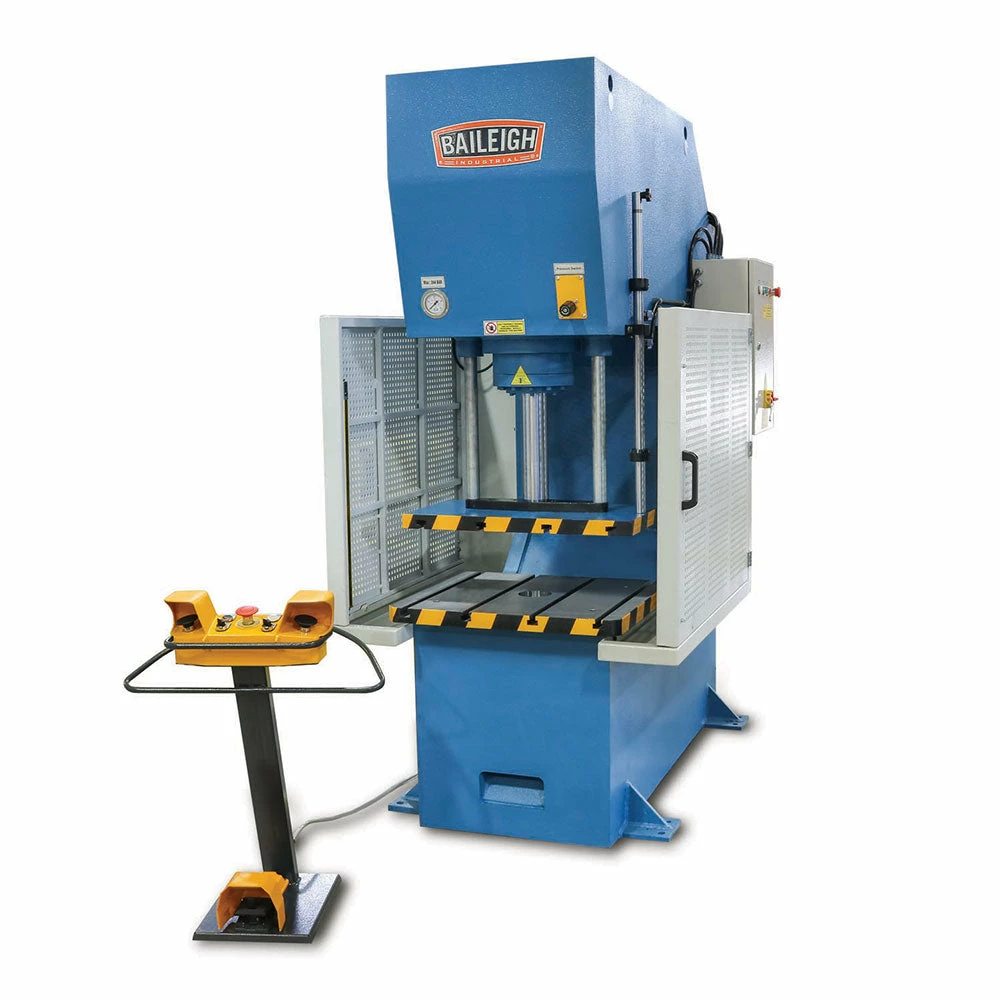

Baileigh 1015407 CFP-30HD 30 Ton Heavy Duty Hydraulic C-Frame Press

Features

• 30 tons
• C-frame press
• Perfect for pressing or straightening
• Fully welded construction
• Hydraulically operated
• Adjustable slide pressure

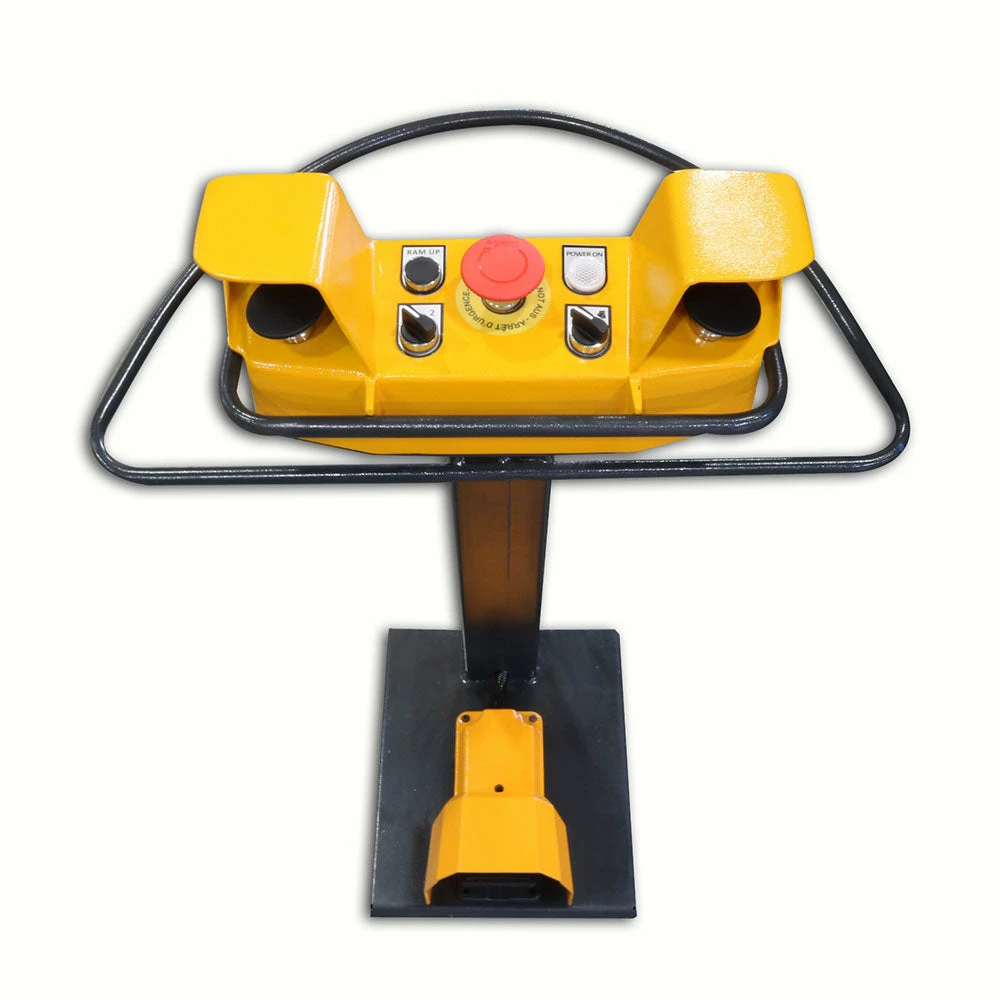

• Separate control pedestal
• 480V 3-phase

What’s in The Box

• CFP-30HD – C-Frame Press
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	CFP-30HD
Power	480V / 3-Phase
Down Force	30 tons
Return Force	9 tons
Production Pressure	3539 psi
Return Speed	1.1″ / sec
Bolster Size	27.56” x 23.625” x 1.75”

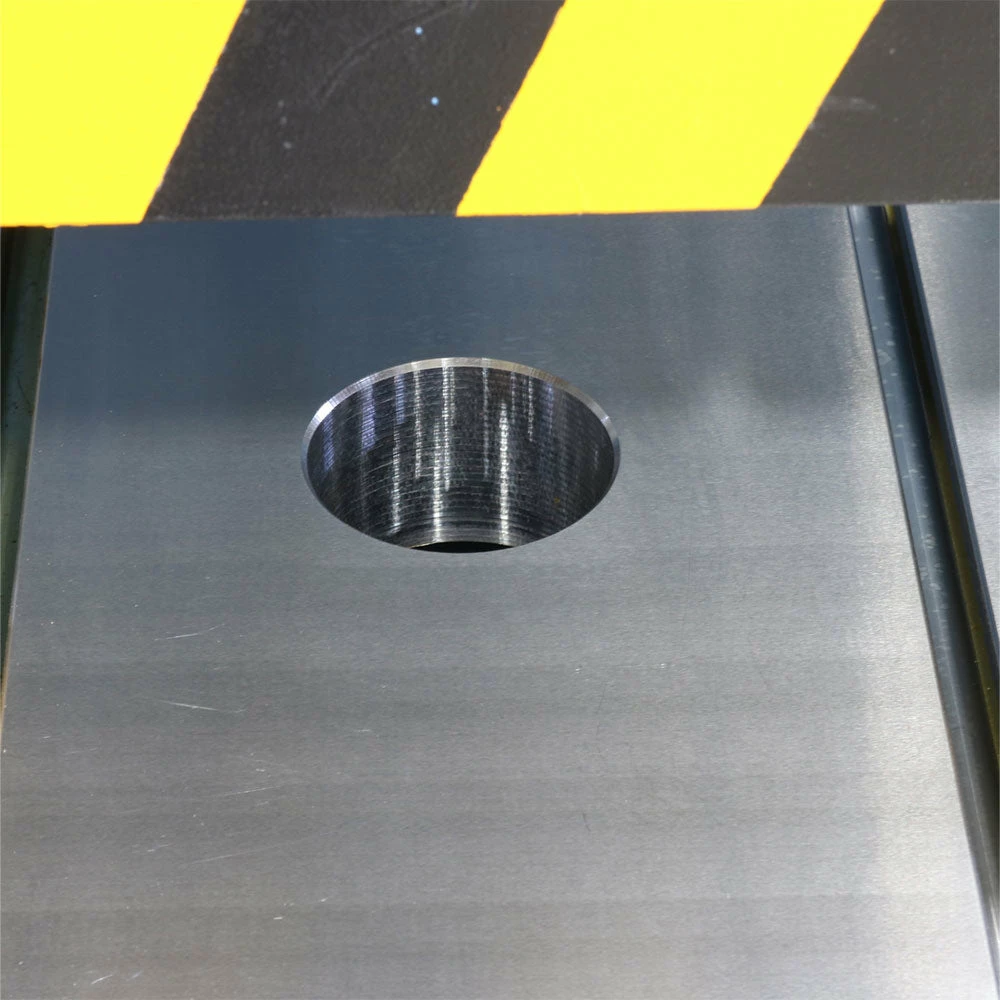

Shank Hole	3.9”
Motor	5 hp
Oil Capacity	24 gal.
Throat Depth	25.4″
Idle Speed	1.26″ per sec.
Pressing Speed	.28″ per sec.
Table Height	26.75″
Shipping Dimensions (Inches)	50x55x110
Weight	5800 lbs
