Features
- Recommended for small fabricators, schools, or garages.
- 70 to 1,400 rpmvariable speed.

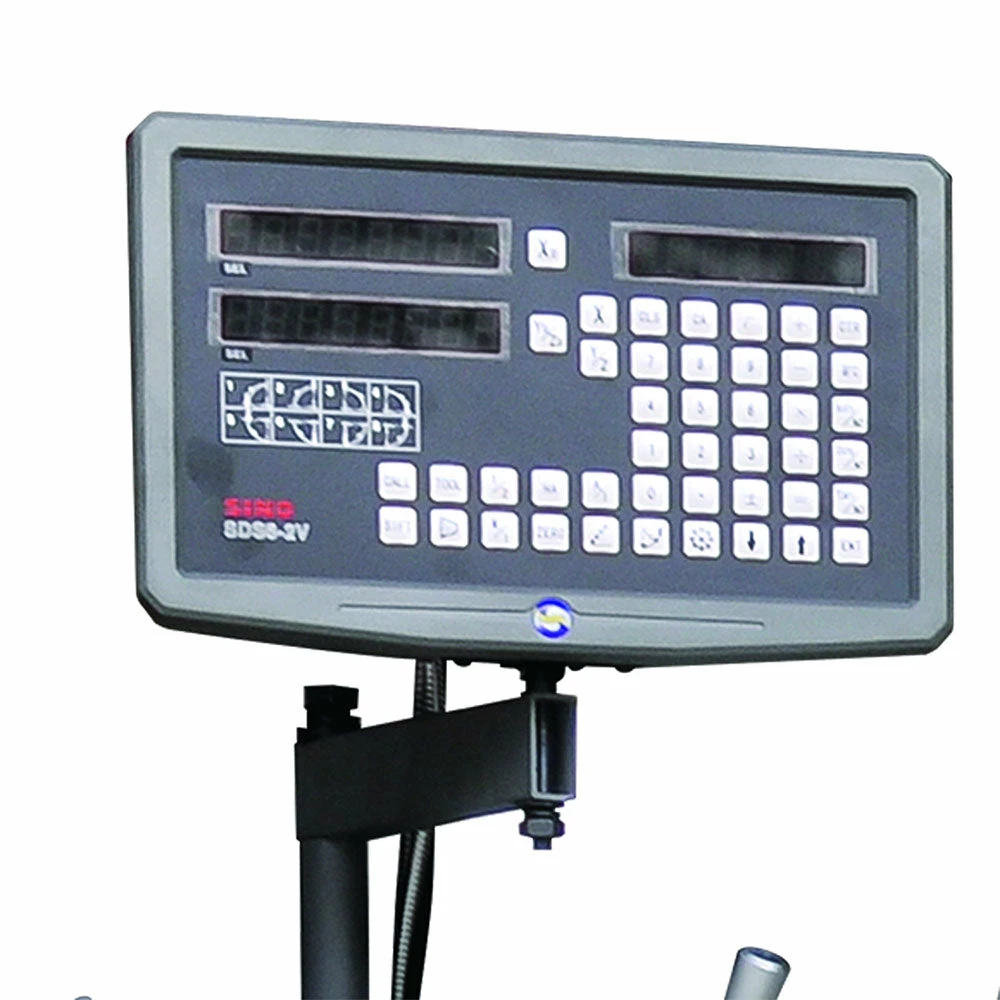

- Integrated digital readout (DRO) helps you get repeatable results.
- Quick-change tool post makes tooling changes more efficient.

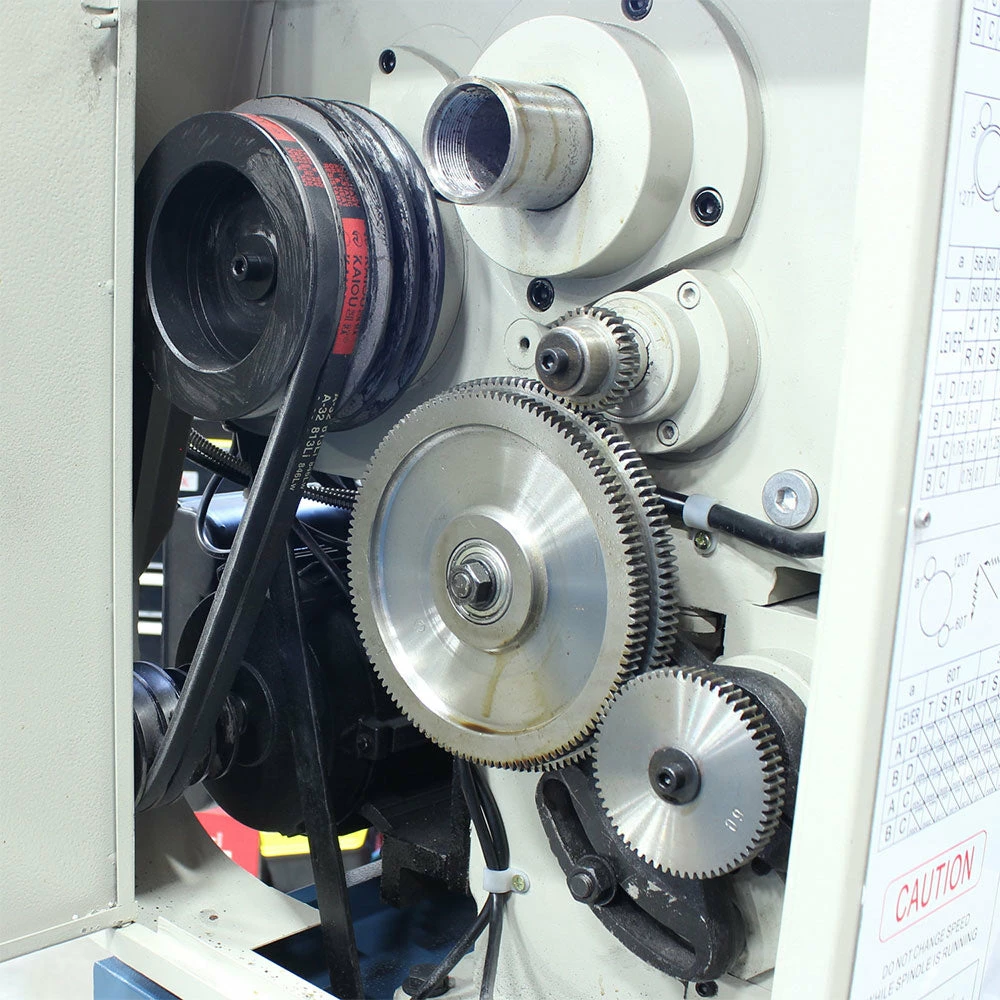

- Gear system allows for taping, turning, and polishing.
- All ways are ground and hardened to ensure long life.

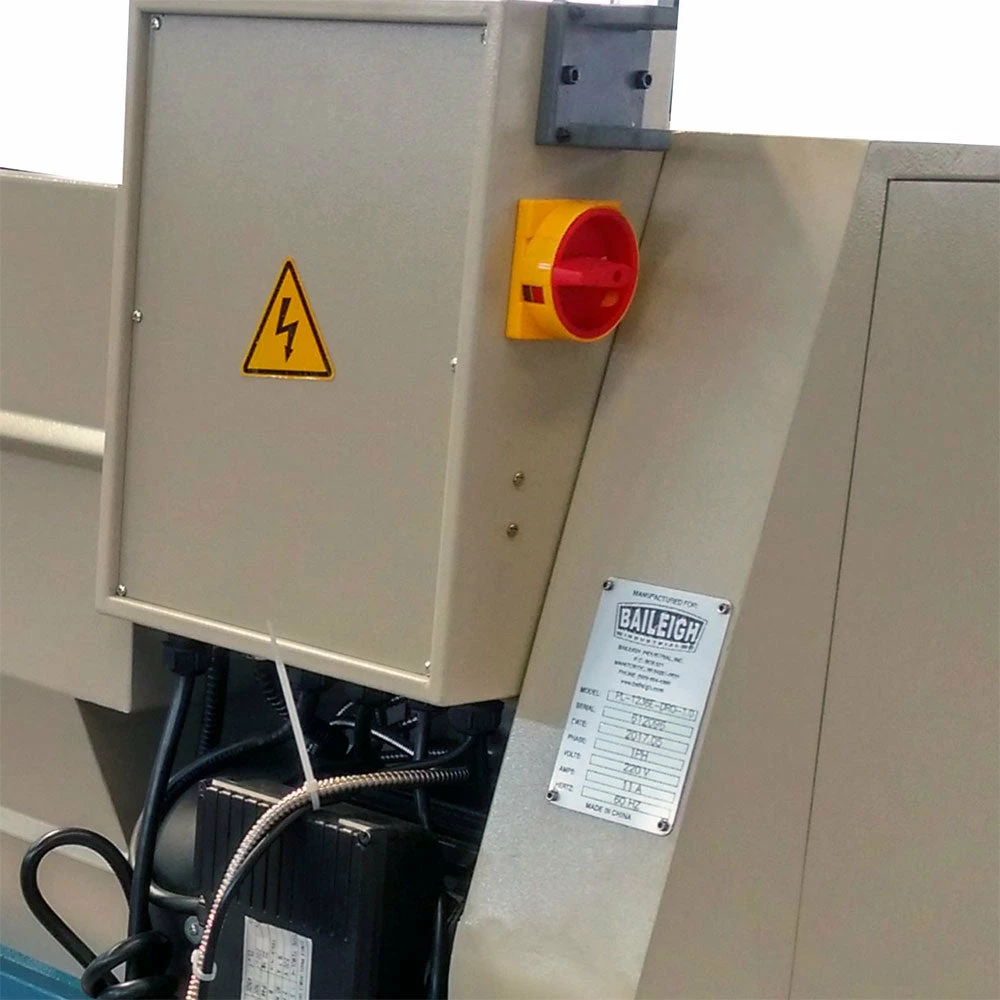

- Runs on 220-volt single-phase power.

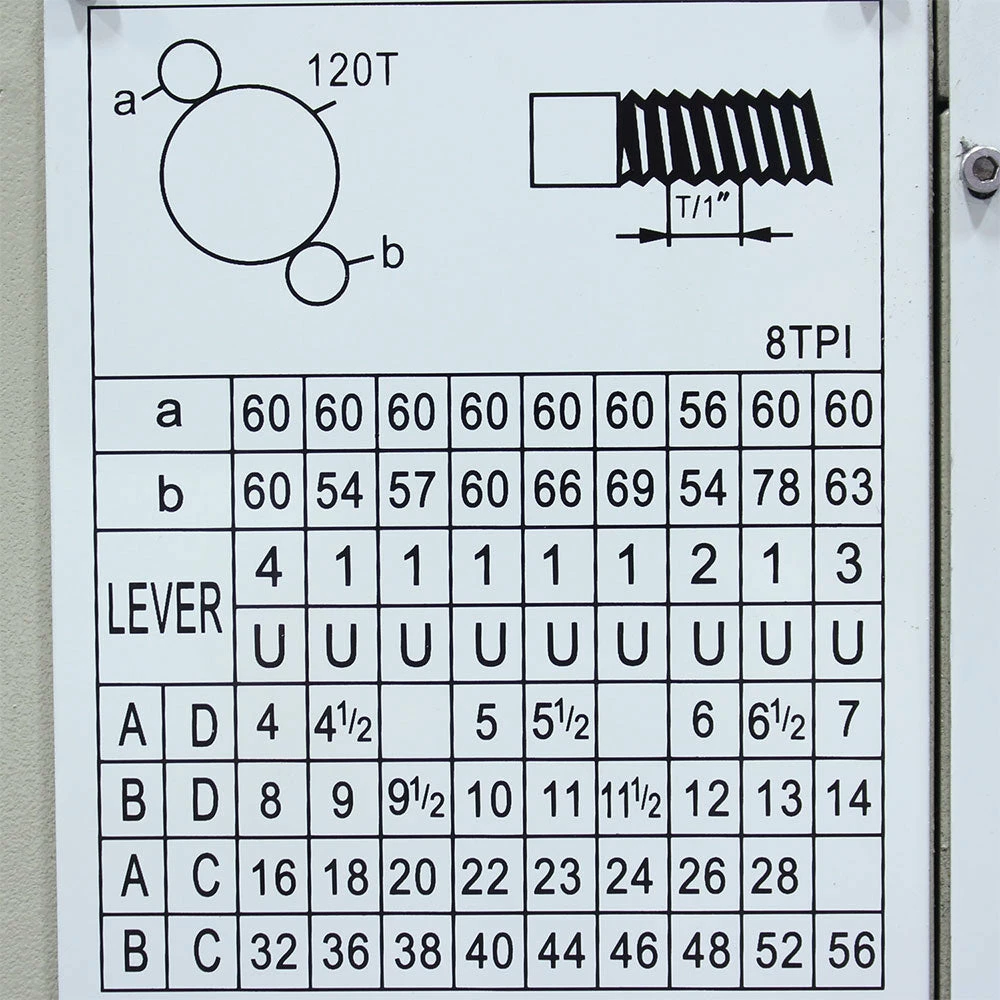

- Capable of standard and metric threading.(Metric with optional kit)
- Quick-change tool post helps you save time.
- 3-jaw and 4-jaw chucks can hold both square and rounded materials.
- Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy.
- Facing plate lets you shape materials that are large but not long. Bolt your metal to the plate to keep it square and symmetrical.
- Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed.
- Foot brake helps keep your shop safe.
- Halogen work light comes standard.
What’s in The Box

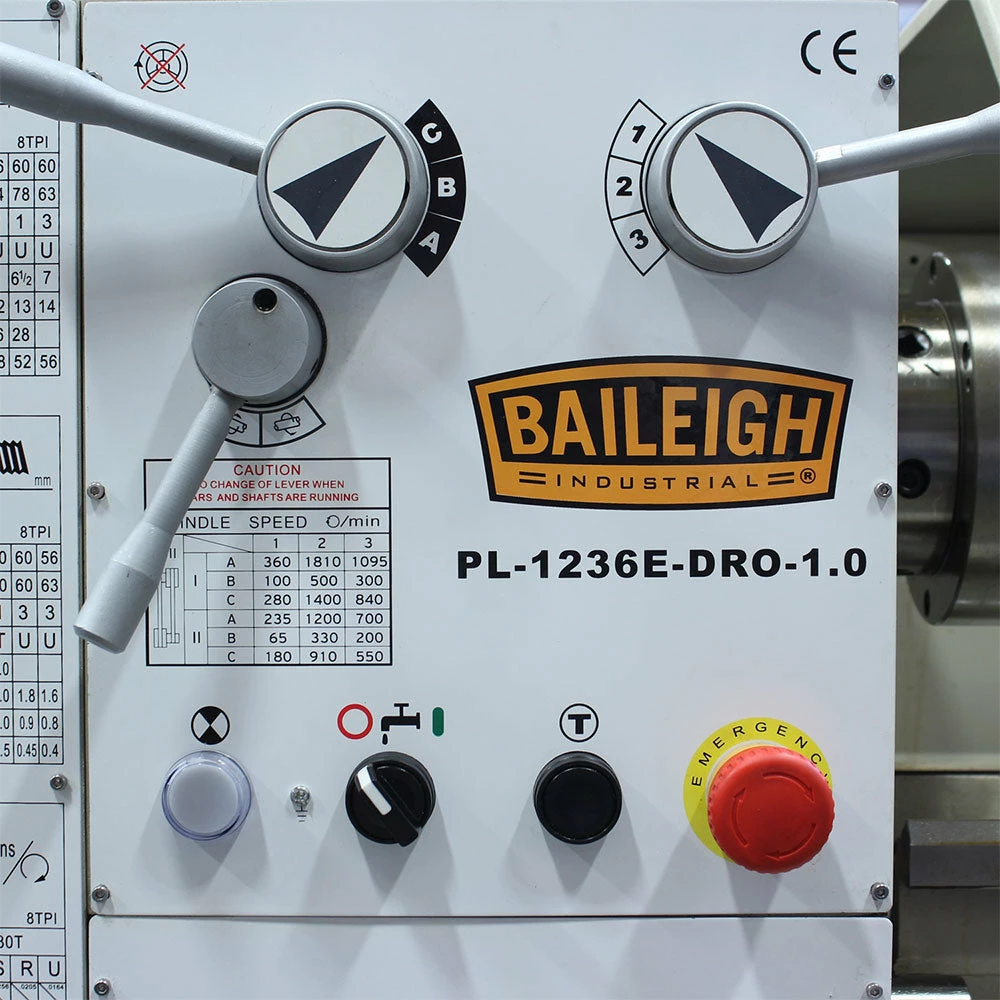

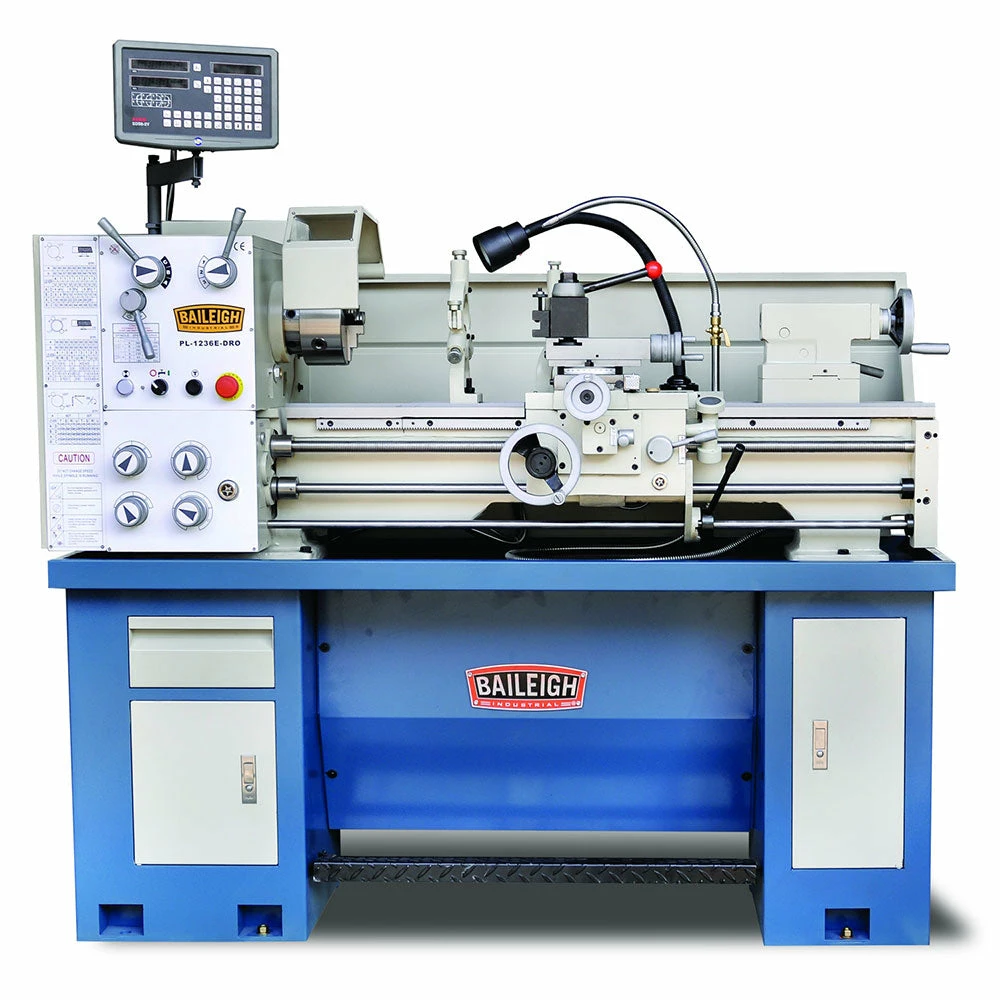

- PL-1236E-DRO-1.0 – Metal Lathe
- Owner’s Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | PL-1236E-DRO-1.0 |
| Power | 220V / 1-phase |
| Sleeve Travel | 4″ |
| Spindle Bore | 1.50″ |
| Spindle Bore Taper | Morse #5 |
| Sleeve Taper | Morse #3 |
| Sleeve Diameter | 1.250″ |
| Range Of Inch Threads | 4 – 56 T.P.I. |
| Metric Thread Range | 0.4 – 7 mm |
| Spindle Nose | D1-4″ |
| Travel Of Cross Slide | 5.312″ |
| Travel Of Top Slide | 3.250″ |
| Width Of Bed | 7.125″ |
| Spindle Speed | 9 (70 – 1400 rpm) |
| Swing Over Bed | 12″ |
| Swing Over Cross Slide | 7.625″ |
| Longitudinal Feed Range | 0.002″ – 0.0548″/rev |
| Lead Screw Thread Pitch | 8 T.P.I. |
| Max. Tool Selection | .625″ x .625″ |
| Cross Feed Range | 0.007″ – 0.0187″/rev |
| Distance Between Centers | 3666 |
| Dimensions (Inches) | 69 x 44 x 62 |
| Weight | 1420 lbs |
