Baileigh 1016623 PL-1440E-1.0 14″ X 40″ Metal Lathe W/ Integrated Coolant System

Features

• Recommended for small to medium shops and schools.

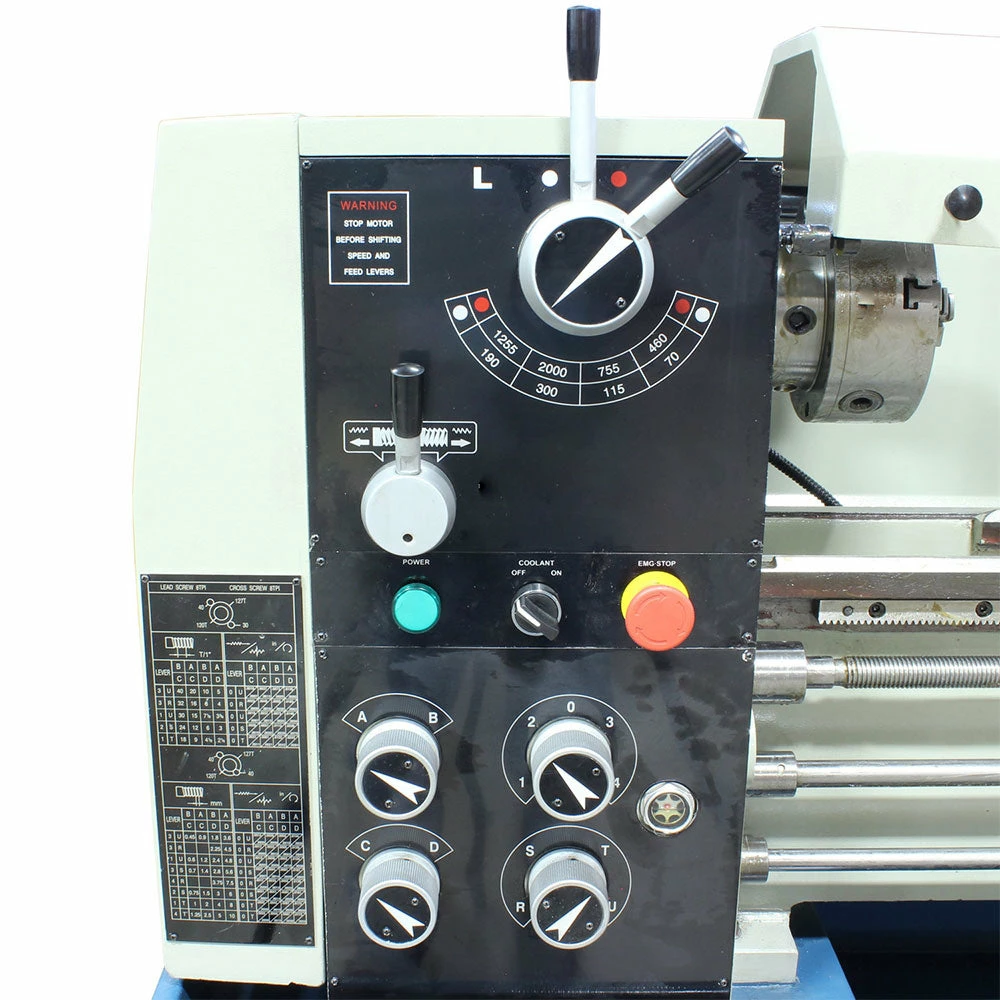

• 8 spindle speeds, ranging from 90 to 1,800 rpm.
• 3 hp motor runs on a 220-volt single-phase power, so you can use it almost anywhere.
• No assembly required. Just open the crate and wire it up.
• Precision-ground and hardened ways ensure years of tight tolerances.
• Digital readout (pre-installed) helps you make precise cuts.
• Capable of making metric and standard threads.
• Gap lathe design allows you remove a section of the slide to fit a slightly larger diameter.
• Comes standard with:
• 3-jaw and 4-jaw chucks.

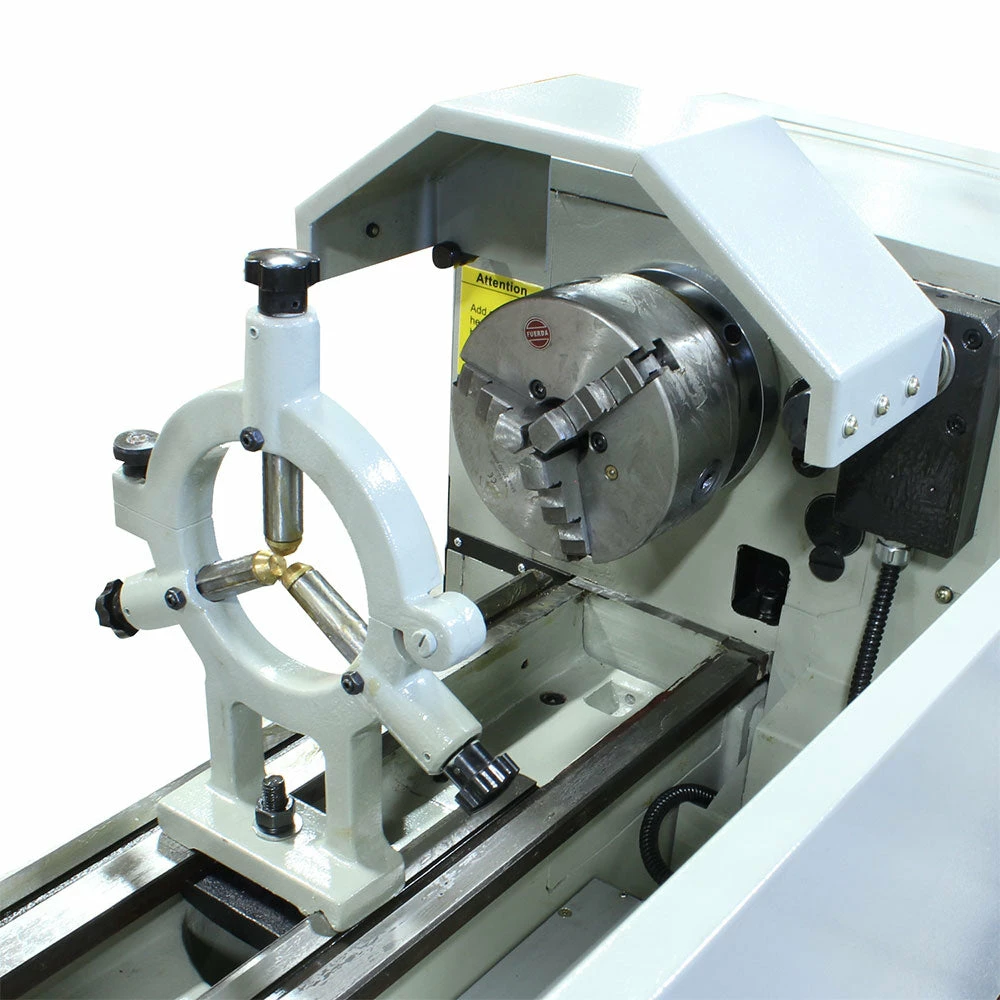

• Headstock chuck guard with automatic safety switch.

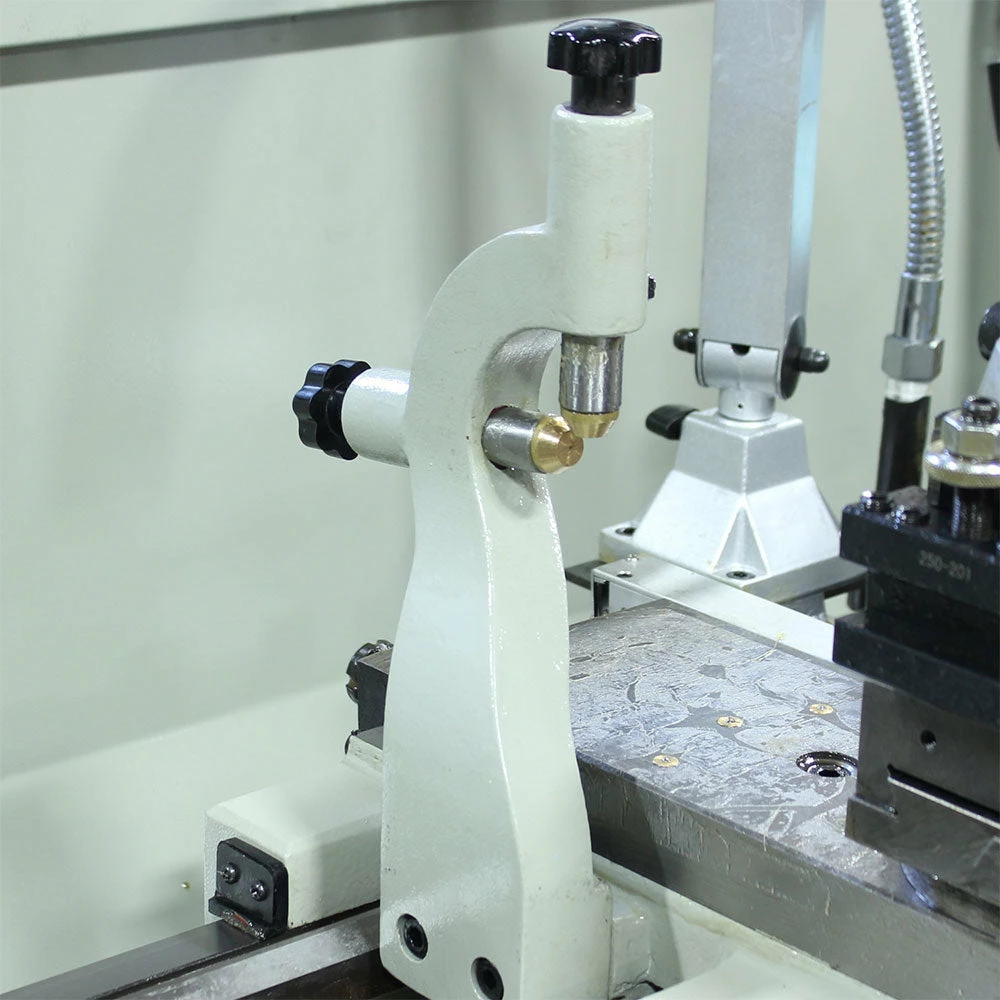

• Steady rest and follow rest.
• Face plate.
• Safety foot brake.

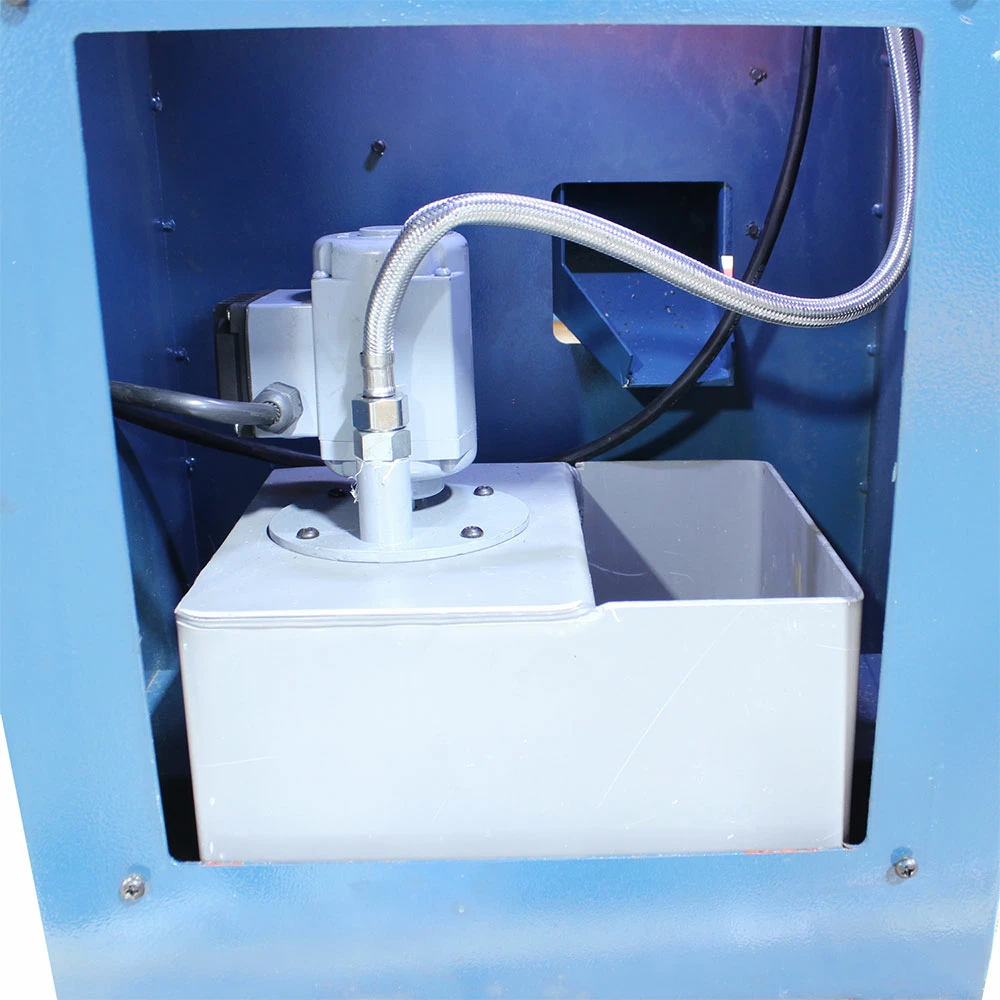

• Integrated coolant system, which maintains accuracy and helps the machine last longer.
• Halogen work light.
• Optional taper attachment for making cones is sold separately.
• Covered by a 1-year parts warranty.

What’s in The Box

• PL-1440E-1.0 – Metal Lathe
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	PL-1440E-1.0
Power	220V / 1-phase
Spindle Speeds	90 – 1800 rpm
Spindle Bore	1.5″
Spindle Nose	D1-4″
Threads Imperial Qty Speed	44 / 4-112 T.P.I.
Threads Metric Qty Speed	22 / .45-7.5 mm
Spindle Taper Sleeve	Morse #3
Spindle Taper Nose	Morse #5

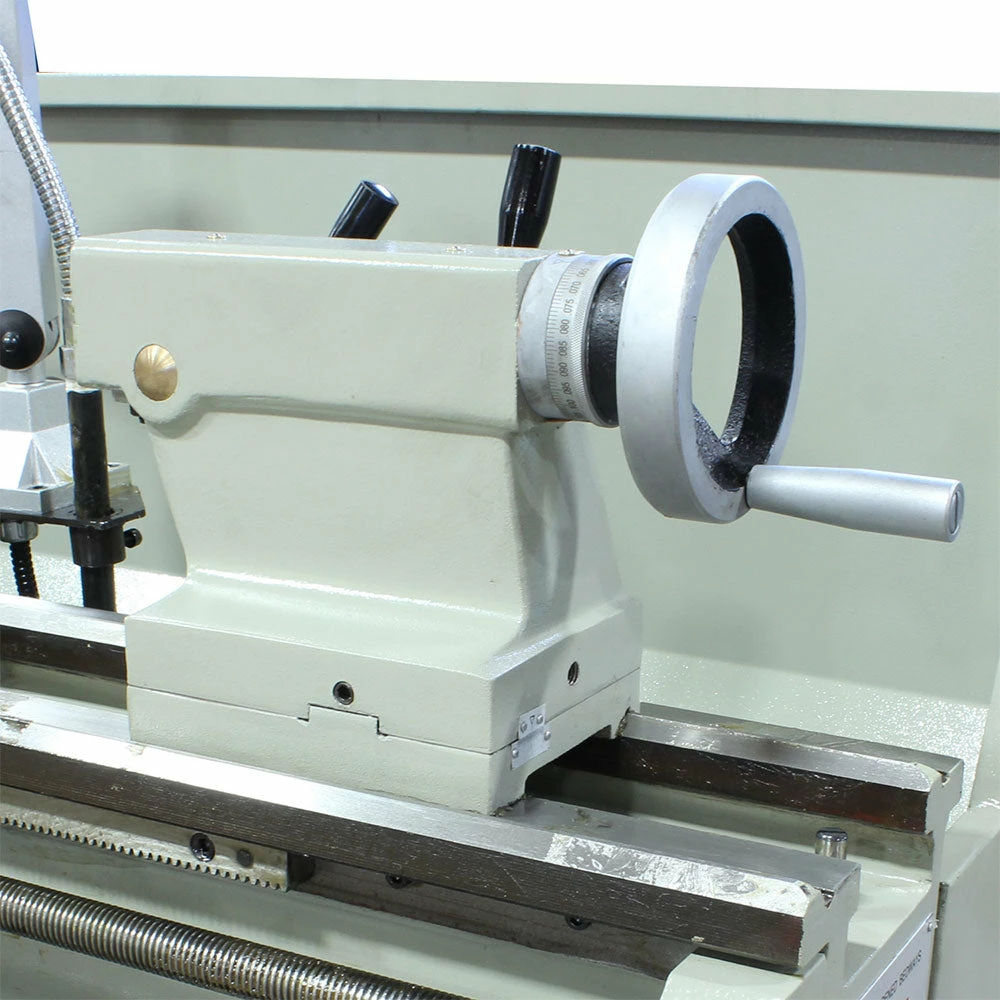

Tailstock Quill Dia	1.772″
Tailstock Quill Taper	Morse #3
Tailstock Quill Travel	4.72″
Bed Length	17156
Bed Width	7.086″
Main Motor	2 hp
Longitudinal Feeds Imperial Qty Speed	.0012″ – .0294″/rev.
Lead Screw Diameter	.866″
Lead Screw Thread Pitch	4 T.P.I.
Max. Swing Over Bed	14″
Max. Swing Over Cross Slide	8.6″
Max. Swing In Gap Dia	19.9″
Cross Feeds Imperial Qty Speed	.0003″ – .01″/rev.
Distance Between Centers	40″
Feed Rod	.708″ dia.
Dimensions (Inches)	79x44x63
Dimensions L x W x H	76″ x 30″ x 61″
Shipping Weight	1450 lbs
