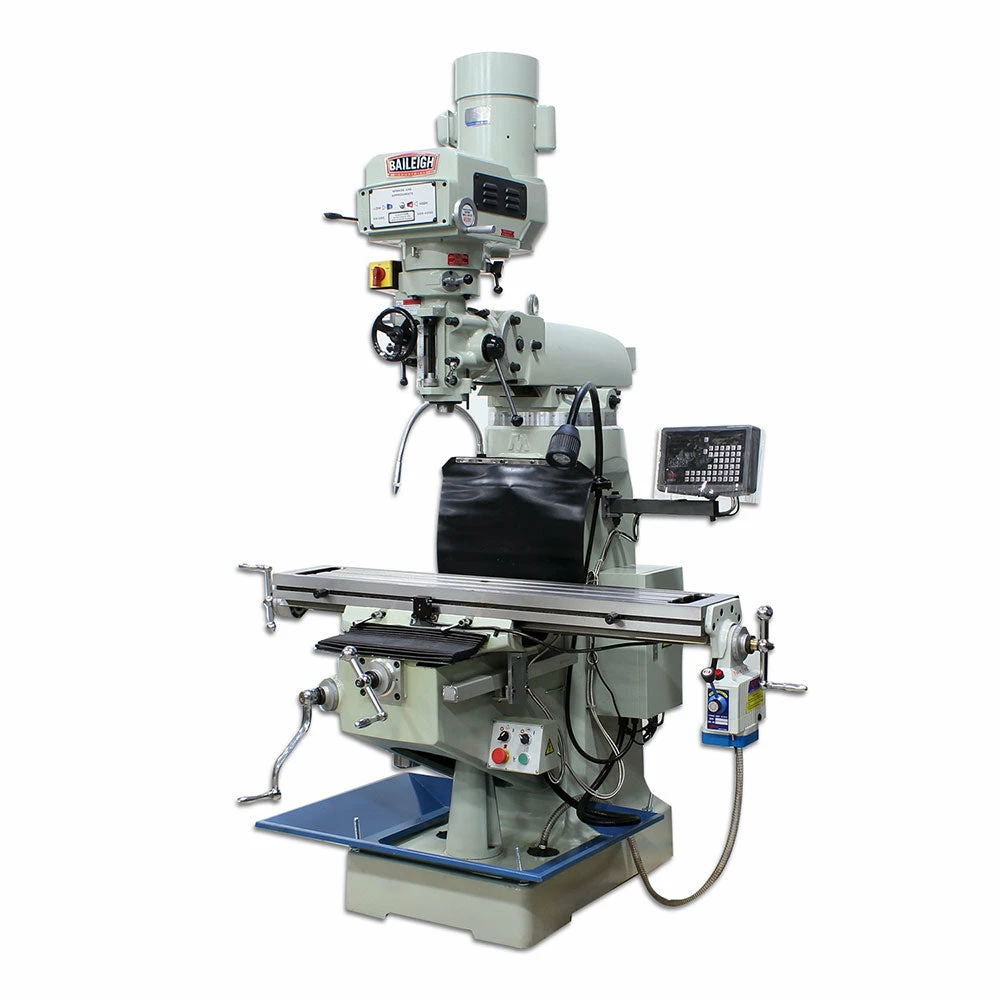

Baileigh 1019108 VM-949E-VS 220V Vertical Mill W/ Variable Spindle Speed

Features

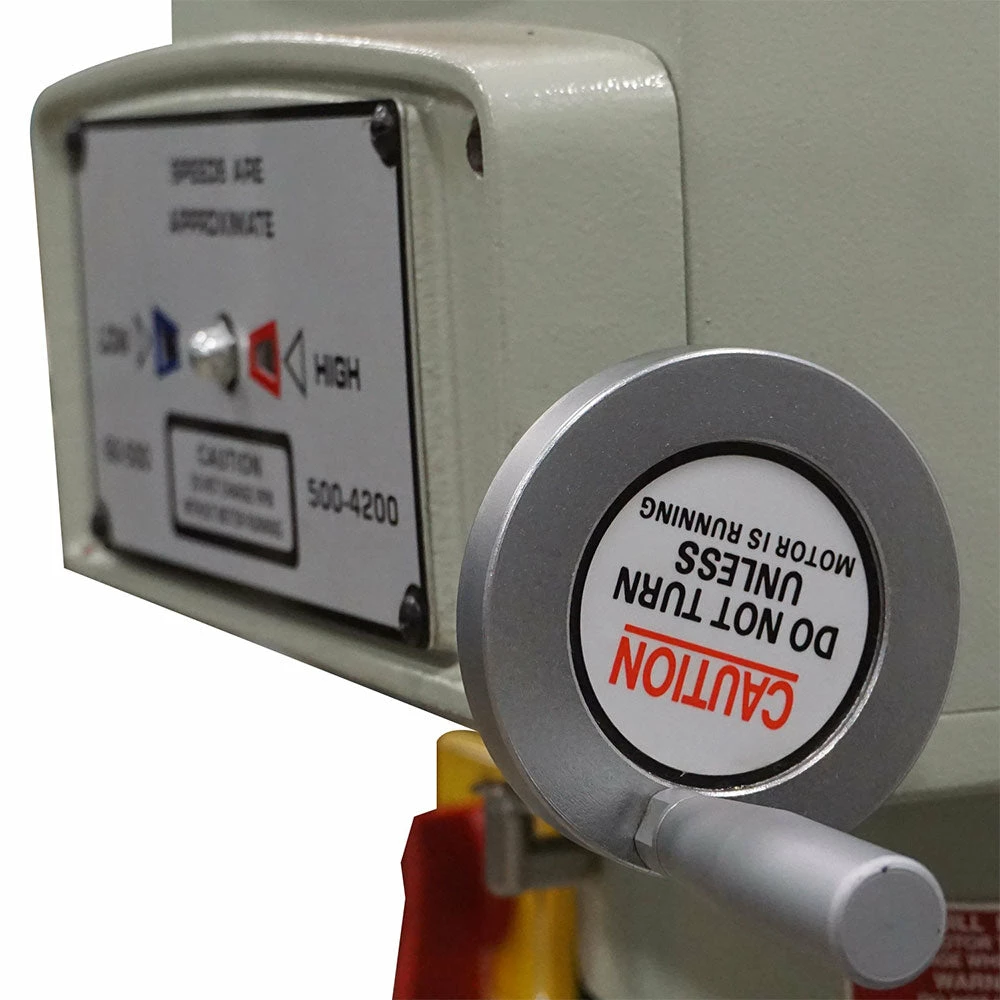

• Variable spindle speed by adjustable sheaves/pulleys – Control spindle RPM with the turn of a handle
• Infinitely adjustable variable speed from 60 to 4,200rpm – Allows tooling to run at its intended speed, resulted in longer tool life and better finishes
• R8 spindle and drawbar – Accepts the most common tooling
• Meehanite Casting – Rigid and dependable for decades of use
• Spindle brake – Easier tool changes and quick spindle stops
• 3 speed power quill feed w/ manual wheel – Perfect for boring and accurate, consistent work

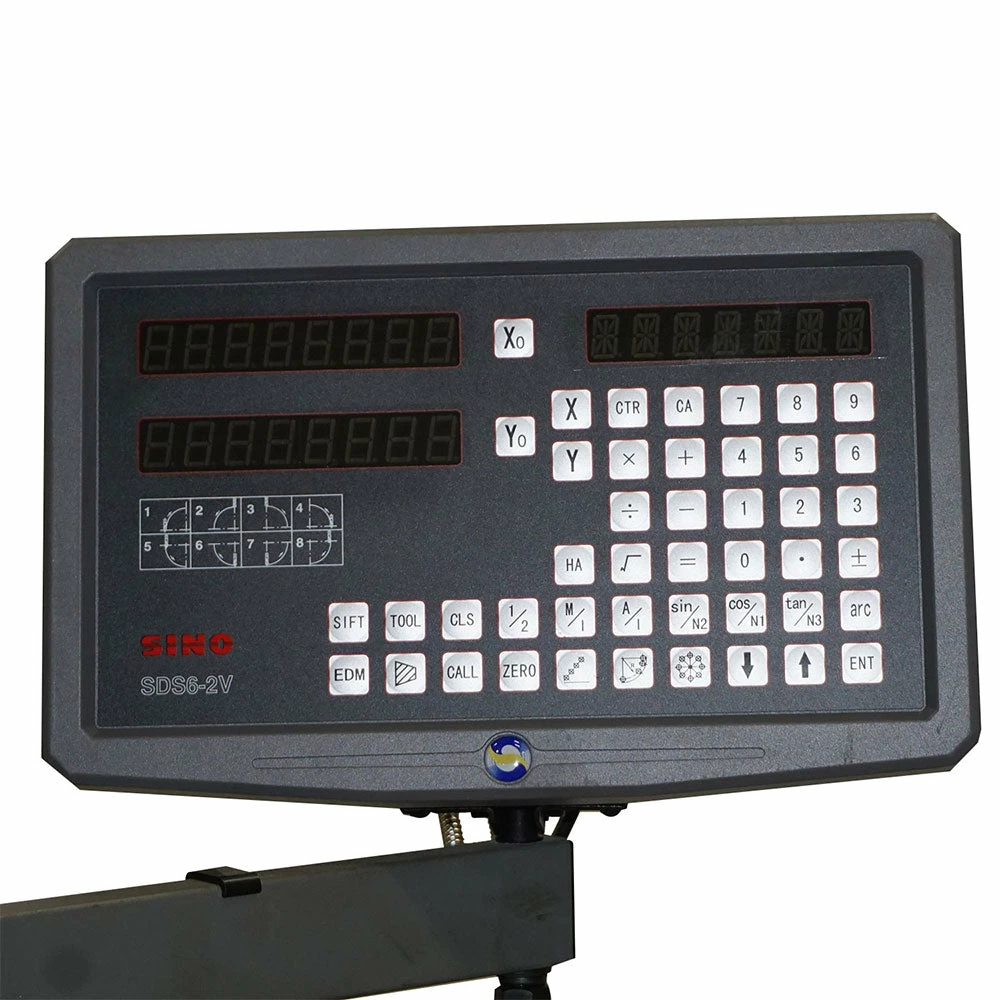

• DRO for X and Y axes

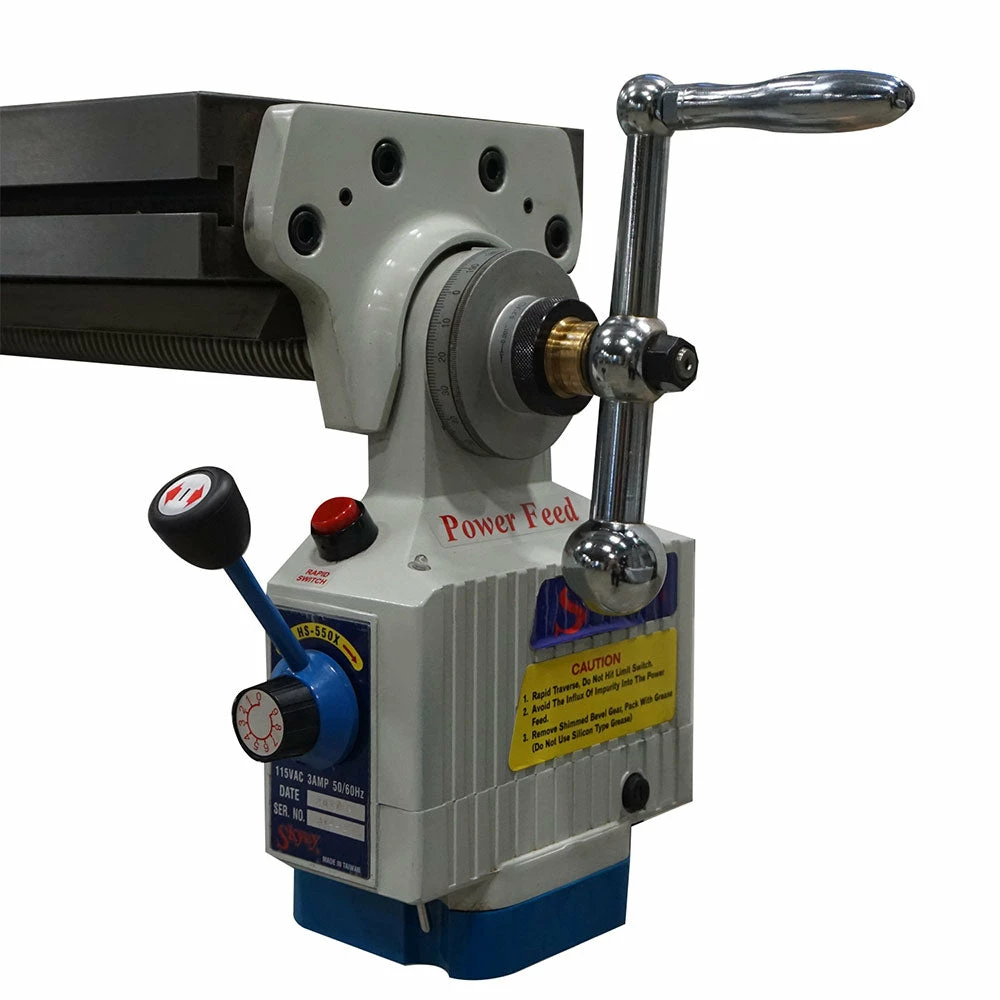

• Power feed X axis w/ rapid – Consistent travel speed without tiresome cranking
• Dovetail ways w/ adjustable gibs – Keep tolerances tight year after year

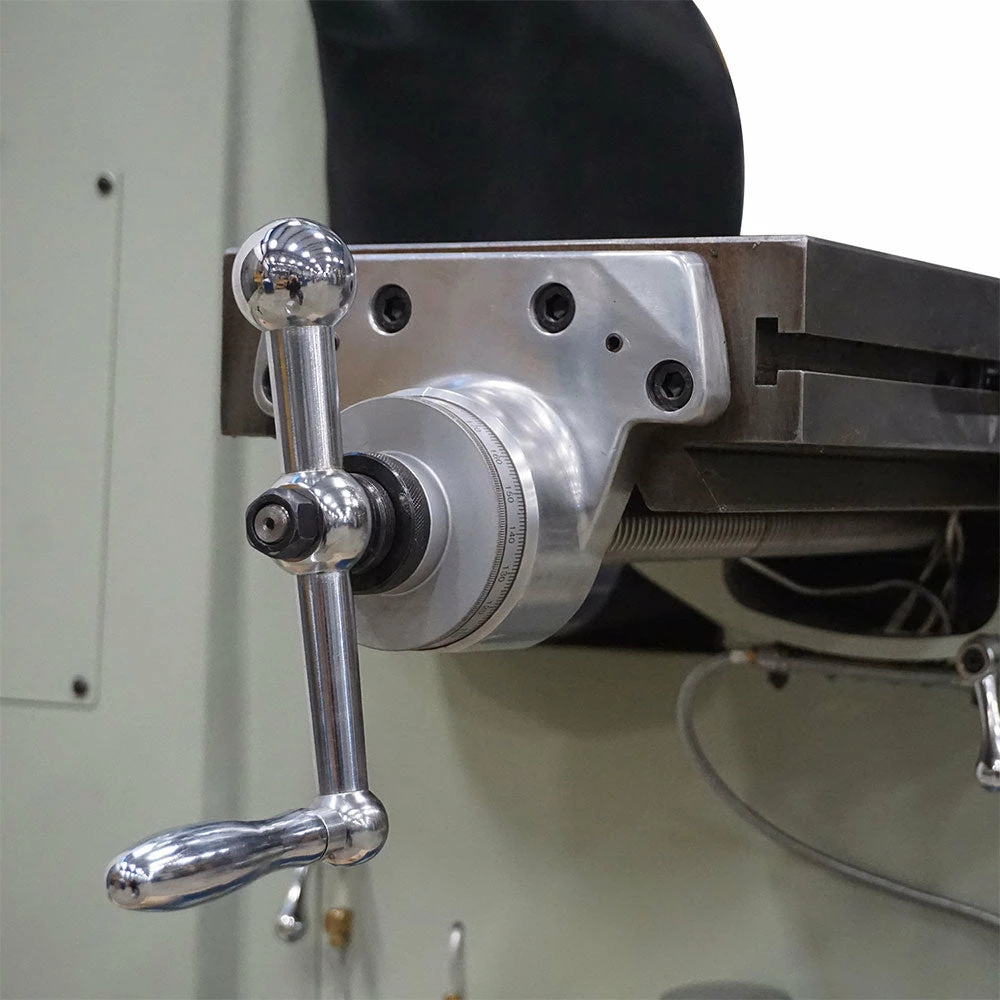

• Taiwan lead screws w/ backlash adjustable nuts – Remove backlash instead of compensating for it
• Way covers and wipers – Keep chips off ways and bed
• Integrated coolant system w/ splash guard – Large 6-gallon reservoir in the base houses the pump. Plumbed return line from the table eliminates overflow and messes

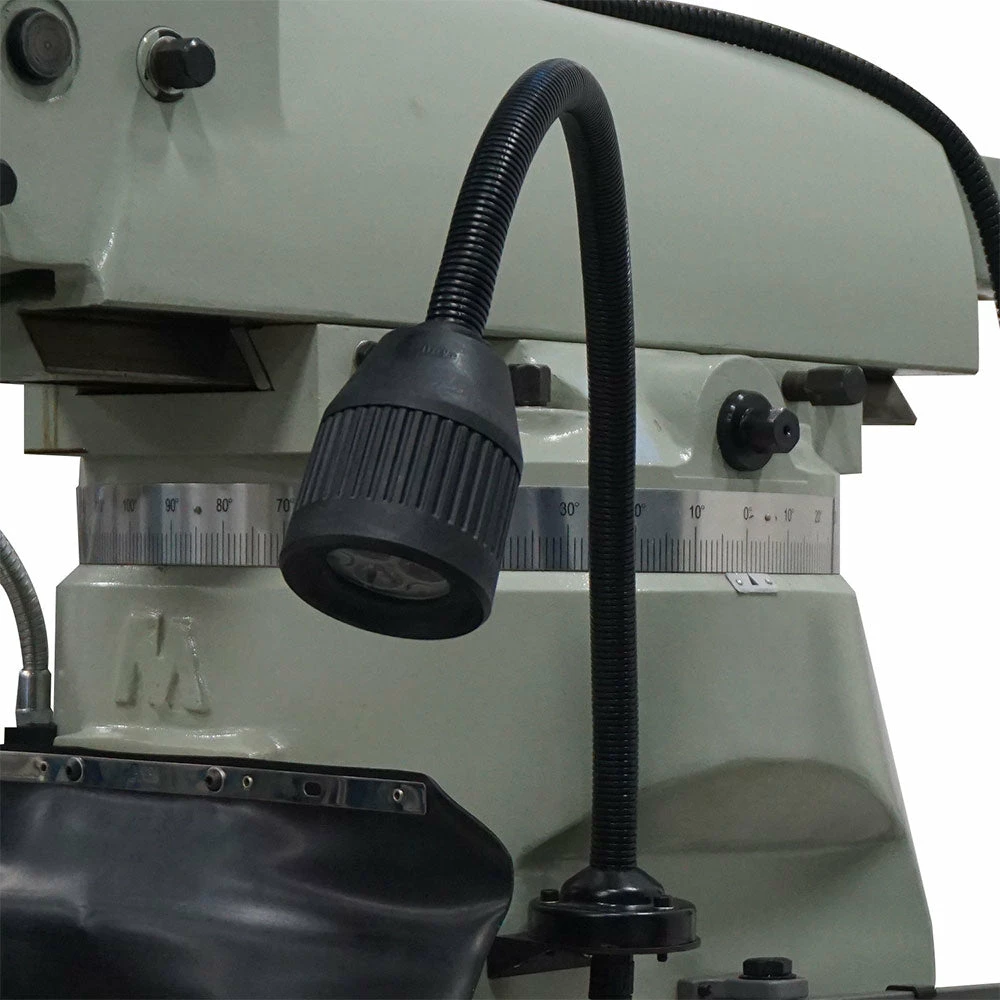

• LED work light

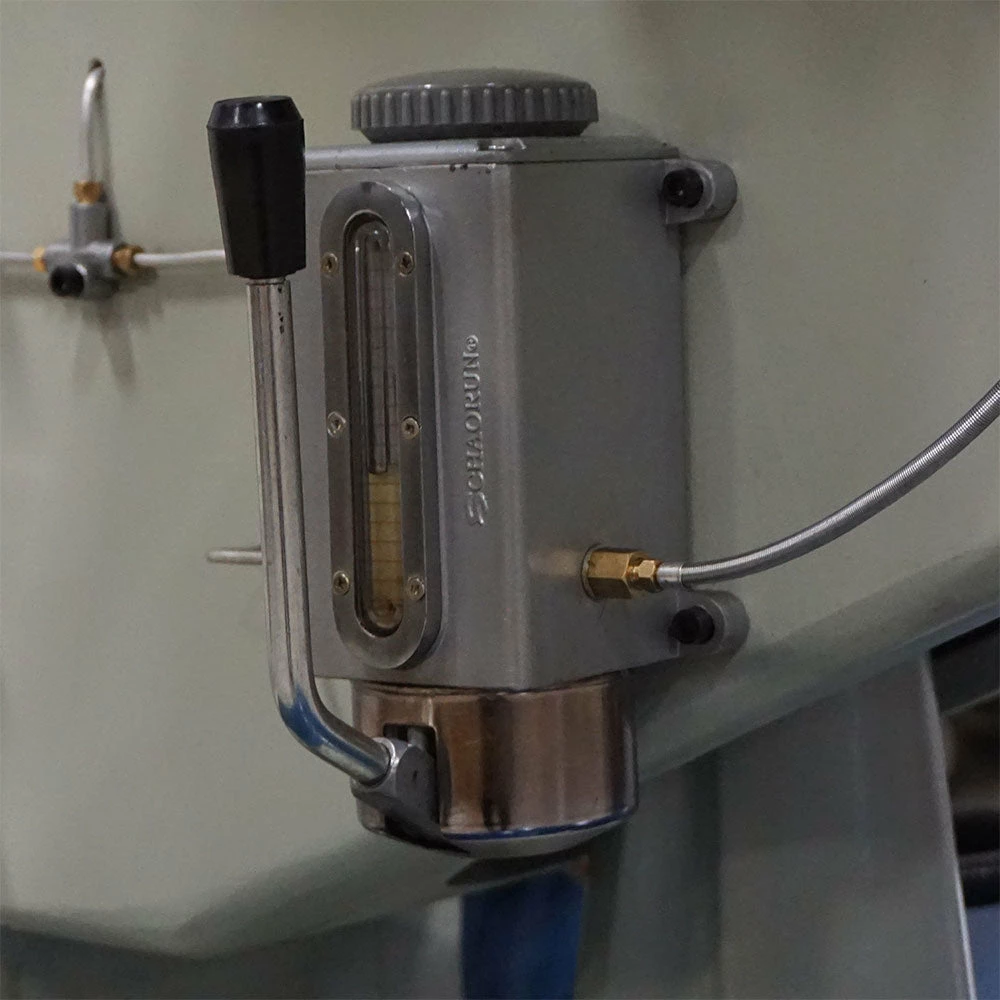

• One-shot lubricator – Keep up on lubrication maintenance by simply pulling a lever

What’s in The Box

• VM-949E-VS – Vertical Mill
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	VM-949E-VS
Power	220V / 1-phase
Motor	3 hp
Spindle Speeds	60 – 4,200RPM Infinitely Variable
Distance from Spindle to Table	18.5″
Spindle Travel	4.9″
Spindle Speed Range	60 to 4200 RPM
Spindle Feeds	.003″ .0015″ .008″
Power Feed	X axis
Table Size	9″ x 49″

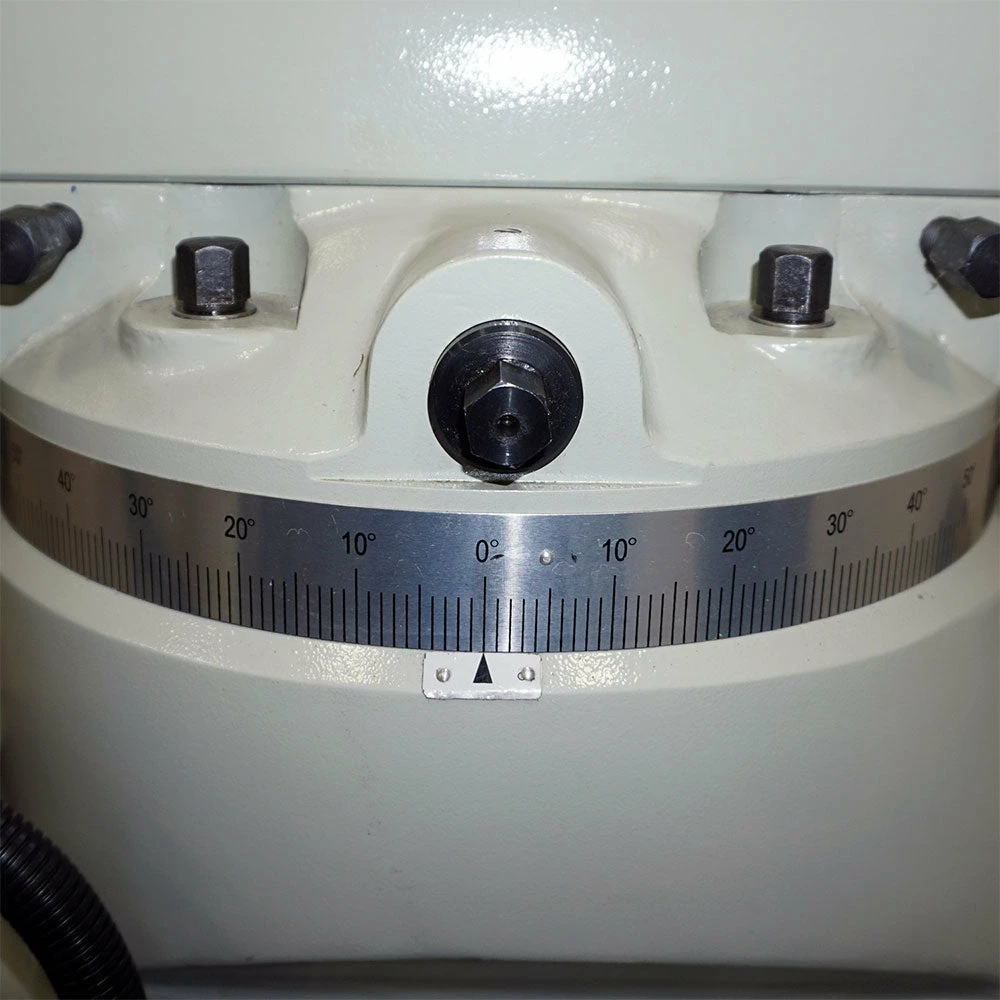

Range of Movement	90° Left and Right, 45° Front and Back
Spindle Diameter	3.3″
Included Accesories	Included Accesories
X Axis Travel	31-5/8″”
Y Axis Travel	11-a3/16″
Z Axis Travel	13-3/4″
Spindle Taper	R8
T Slots	.625″
Drill Capacity	2″
Dimensions (Inches)	72 x 72 x 72
Weight	1980 lbs
