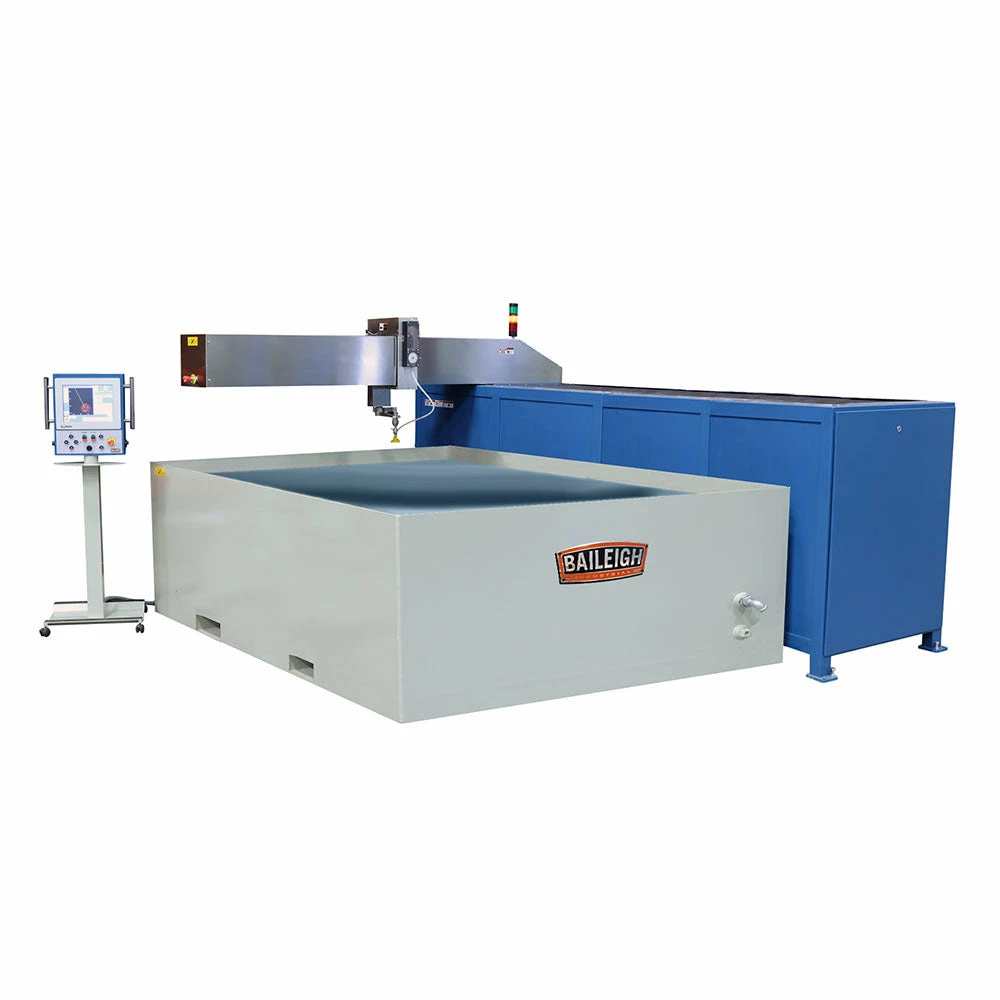

Baileigh 1019138 WJ-85CNC 480V 3PH 60″ X 98″ CNC Water Jet

Features

• The WJ-85CNC water jet from Baileigh Industrial offers excellent work table accessibility on a machine built for the rigors of waterjet cutting.
• The cutting table and framework of the WJ-85CNC is laser cut and interlocked, then welded for strength and rigidity to ensure accuracy during the cutting process.
• The design is a cantilever design that allows for much easier material loading and unloading. This CNC water jet cutting machine also offers smoother action on the axis with exclusion of moving parts.

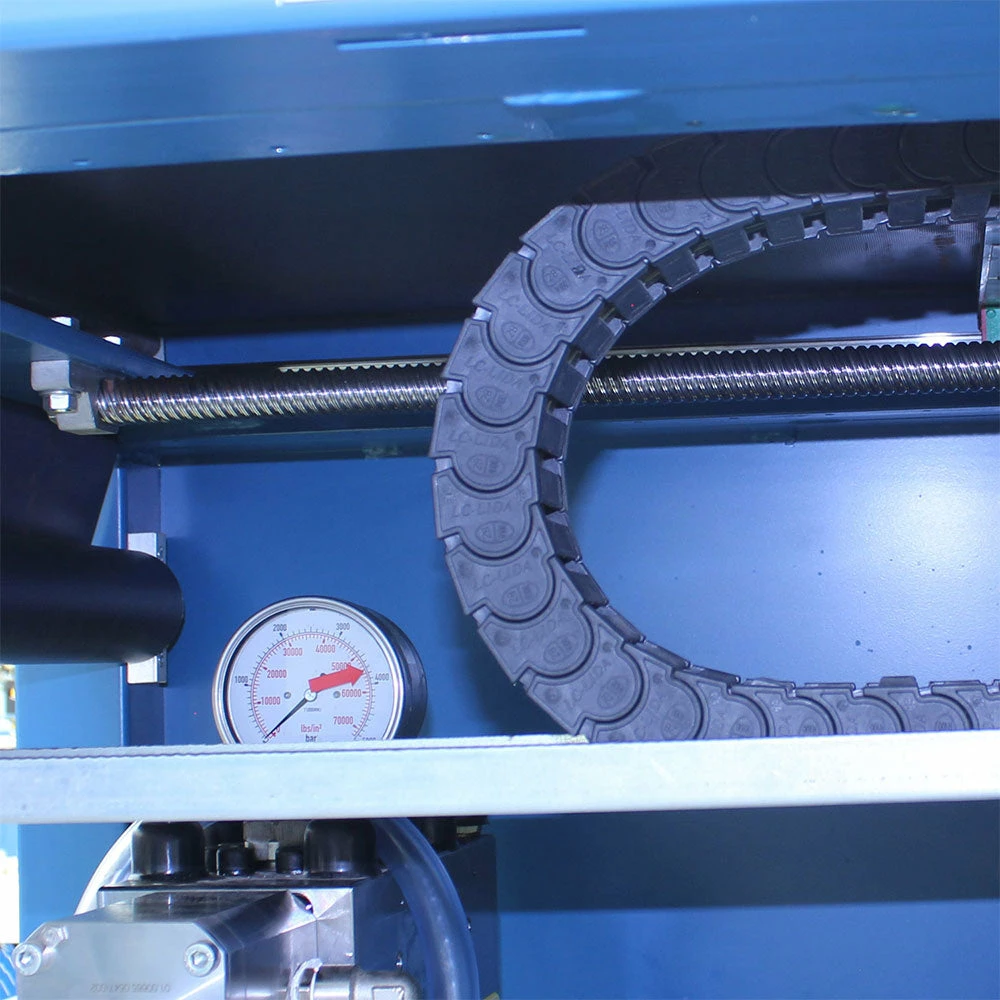

• All axis ride on precision balls screws with square slide ways.
• All slide ways are covered and protected from water for long life.

What’s in The Box

• WJ-85CNC – Coldfront Atomized Cooling Fan
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	WJ-85CNC
Power	460V / 3-phase 60amp
Motor	40 hp
Motor KW	30kw
Working Table Size	96″ x 60″
Working Table Travel (X/Y)	96″/60″
Table Size	102″ x 63″

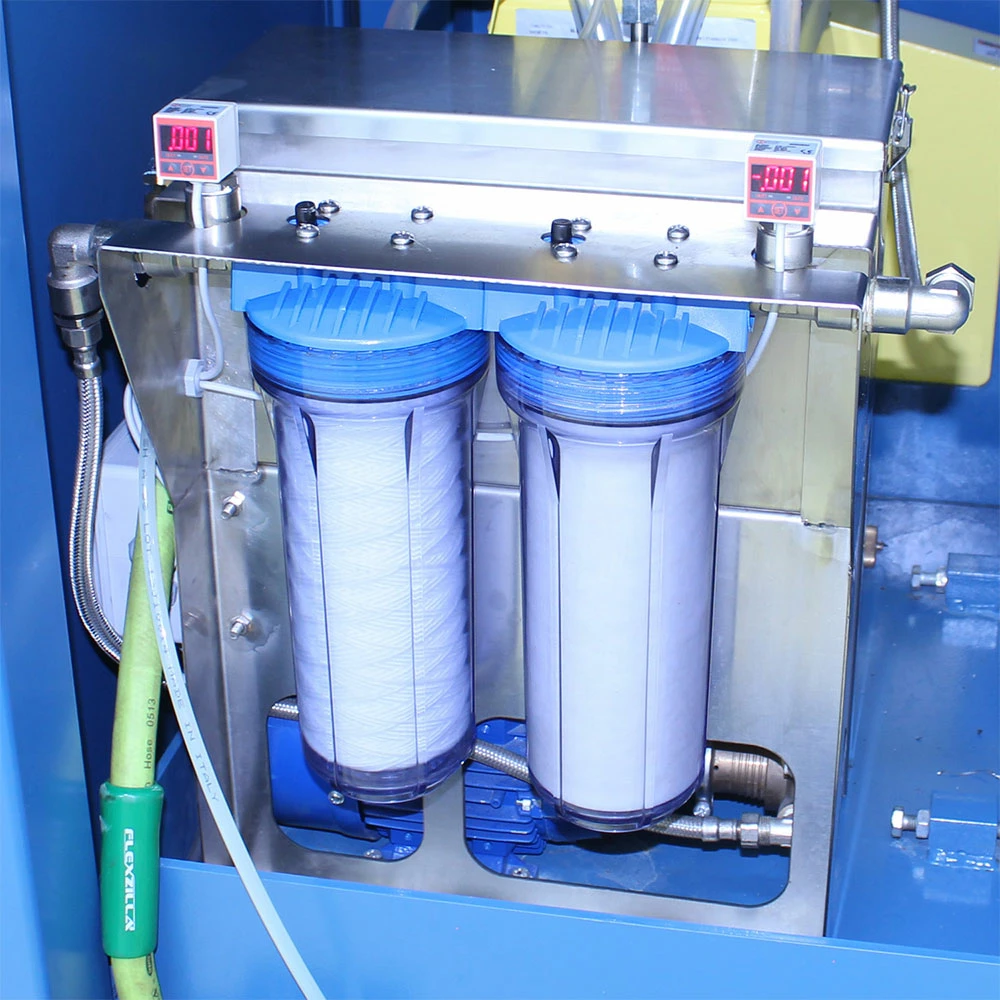

Filter Type	2 Stage/2 Filter, 10 Micron & 1 Micron
Number of Filters	2
Supported File Formats	DXF
Repeatability Accuracy	± .001″

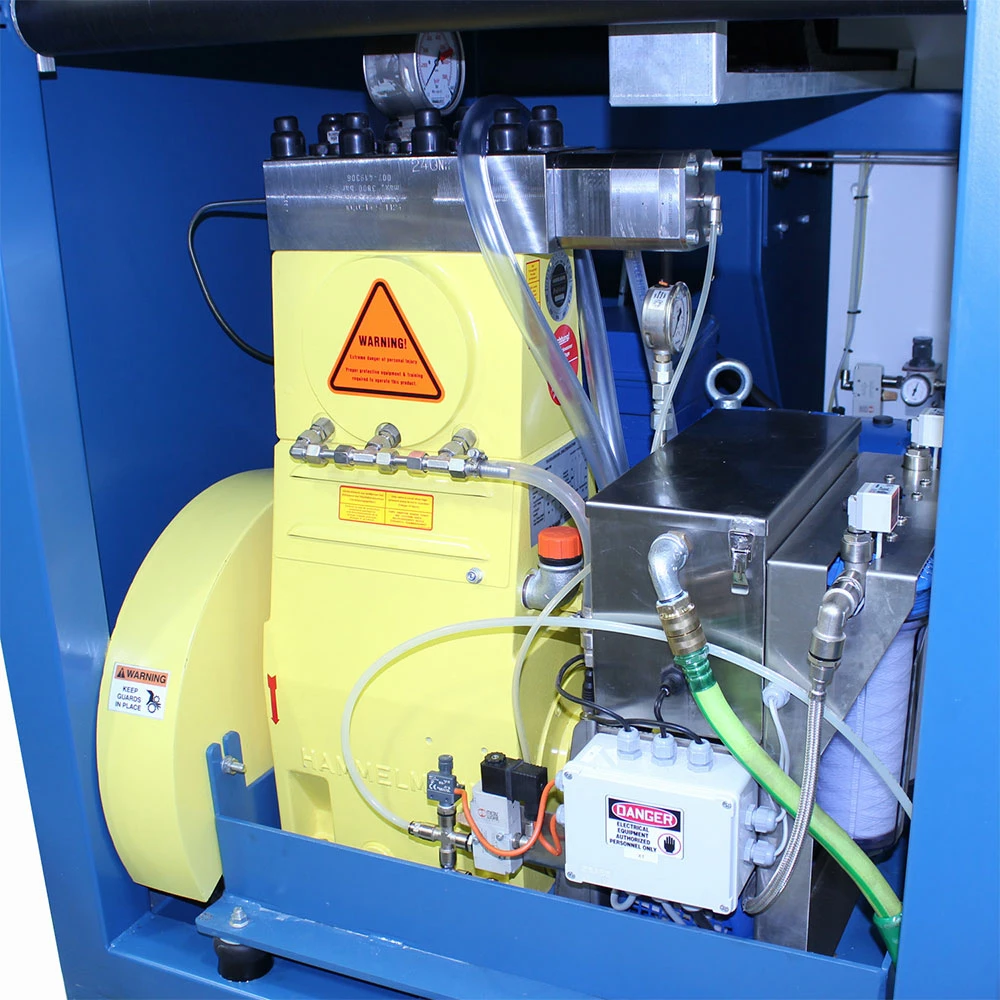

Production Pressure	56,000 psi
Max. Pump Pressure Outflow	7.92 gallons per minute
Orifice Size	.014″
Travel Speed	40 fpm (26 fpm Cutting) Maximum

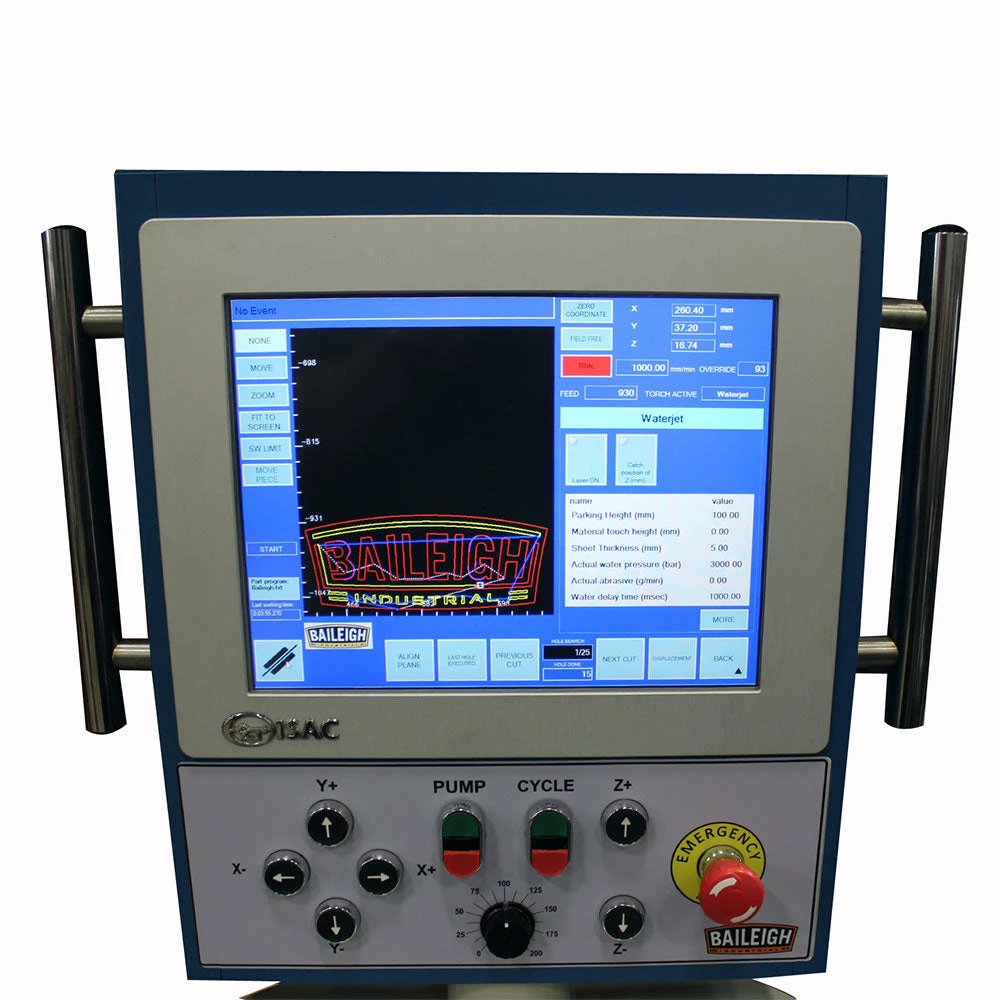

CNC System	Windows Based
Cutting Accuracy	±.001″
Inlet Pressure	30 psi
X Axis Travel	98″
Y Axis Travel	59″
Z Axis Travel	6.75″

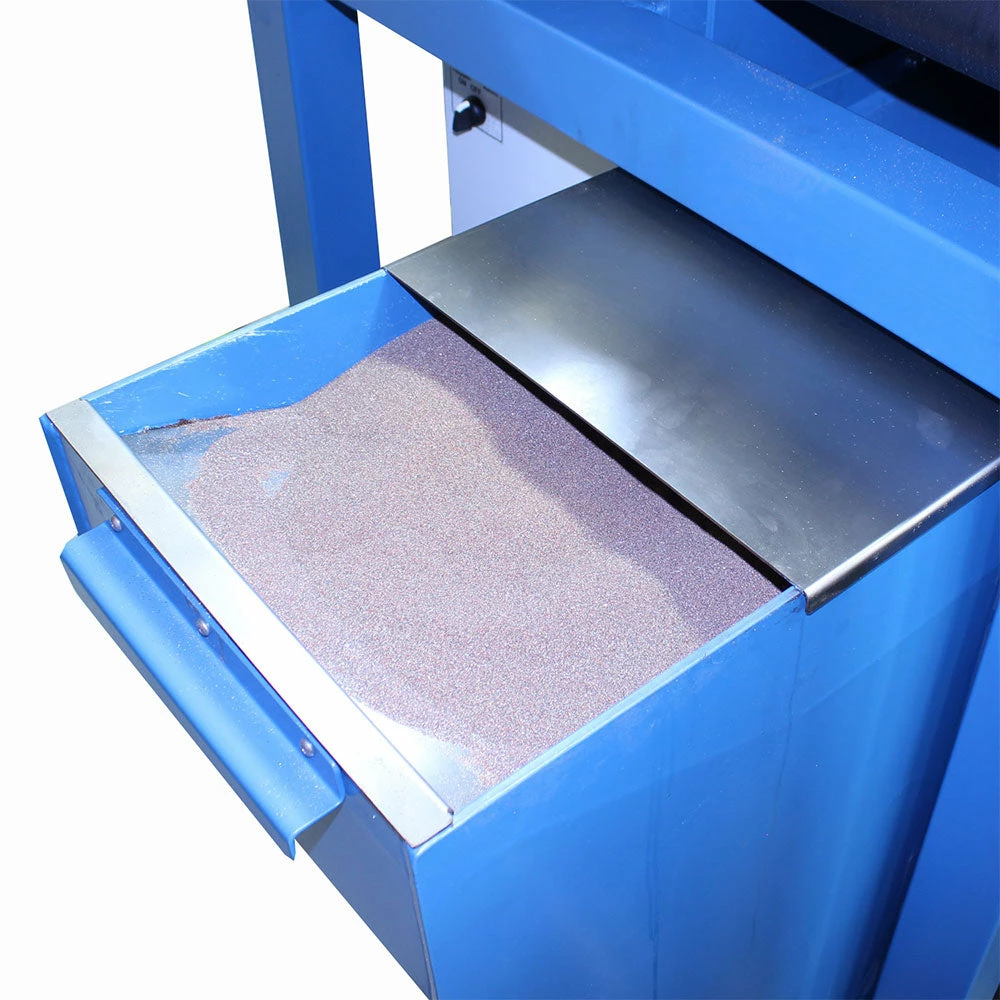

Hopper Capacity	250 lbs
Software	BobCad Cam
Dimensions (Inches)	153x46x80, 112x73x36, 69x44x25
Weight	5600 lbs
