Baileigh 1019290 HSP-60M-C 220V 60/15 Ton Two Station Hydraulic Press Tools & Equipment

Features

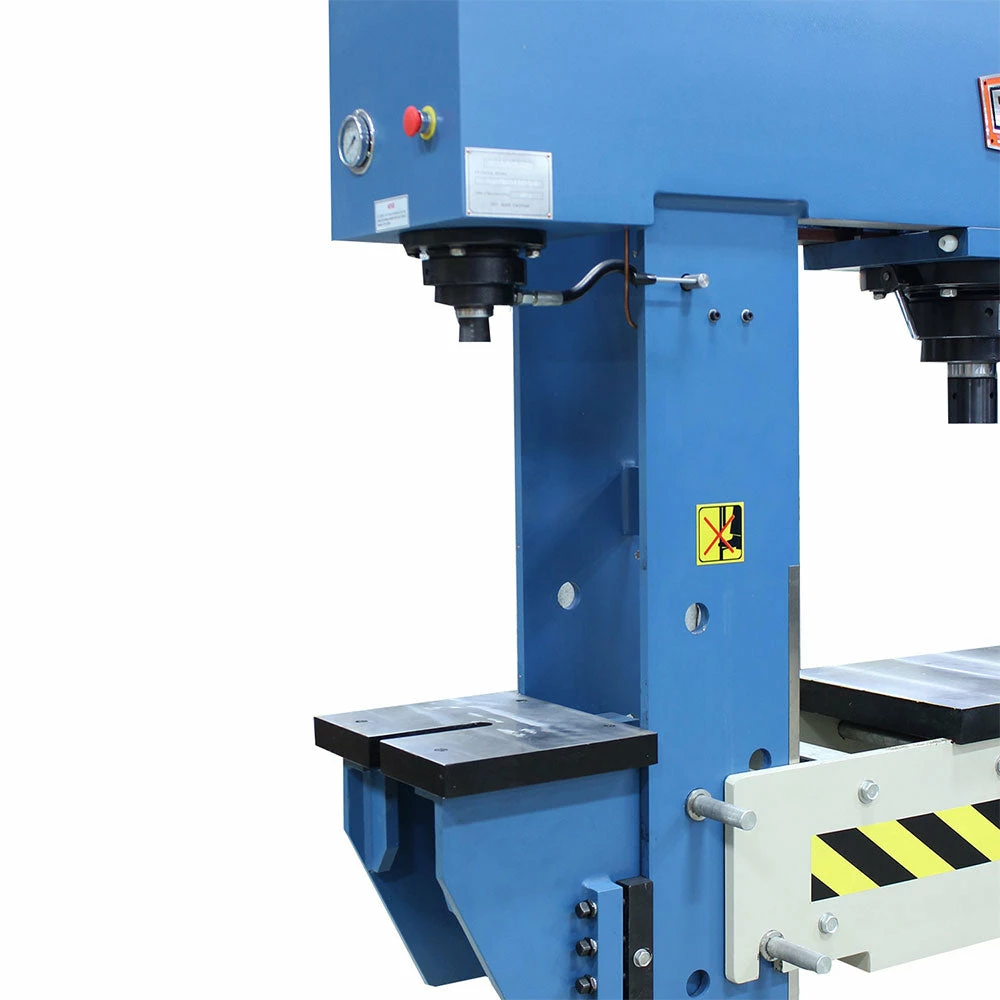

• Unique two station design.
• 60-ton capacity on main press.

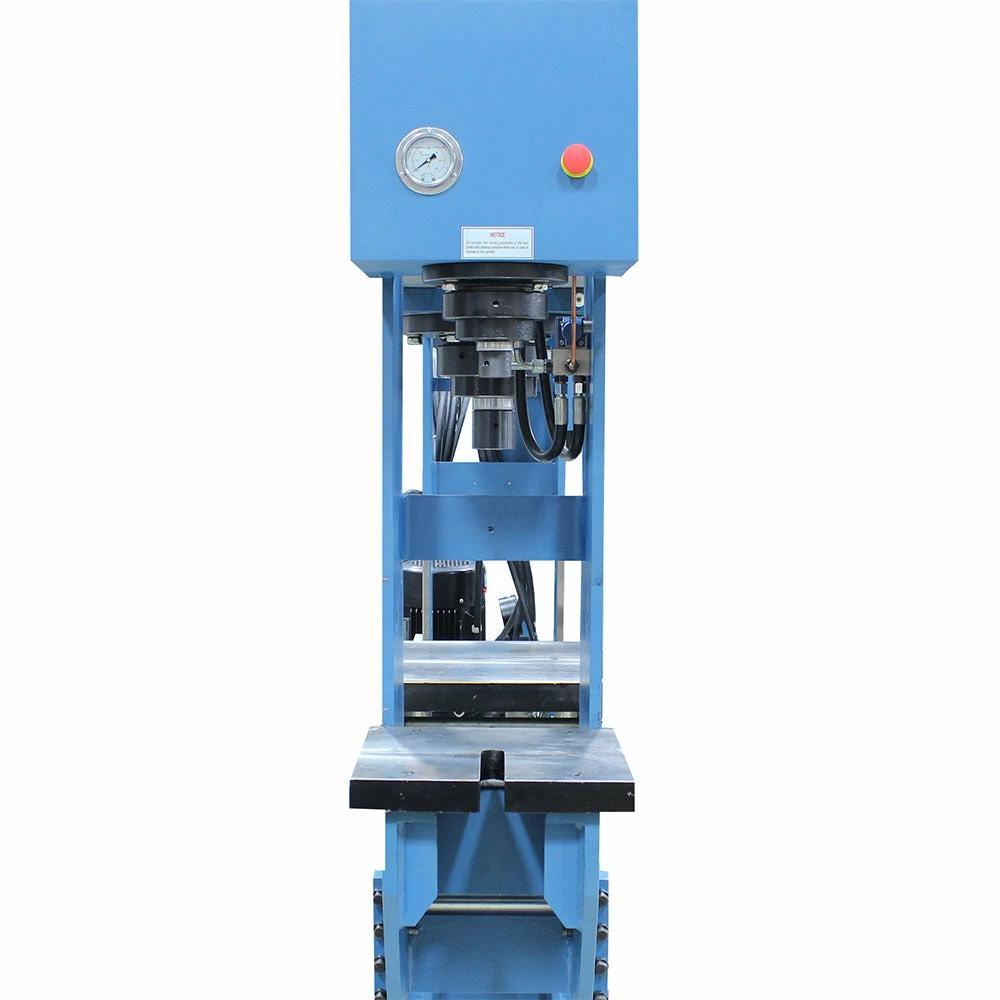

• 24-ton capacity on side press.
• 41.25” working width on main press

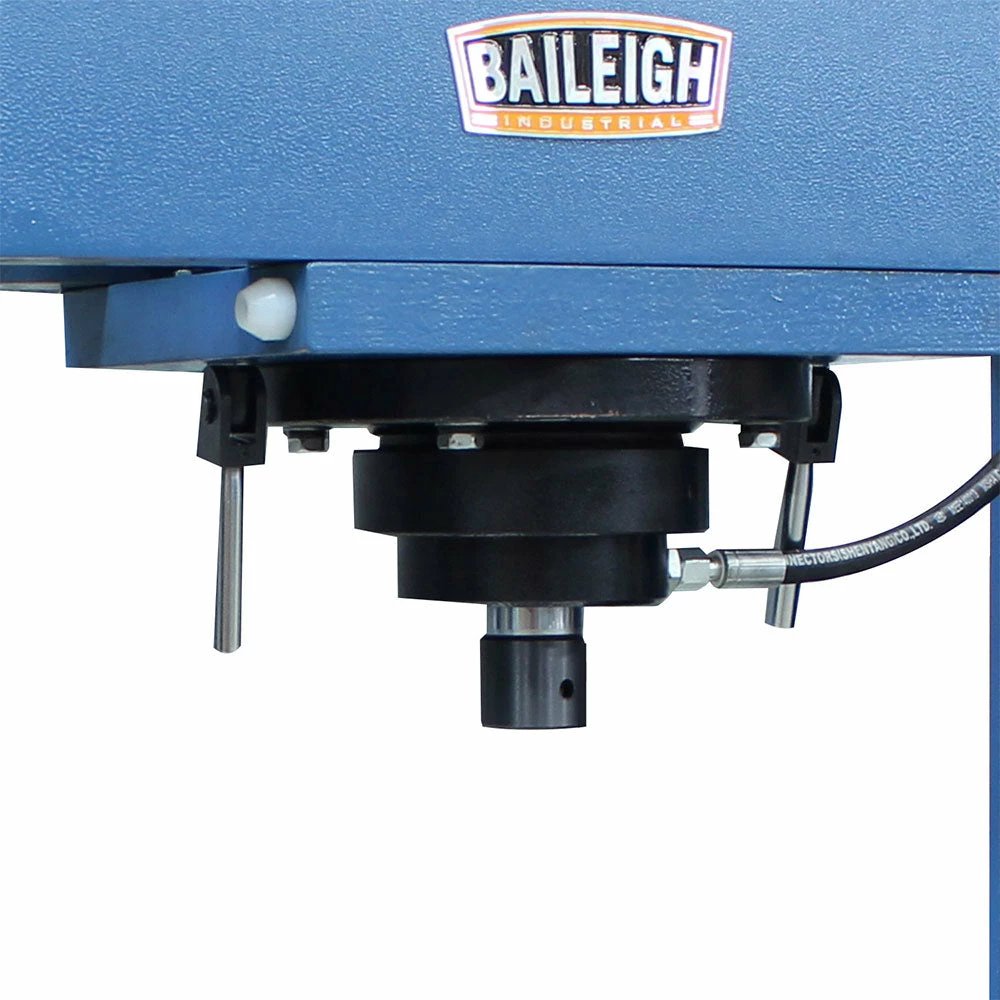

• 7.5” cylinder moves left and right within the frame, ideal for off-center parts.

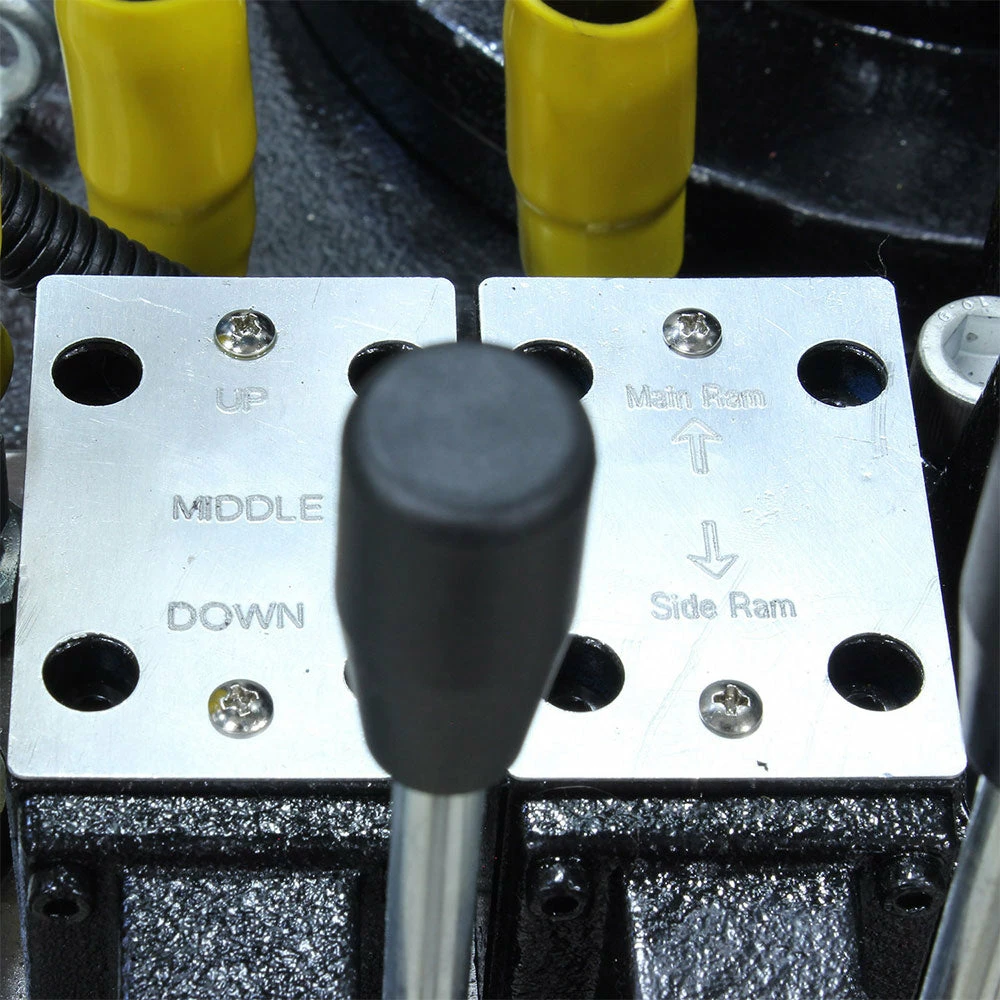

• Controlled by piston-style hydraulic pump.

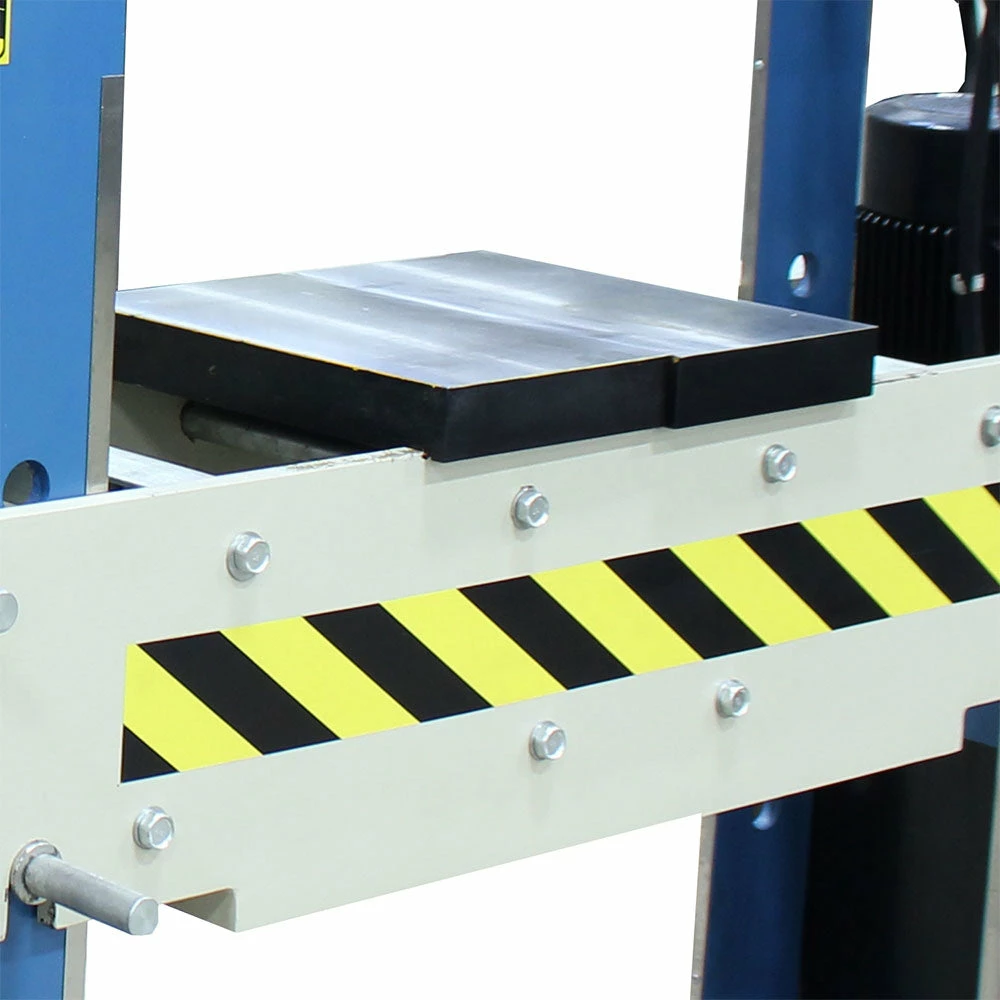

• C Frame Hydraulic Press includes 2-piece V-block set.
• Pressure gauge comes standard on both presses.
• Welded steel structure withstands the machine’s full force without flexing.

What’s in The Box

• BB-7210H – hydraulic Box and Pan Brake
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	HSP-60M-C
Power	220 Volt Three Phase
Return Speed	.303″ / sec.
Motor	5.25 hp
Piston Head Diameter	3.15″ (Main), 1.77″ (Side)
Pump Speed	1.85 gal/min
Oil Capacity	13 gal.
Included Accesories	Included Accesories
Working Speed	.32″ / sec. (Main), .75″ / sec. (Side)
Working Width	41.3″ (Main)
Maximum Capacity	60 ton (Main), 24 ton (Side)
Cylinder Stroke	11.8″ (Main), 11.75″ (Side)
Cylinder Movable	Yes (Main only)
Cylinder Diameter	7.55″ (Main), 3.95″ (Side)
Distance From Table To Ram	Min. 8″ – Max. 38″ (Main), Min. 9.84″ – Max. 38.97″ (Side)
Dimensions (Inches)	96 x 48 x 89
Weight	2960 lbs
