Baileigh 1020693 VMD-931G 110V Gear Driven Vertical Mill Drill Tools & Equipment

Features

• 2 hp motor runs on 110 volt single-phase power, optimal for any shop, garage, or educational institution.
• 1.75” maximum drilling capacity.
• 31.5” x 9.45” milling-style table enables you to tackle a wider variety of projects (with the right tooling).

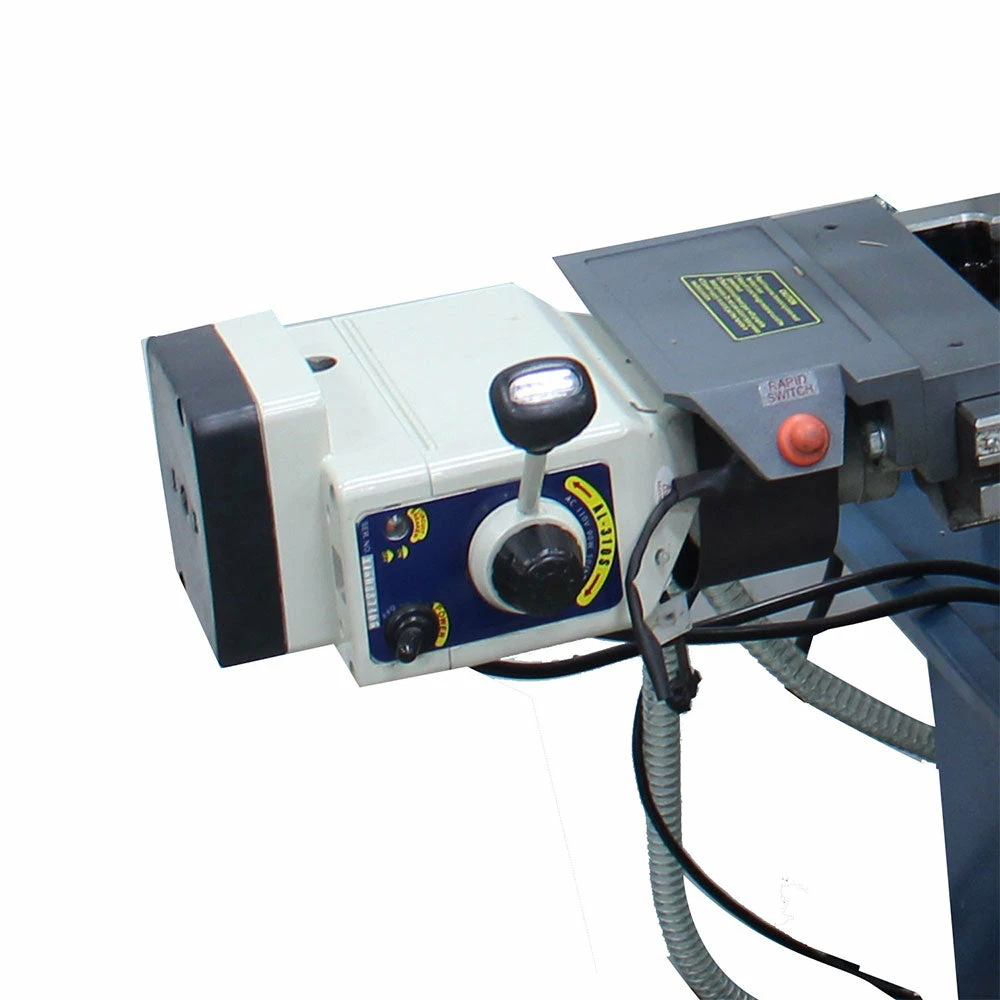

• Table incorporates an X-axis power feed to make those longer cuts accurately.

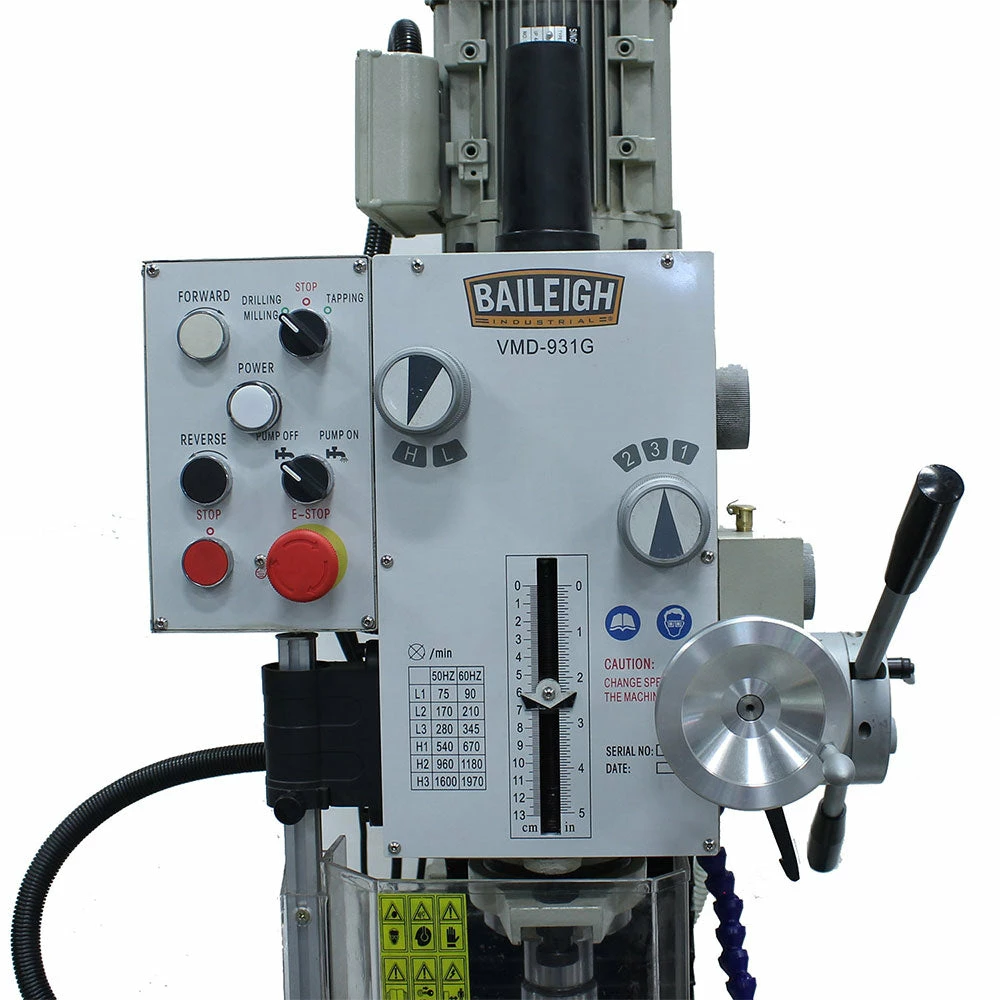

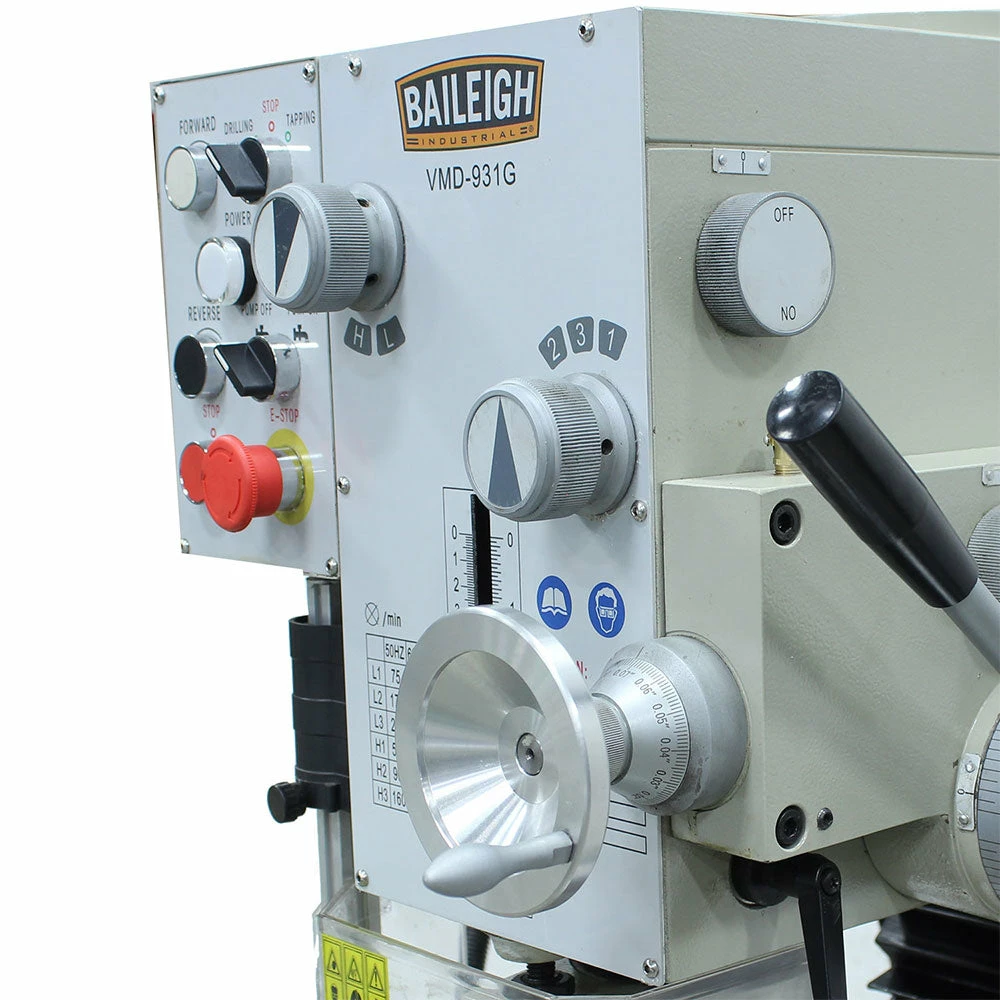

• Gear-driven head swivels 90° left and right.
• You can choose from 6 speeds to accommodate each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.
• Wide steel column eliminates flex when you’re milling or drilling at full capacity.
• Heavy-duty base, made from a rigid iron casting, adds to the machine’s strength and minimizes vibrations.
• Comes standard with a coolant system, R8 spindle taper, and a flexible halogen light.

What’s in The Box

• VMD-931G – Vertical Mill Drill
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	VMD-931G
Power	110V
Table Size	31.5″ x 9.45″
Head Miter	17243
Motor	2 hp
X Axis Travel	22″
Y Axis Travel	7.48″
Spindle Nose to Table	17.32″
Spindle Speed	90,210,345,670,1180,1970 RPM
Spindle Stroke	4.75″
Spindle Taper	R8
T Slots	.55″
Coolant Pump	1/8 hp
End Mill Size	1.25″ Max
Drill Capacity	1.5″
Spindle Travel	4.75″
Shipping Dimensions (Inches)	60x44x50
Weight	1200 lbs
