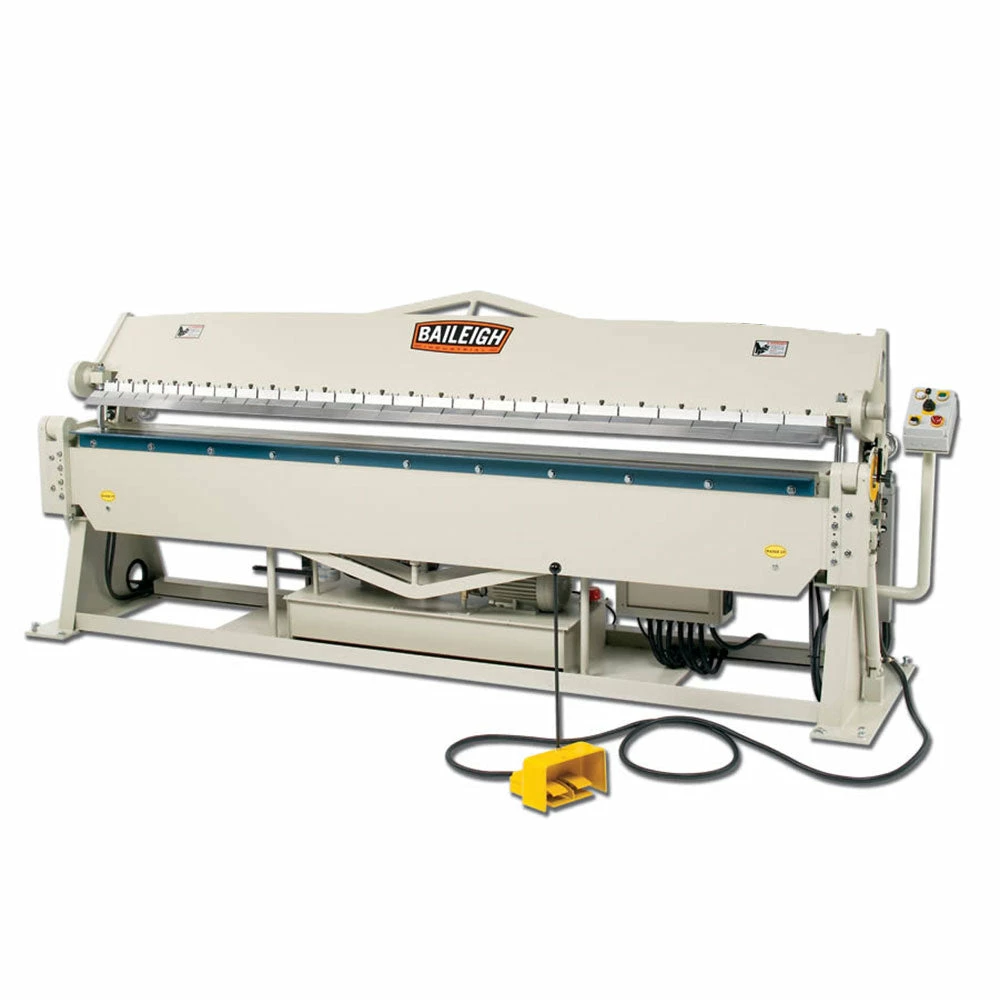

Baileigh 1021000 BB-12014H Hydraulic Sheet Metal Brake W/ 10′ X 14 Gauge

Features

• Maximum capacity of 14 gauge mild steel or 18 gauge stainless steel.
• 10-foot (120”) working width.
• Maximum bend angle of 135°.
• Runs on 220-volt 3-phase power.
• Industrial-grade hydraulic system cuts down on operator effort for production runs, making your shop more efficient and saving you money.
• Simple to operate with adjustable angle auto-stop:
• Dial in the desired bend degree (including springback).
• Load the machine.
• Begin the cycle by stepping on the foot pedal controls.
• Machine clamps the material, and the leaf will lift to the desired angle and return.
• Upper beam unclamps the material, ready for the next bend.
• You can operate the machine from the control panel or with the included foot pedal.
• Includes 26 hardened fingers of various sizes (6 fingers of 3″, 4 of 4″, 10 of 5″, 6 of 6″).
• Fully-welded steel frame and support rods add rigidity to the overall structure to provide years of trouble-free use.
• Baileigh covers this hydraulic sheet metal brake with a 1-year parts warranty.

What’s in The Box

• BB-12014H – Sheet metal Brake
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BB-12014H
Power	220V / 3-phase
Motor	3 hp
Min Reverse Bend	.5″
Thickness (SS)	14 ga. (18 ga.)
Box Depth	6″
Beam Adjustment	1″
Bend Angle	0 – 135°
Finger Sizes	3″ – 4″ – 5″ – 6″
Length	120”
Dimensions (Inches)	154 x 46 x 68
Weight	5830 lbs
