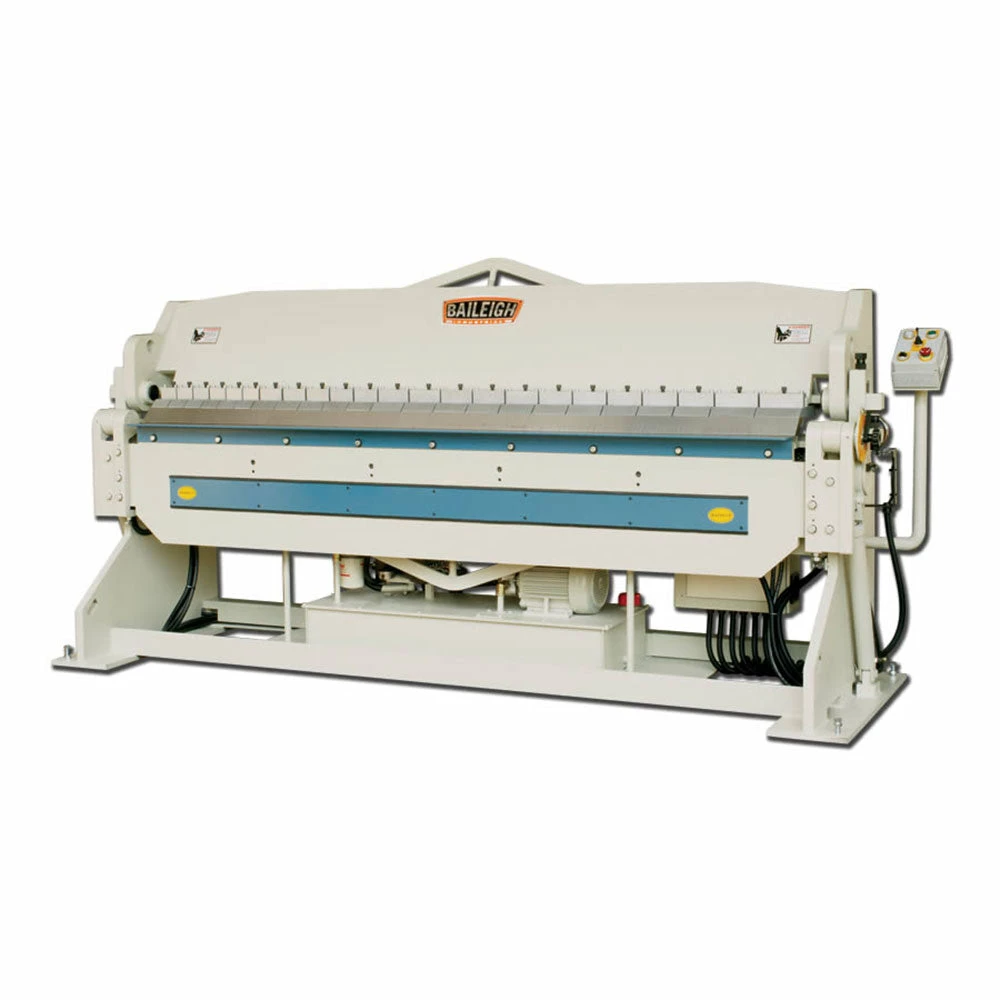

Baileigh 1021003 BB-9610H 220V 3PH Heavy Duty Hydraulic Box / Pan Finger Brake

Features

• 10 gauge mild steel sheet metal maximum capacity.
• Bends across its full 8-foot (96”) working width.
• 1” beam adjustment.
• Maximum bend angle of 135°.
• Industrial-grade hydraulics will make precise and efficient bends, day in, day out, for decades.
• 5 hp motor runs on 220-volt 3 phase power.
• Hydraulic system clamps the material via dual hydraulic motors, then lifts the bending leaf with industrial hydraulic cylinders.
• Adjustable bend auto-stop simplifies production runs; just dial in your desired degree.
• Foot pedal and toggle joystick controls let you operate this hydraulic sheet metal brake in manual or semi-automatic mode.
• Includes 22 hardened 3-piece fingers (6 of 3″, 4 of 4″, 10 of 5″ and 2 of 6″ ) to create many different size boxes.
• 6” box depth maximum.
• Fully-welded steel beam and bending leaf, supported with truss rods, prevent twisting and deflection—important when you’re bending heavy 10 gauge mild steel.
• Baileigh covers this hydraulic box and pan brake with a 1-year parts warranty.

What’s in The Box

• BB-9610H – Heavy Duty Hydraulic Box and Pan (Finger) Brake
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BB-9610H
Power	220V / 3-phase
Motor	5 hp
Min Reverse Bend	.984″
Thickness (SS)	10 ga. (12 ga.)
Box Depth	6″
Beam Adjustment	1″
Bend Angle	0 – 135°
Finger Sizes	3″ – 4″ – 5″ – 6″
Length	96”
Shipping Dimensions (Inches)	135x44x71
Weight	5640 lbs
