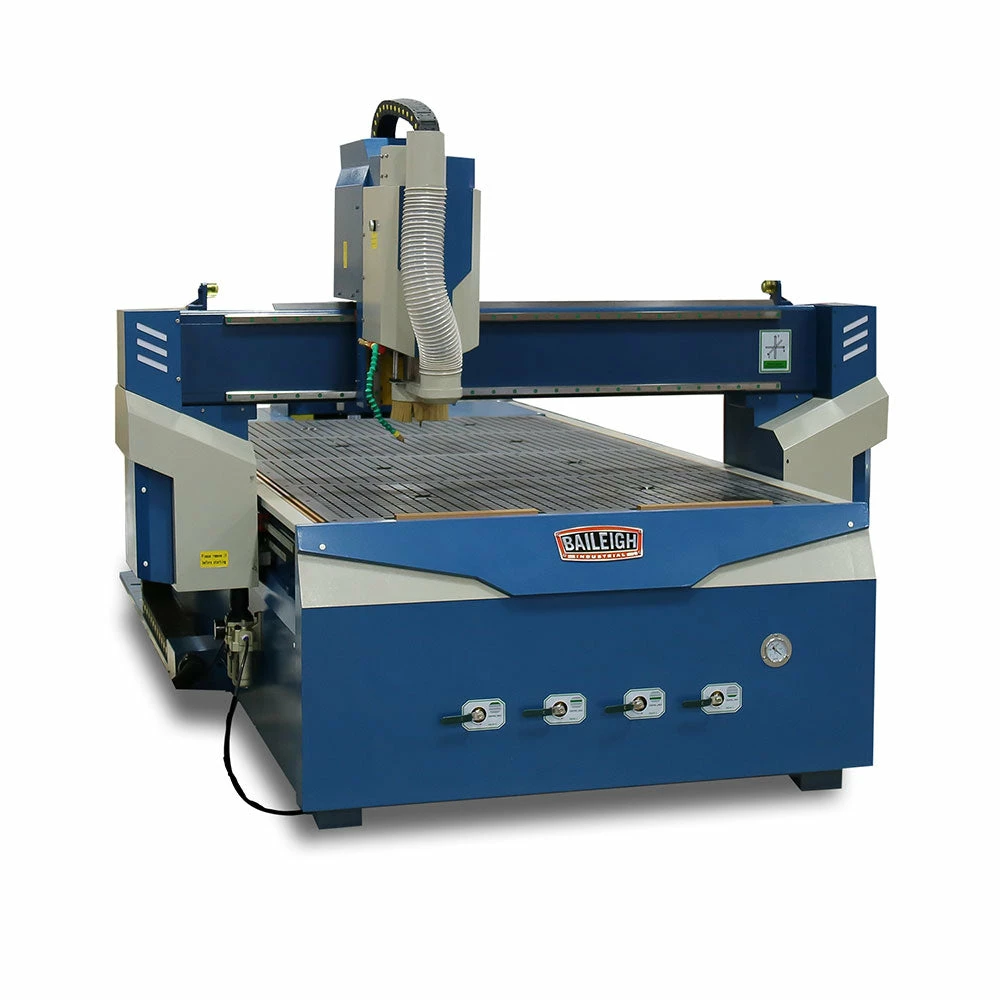

Baileigh 1022028 WR-84V-ATC 220V CNC Router Table W/ Fully Welded Steel Frame

Features

• Large 4’ x 8’table.
• Arrives pre-built with correct alignment. No complicated set-up process.
• Comes with software for plotting out designs on your computer, then turning them into cut patterns for the machine.
• Runs on 220-volt 3-phase power.
• Powerful 10hp spindle can tackle hard materials without flinching.
• 7.5 kilowatt air-cooled spindle will stay accurate through years of production.
• Variable spindle speed, from 3000 to 24,000 rpm.
• Servo motors ensure smooth running at both fast and slow speeds.
• High gantry is up and away from material, allowing you to see what it’s doing.
• Y axis moves far enough for the gantry to clear the table. You can take the material directly off; no need slant it awkwardly.
• Upload your design to the table with a USB drive. Automatic tooling changes let you swap out bits with computer-controlled precision.
• Sensor compensates for the change in tool lengths. That change might seem tiny, but it makes a huge difference to the finished product.
• Pre-load up to 4 collets with your chosen profiles; the router will switch between them as programmed.
• Powerful 7hp vacuum in the bed of the table holds the material in place during the cutting process.
• 4 vacuum zones allow you to turn on the valve only for the area where you’re working.
• Arrange each zone’s vacuum seal into the shape of the material to provide well-distributed suction.
• Dust shroud fits over the spindle; you can vacuum out all the dust and chips while you’re cutting.
• Fully-welded steel frame keeps the machine stable, helping the router last longer and preventing vibrations from taking the cut off-course.

What’s in The Box

• WR-84V-ATC – CNC Router Table
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	WR-84V-ATC
Power	220V Three Phase
Actual Working Area	96.5″ x 50.5″
Speeds	7 (3,000 – 6,000 – 9,000 – 12,000 – 15,000 – 18,000 – 24,000 rpm)
Spindle	Air Cooled
Z Axis Stroke	8″
Maximum Moving Speed (Inches Per Minute)	394
Maximum Engraving Speed (Inches Per Minute)	394
Reposition Accuracy	0.0019
Tool Diameters	1/8”, 4mm, 6mm, & 12mm
Length	132″
Width	83″
Height	70″
Horse Power	10
Table Style	Vacuum
Notes	Applicable Materials – Acrylic, Copper, Aluminum, Wood, PVC, ABS, Insulation Plate, Bakelite Plate, Honeycomb Plate, Resin, Organic Board, Aluminum Composite Panel
Shipping Dimensions (Inches)	144x82x81
Weight (lbs)	4800
