Baileigh 1226643 BSVT-18P 18″ Vertical Tilt Frame Heavy Duty Band Saw

Features

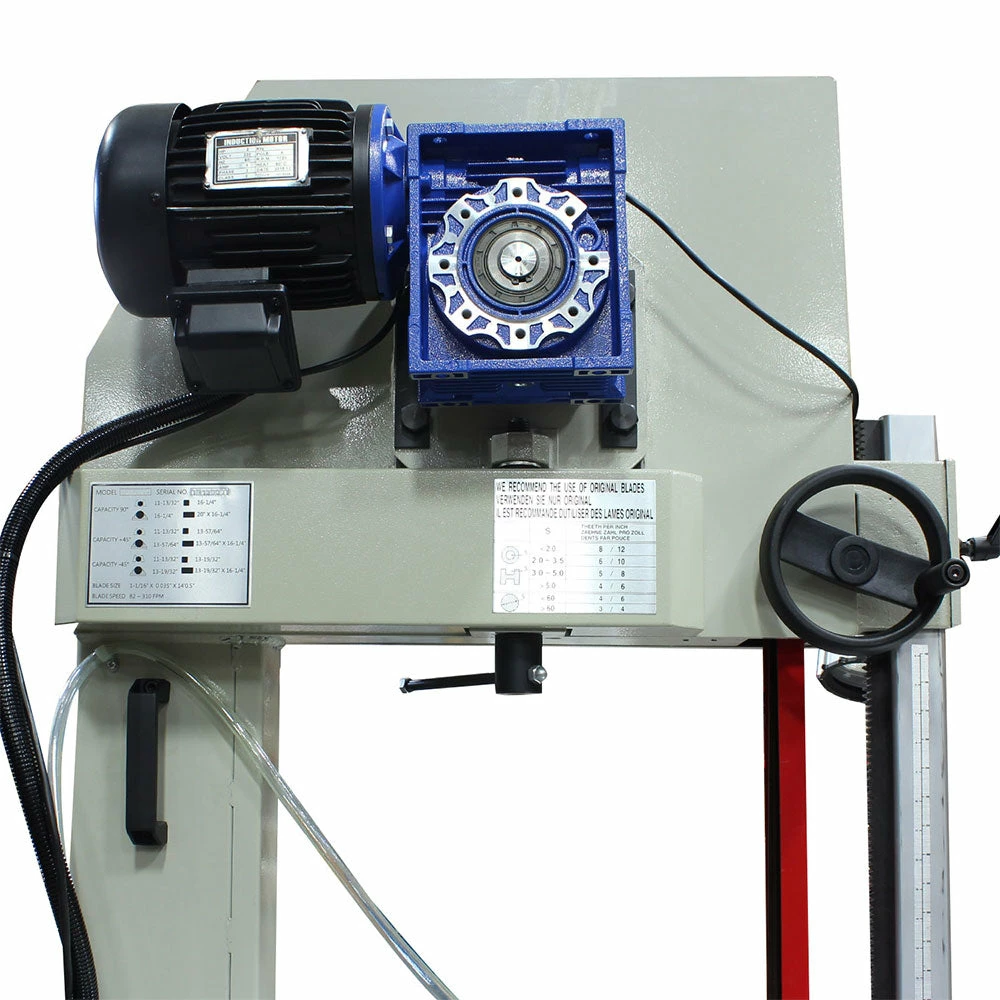

• 2 hp motor runs on 220-volt three-phase power.
• Wide 18″ throat depth.
• 23” maximum cutting thickness.
• Miters 45 degrees left and right.
• Accepts standard 1-1/16” blades.
• Machined plate steel table provides a sturdy work area.
• Variable speed from 84 – 312 fpm allows you to adjust the speed for eah application.
• Change the speed easily with the turn of a knob.
• Digital readout lets you see the exact blade speed, so you can choose the right settings for your material and extend blade life.
• Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
• Halogen work light lets you see what you’re cutting more clearly.
• Covered by a 1-year parts warranty.

What’s in The Box

• BSVT-18P – Vertical Tilt Frame Band Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BSVT-18P
Power	220V 3-phase
Solid Round Capacity	11-13/32″
Head Miter	45° Left and Right
Coolant System	Yes
Coolant Capacity	18.35 Gallons
Rectangle Capacity	20″ x 16-1/4″
Miter Angle	45° – 0° – 45°
Motor	2 hp
Maximum Thickness	20″
Included Accesories	Included Accesories
Throat Depth	16-1/4″
Working Height	39.5″
Capacity Rectangle 45°	13-57/64″ x16-l/4″ – Right / 13-19/32″xl6-l/4″ – Left
Blade Guide	Bearing and Carbide
Blade Length	168.5″
Blade Speed	84 – 312 fpm
Blade Thickness	.035″
Max. Vise Opening	18″
Motor Coolant	1/8 hp
Dimensions (Inches)	82″ X 38.2″ X 87.7″
Weight	1510 lbs
