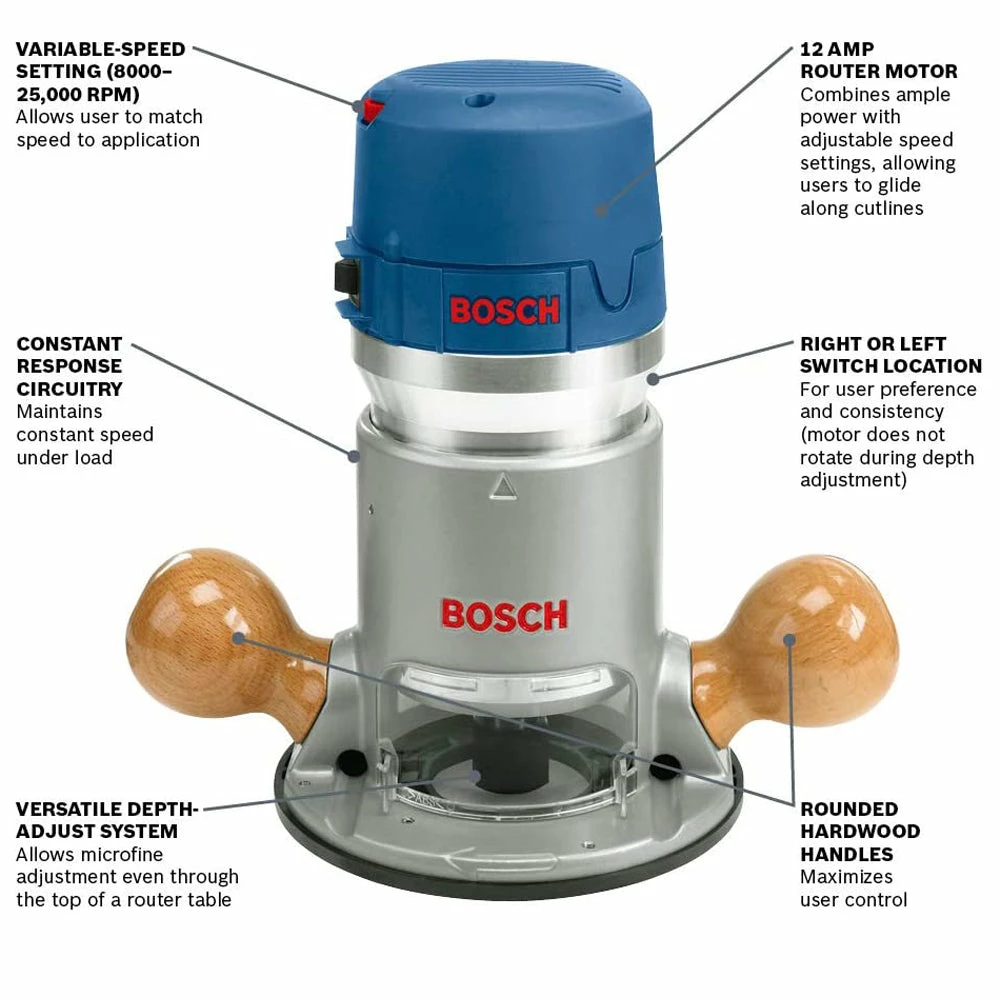

Features
- 2.25 HP, 12 amp motor delivers 8000 – 25,000 RPM
- Variable-speed dial – For matching speed to workpiece and task
- Coarse and microfine bit depth adjustment system with the ability to reset the depth indicator – For fast, precise depth adjustment
- Tool-free template guide adapter – For fast and easy template guide changes
- Large 3-3/4 in. base opening plus 2 in. sub-base opening – Accepts large bits
- Exclusive precision centering design centers bit precisely – Makes it easy to keep bit on intended cut line when using jigs, templates, dovetail fixtures and similar guidance devices
- Right or left switch location – For user preference and consistency (motor does not rotate during depth adjustment)
- Classic hardwood handles – For comfort and beauty
- One-piece armature shaft – For accuracy and long bit shank capacity
- Soft start – Reduces start-up torque
- Constant Response circuitry – Maintains constant speed under load, provides overload protection
What’s in The Box

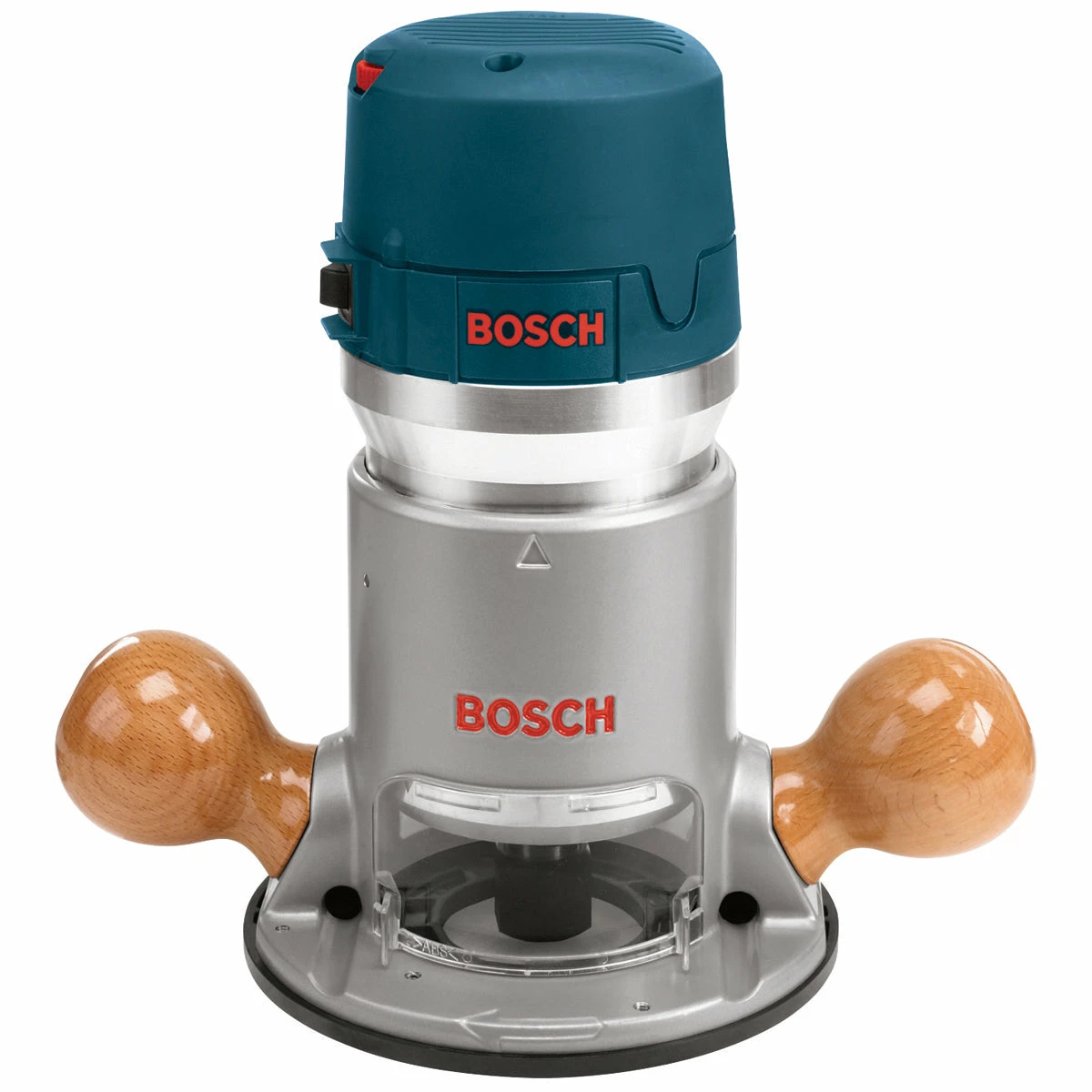

- 2.25 HP Fixed-Base Electronic Router – 1617EVS
- Motor
- 1/4 in. Self-Releasing Collet Chuck
- 1/2 in. Self-Releasing Collet Chuck
- 16mm Shaft Wrench
- Collet Nut Wrench
- Tool-Free Templet Guide Adapter
- 10 ft. Flexible Rubber Cord
- Chip Shiel
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Weight: | 7.7 lbs. |
| Amperage: | 12 |
| Base Dimensions (Fixed): | 6 in. x 6 in. |
| Base Opening: | 3-3/4 in. |
| Base Type: | Fixed |
| Collet Capacity: | 1/4 in. / 3/8 in. / 1/2 in. / 8mm |
| Cord Length: | 10 ft. |
| Depth Adjustment Range (Fixed Base): | 1-5/8 in |
| Depth Adjustment System: | Micro-Fine Depth Adjustment |
| Handle Style: | Dual Knob |
| Horsepower (Peak): | 2.25 |
| No-Load Speeds (RPM): | 8,000 – 25,000 |
| Speed Controls: | Dial |
| Speed Settings: | Variable |
| Switch Type: | Toggle |
| Voltage: | 120V |
