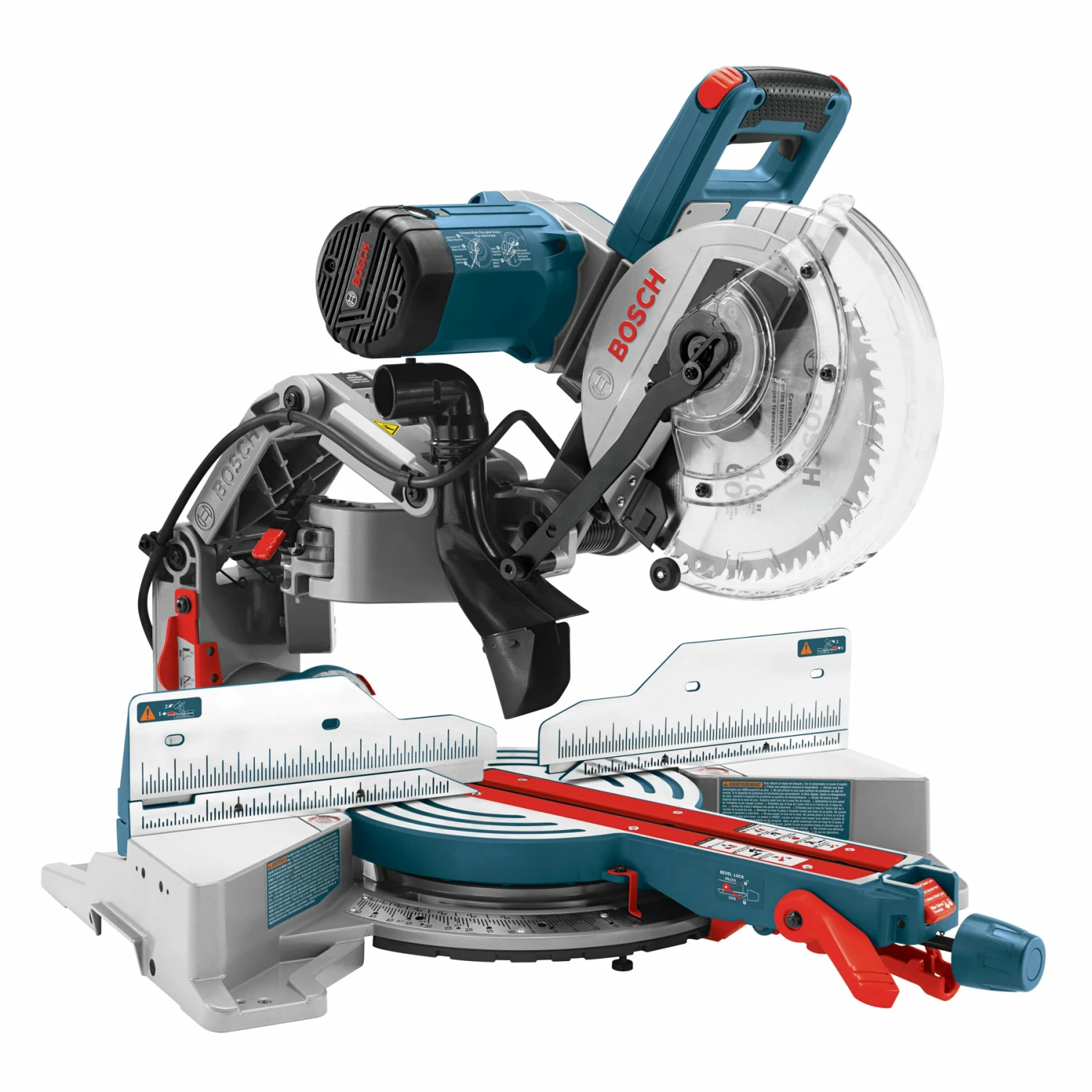

Bosch CM10GD 10-Inch 15 Amp Electric Brake Dual-Bevel Glide Miter Saw

Features

• Axial-Glide System: durable precision a.aa…œ consistent precision over tool life; compact workspace a.aa…œ saves up-to 10 In. workspace; glide action a.aa…œ unmatched smoothness of cut
• Expanded cutting capacity: 12 In. horizontal capacity (nominal); 5-1/2 in. vertical capacity against the fence (base); 6 in. crown capacity against the fence (45aDegree spring)
• Upfront bevel controls – all-metal bevel lock lever and range selector located upfront for quick and easy bevel settings without reaching behind the saw
• Chop/crown lock : locks head in place for maximum chop cutting capacity for upright base molding and nested crown molding
• Tall sliding 4-1/4 in. fences: for easy bevel set ups and increased crown and base molding capacity
• Large easy-to-read uniform bevel and stainless steel miter scales: 52aDegree left/60aDegree right miter capacity; 47aDegree left/47aDegree right bevel capacity with marked detents and roof pitch angles
• Adjustable miter detents: detents at 0aDegree, 15aDegree, 31.6aDegree, 22.5aDegree, 45aDegree, 60aDegree right super-accurate and durable design
• Push-button miter Detent override – easy-to-access thumb actuated control right up front for fine miter angle adjustment
• Bevel detents: 0, 33.9aDegree, 45aDegree left/right for accurate cuts
• Category best 90% dust collection – optimized for cutting 2x material with a vacuum
• Ergonomic ambidextrous trigger handle with soft grip – large form fitting ergonomic handle provides comfort for all-day use

What’s in The Box

• 15 Amp 10 in. Dual-Bevel Glide Miter Saw – CMD10GD

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Weight:	64 lbs.
Amperage:	15
Bevel:	Dual
Blade Diameter:	10 in.
Blade Speed (RPM):	4800
Cutting Capacity (0 Miter/0 Bevel):	5-1/2 in. x 12 in.
Laser Guide System:	No
Max. Bevel Angle (Left):	47 Degrees
Max. Bevel Angle (Right):	47 Degrees
Max. Miter Angle (Left):	48 Degrees
Max. Miter Angle (Right):	48 Degrees
Positive Miter Detents:	9
Slide System:	No
Voltage:	120V
