Bosch D-Tect200C 12V Cordless Top Performance Professional Wallscanner Tools & Equipment

Features

• Five-point plumb and level point projection accurately transfers and aligns level, plumb, 90 degrees and grade points
• Built-in VisiMax technology monitors power consumption to maximize line visibility and extend battery life
• Bright green-beam laser up to 4X brighter than standard red beams
• Full rubber overmold housing helps protect every major impact point, with a design similar to a roll cage
• Smart Pendulum System allows tool to self-level, and it indicates out-of-level condition
• Secure laser transport after switching off, pendulum is locked, plus 360 degree rotation for extra protection
• Integrated multipurpose laser mount positions and mounts with magnets or threaded mounts (1/4 In.-20)

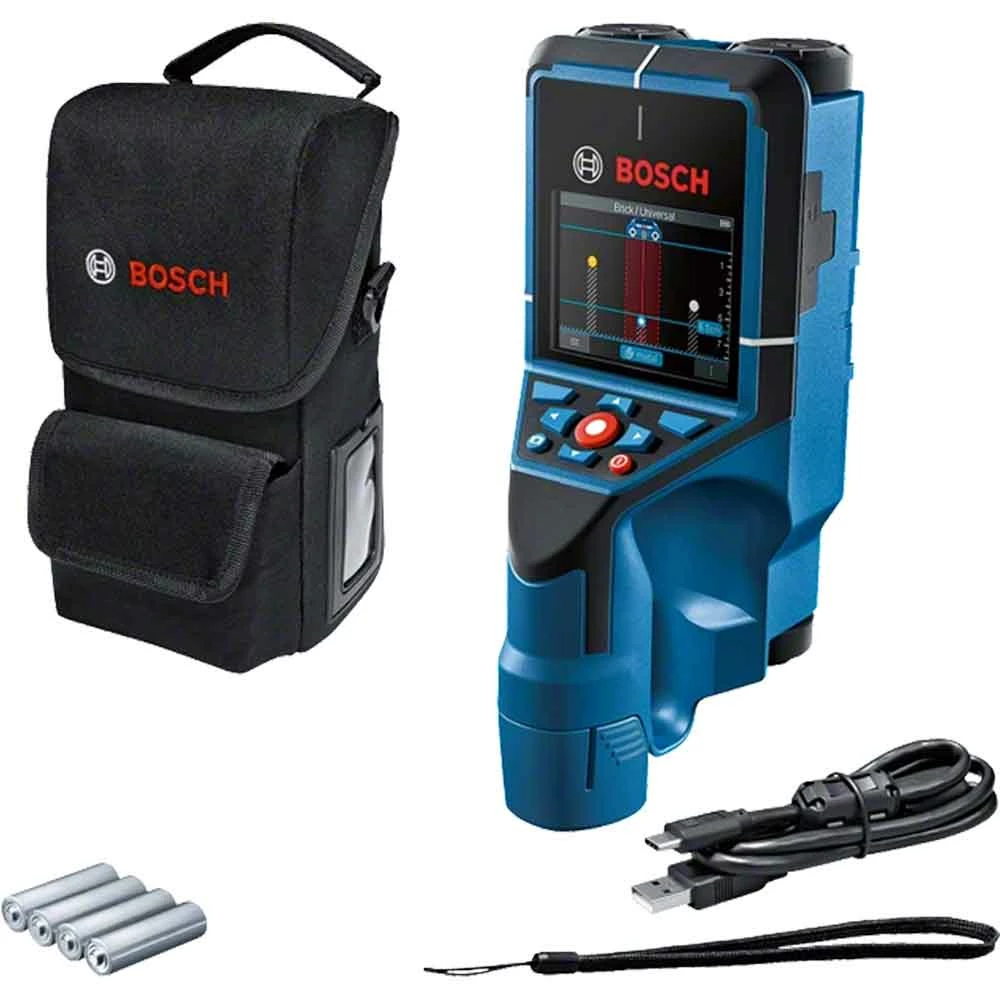

What’s in The Box

• Wallscanner D-tect 200 C Professional
• Battery adapter (1600A017HF/1600A017HH)
• USB-C Cable
• 4 x 1.5 V LR6 battery (AA)
• Hand strap
• Pouch
• Owner’s Manual

Warranty

• 3 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	D-Tect200C
Brand	Bosch
Power Supply	12 V Li-Ion battery, 4 x 1.5 V LR6 (AA), 4 x 1.2 V HR06 (AA)
Bosch Radar Technology	Yes
Detectable objects	Magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, plastic pipes, water-filled plastic pipes, wooden substructures
Max. Detection Depth	200 mm
Max Detection Depth, Dry concrete	200 mm
Max Detection Depth, Early age concrete	60 mm
Max Detection Depth, Other Wall Types	80 mm
Max Detection depth, Wooden Substructures	38 mm
Accuracy	+/- 5 mm (plus use-dependent deviation)
Views	Object view, Spot view, Signal View 2D, Signal View
Wall types	Brick/Universal, Concrete, Drywall, Panel Heating, Early age concrete, Horizontal coring brick, Vertical coring brick
Dust and splash Protection	IP 5X

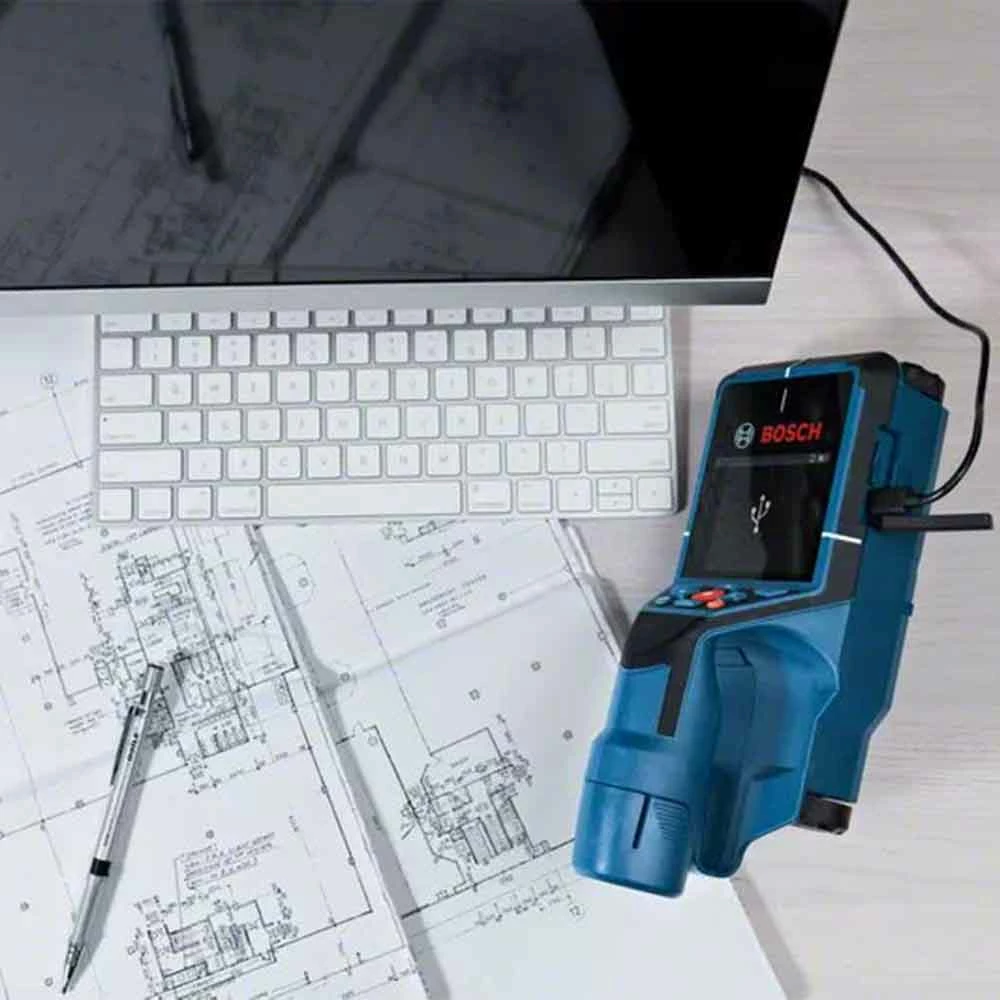

Documentation Via	USB-C, SD-Card
Updatable	Yes
Additional Function	Leakage detection, distance measurement
Material Identification	Live cable, Magnetic metal, Non-magnetic metal, Non-metal material
Weight	1.5 lbs
