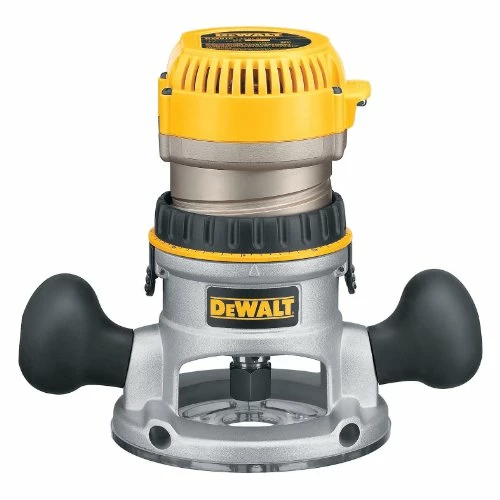

DeWALT DW618K Electronic Variable Speed Fixed Base Router Tool W/ Soft Start Kit Tools & Equipment

Features

• 2-1/4 HP (maximum motor HP), 12 amp motor provides the power to rout smoothly through the toughest hardwoods.
• Electronic variable speed with full feedback control for constant speed under load from 8,000-24,000 rpm and soft start to reduce start-up torque for enhanced control.
• Micro-fine depth adjustment ring provides precise depth adjustments in 1/64” increments and adjusts vertically for a constant switch/cordset location.
• Adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking.
• Quick release motor latches for fast and easy motor pack removal for bit and base changes.
• Detachable cordset offers cordset serviceability and the ability to use the same motor pack for all bases.
• Sub-base concentricity gauge included to ensure bit concentricity for best-in-class accuracy.
• Spindle lock to allow for one wrench bit changes.
• Clear, LEXAN sub-base provides enhanced base durability, bit visibility, and accepts standard template guide bushings.
• Rubber overmolded handles and low center of gravity design provide best-in-class comfort, balance, and control.
• Dust-sealed switch provides durability and long switch life.
• Heavy duty, precision machined, die-cast aluminum base and motor housing for durability and low tool weight.
• Nickel plated motor housing for a smooth, long-lasting depth adjustment.
• Right or left switch and cordset location provides the ability to have the switch in your right or left hand.
• Flat top for easy bit and depth changes.
• Self-releasing, long, eight slotted collets for better bit retention and eliminates frozen bits.

What’s in The Box

• DW618M Motor Pack

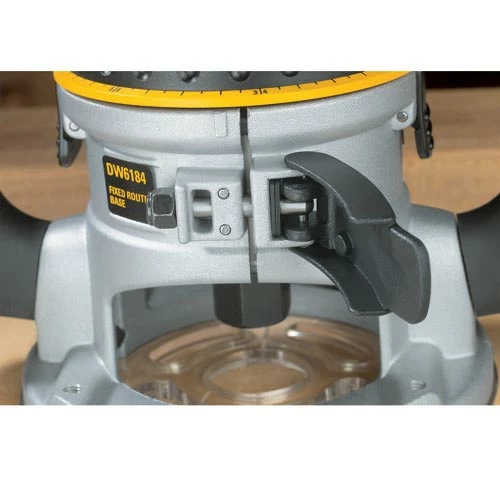

• DW6184 Fixed Base
• 1/4 and 1/2 collets
• Wrench
• Sub-base concentricity gauge
• Large hold sub base
• Contractor Bag
• Owner’s Manual

Warranty

• 30 Day Satisfaction Guarantee

Specifications

Amps	12
Horsepower	2-1/4 HP
No Load Speed	8,000-24,000 rpm
Collet Diameter	1/2, 1/4”
Plunge Stroke	N/A
Depth Stop	Micro-fine Ring
Base Dimension	6”
Spindle Lock	Yes
