Features
- 15.0 Amp motor uses state of the art circuitry for soft starts and smooth operation.
- Full wave electronic variable speed motor runs at 8,000-22,000 rpm with constant speed under load to ensure a quality finish in all materials.
- Rack and pinion depth adjuster, magnified scale and micro-fine bit depth adjuster provides fast and accurate depth settings.

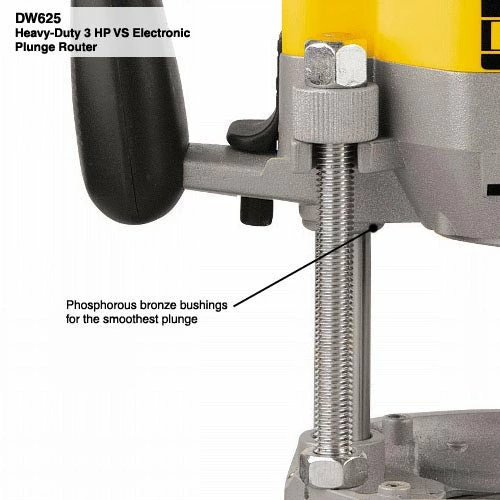

- Phosphorous bronze bushings provides a smooth and accurate plunge.
- Spindle lock button allows one-wrench bit changes.
- Dust extraction adapter for cleaner work sites.
- 1/4″ – 1/2″ collet capacity for greater versatility.
- Guide Bushing adapter plate accepts standard guide bushings for template work.
- One piece motor shaft and spindle ensures perpendicularity and accuracy.
What’s in The Box
- 1/4″ and 1/2″ collets
- Dust extraction adaptor
- Template guide bushing adaptor
- Wrench
- Owner’s Manual
Warranty
- 3-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Amps | 15 |
| Horsepower | 3 HP |
| No Load Speed | 8,000-22,000 rpm |
| Collet Diameter | 1/4, 1/2″ |
| Plunge Stroke | 2-7/16″ |
| Depth Stop | 3 Stage Turret Stop |
| Base Dimension | 5-5/8 x 6-11/16″ |
| Spindle Lock | Yes |
| Power Outlet | 120V |
