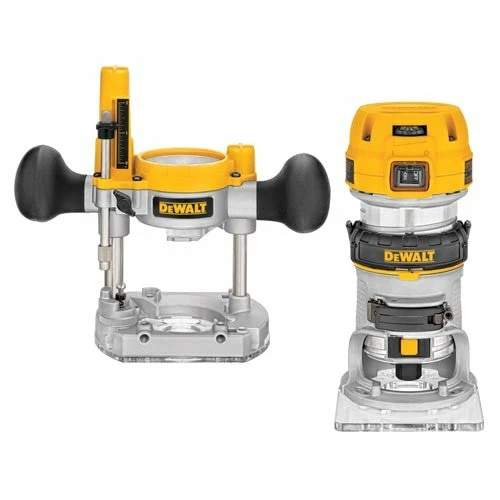

DeWALT DWP611PK 1.25 Horsepower HP Compact Router Kit

Features

• Durable 1.25HP motor delivers the power to meet the toughest applications
• Variable speed control feature enables bit speed to be optimized for changing applications
• Soft-starting motor features full-time electronic feedback that maintains motor speed through the cut

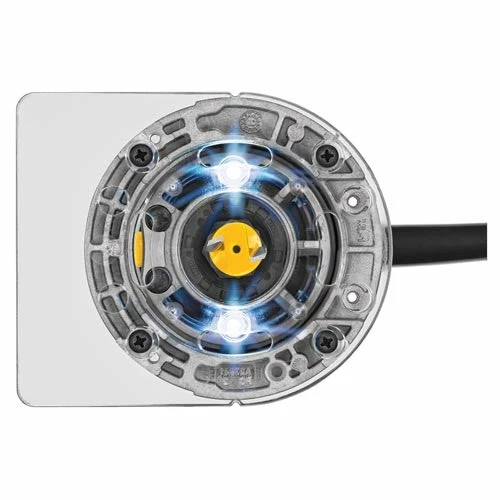

• Dual LED’s and clear sub-base ensure maximum visibility in operation
• Adjustment ring enables controlled bit depth changes to within 1/64 (fixed base only)
• Plunge base incorporates fine-tune adjustment rod for precise depth setting
• Large, low-pressure spindle lock button allows for comfortable, single wrench bit changes
• Multiple shaft-lock detents enable quick and simple bit changes
• Depth ring and clamping mechanism combine to ensure motor remains locked in position (fixed base only)
• Spring-loaded release tabs allow for quick base removal (fixed base only)
• Motor can be transitioned quickly and easily between fixed and plunge bases
• Overmolded rubber handles provide a comfortable and secure grip (plunge base only)
• Allows up to 1.5 of depth travel with standard base and 2 with plunge base
• Aluminum motor housing and base construction provides long term durability
• Extended sub-base provides greater work surface contact for improved user control (fixed base)
• Large plunge base platform provides added stability for heavier applications and sub-base accepts universal template guides
• Extended 8-slot 1/4 collet maximizes surface contact with router bit shank for a tighter grip

What’s in The Box

• Motor
• Standard Base
• Plunge base
• Wrench
• Owner’s Manual

Warranty

• 3 Year Limited Warranty
• 30 Day Satisfaction Guarantee

Specifications

Amps	7.0 Amps
HP	1.25HP
No Load Speed	16,000 – 27,000rpm
Collet Diameter	1/4 router wider range of applications
Plunge Stroke	1.5
Base Dimension	4
Sub-Base	Oversize D-Shape better support on material
Spindle Lock	12 detents/position quicker bit change
Housing location	Low lower center of gravity
Quick release	Faster setup
Depth adjustment	Intuitive ring quicker to adjust
Clamping	Ring and cast clamp stronger clamping design
LED’s	2 LED’s for better visibility
Tool Weight	4.1lbs
Shipping Weight	6.00 lbs.
