Features
- Evolution controller a cutting-edge, intuitive control, the evolution controller features a multilingual, 2-line LCD text display with color-coded, backlit buttons, it has received upgrades, including USB flash capability, smart battery charging, voltage adjustment and backlit membrane pad style buttons
- Designed for large homes and small commercial buildings
- Runs off natural gas or LP fuel source
- Low-speed exercise mode for quieter weekly tests; 61 dB @ 23′
- Two-Line LCD Display provides service and maintenance intervals

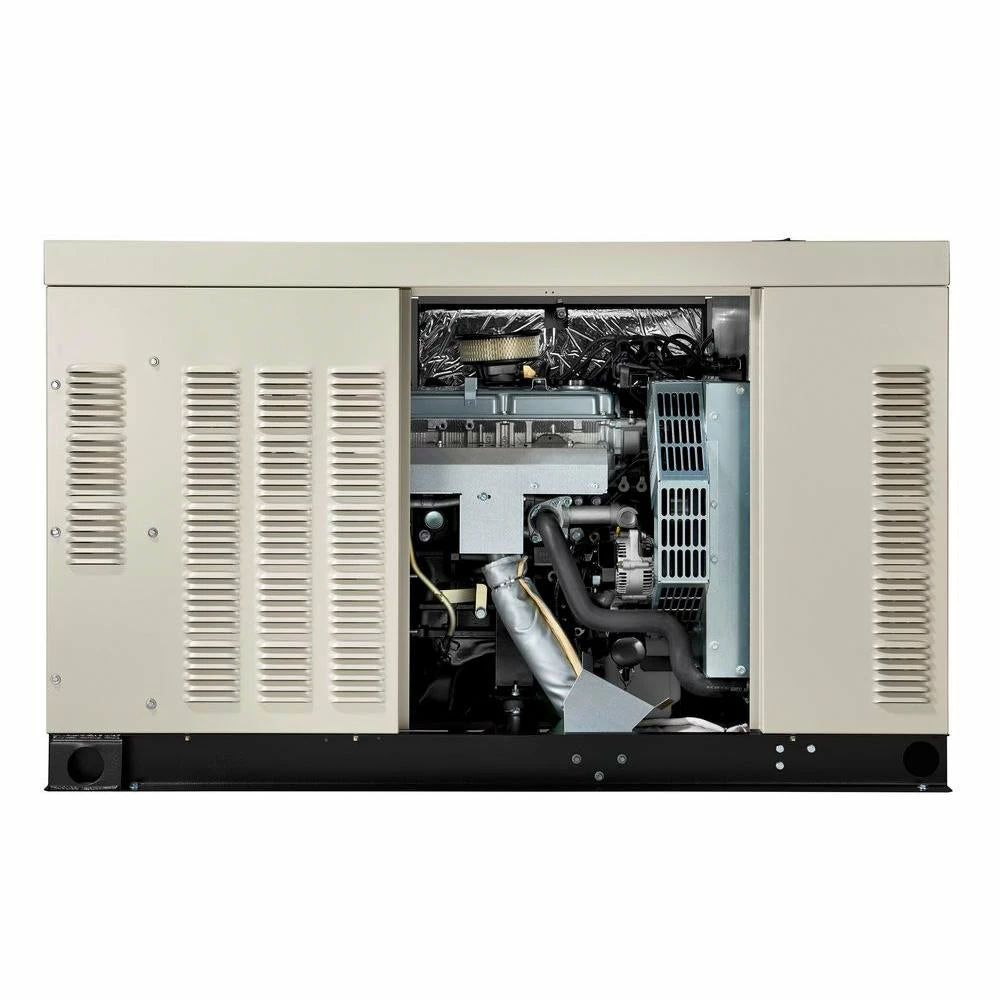

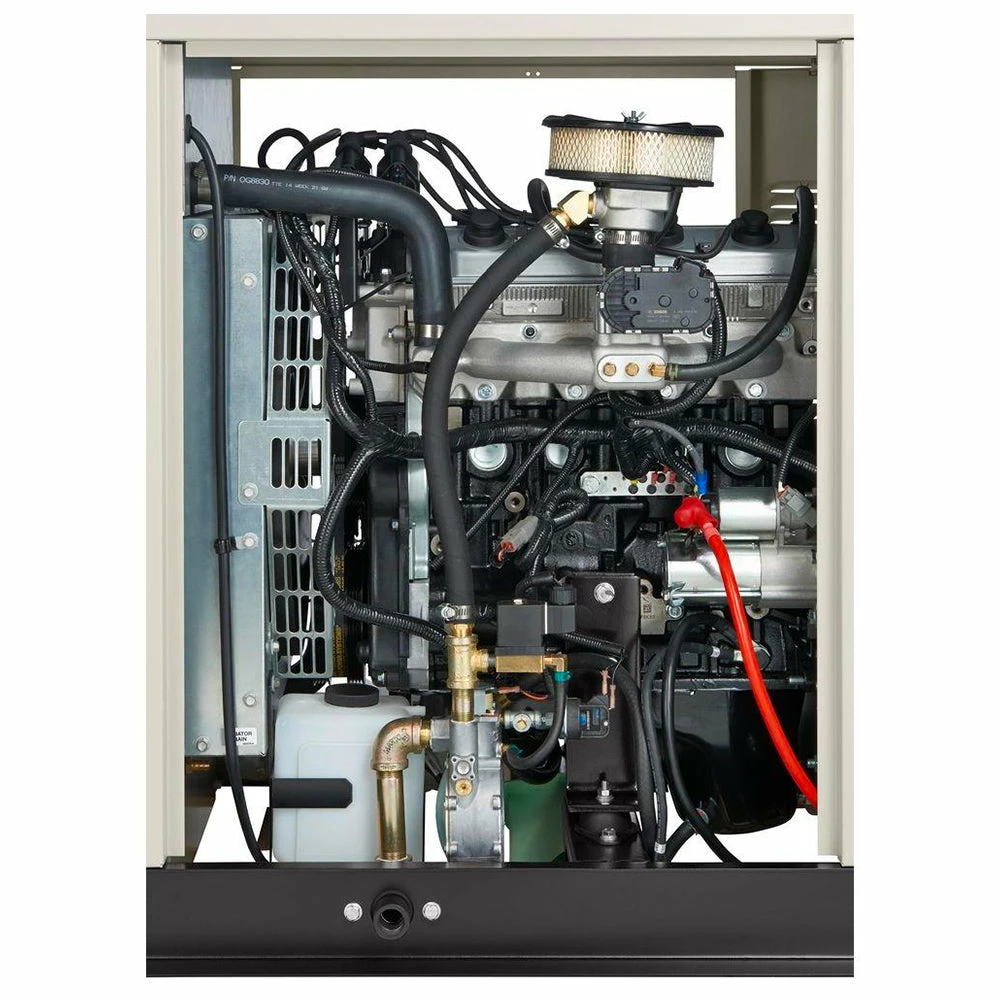

- Powerful Generac 2.4L 4-cylinder liquid-cooled engine
- Corrosion-resistant material ideal for salty air conditions
- True power technology delivers best-in class power quality with less than 5% total harmonic distortion (THD) for clean, smooth operation of sensitive electronics and appliances
- Lockable, external viewing window for quick status check
- High coolant temp, low coolant, low oil pressure and overspeed
- Easily check generator status via computer, tablet or smartphone
- Customize your system based on your actual application
- Evolution controller a cutting-edge, intuitive control, the evolution controller features a multilingual, 2-line LCD text display with color-coded, backlit buttons, it has received upgrades, including USB flash capability, smart battery charging, voltage adjustment and backlit membrane pad style buttons
- True power technology delivers best-in class power quality with less than 5% total harmonic distortion (THD) for clean, smooth operation of sensitive electronics and appliances
What’s in The Box

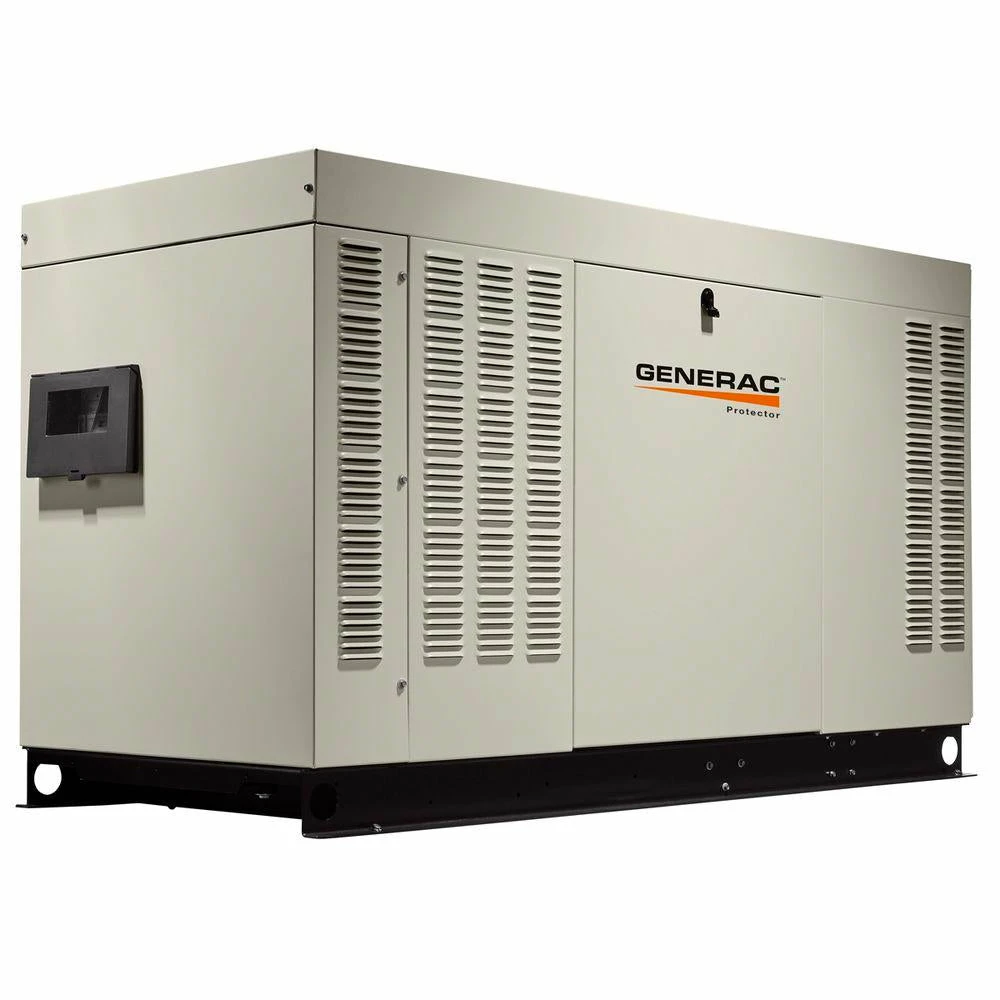

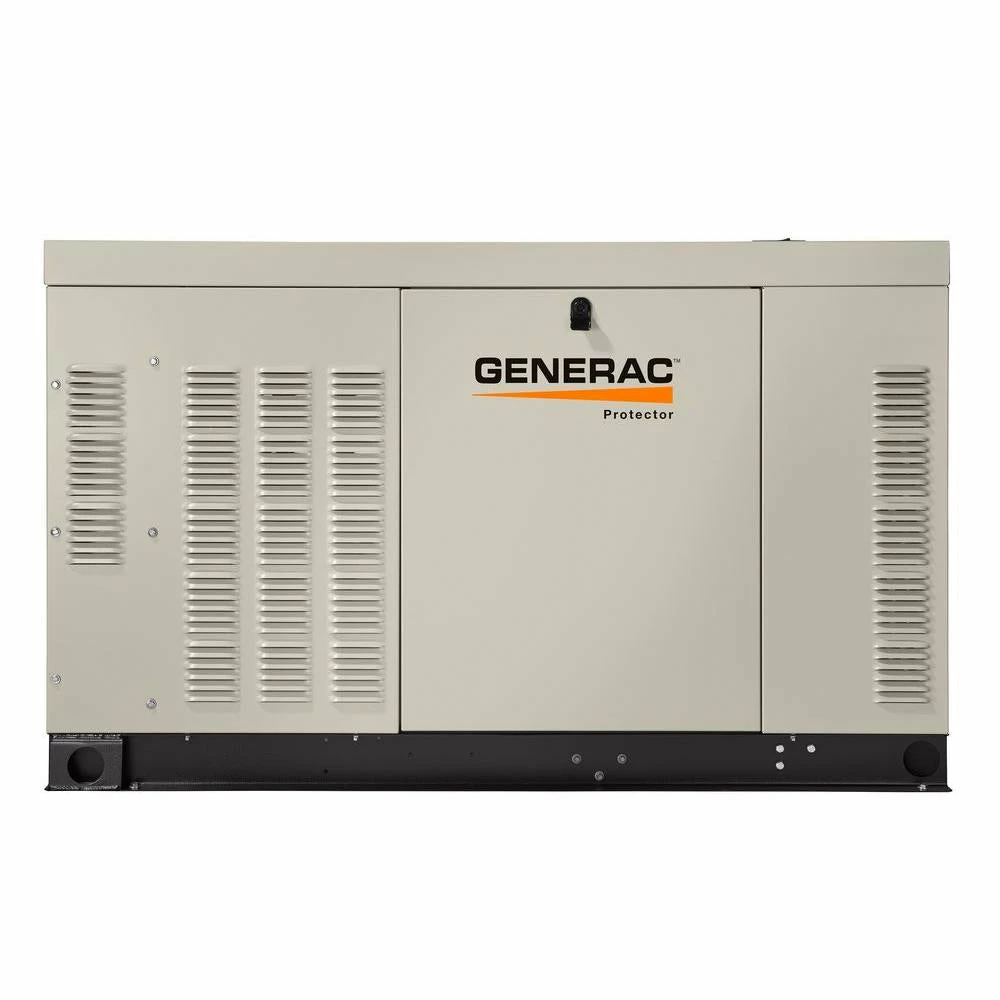

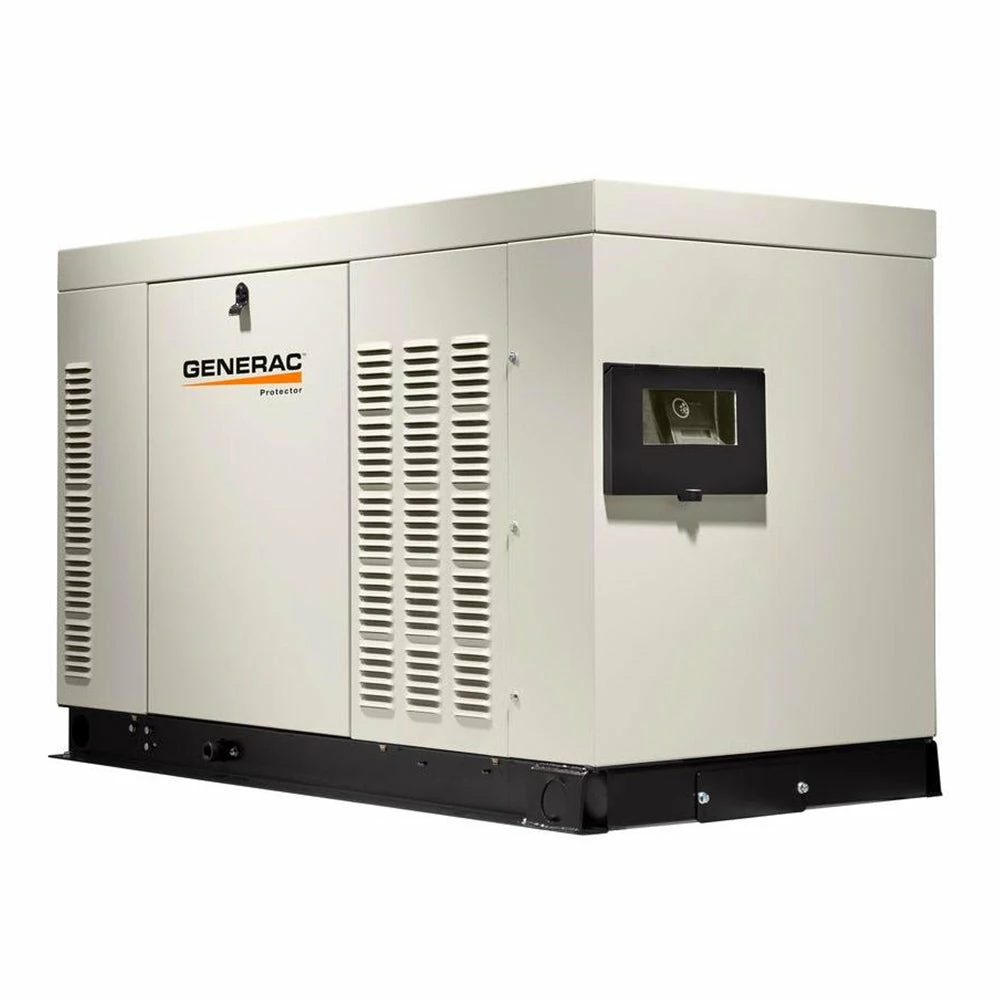

- 45,000-Watt Automatic Standyby Generator – Aluminum Enclosure
- Owners Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed

Specifications
| Sku | RG04524ANAX |
| Brand | Generac |
| Engine Displacement | 1,400cc |
| Surge Wattage | 45,000 Watts |
| Rated Wattage | 45,000 Watts |
| Amperage | 188A |
| No Load Speed | 2,600 Rpm |
| Voltage | 120/240V |
| Phase | Single |
| Fuel Type | LP / Natural Gas |
| Starting System | 12v Auto Start |
| Low Oil Alert/Shutdown | Yes |
| NG Fuel Consumption at 50-Percent Load | 380 ft3/hr |
| NF Fuel Consumption at 100-Percent Load | 730 ft3/hr |
| LP Fuel Consumption at 50-Percent Load | 4.2 Gallons/Hr |
| LP Fuel Consumption at 100-Percent Load | 8 Gallons/Hr |
| Decibel Rating at 7m | 61 dbA |
| Enclosure | Aluminum |
| Cooling System | Liquid Cooled |
| Circuit Breaker Size | 200A |
| UL Listed | Yes |
| Length | 76.8 in. |
| Width | 35 in. |
| Height | 46.1 in. |
| Product Weight | 1,512 lbs. |
