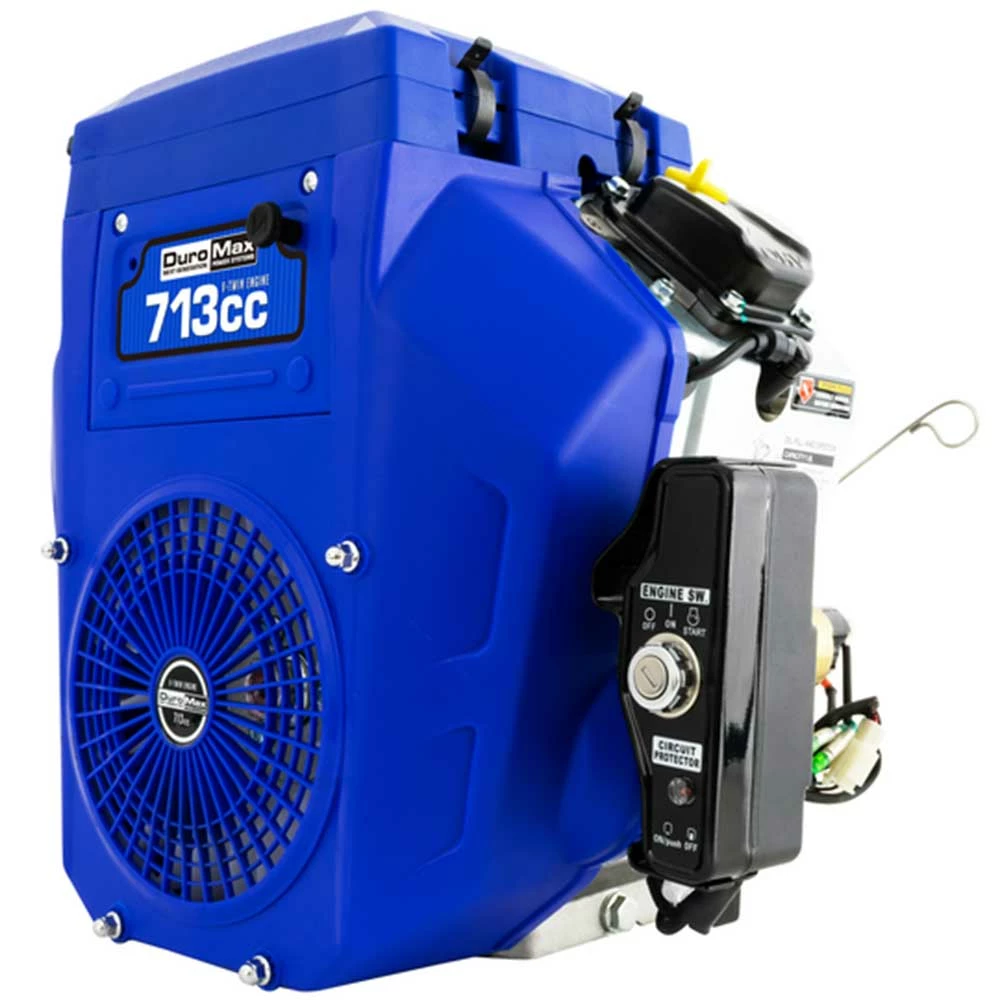

Duromax XP23HPE 713cc V-Twin Engine W/ Electric Start Key Switch Box

Features

• 713cc 4 Stroke OHV engine
• Runs on Standard 87 Octane Gasoline
• Electric Start Key Switch Box
• Air Cleaner: Dual, Semi-dry, Oil Bath
• EPA and CARB Approved for Safe Mandated Use
• Applications: Go Karts, Pressure Washers, Trailer Mounted – Mobile Carwashes, Log Splitters, RotoTillers – Cultivators, Water/Trash Transfer Pump

What’s in The Box

• DuroMax XP23HPE Engine
• Owners Manual

Warranty

• 3-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Brand	DuroMax Power Equipment
SKU	XP23HPE
Engine Type	4-Stroke
Valve Type	OHV
Engine Cooling Type	Forced Air
Displacement	713cc
Bore	80mm
Stroke	71mm
Compression Ratio	8.5:1
Max Output	4000 RPM
Max Torque	31.72 ft-lbs (43 N.m.)@ 2500RPM
Shaft Orientation	Horizontal

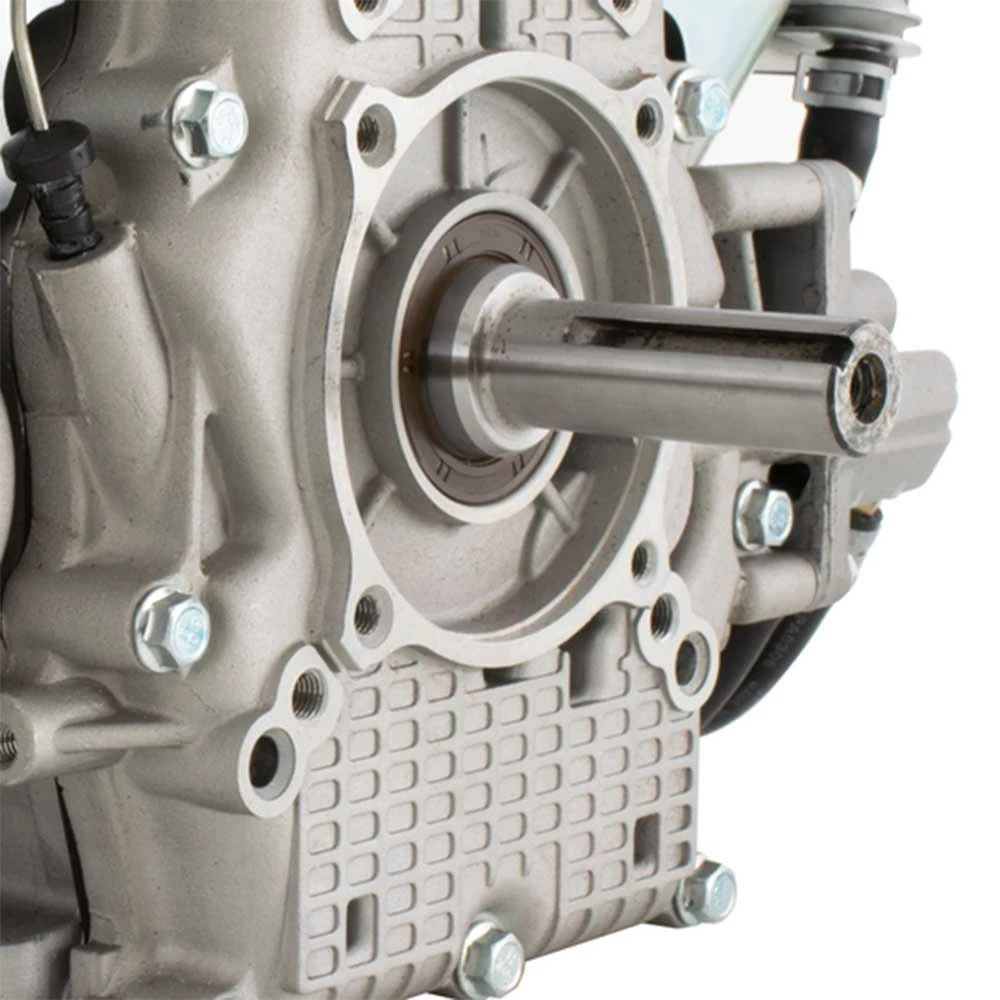

Shaft Size	1″ Diameter, 3.01″ Long, 1/4″ x 2″ Keyway
Shaft End	3/8″ Size 24 UNF – 2B
Shaft Rotation	Counter Clockwise
Measurement from Center of Shaft to Base	5.29″
Fuel Types	Gasoline
Fuel Delivery System	Carburetor
Starting Type	Key Switch
Electric Start	Yes
Cast Iron Sleeve	Yes
Bearing Type	Stainless Steel Needle Bearings
Oil Cooling Type	Pressure and Splash
Oil Capacity	54.1 fluid oz.
Recommended Oil	10W-30
Recommended Oil Types	Blended, Conventional, or Synthetic
Product Dimensions	19.3″-Long x 18.3″-Wide x 14″-High
Product Weight	103.6-lbs
UPC	811640016067
Warranty	3 Year
EPA Certified	Yes
CARB Certified	Yes
50 State Emissions	Yes
Package Dimensions	21.5″L x 21.1″W x 19.1″H
