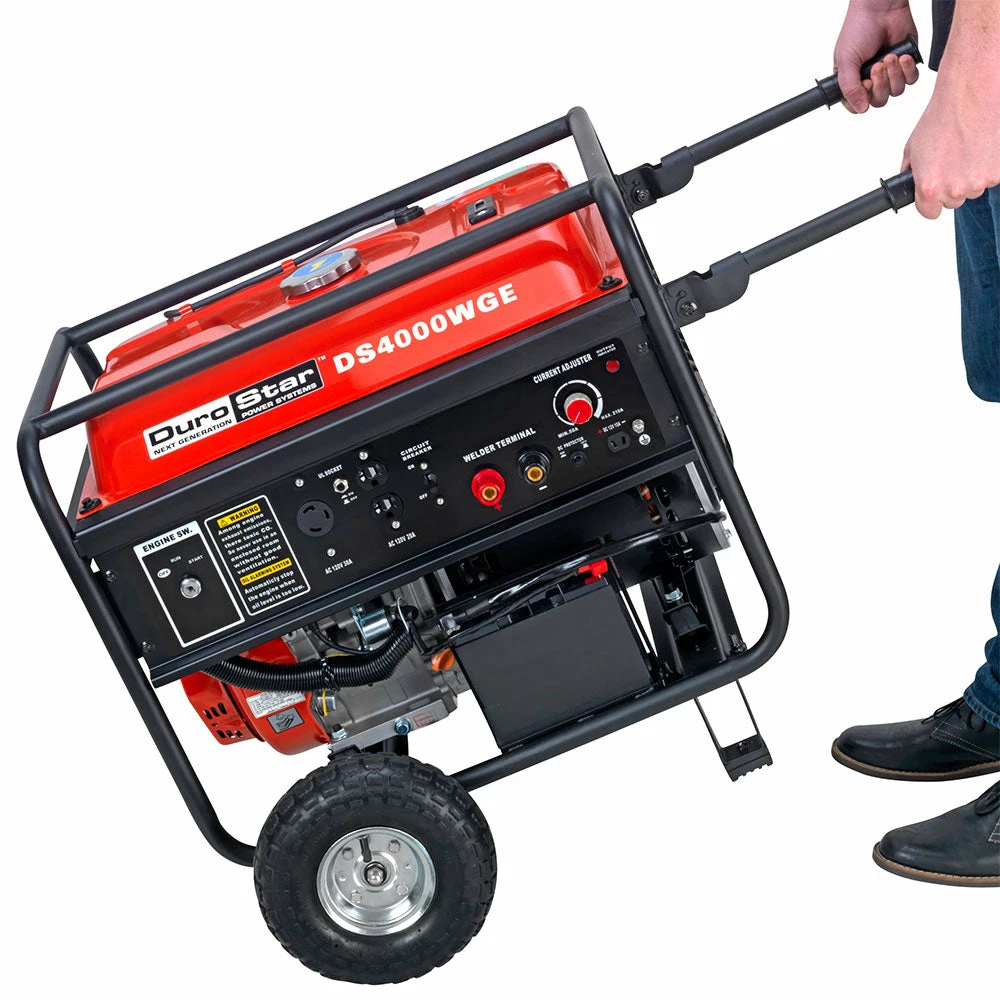

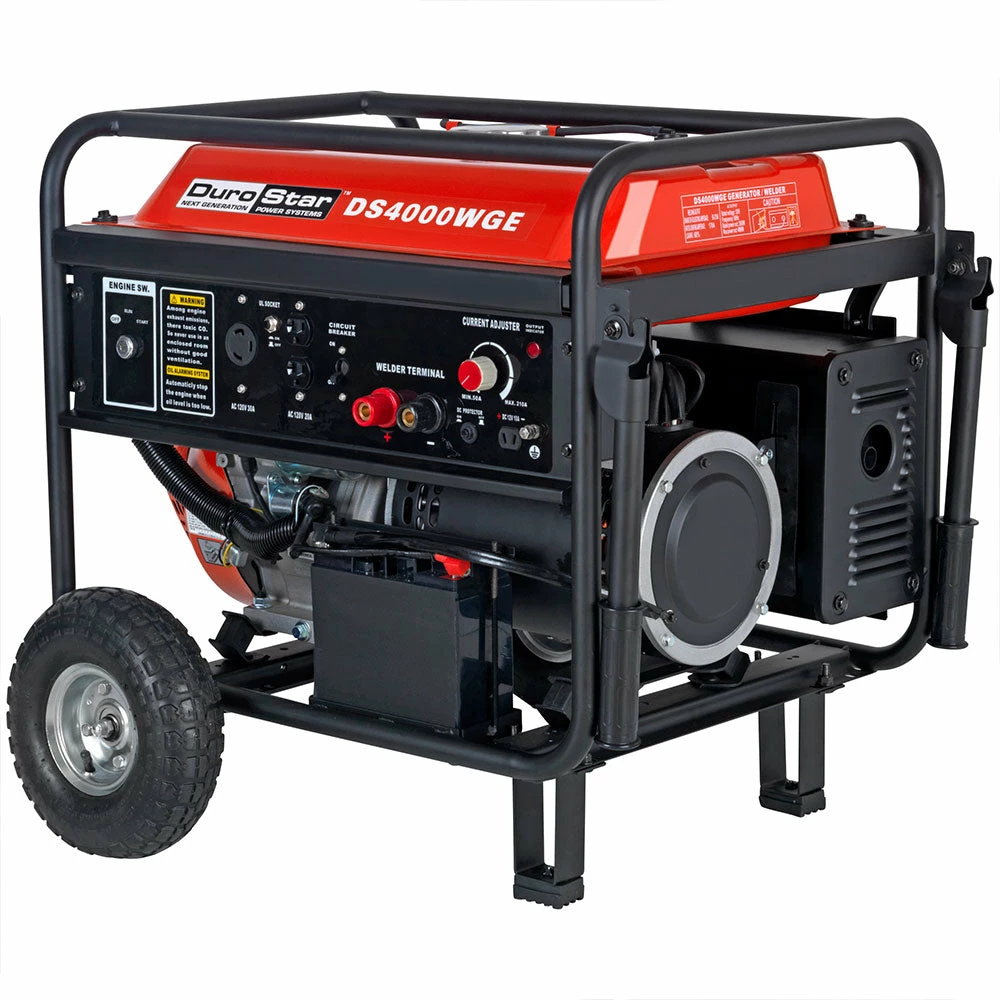

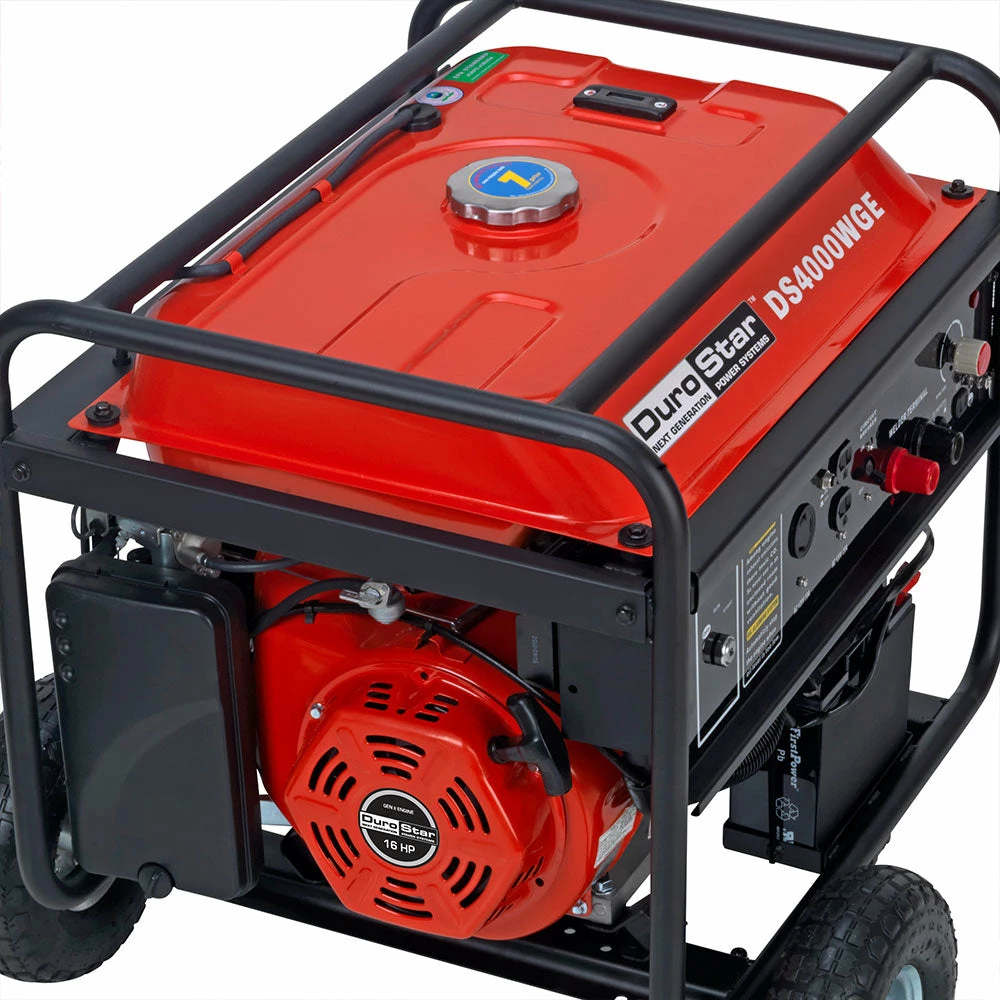

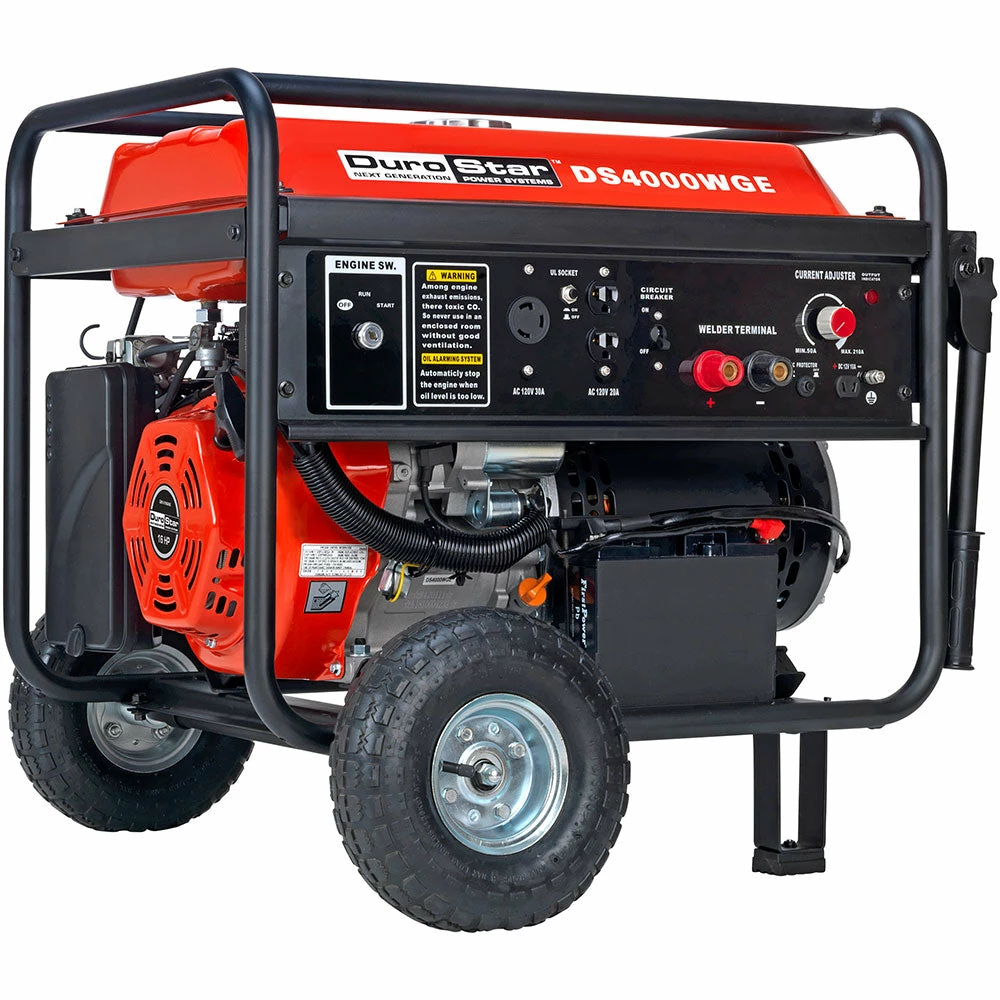

DuroStar DS4000WGE 4,000-Watt 210-Amp 120-Volt Portable Welding Generator

Features

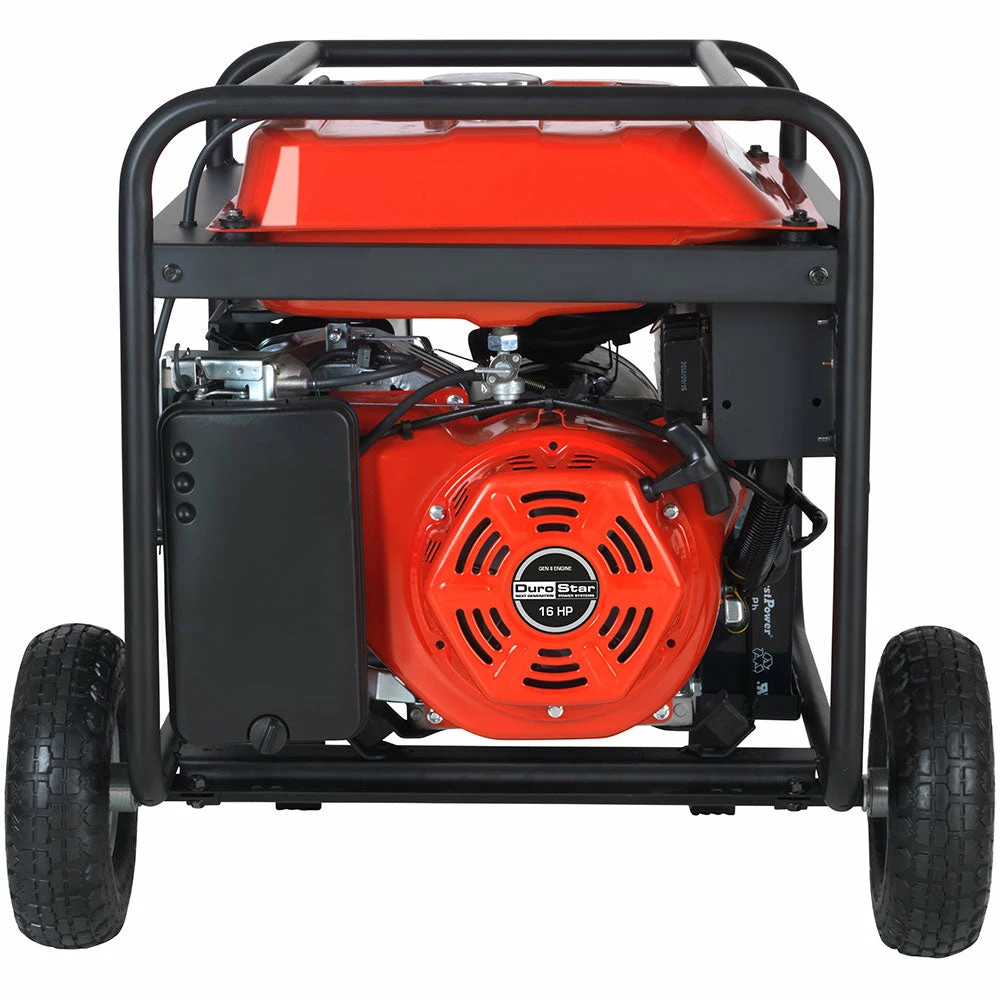

• Air cooled OHV gasoline engine w/ low oil shutoff and a super quiet muffler.

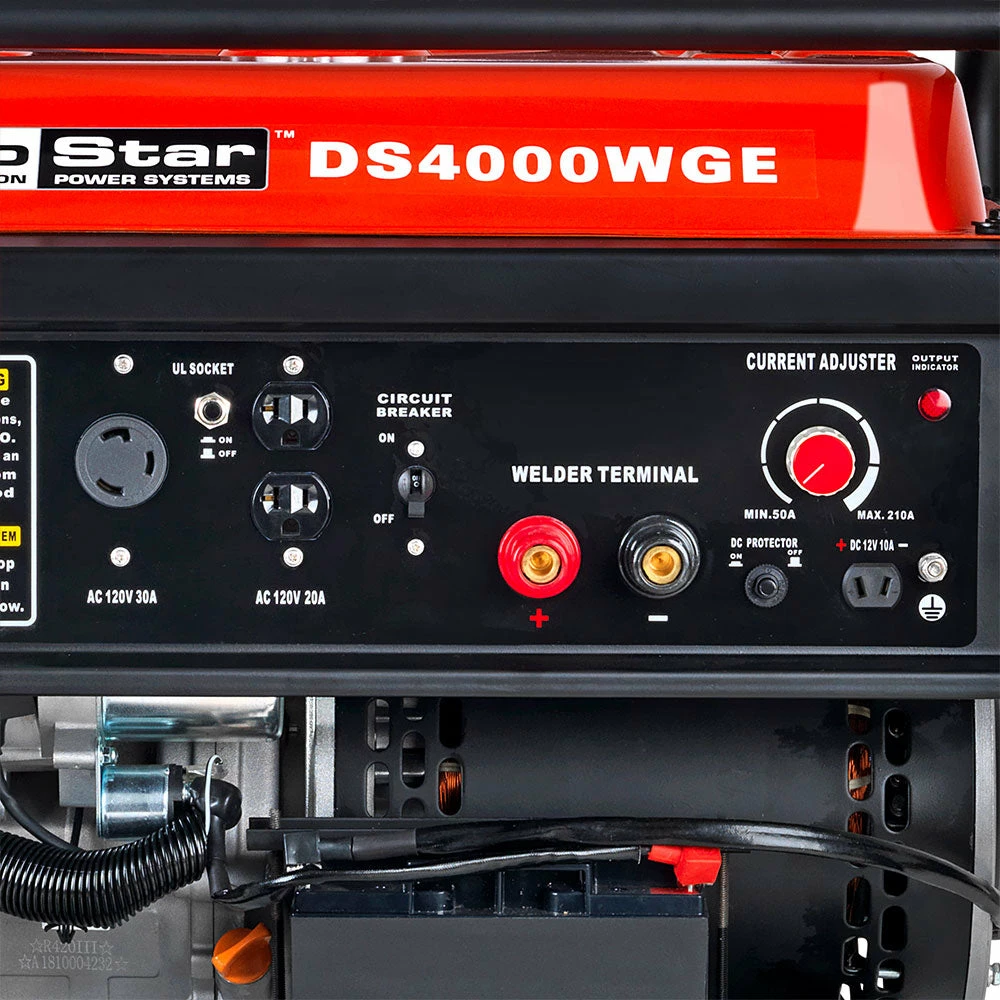

• Full power panel with 50 to 210 amp DC welding currant adjustment, 3 120v AC power outlets and 12vdc battery charger.
• Heavy duty steel frame with four point fully isolated motor mounts for smooth and quiet operation.
• Both electric key and recoil pull start.
• Powerful ARC Welder Doubles as a 4000 watt Power Generator.
• Its designed for stick welding with quick and easy arc starts.
• Ideal for farm/ranch, maintenance, construction, home and even emergency power outages.

What’s in The Box

• Gas Engine Portable Generator – DS4000WGE
• Oil Funnel
• Spark Plug Wrench
• Tool Set
• Wheel and Handle Kit
• DC Charging Cables
• Welding cables not included.
• Owner’s Manual

Warranty

• 3-Year Residential Limited Factory Warranty
• 1-Year Commercial Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	DS4000WGE
Brand	DuroStar Power Equipment
Gasoline
Peak Wattage	4,000
Running Wattage	3,500
Running Amperage at 120V	29.17
Runtime at 25% Load	17 hours
Runtime at 50% Load	8 hours
Engine Specification
Engine Type	4-Stroke
Valve Type	OHV
Engine Cooling Type	Forced Air
Engine Size	420cc
Engine Speed	3600 RPM
Starting Type	Key Switch
Electric Start	Yes
Recoil Start	Yes
Fuel Delivery System	Carburetor
Fuel Types	Gasoline
Oil Cooling Type	Splash
Recommended Oil	10W-30
Recommended Oil Types	Blended, Conventional, or Synthetic
Oil Capacity	37 fluid oz
Automatic Low Oil Shutdown	Yes
Cast Iron Sleeve	Yes
Bearing Type	Stainless Steel Ball Bearing
EPA Certified	Yes
CARB Certified	Yes
50 State Emissions	Yes
Panel Specification
5-20R	2
L5-30R	1
12V Post	1
Generator Specification
Voltage	120 Volts
Frequency	60 Hertz
Winding Material	100% Copper Windings
Automatic Voltage Regulator	Yes
Battery Type	12V SLA
Battery Included	Yes
RV Ready	Yes
Fuel Tank Capacity Gasoline	6.6 Gallons
Fuel Gauge	Yes
All Metal Construction	Yes
Product Dimensions	29″-Long x 28″-Wide x 26″-High
Product Dry Weight	232-lbs
Product Weight	239-lbs
Volume (db)	72 dB
UPC	811640010621
Warranty	3 Year

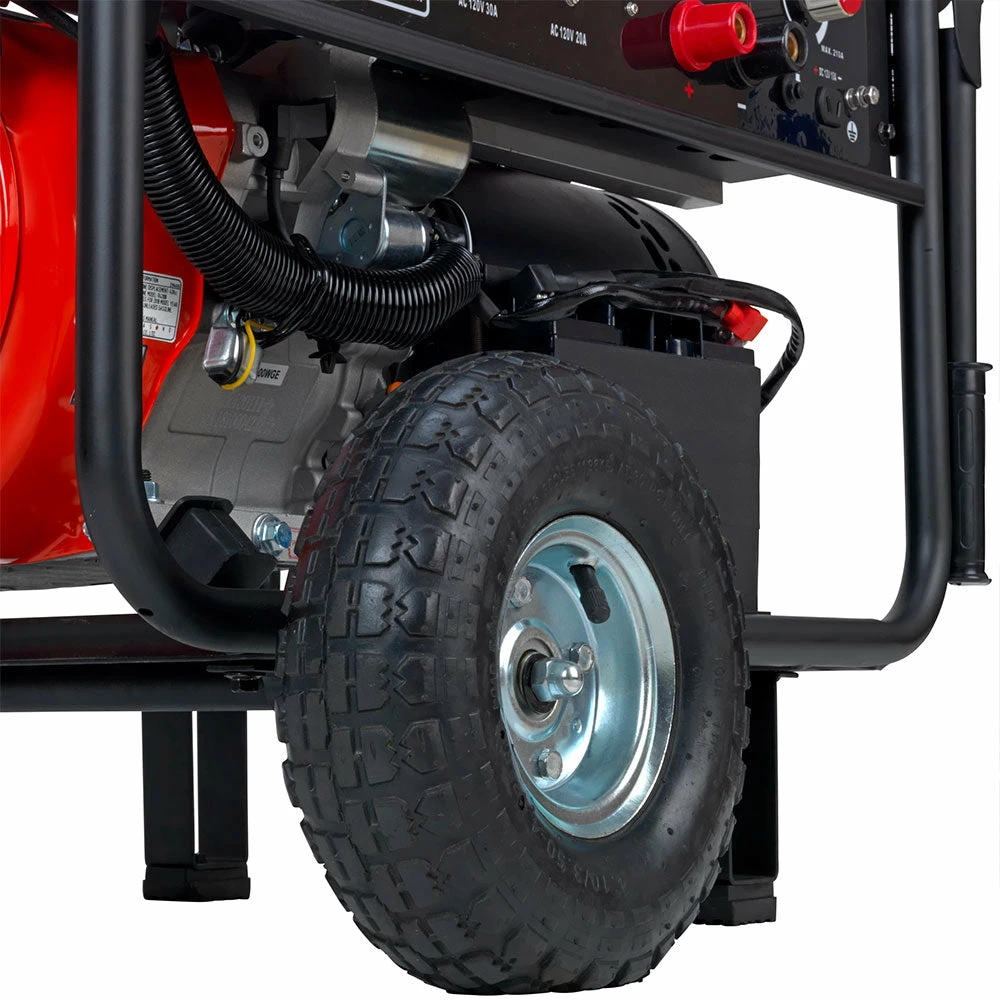

Wheel & Handle Kit	Included
Wheel Type	Metal Hub
Wheel Diameter	10-Inches
