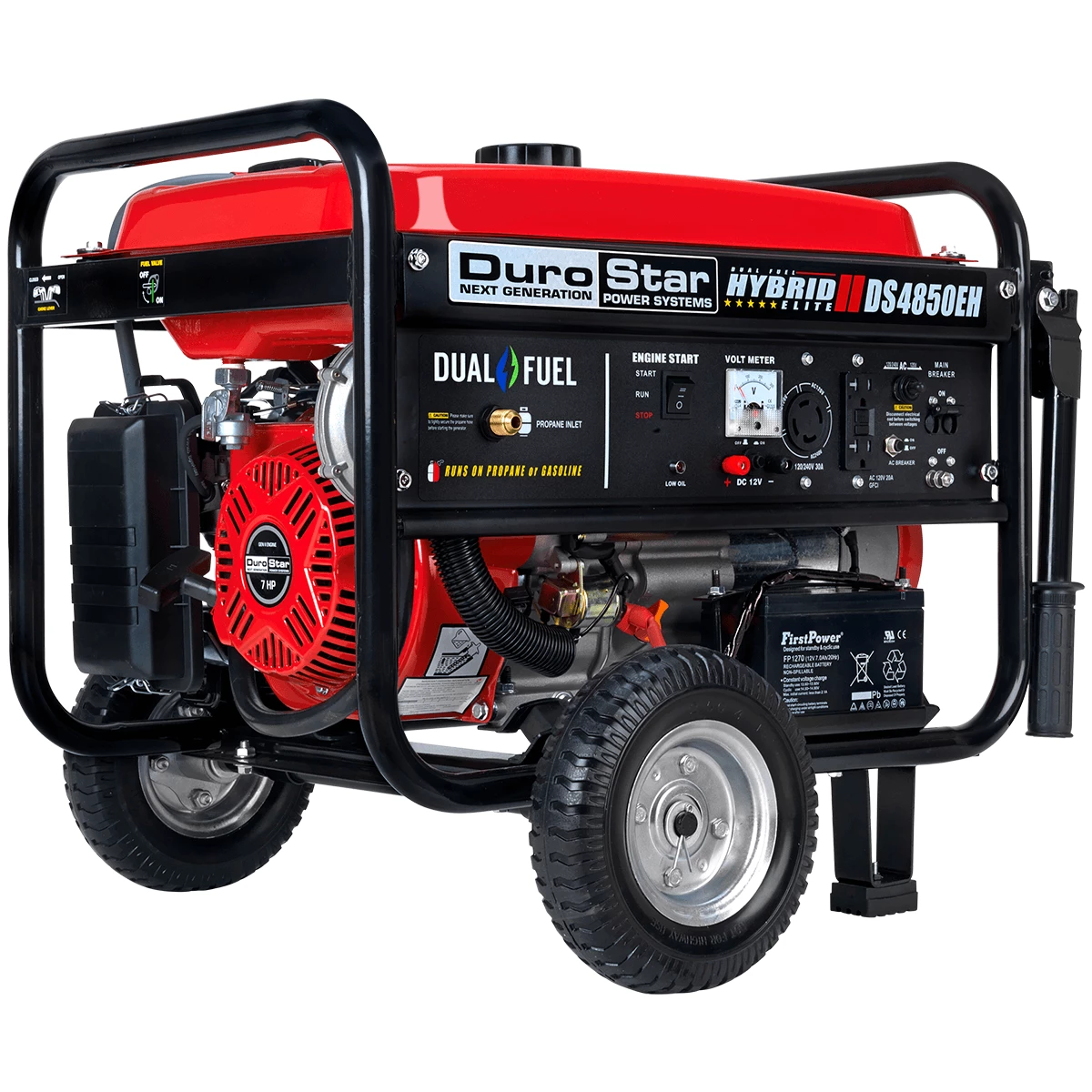

DuroStar DS4850EH 4,850-Watt Dual Fuel Generator W/ Electric Start

Features

• Powerful Engine is able to accept high wattage loads with ease.
• This Generator has endless uses; from Home Standby Power, Jobsites to a Weekend with the RV.
• Equipped with Low Oil Protection, AC and DC Regulators, and a Spark Arrestor, Your unit will remain safe and in top operating condition.
• This unit was designed to allow anyone to start and operate. This model comes with an easy Electric Start.
• Simply turn the key and start the Generator.
• Simply use the E-Z 1-Pull Recoil Cord to start the Generator.
• Our Friendly Technicians know these units inside and out. Have a Technical Question? Give them a call and they will be glad to help you out.
• Allows the user to get maximum power from each of the 120 Volt Receptacle. It also allows the user to choose between operating the Generator at both 120V and 240V simultaneously, or at 120 only with full power. It is recommended that the Voltage Selector switch always be in the 120V position unless 240V is required.
• Durable DuroStar air cooled with low oil shutoff.
• Electric Key Start for easy starting when you need it.
• Heavy duty steel frame comprised of 1-Inch steel tubing.
• Generator sits on frame with four point isolated motor mounts for smooth operation.
• Clean running propane will not gum up or damage the carburetor.
• Unlike gasoline, liquid propane can be stored for years.
• Flexible line allows for connecting to tanks of any size.

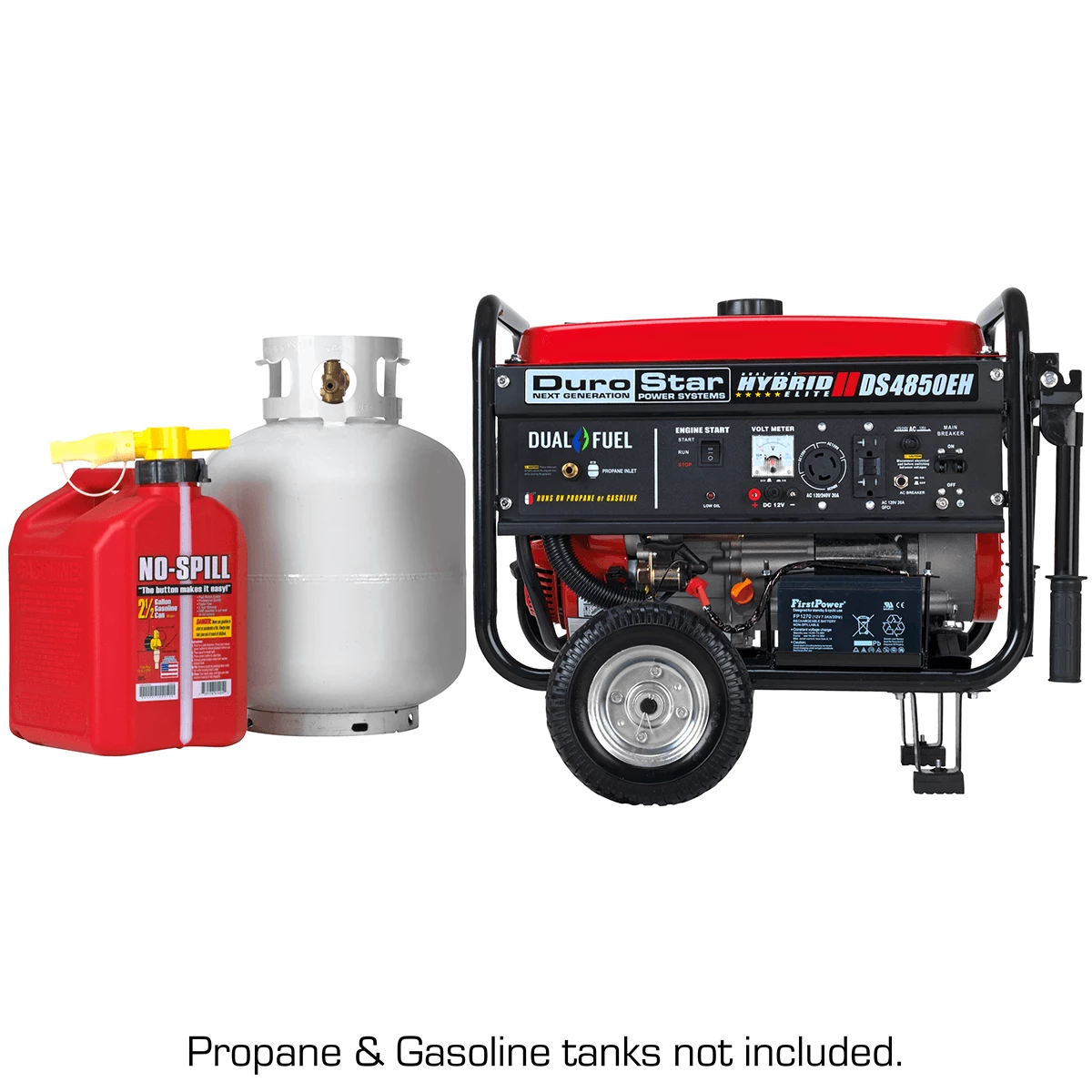

• Designed to run on gasoline or propane for maximum convenience.

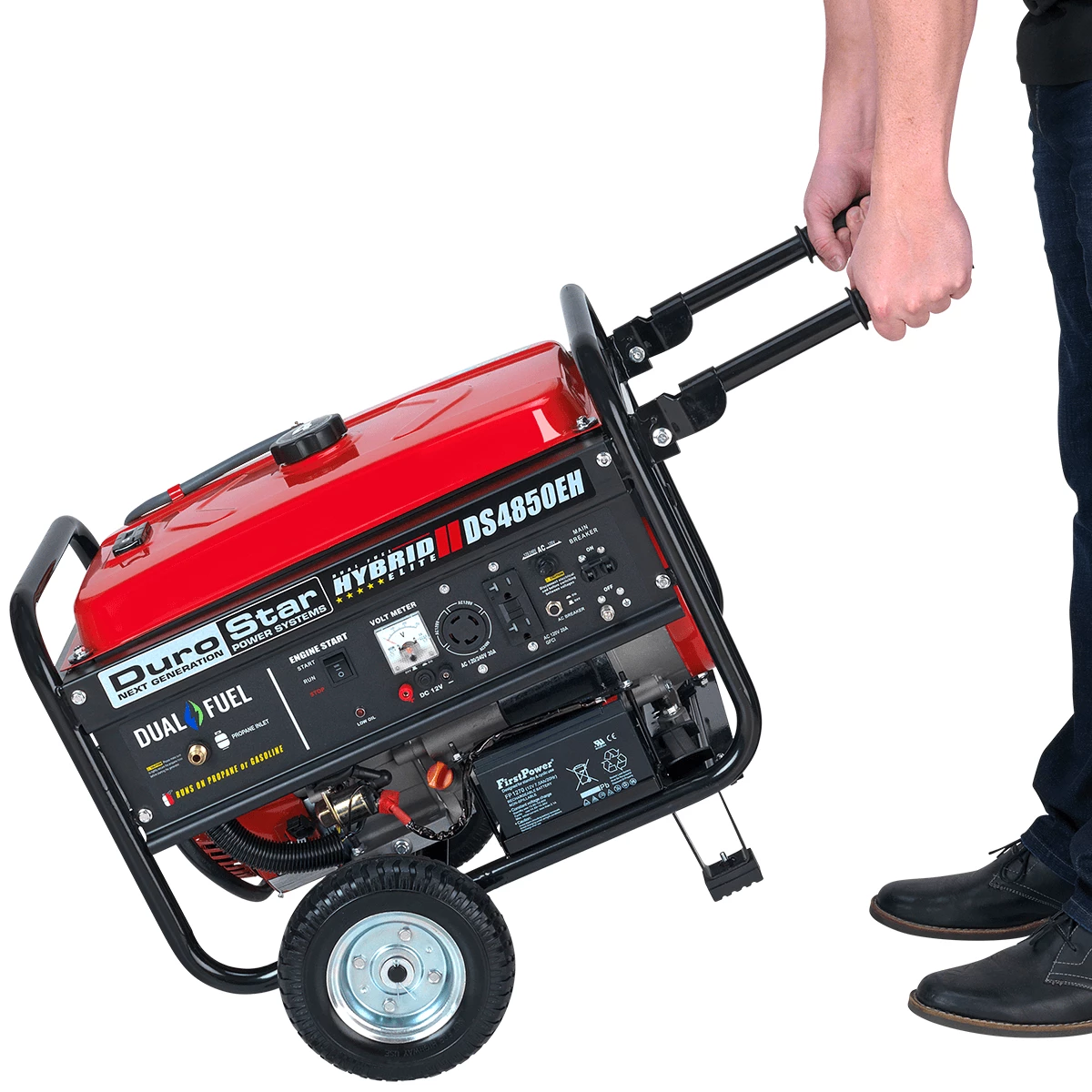

• Wheel kit w/ front handle for easy transporting.
• Full power panel with engine shutoff , volt meter, circuit breaker and power outlets.
• Run Time Gasoline – Up to 8 Hours at 1/2-Load
• Run Time Propane – Up to 9 Hours at 1/2-Load on 20 lb. Tank
• Low oil shut-off protects engine.
• Super quiet muffler reduces engine noise.
• Idle control holds RPM at a constant level even under heavy loads for fuel savings and noise reduction.
• Full EPA and CARB Compliance allows for operation in all 50 States

What’s in The Box

• DuroStar DS4850EH Electric Start Generator.

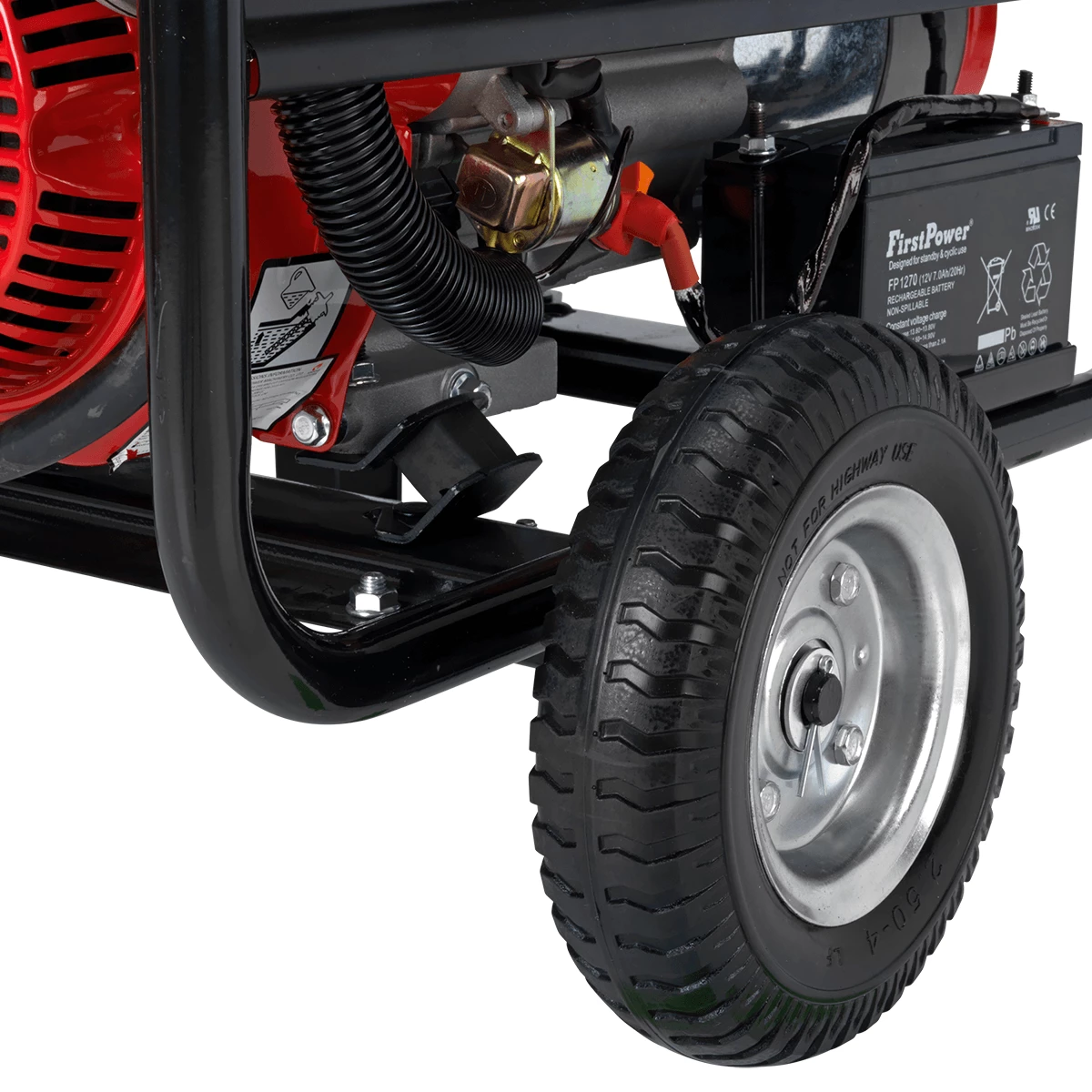

• Extra large 8 Pneumatic Knobby Style Solid Fill Tires.
• Flip-Up Stow Away Handles.
• Generator Tool Kit.
• Owner’s Manual

Warranty

• 3-Year Residential Limited Factory Warranty
• 1-Year Commercial Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Brand	DuroStar Power Equipment
Model	DS4850EH
Gasoline
Peak Wattage	4,850
Running Wattage	3,850
Running Amperage at 120V	32.08
Running Amperage at 240V	16.04
Runtime at 25% Load	23 hours
Runtime at 50% Load	10 hours
Propane
Peak Wattage	4,608
Running Wattage	3,658
Running Amperage at 120V	30.48
Running Amperage at 240V	15.24
Runtime at 25% Load	18 hours
Runtime at 50% Load	9 hours
Engine Specification
Engine Type	4-Stroke
Valve Type	OHV
Engine Cooling Type	Forced Air
Engine Size	210cc
Engine Speed	3600 RPM
Starting Type	Rocker Switch
Electric Start	Yes
Recoil Start	Yes
Fuel Delivery System	Carburetor
Fuel Types	Gasoline and Propane
Oil Cooling Type	Splash
Recommended Oil	10W-30
Recommended Oil Types	Blended, Conventional, or Synthetic
Oil Capacity	20.3 fluid oz
Suggested Propane Tank Size	20 lbs. minimum
Automatic Low Oil Shutdown	Yes
Cast Iron Sleeve	Yes
Bearing Type	Stainless Steel Ball Bearing
EPA Certified	Yes
CARB Certified	Yes
50 State Emissions	Yes
Panel Specification
GFCI Outlets	Yes
Volt Meter	Analog
5-20R	2
L14-30R	1
12V Post	1
Generator Specification
Voltage	120/240 Volts
Frequency	60 Hertz
GFCI Outlets	Yes
Propane Hose & Regulator	Included
Winding Material	100% Copper Windings
Automatic Voltage Regulator	Yes
Battery Type	12V SLA
Battery Included	Yes
RV Ready	Yes
Home Backup Ready	Yes

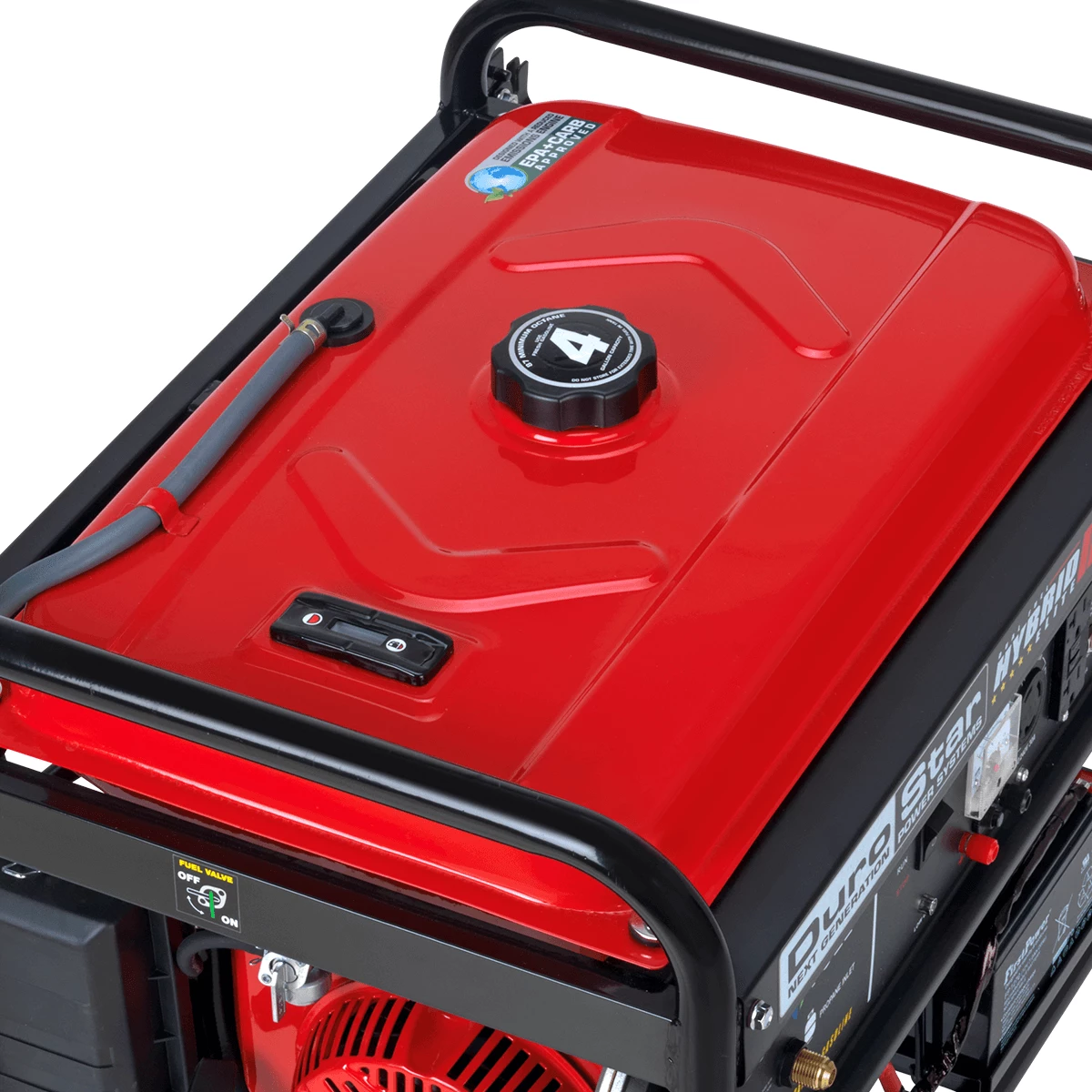

Fuel Tank Capacity Gasoline	4 Gallons
Fuel Gauge	Yes
All Metal Construction	Yes
Product Dimensions	25″-Long x 24″-Wide x 21″-High
Product Dry Weight	122-lbs
Product Weight	132-lbs
Volume (db)	69 dB
UPC	811640015633
Warranty	3 Year
Wheel & Handle Kit	Included
Wheel Type	Metal Hub
Wheel Diameter	8-Inches
