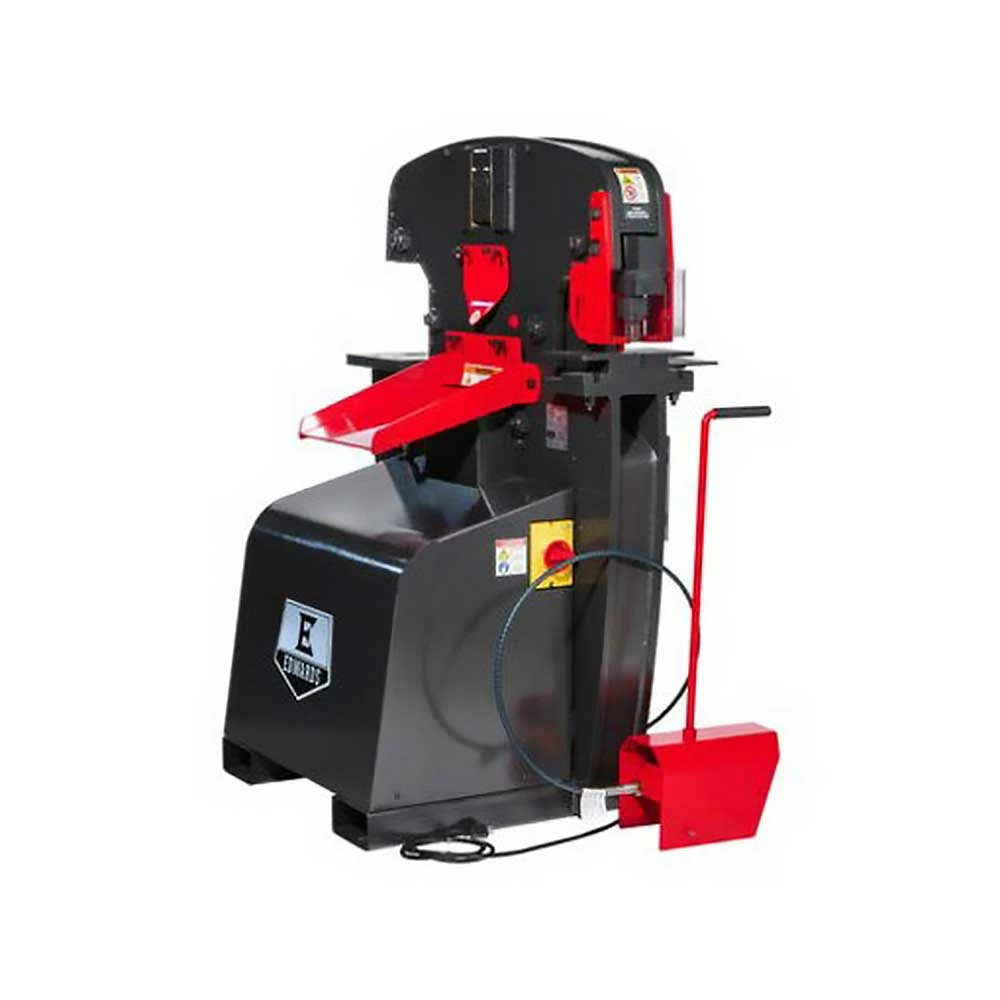

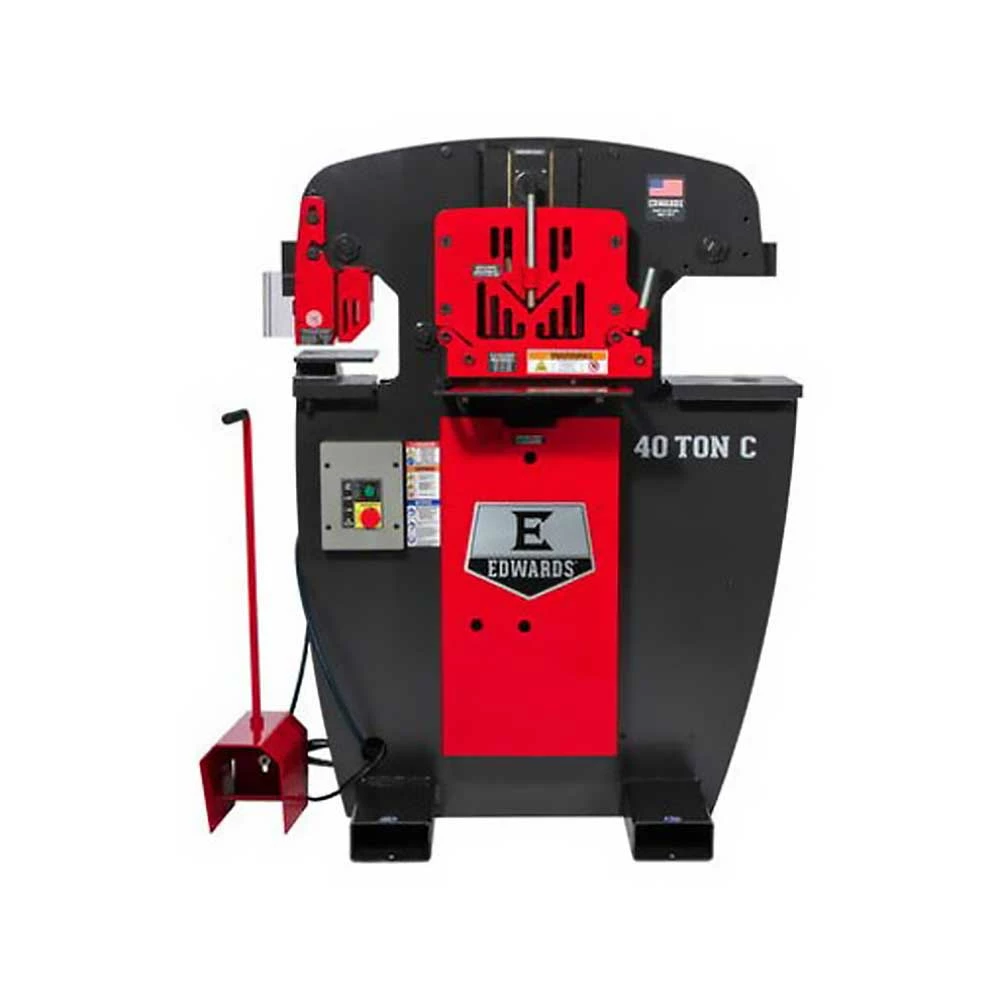

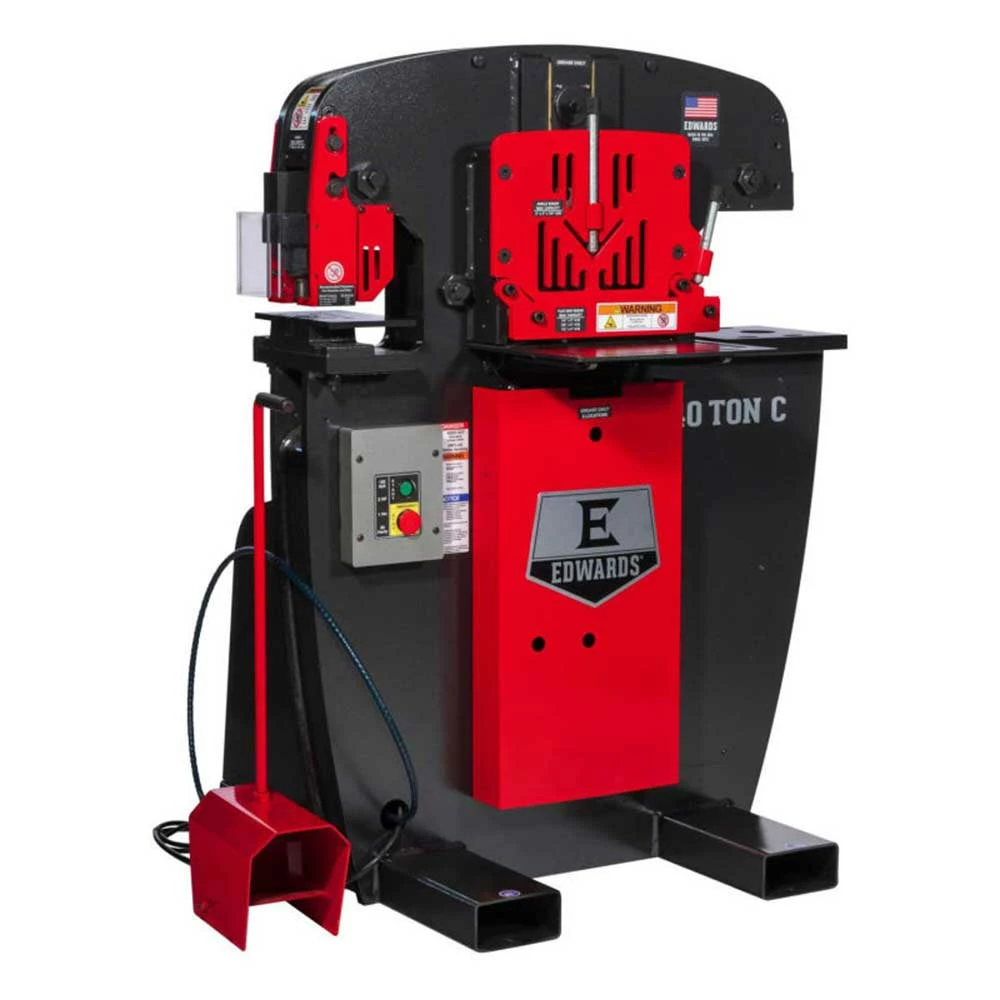

Edwards IW40C-1P120 115V 40 Ton Single Phase Heavy Duty Ironworker

Features

• Four Workstations: Standard (3) – Punch, Flat Bar Shear and Angle Shear. Open (1) – Customize your ironworker with 11 optional Attachments.
• 16 optional Accessories available to increase precision and efficiency.
• Operates off 115V power allowing use almost anywhere.
• Optimized workstation heights for improved efficiency.
• ANSI B11.5-1988(02) Compliant Guarding.
• ETL Certified Controls.
• Integrated Lock-out/Tag-out system with E-Stop for added safety construction.

What’s in The Box

• 4 – Stations
• Shear
• Punching station
• Angle shear
• Open station for optional tooling
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	IW40C-1P120
Brand	Edwards
Volts	115V
Horsepower	2
Valve Pressure	2750 PSI
Stations	4
Rated Capacity	40 tons
Punching Capacity	1 in diameter in 1/2 plate
Punching Throat Depth	7 in
Punching Work Height	36.5 in
Flat Bar Shearing Max Width	1/4 x 8 in
Flat Bar Shearing Max Thickness	1/2 x 4 in
Flat Bar Shearing Max Round Cap	1/2 in
Flat Bar Shearing Max Square Cap	1/2 in
Flat Bar Shearing Work Height	34.7 in
Angle Shear Max Size 90 Degree	3 x 3 x 1/4 in
Angle Shear Work height	40 in
Open Station Work Height	34.5 in
Throat Depth	10.5 in
Stroke	1-5/8 in
Dimensions (L x W x H)	36 x 40 x 53 in
Weight	1720 lbs
