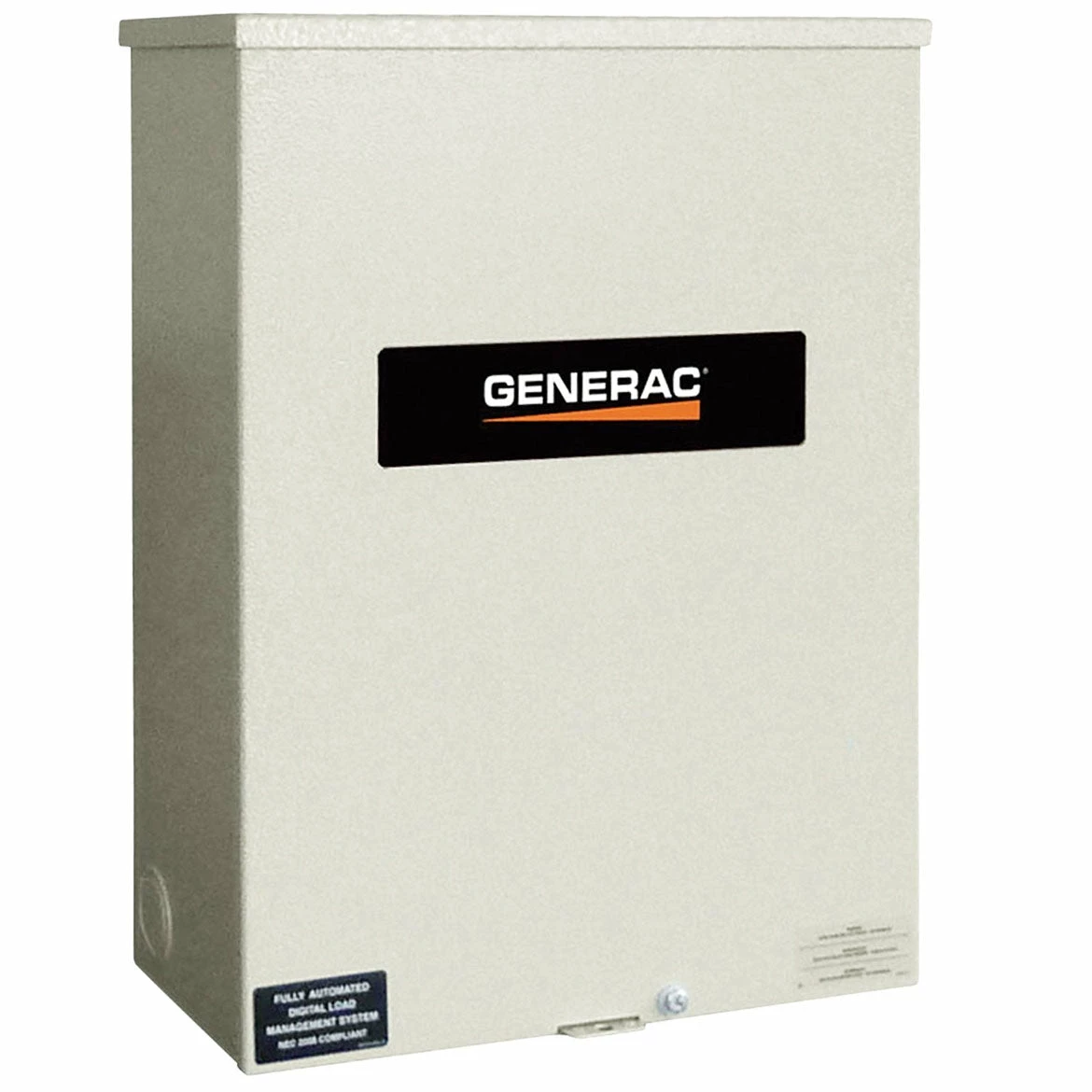

Generac GNC-RTSN400J3 120/240V Guardian 400-Amp Automatic Transfer Switch

Features

• Generac3-Phase Automatic Transfer Switch Only works with Generac 120/240V 3-Phase generators
• Fully Automatic Operation
• Standard Installation May require a sub-panel or disconnect for serviceability
• Larger Applications
• Nema 3R Aluminum Enclosure
• For Use With Generac Generators Only

What’s in The Box

• Guardian 400-Amp Automatic Transfer Switch (120/240V 3-Phase)
• Owner’s Manual

Warranty

• 2 Year Factory Warranty;
• 30 Day Satisfaction Guarantee

pr

Specifications

Model	RTSN400J3
Brand	Generac
Voltage	120/240 Three-Phase
Frequency	60 Hertz
Rated Amps	400 Amps
ATS Poles	3 Poles
Max Generator Input	400 Amps
Max Utility Input	400 Amps
Enclosure	NEMA 3R
UL Listed	Yes
Weight (lbs.)	107 (48.54 kgs.)
Dimensions (LxWxH)(in.)	36 x 24 x 10 (91.44 x 60.96 x 25.40 cm)
