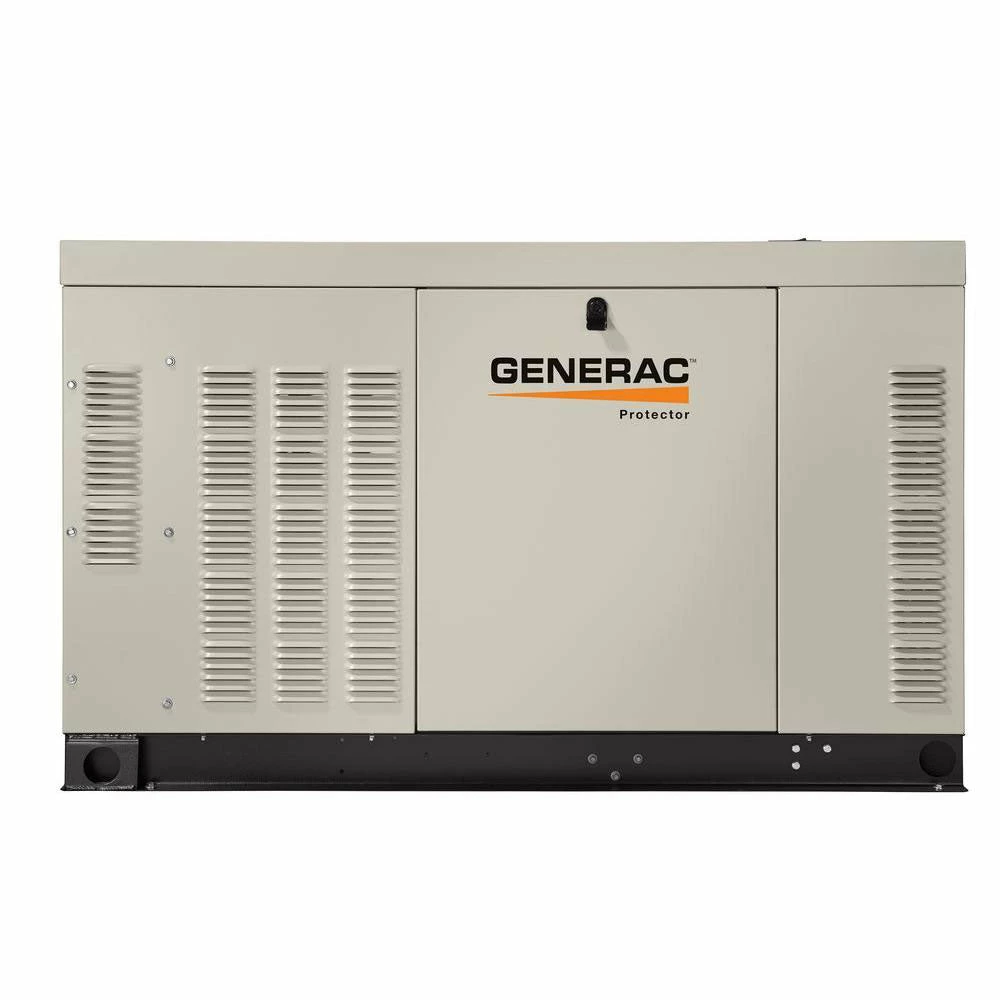

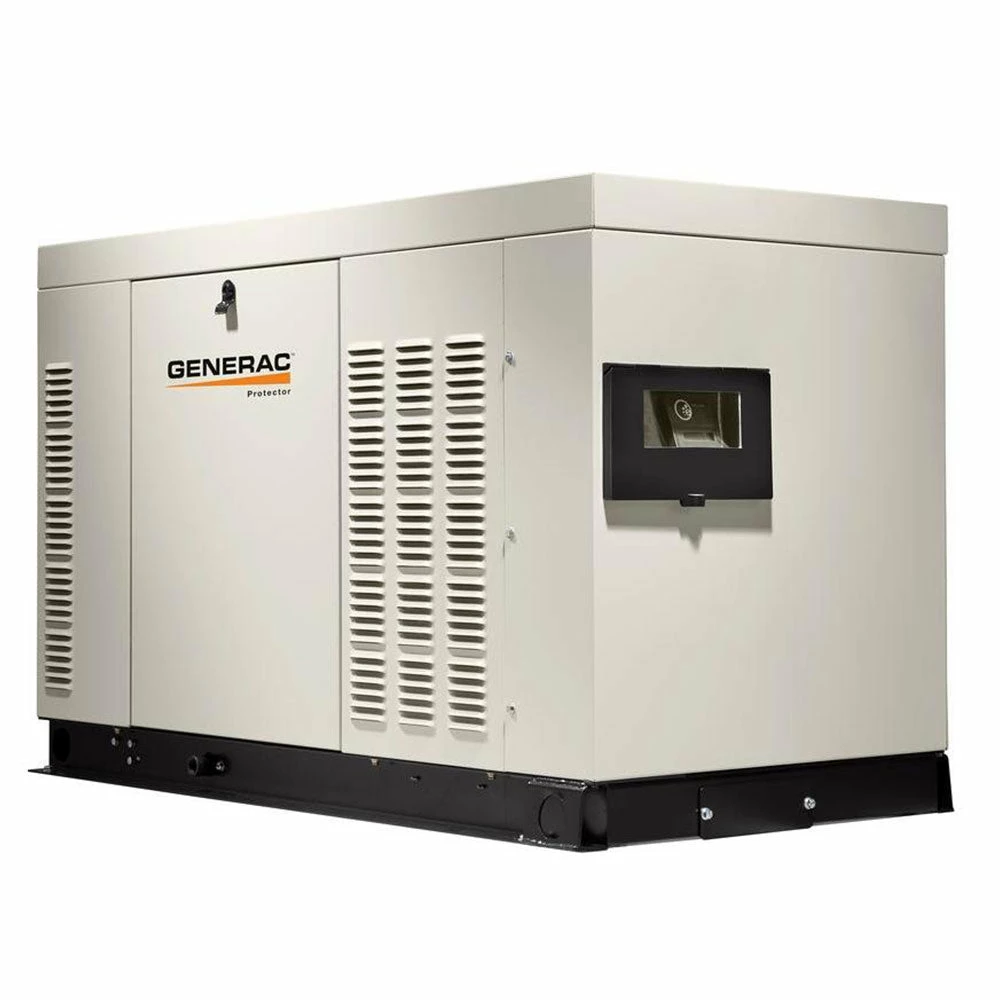

Generac RG02224GNAX 22kW 120/208V Protector QS Automatic On Standby Generator

Features

• Premium-Grade Standby Generator
• For small commercial buildings with 120/208V 3-Phase service
• Runs off natural gas or LP fuel supply
• Quiet-Test
• Low-speed exercise mode for quieter weekly tests; 61 dB at 23 ft
• Multi-Lingual Evolution Controller
• Two-Line LCD Display provides service and maintenance intervals

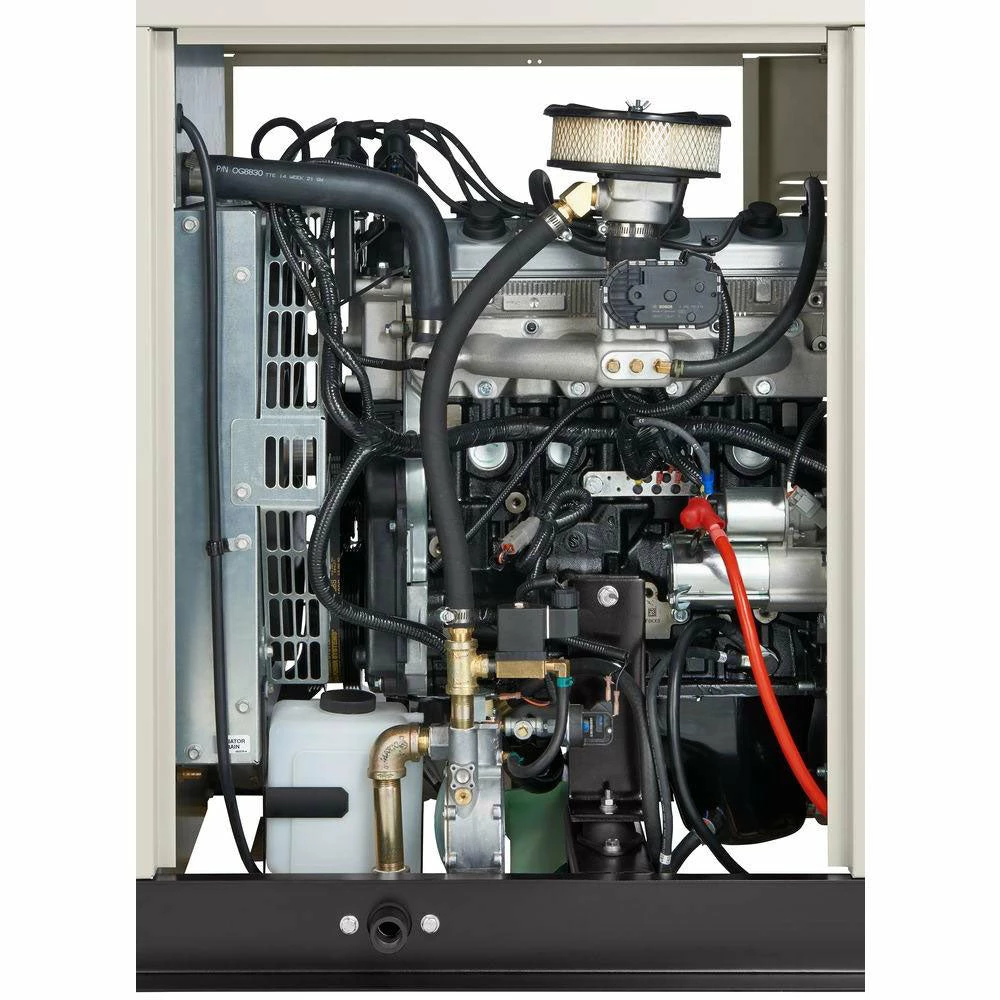

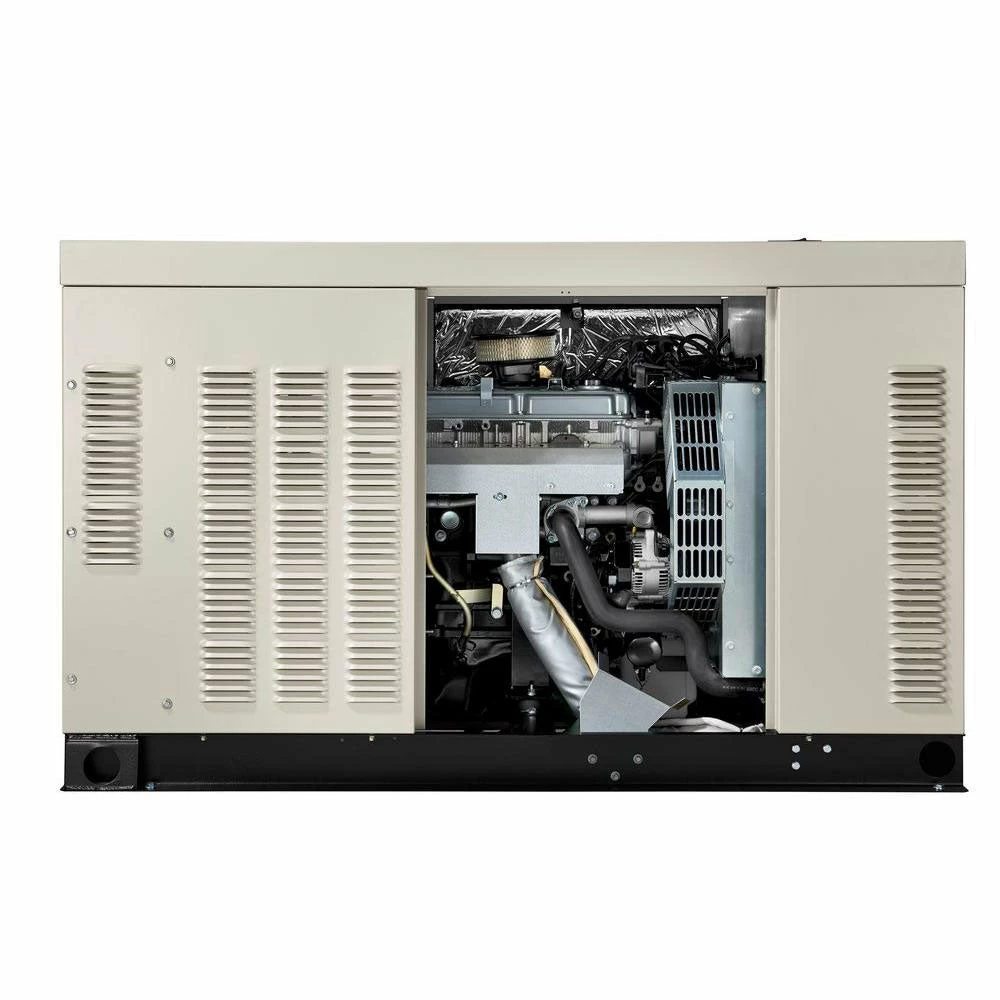

• Automotive-Style Engine
• Powerful Generac in-line 4-cylinder liquid-cooled engine
• Operates at half the speed of other engines (1800 vs 3600 RPM)
• Sound Attenuated, Acoustically Designed Aluminum Enclosure
• Corrosion-resistant material ideal for salty air conditions
• Lockable, external viewing window for quick status check
• Automatic Shutdown Safety Feature
• High coolant temp, low coolant, low oil pressure and overspeed

What’s in The Box

• Generac 22kW 120/208V Protector QS Automatic Standby Generator NG/LP – RG02224GNAX
• Owner’s Manual

Warranty

• 5 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	RG02224GNAX
Brand	Generac
Product Specs
Voltage	120/208 3 Phase
Frequency	60 hertz
Rated Watts	22000
Fuel Type	LP/Natural Gas
NG Fuel Consumption at 50 percent Load	190 ft/hr
NG Fuel Consumption at 100 percent Load	316 ft/hr
LP Fuel Consumption at 50 percent Load	5 gallons
LP Fuel Consumption at 100 percent Load	9 gallons
Rated Amps	76 amps
Decibel Rating	61 test
Transfer Switch	Automatic
Enclosure	Aluminum
Mounting pad	Concrete
Cooling System	Liquid Cooled
Engine
Engine Brand	Generac 2.4L 4-Cylinder
Starting System	12V Auto Start
CC	2400
RPM	1800
Dimensions
Length	62 in
Width	30 in
Height	38 in
Weight	843 lbs
