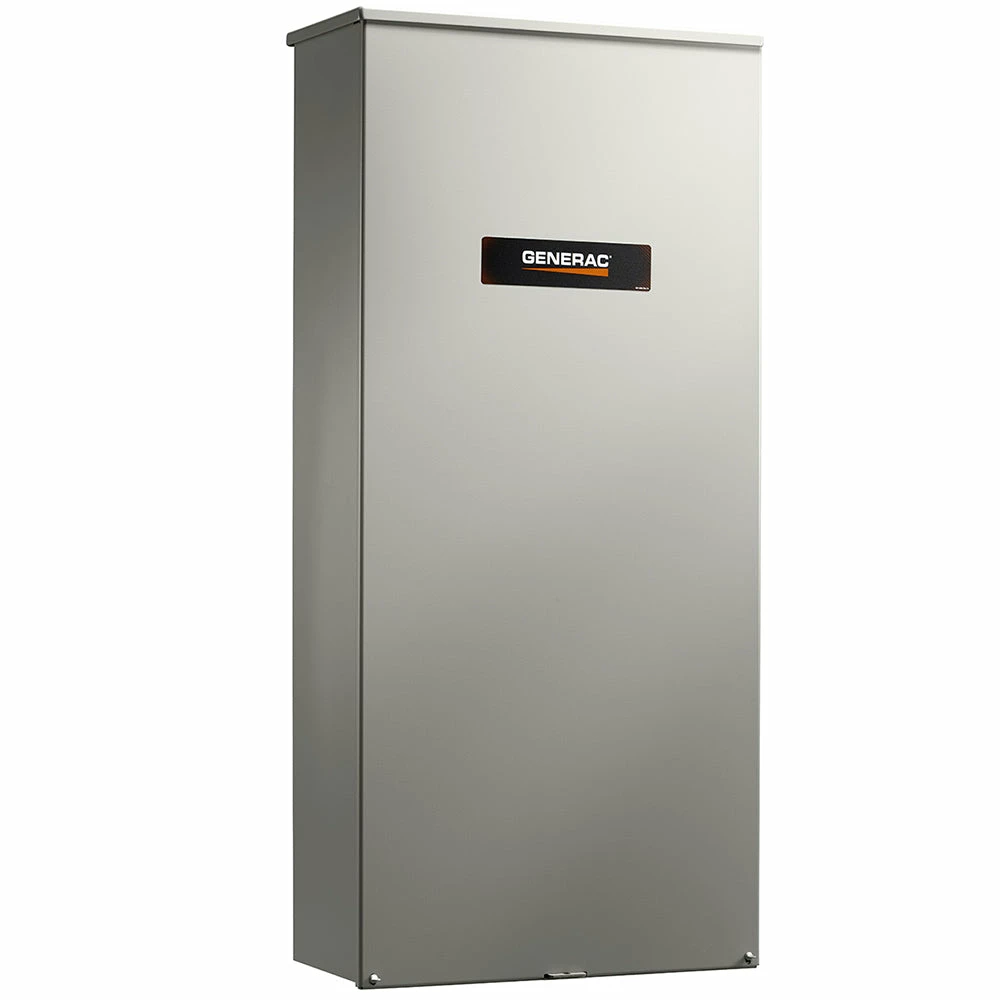

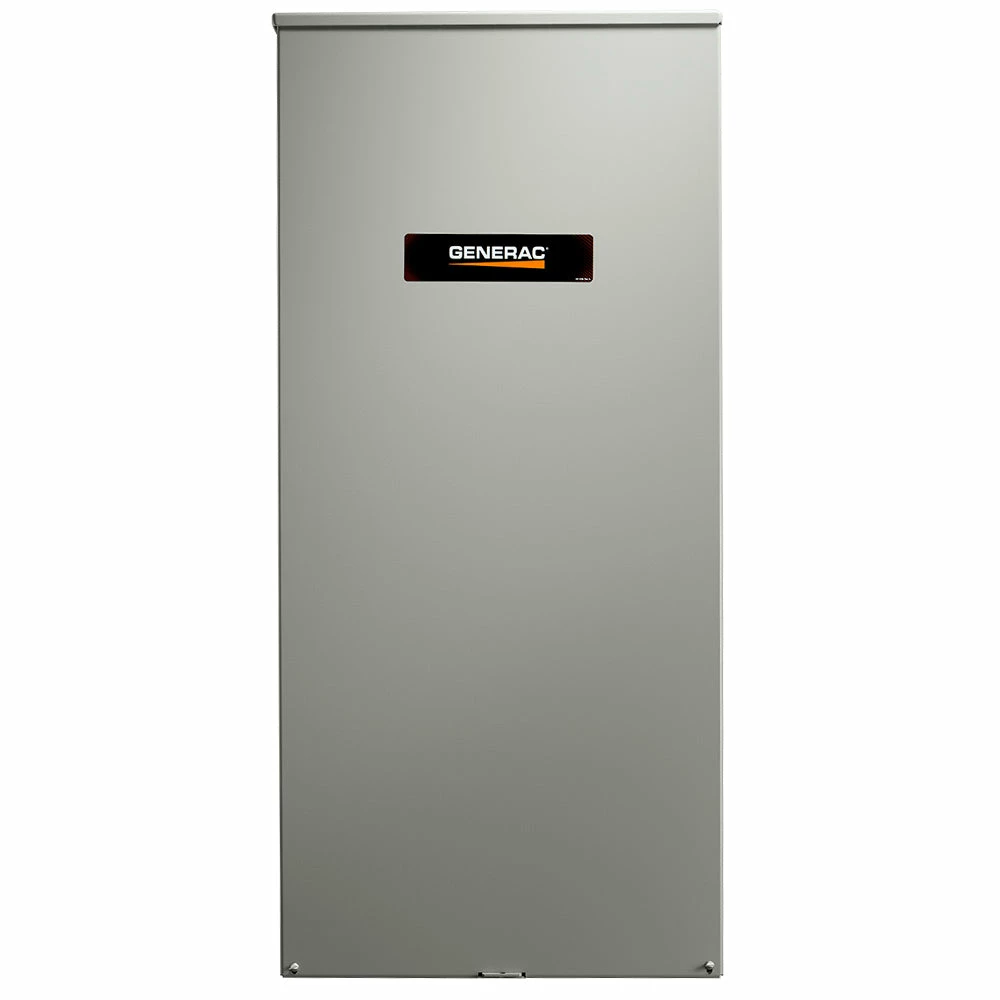

Generac RTSW100J3 120/240-Volt 100-Amp 3-Phase Automatic Transfer Switch

Features

• Open-transition transfer switches are designed to operate with Generac’s digital control on air-cooled generators
• The Nexus and Evolution controllers used on liquid-cooled generators from 22 to 150kW

What’s in The Box

• 120/240-Volt 20,000-Watt 100-Amp Automatic Transfer Switch – RTSW100J3
• Owner’s Manual

Warranty

• 1-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	RTSW100J3
Brand	Generac
Max. Wattage	20,000
Max. Amps	100
Voltage	240
Max. Wire Size	2/0 – 14 AWG
Automatic Exerciser	No
Enclosure Material	Aluminum
Time Delay Transfer	Yes
Sensing Line Failure	.9
Max. Number of Tandem Breakers	0
Repeat of Exercise Cycle	7
Lockable	No
2-Wire Start	No
Manual Override	Yes
Sensing Generator Hz	No
Phase	3
Enclosure Type	NEMA 3R
