Generac RXEMW200A3 200 Amp PWRView Automatic Transfer Switch W/NEMA 3R Enclosure

Features

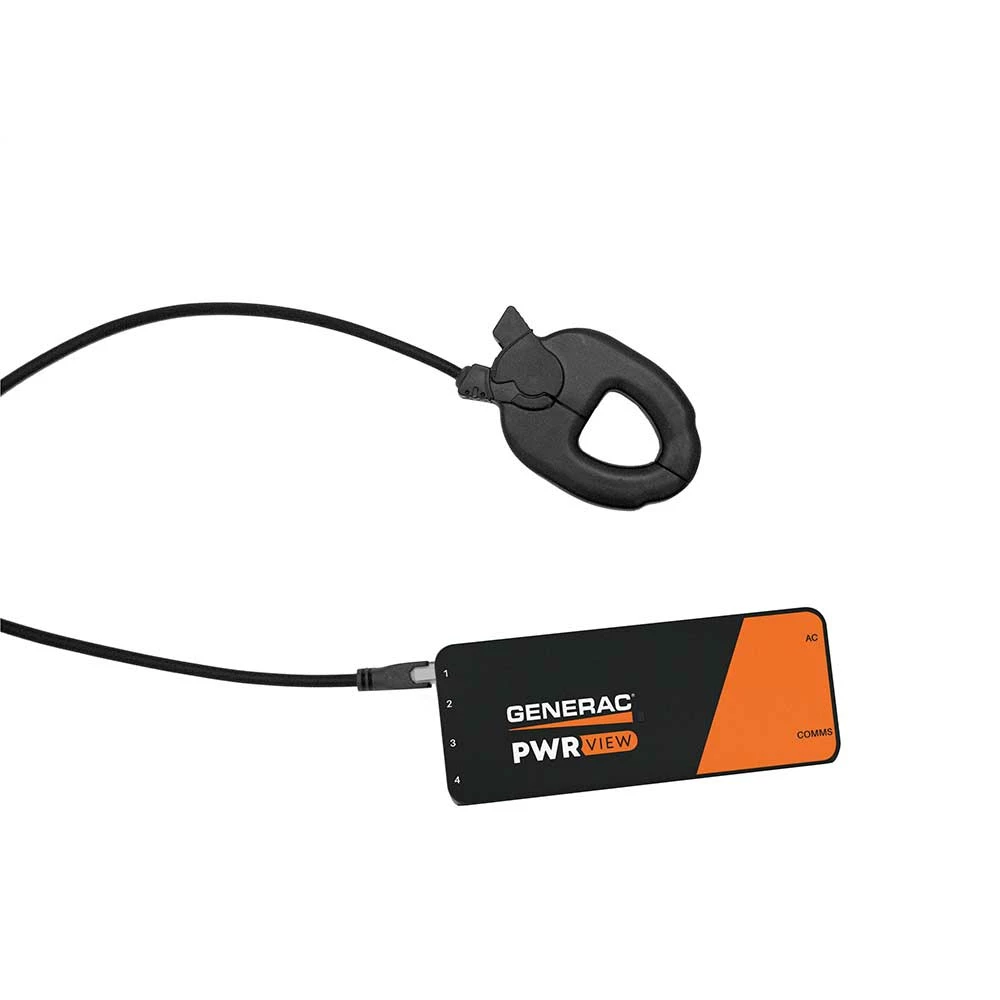

• Through the use of integrated Smart A/C Module (SACM), these switches can manage 4 individual HVAC loads with no additional hardware.
• When used in tandem with Smart Management Modules (SMM), a total of eight more loads can be managed.
• The 200amp, the open transition transfer switch is designed for use with single-phase generators that utilize an Evolution or Nexus Controller.

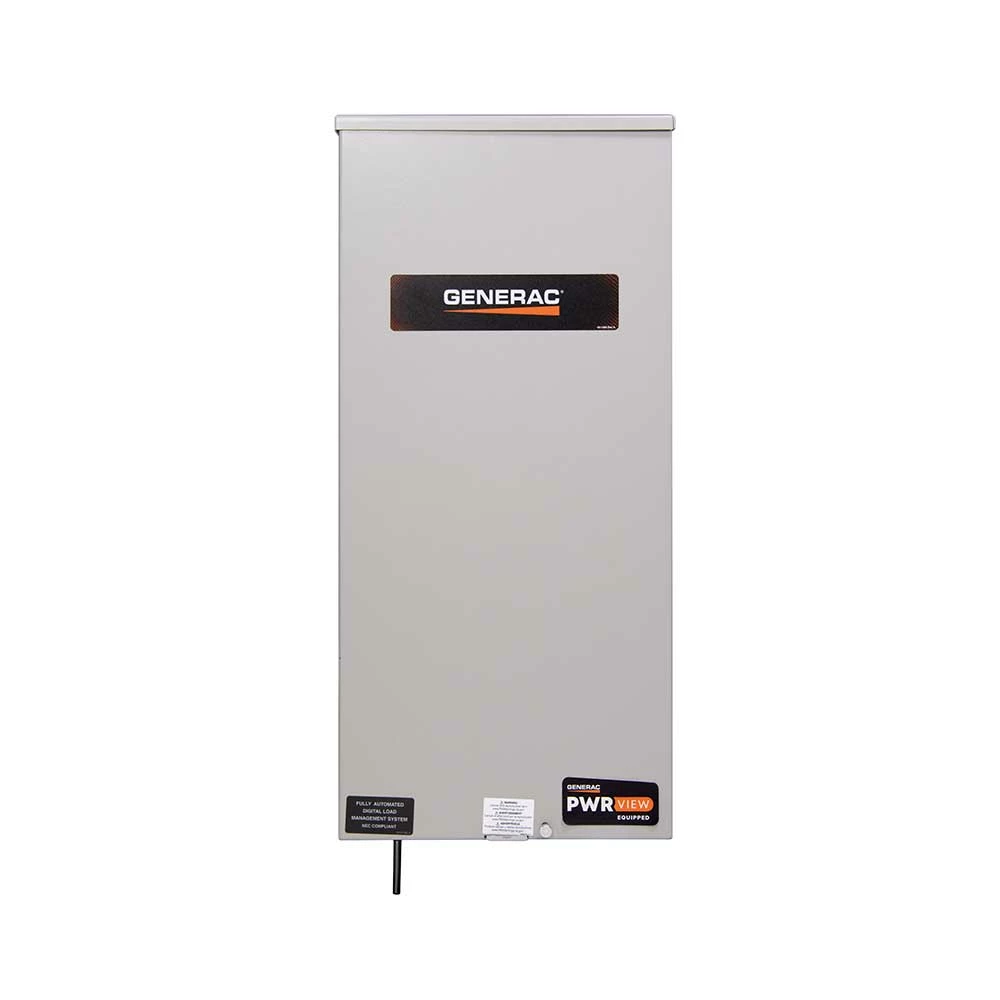

• Aluminum NEMA/EUL Type 3R (indoor-outdoor) enclosure with electrostatically applied and baked powder paint provides additional corrosion protection.

What’s in The Box

• Generac PWRView Automatic Transfer Switch – RXEMW200A3
• Owner’s Manual

Warranty

• 5 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	RXEMW200A3
Brand	Generac
Voltage	120/240V, 150A/200A
Phase	Single-Phase
Frequency	50/60 Hertz
Rated Amps	200 Amps
Enclosure	NEMA 3R
Transfer Switch Style	Service Disconnect
Max Utility Input	200 Amps
Max Generator Input	200 Amps
Product Dimensions (LxWxH)	6.3 x 13.5 x 30 In.
Shiping Weight (lbs)	39 lbs
